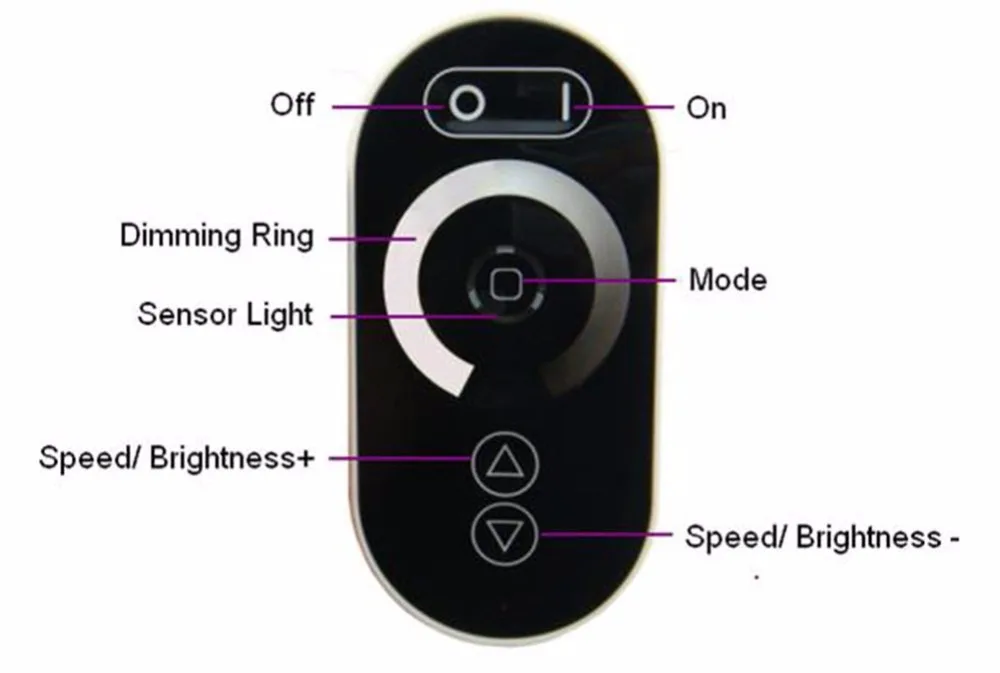

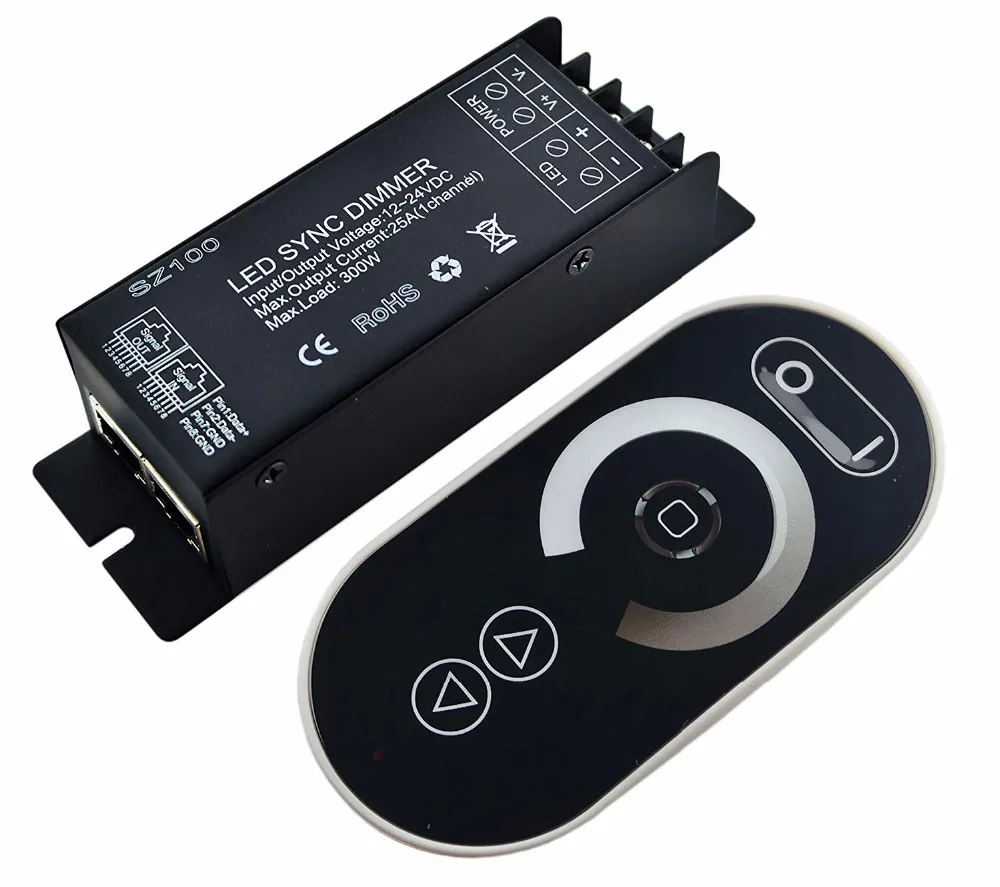

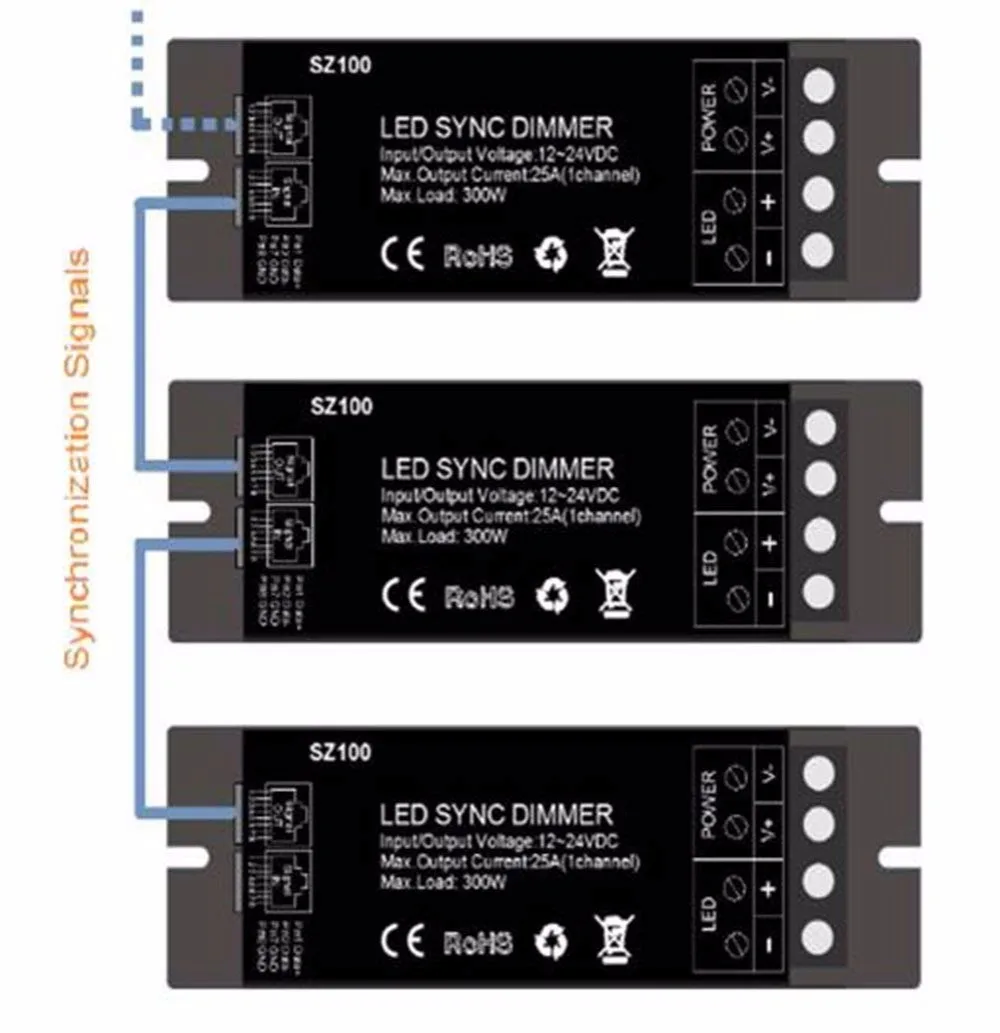

RF Touch Dimmer Dimmer adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt full touch RF remote control. 5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value. Particularly, there is a sense light in the remote control center. It shows the exactly light which was be touched. As the led strip is the same brightness level. Further, there are 3 dynamic modes in the mode button, and the speed is adjustable. In order to achieve the market need, the synchronization work of more lamps, it is designed the conjunction-sync-work function with RJ45 connecter, user-friendly.

Technical Parameters
Controller

Working temperature: -20-60℃
Supply voltage: DC12V-24V
Static power consumption: <1W
Connecting mode: common anode
Grayscale: 256 levels
Speed stage: 100 grade
External dimension: L127*W41*H32 mm
Packing size: L147*W85*H73 mm
N.W: 240g
G. W: 320g
Output: 1 channels
Output current: ≤25A
Mode: 3
Remote distance: Up to 20M
PWM frequency: 433.92Mhz
Memory function: support
Max. Output power: 12V-24v:<300W

Remote control

Working temperature: -20℃~60℃
Supply voltage: DC4.5V（AAA*3pcs）
Standby current: <8uA
Working current: <30mA
Standby power: <36uW
Working power: 135mW
N.W: 90g
RF frequency: 433.92MHz
External dimension: L113*W55*H22 mm
RF distance: ≤20m

3 modes in total as below:
1 Static 100% light Brightness is adjustable, speed is unadjustable
2 flash Model Speed is adjustable, brightness is unadjustable
3 fade Model Speed is adjustable, brightness is unadjustable
