Description:
100% brand new and high quality!
Strong anti-radio frequency interference, not affected by temperature, humidity, light, air current, dust.
It can be installed in a non-metallic outer casing of plastic, glass or wood of a certain thickness.
The utility model has the advantages of low cost, high sensitivity, stable and reliable work, and large adjustable range.
It has been widely used in car and home security systems.
The SMT chip process is used internally, and the sensor can also be used with a single chip microcomputer, a wireless transmitting module, and a wired alarm.
Tips:
A. The host cannot be placed on the iron plate during installation.
B. The installation position should be in a horizontal plane with the object to be measured.
C. The negative trigger input terminal cannot be directly connected to the high level, and the current limiting resistor is used to limit the current.

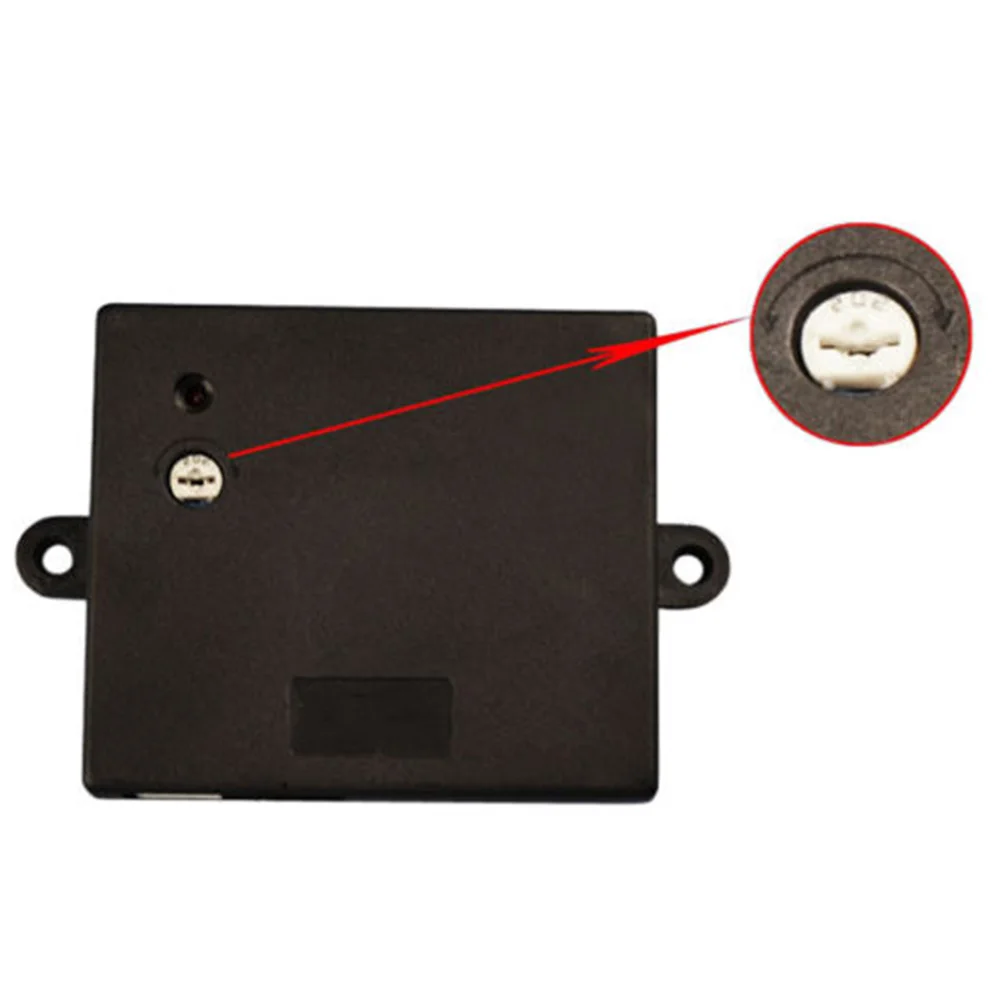

D. Sensitivity adjustment is small to the left and large to the right.

Specification:
Main material: fire proof ABS
Color: black
Working voltage: 12V
Working frequency: 1.2gh2
Working current: <10mA
Output mode: NPN always open negative trigger
Sensitivity: adjustable
Detection range: 0-3 m
Application: moving object detection
Size: 70*60*13.5 mm(approx)
Applications: security products, human body induction toys, human body induction lamps, industrial automation controls, etc.

Package:

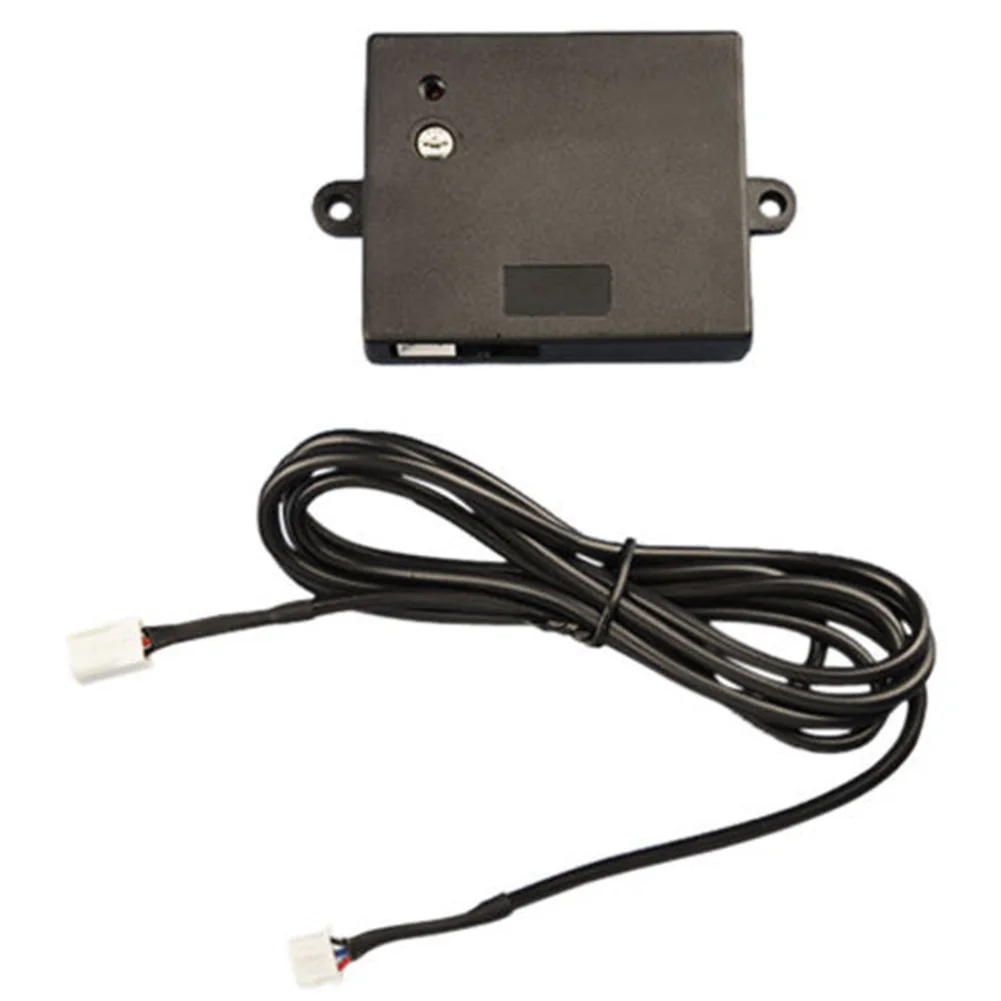

1 pc * Microwave sensor
1 pc * Cable

Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 cm differences due to manual measurement.
