Thermal Imaging Camera Infrared Imager Night Vision FLIR ONE PRO Gen 3 Use for iphone ipad iOS or Android Type-C | Инструменты

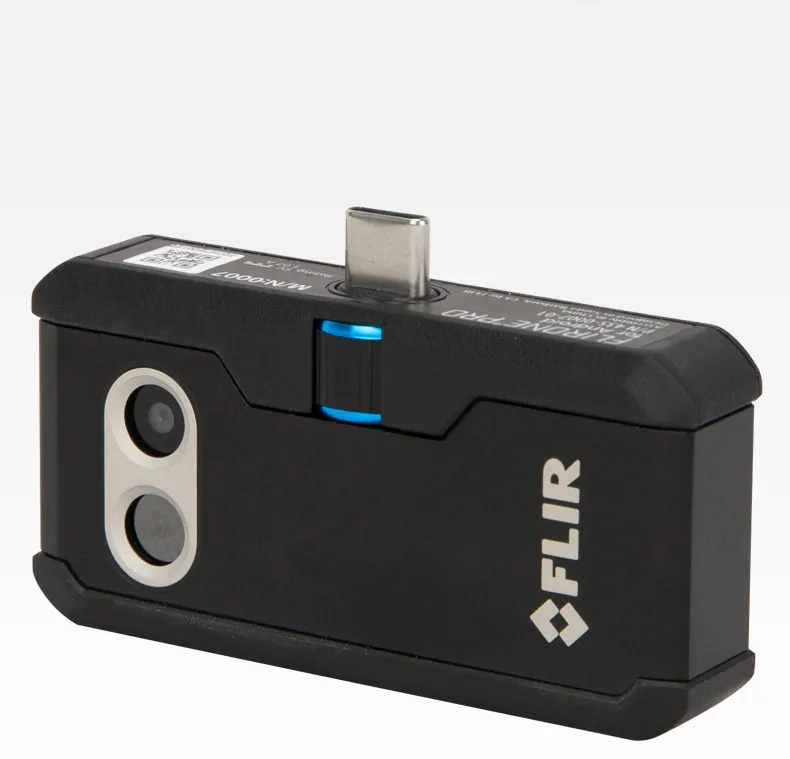

Thermal Imaging Camera Infrared Imager Night Vision FLIR ONE PRO Gen 3 Use for iphone ipad iOS or Android or Type-C



Features:

Thermal imaging can be used day and night, as long as the object (thermal energy) emits infrared light, it can receive images within a certain distance.

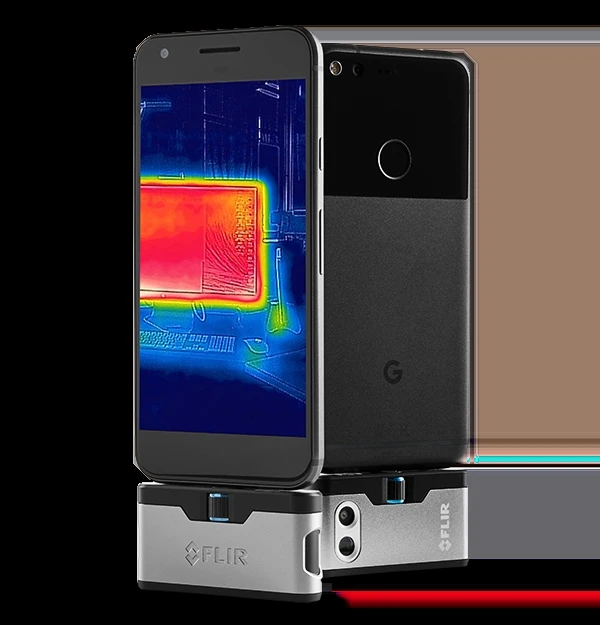

Easy to use, you just need to download the "Thermal Viewer" software on the mobile phone, then insert the thermal imager into your phone and the "Thermal Viewer" software will be opened automatically.
If your phone does't have USB Type C interface, please use original adapter for conversion, the product contains an adapter.
Made of fine quality materials, practical and has a long service life.
There is a small storage box that can protect the thermal imager for easy storage.
Function: center point temperature display, point temperature measurement, image fusion, mirroring, temperature unit setting, palette setting, face detection On/Off, taking photo, video recording, picture/video viewing.

FLIR ONE PRO SPECIFICATIONS

Model Number FLIR ONE Pro General Certifications MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 Operating temperature 0 °C – 35 °C (32°F – 95°F) , battery charging 0 °C – 30 °C (32°F – 86°F) Non-operating temperature -20 °C – 60 °C (-4°F – 140°F) Size 68mm W x34mm H x14mm D (2.7in x 1.3in x .6in) Weight 36.5g Mechanical shock Drop from 1.8m Video Thermal and visual cameras with MSX Thermal sensor Pixel size 12μm, 8 – 14μm spectral range Thermal resolution 160x120 Visual resolution 1440x1080 HFOV / VFOV 55° ± 1° / 43° ± 1°   Frame rate 8.7Hz Focus Fixed 15cm – Infinity Radiometry Scene dynamic range -20°C – 400°C, -4°F - 752°F Accuracy ±3°C or ±5%, typical
Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 °C – 35 °C and the scene is within 5 °C – 120 °C. Thermal sensitivity (MRDT) 150mK Emissivity settings Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Reflected background temperature is 22°C Shutter Automatic/Manual Power Battery life Approximately 1h Battery charge time 40min Interfaces Video Male Lightning (iOS), Male USB-C (Android) Charging Female USB-C (5V/1A) App Video and still image display/capture Saved as 1440x1080 File formats Still images – radiometric jpeg
Video – MPEG-4 (file format MOV (iOS), MP4 (Android)) Capture modes Video, Still image, Time lapse Palettes Gray (white hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava and Wheel. Spot meter Off / °C / °F. Resolution 0.1°C / 0.1°F Adjustable MSX distance 0.3m – Infinity Battery charge monitor 0 – 100%

FLIR ONE （Gen3）：

Specifications 1，Scene temperature range: -4°F to 248 °F (20 °to 120 °C)- 2，Working temperature: 32 °F to 95 °F (0 °C and 35 °C) 3，Video camera: VGA 1440 x 1080 (for FLIR MSX mixing) 4，Sensitivity:It can detect small to 0.18 ° F (0.1 ° C) changes in temperature 5，Device compatibility: Android products including usb-c 6，Colorpalette (B/W, W/B, rainbow, contrast, North Pole, hot/cold, cast iron 9) 7，MSX mixing (increases the visible spectral detail and enhanced resolution of the thermal image)       Features include FLIR ONE Panorama, FLIR ONE TimeLapse, FLIR ONE Paint and FLIR ONE CloseUp       Static  8，image capture 9，Video capture (.mov format) 10，°F and °C temperature reading thermometer (point) 11，Easy to share (Twitter, Facebook, Instagram, email, SMS, etc.) 12，Copy the image to the paper roll 13，Battery charging monitor 14，Automatic thermal shutter 15，Charging method: microusb and 1A socket charger (which can only be charged for FLIR ONE, not the device) 16，Battery capacity: 350 mA/h 17，FLIR ONE does not consume the battery power of the device or charge it The FILR automatically switches to a low power mode during inactive state and extends its battery life 18,Weight: 30 g 19,Thermal resolution :  80x60 20,Certificates and standards: FCC, CE, RoHS, CAN ICES-3 (B)/nmb-3 (B), ULUL. The FLIR ONE application is free to enhance the FLIR ONE device experience with a simple and intuitive user interface, as well as various functions to collect and share meaningful and useful thermal images. Resolution:





H.Q.S

2019-1-23
