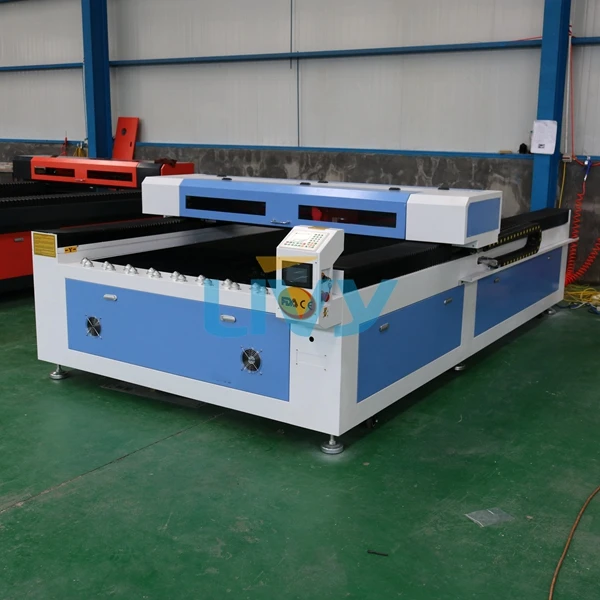

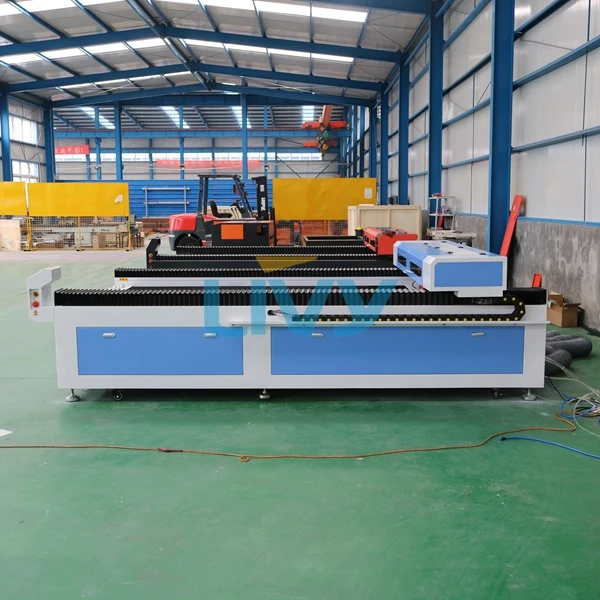

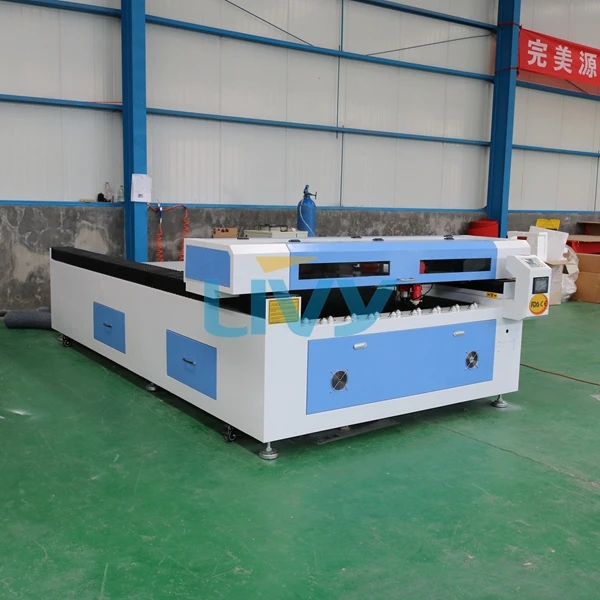

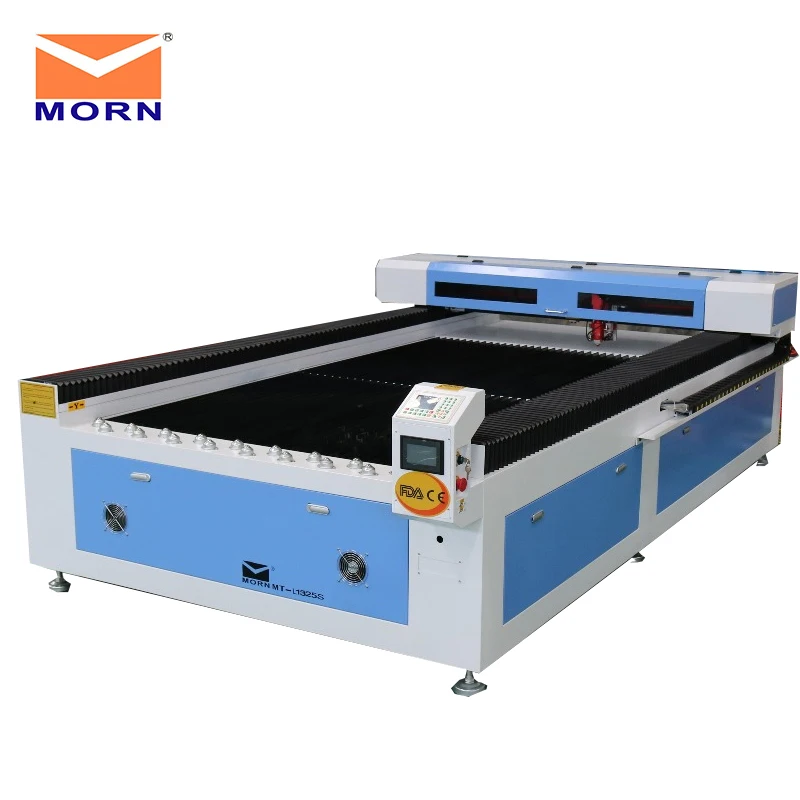

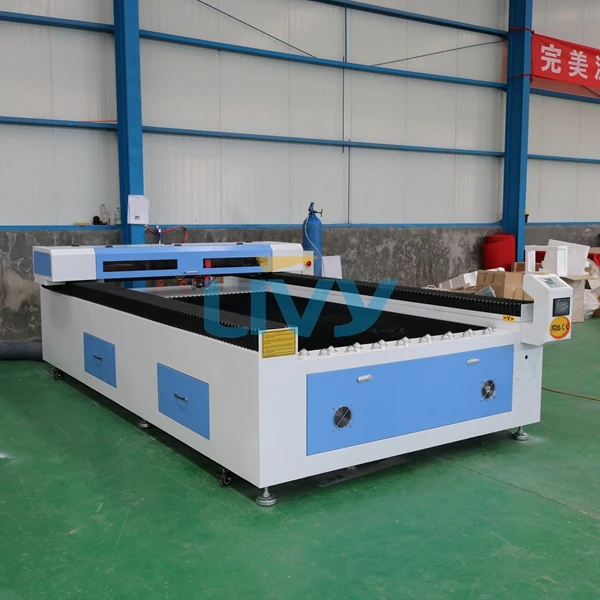

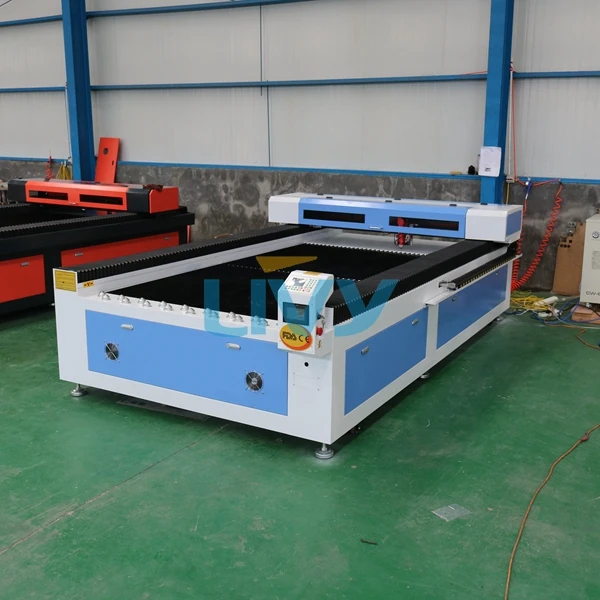

CNC Cutting And Engraving Machine Professional Strip work table

NOTES: This price is FOB price. Please contact us to confirm the shipping cost before order.

1) Mix Cutting: The metal plate cutter supports both metal and non-metal Cutting, which can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.

2) The metal plate cutter adopts 150w / 180w / 260w / 300w Laser Tube, high power, 10000 hours long life span.

3) Adopt Japan Imported Motor and Ball Screw Transmission Rod, with fast speed and high precision.

4) This metal plate cutter adopts dynamic auto-focusing metal sheet laser cutting head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.

5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which make the metal plate cutter can not only work without computer, but also connect to U disk, USB communication.

6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

7) This steel sheet cutter use imported high precision linear guide rail and professional optical system, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.

8) Professional Strip work table: meets the needs of diversified laser procession;

9) Water Cooling System with Alarm Protection, adopt CW-5000 or CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

10) Equipped with luxury Consumables,USA original Focus Lens and reflect mirror, steel sheet cutter makes high efficiency and steady.

11) Red Light Pointer realizes the exact position without laser.

12) Matched Professional cutting software is particularly designed and written for both metal and non-metallic cutting, with high compatibility, support any computer operating system.

13)The steel sheet cutter can also called mdf laser cut, acrylic cutter.

Max working area

1300*2500mm

Laser tube type

Hermetic CO2 glass tube

Laser tube watts

130W/150W/280W/300W

Motion drive system

High-speed stepper motors

Control system

Advanced DSP control system

Resolution rate

0.05mm

Resolution

4500 dpi

Intelligent memory

Store unlimited files up to 128MB

Compatible software

Coreldraw,Autocad,Photoshop

Minimun character

English 1*1mm

Electrical requirements

AC 110-220V ±10%

Print interface

Ethernet or USB interface.Compatible with windows8/7/XP,et

Smart and easy to use control system that supports offline operation

The MORN CO2 laser cutting machine is widely used in various industries, including advertising, arts and crafts, leather, toys, garments, upholstery, embroidery, packaging, paper, etc.

The material possibilities are endless: fabrics, labels, paper boards, leather, embroidery, acrylic, wood, paper, rubber, plastic, marble, granite, stone, etc.

Common power and cutting capabilities:

130W-180W: 0-1.2mm SS, 0-1.8mm CS, 0-20mm acrylic, 0-18mm plywood, 0-8mm MDF

280W-300W: 0-2mm SS, 0-3mm CS, 0-30mm acrylic. 0-25mm plywood, 0-20mm MDF

1. Machine user manual in English. (If you need, we also offer user manual in different languages;

2. Technical support for whole lifetime;

3.  solutions for whole lifetime;

4.  cutting and engraving 2 years warranty.

1.If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.

For Russia, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.

2. When payment and shipping information are confirmed, shipping will be made within 7 working days.

3. It's FOB Qingdao trade term. The buyer should pay shipping cost, surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and CIF terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).

4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.

5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.

6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.

7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours

Your feedback is really important to us, please take a few seconds to leave great feedback if you are satisfied with our product or service, so many thanks!

If our goods or service does not satisfy you, or any questions, please contact us and give us a chance to improve before open a dispute or leaving any type of feedback.
