Newest designed laser welder hand-held laser welding machine for metal materials

Attention: This price is FOB price. Please contact us to confirm cost of freight before order.

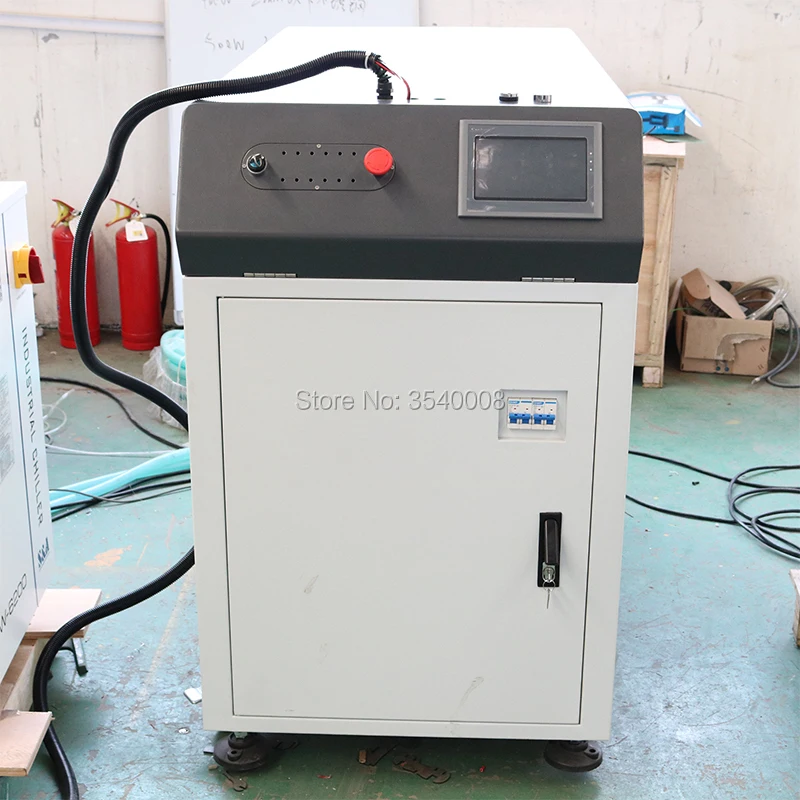

PRODUCT PHOTOS

Laser welding machine was mainly for thin materials, precision parts welding, spot welding, butt welding, etc. MT-HW200 was researched and developed independently by our company with small volume and low cost. Movable or fixable tools can be added with laser welding according to requirements of customers.

CHARACTERISTICS

1)  Accurately and precision welding machine, can welding small and complex font and LOGO, fast speed, no color difference after welding, no trace, no need to handle, beautiful appearance.

2) No raised welding spot on welding surface. Do not need polishing grinding process, save work time. Appearance is beautiful.

3) Laser welding Processing without noise, non-pollution

4) Specific to advertising industry, special long light path, 360 degrees of arbitrary rotation, larger scale range.

5) Welding machine Optional with a CCD monitor, the welding effect is more clear and intuitive.

SPECIFICATION

Model No.

MT-HW200

Laser type

YAG Lamp tube

Laser Power

200W (400W optional)

Load Bearing

≤200KG

Spot Size

0.2-1.8mm

Welding depth

0.2-1mm

Laser Wave Length

1064nm

Impulse Width

≤10ms

Laser Cooling

Water cooling

Water cooling

CW6000 (depends on laser power)

Total Power

<5KW

Welding accuracy

0.1mm

PRODUCT DETAILS

Name: Control panel
Original: China
Located on surface of the machine, very easy to adjust parameters and much easier to weld on metal products.

Name: Welding head

Original: China
Welding head is movable, with long fiber welding wire.

So it is suit to weld on fixed products, big products, metal building, cars, sculptures, ship, etc.

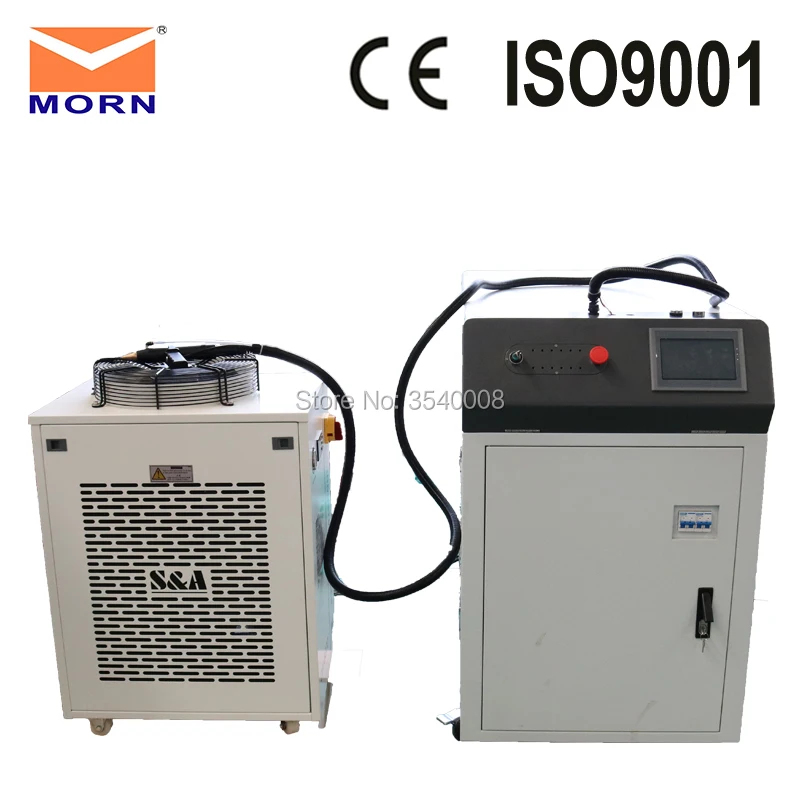

Name: Water cooling system
Original: China
Constant temperatuer controller for cooling during the machine welding. Assistant part of the machine.

Name: YAG laser lamp tube

Original: China
The lamp tube of the laser welding machine uses the reserve electrode as the emitting electrode of the lamp, which has the characteristics of high load intensity, good laser beam quality, long service life and so on.

APPLICATION

Laser Welding Machine Applied Industries:

1. Auto parts industry, Engine cylinder gasket, Hydraulic tappet seal welding.

2. Filter seal welding, The sport plug welding, The valve push rod welding.

3. Anti-collision airbag electric detonator seal welding, The crankshaft or cylinder liner or heat treatment, etc.

4. Stainless steel advertising words, Microelectronics components, precision parts. High digital components, optical fiber connector, medical apparatus and instruments, etc.

Laser Welding Machine Applied Materials:

Titanium, aluminum, copper, zinc, gold, sliver and many other metal and alloy, carbon steel and stainless steel materials, and also cooper-brass, cooper-titanium, nickel-cooper, cooper-titanium and many other heterogeneous metals.

SAMPLES

OUR SERVICE

Pre-Sales Service

· Focus on Every Customer’s Need:

Tell your needs or confusions about laser machines and laser business, and we’ll put 100% effort to help you found the most suitable laser solution.

· Free Consultation and Market Analysis:

Free consultation and laser market analysis are provided to help you start up laser business and get returns with MORN high quality and economical laser machines.

· Customized Product Solutions and Technical Support:

Customized service can meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all each MORN laser product.

· Business Cooperation:

Visits to our factory and office are always welcomed and you’ll experience a fast and efficient way to contact MORN laser machines and manufacturing technologies.

· Professional Training, Longer Warranty and Lifetime Service:

Overseas installation service, online remote control and door-door safety training are offered. Longer warranty and lifetime service can make you feel more reassured.

Quality Control

MORN strictly controls the quality of each laser product to be really responsible for the safe work of every customer. To adhere to the quality and safety standard, each MORN product has to experience strict test procedures in the factory:

1.Machine Appearance:

Standard size, good spray and welding, clear circuit system assembly, and complete parts;

2.Pre-installation:

All machine parts and components will be pre-installed at the factory to remove the potential installation problems customers may come across.

3. Trial Running:

Trial running of laser machine is implemented by sample processing, in which processing speed and precision will be confirmed by customers. Also the machine runs smoothly and steadily, and the control system can accurately control the machine. Tested product that may not meet the expectation will be readjusted until they meet the requirements.

4.Packing:

After the machine is tested successfully, the parts and components will be disassembled into the packing process. Protective film, wooden box and iron frame will be used to tightly pack the machine to avoid being crashed or damaged during transportation.

 As a factory, Every product, Every process, even every screw, must be strictly controlled !

After-Sales Service

After sales service implementation steps

Customers contact us for any improper operation and machine fault by phones, emails or online communication methods.

Senior after sales technicians analyze the fault cause and reply targeted solutions in time, not more than 24 hours.

Maintenance manual, videos and pictures will be sent to customers to help debug the machine. And our technicians will monitor the debugging process constantly.

If the customer failed to repair the machine with offered solutions, our engineers and technicians are available for overseas door-to-door service to resolve the problems completely.

Regularly revisit each customer’s operation condition and file the machine information.

We can also provide independent after sales service and parts for your laser machine you bought from other suppliers. Just like what we do to help those “Need Help!” post writers. Besides, if you want to upgrade your laser machine or broaden business, free consultation and professional solution can be provided for you.

SHIPMENT

1.If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.

For Russia, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.

2. When payment and shipping information are confirmed, shipping will be made within 7 working days.

3. It's FOB Qingdao trade term. The buyer should pay shipping cost, surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and CIF terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).

4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.

5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.

6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.

7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours.

Package details:

1.Standard plywood case, its compressive strength and bearing quality is better.

2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3.When importing, the plywood case is with fumigation, the procedure is simple.
