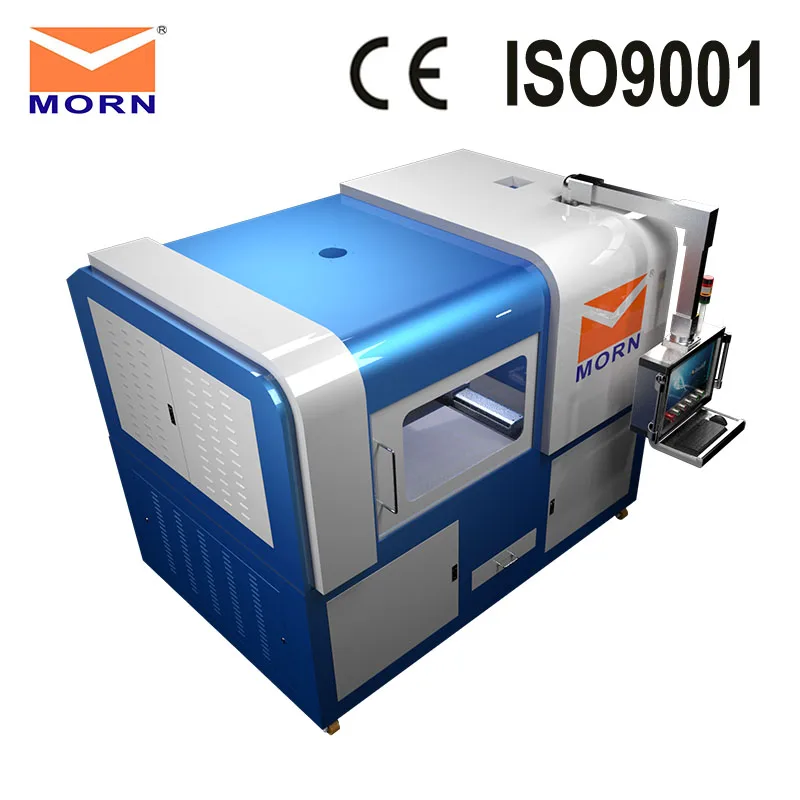

Made in China fully enclosed 6090 cnc fiber laser cutting machine metal sheet for stainless steel silver carbon steel

Technical parameters:

Model

              MT-L6090F

Laser Generator

             750W

Working Area

             600*900mm

Laser Wave Length

             1064nm

Working Table

              Sawtooth

Maximum Idle Running Speed

              80m/min

Position Accuracy

              ±0.02mm/m

Position Speed

              20m/min

Minimum Line Width

              ± 0.1mm

Cutting Thickness

              ≤6mm

Control System

              AU3TECH

Position Type

              red dot

Power Consumption

              ≤6KW

Working Voltage

              380V±10% 50Hz or 220V±10% 60Hz

Auxiliary Gas

             O2,N2,air

Working life of fiber module

            More than 100000 hours

Fiber laser cutting head

             Domestic worthing cutting head with follow system

Driver system

             FUJI servo motor  X-1000w Y-1000w Z-400w

Liner guider system

             HIWIN guide rail made in Taiwan

Transmit system

             XYZ ball screw transmission ensure the the accuracy

Machine weight

          3500KG

Machine details parts:

Working table

Raycus laser source

Laser head

Control system:

C

Control cabinet

Application

Industry: Fiber laser cutting machine is widely used in sheet , metal cutting, electrical switch manufacturing, aerospace, food machinery,

textile machinery, engineering machinery, locomotive manufacturing, household appliances, decoration advertising, etc.

Materials:

Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet cutting, can also be cutting stainless

steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate .

Samples:

Our Payment and warranty

1. Payment term:50% T/T in advance, 50% T/T before shipping.

2.Whole machine for 3 years, generator for 2 years. (Not include consumable parts)

3. Lifelong technical support online or by email

4.24 hours online service to help you use our machine well

5.Offer oversea service for training,installing,operating if necessary

6. Will offer you manueal and operating producer when deliver the machine

7.Offer training at our factory for free(you could visit us and learn)

FAQ

1. Q1: I know nothing about this machine, what kind of machine should I choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you professional solutions and suggestions.

Q2: When I got this machine, but I don‘t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information:
1)Your metal or non-metal material size.Because in our factory, we have different models according to working area.
2)Your materials.
Stainless/ Carbon steel/ Aluminum/ Copper/ Acrylic/ Plywood/ MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power

supplier.

Notes

1. If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.

For Russia and Ukraine, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.

2. When payment and shipping information are confirmed, shipping will be made within 7 working days.

3. It's CIF trade term (insurance included). The buyer should pay surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and FOB terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).

4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.

5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.

6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.

7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours.
