Specification:

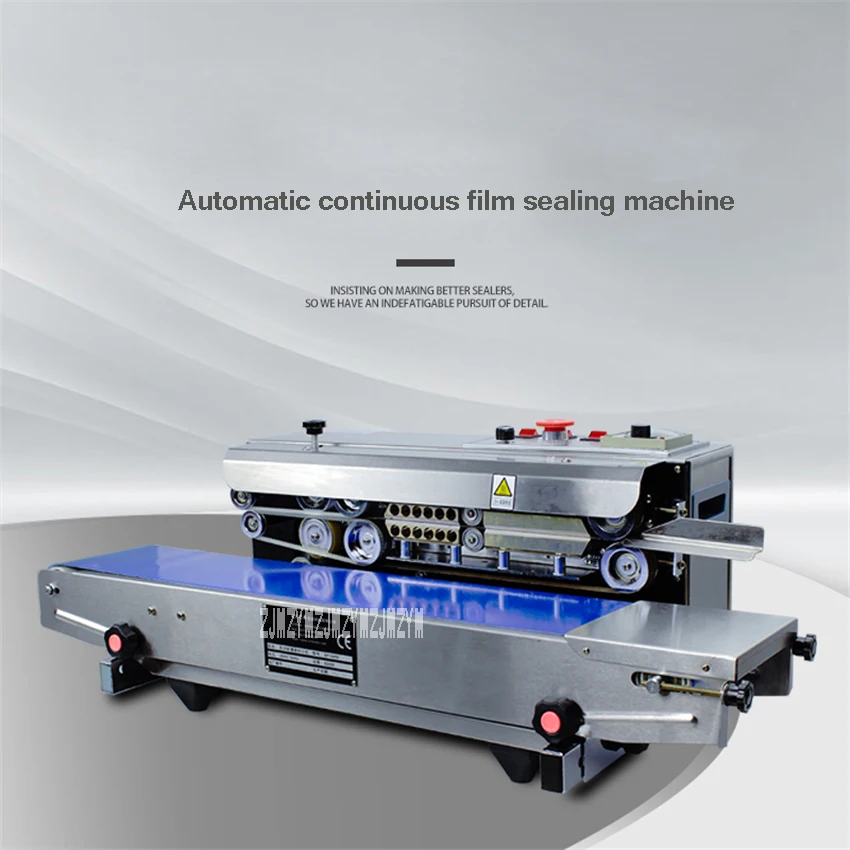

Name: SF-150W automatic film sealing machine
Voltage: 110V / 220V
Power: 500W
Body material: stainless steel
Sealing width: 0.6-1.5CM
Sealing thickness: less than 35 wires
Seal length: unlimited
Temperature control range: 0-300 degrees
Delivery weight: less than or equal to 5kg
Printing type: stamp
Operation type: intelligent control panel
Temperature control type: intelligent temperature control
Sealing speed: 0-24 m / min
Packing size: 86*41*37.5cm
Weight: 22KG

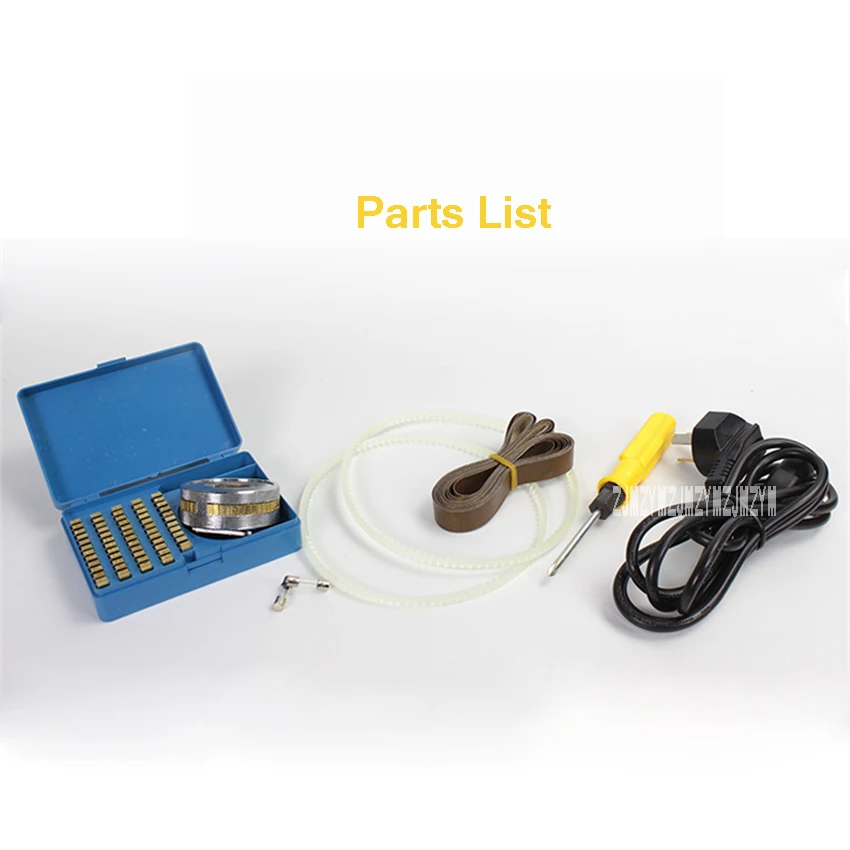

Accessories: date wheel, fuse, toothed belt, insulated tape, screwdriver, power cord

Working principle
1. This machine is composed of parts such as frame, speed reduction mechanism, transmission
and conveying printing device;
2. When the power is turned on, the electric heating element generates heat, so that the upper and
lower heating blocks are rapidly heated and the temperature and speed of the required sealing
material are controlled by the temperature controller and the speed regulating device;
3. The plastic packaging bag is conveyed by the conveyor belt, and the packaging bag and the
sealing portion are fed between the two sealing pockets in operation. The sealing portion of the
plastic bag is fed into the heating zone under the clamping of the upper and lower sealing pockets,
and the sealing pocket is heated. The zone is pressed by the two heating blocks to bond the plastic
film after being heated, and then sent to the cooling zone for cooling under the clamping of the
sealing pocket.

Note:
This machine is equipped with an embossing wheel and a date wheel. If you need a large stripe wheel

or flattening wheel, you can contact our customer service to purchase. Thank you

Picture showing :
