Protmex MS6708 Noise Meter Sound Level Portable Digital Audio Decibel Tester Monitor dB | Инструменты

Protmex MS6708 Noise Meter Sound Level Portable Digital Audio Decibel Tester Monitor dB | Инструменты

This sound level meter is used to measure the sound level of sound equipment in Work and Life: such as factories, workshops, schools, residential, office areas, traffic roads, audio and other occasions. Also applies to noise engineering, product quality control, health control and so on.

With the backlight feature, it is appropriate for gathering the sound data at night. To save power, backlight auto power off function is provided.

The meter utilizes a electric condenser microphone to monitor sound levels from 30 to 130 decibels at an accuracy of +/-1.5 dB with a 0.1 dB resolution. A and C weighting network selection.

Maximum (MAX) locking function; Digital display, good anti-interference performance, power saving

The Protmex sound meter weighs less than 7 ounces, and is designed to fit comfortably in the palm of your hand.

Whether you're monitoring workplace machinery, installing audio or alarm systems, or handling product noise certification and reduction, the Protmex Digital Sound Level Meter gets the job done.

This meter accurately monitors sound levels in a range from 30 to 130 decibels.

It displays results in the large LCD display in two different ways, either by number or a fast-responding analog bar graph.

The lightweight meter easily fits in your hand and can be used wherever you need it.

Sound pressure accuracy: ± 1.5 dB (sound pressure standard, 94 dB @ 1KHz); ± 5 dB (sound pressure standard, 94 dB @ 8KHz)

Sound pressure frequency response: 30Hz - 8KHz.

Dynamic range of sound pressure: 50 dB (for each measurement gear level).

Sound pressure measurement scope: 30-130 dB A, 35-130 dB C.

Sound pressure frequency weighting characteristics: A and C characteristics.

Dynamic characteristic of sound pressure: FAST 125ms, SLOW 1sec

Microphone: polarized capacitive microphone.

Digital display: 4-digit, resolution: 0.1 dB, sampling rate: 2 times/sec.

Analog bar display: Each analog bar represents 1 dB, sampling rate is 20 times/sec.

Measurement gear level: 30-80 dB, 40-90 dB, 50-100 dB, 60—110 dB, 70—120 dB, 80-130 dB, 6 gear levels in total.

Automatic shifting gear level: microcomputer will automatically select the best gear level in the range from 30 to 130 dB.

Below or above limit prompt: indicated with “UNDER” or “OVER” display.

Power Supply: 4x1.5V AAA Batteries

1*DIGITAL SOUND LEVEL METER

1*User manual

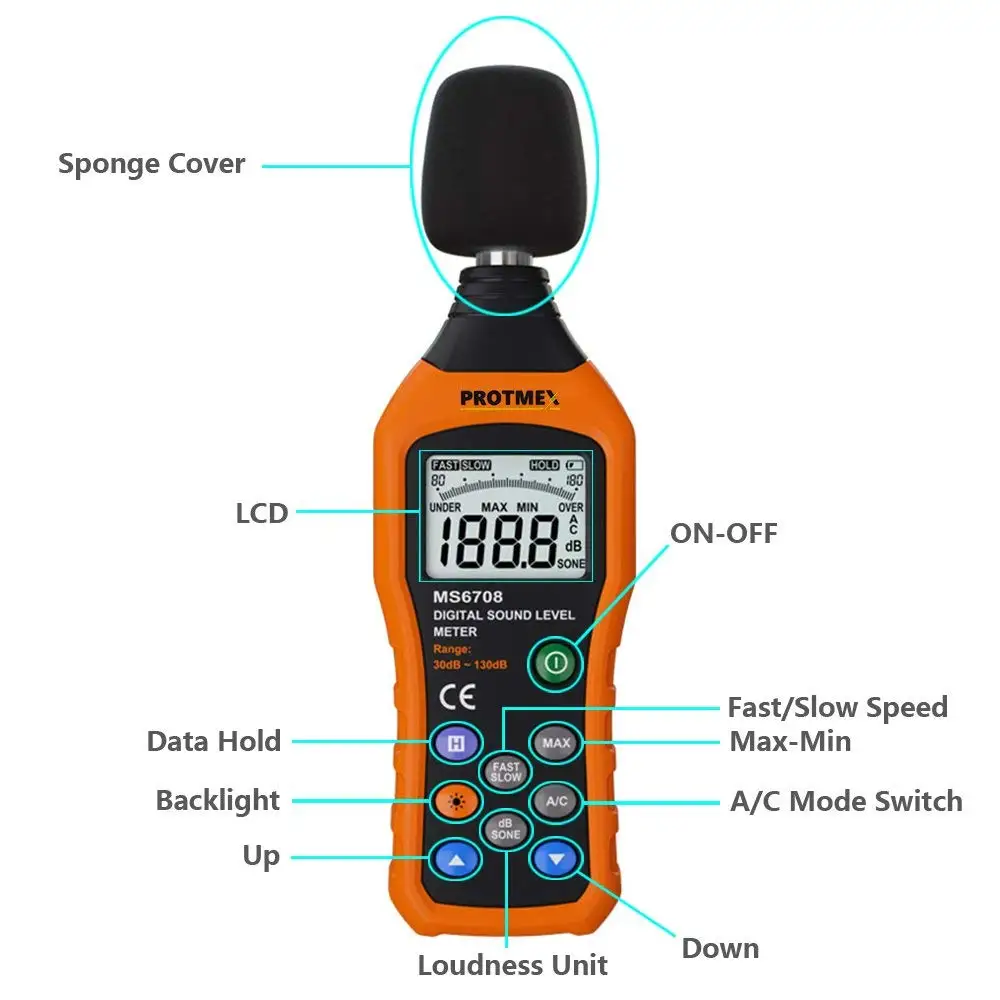

Large LCD Screen with Dual Reading Displays

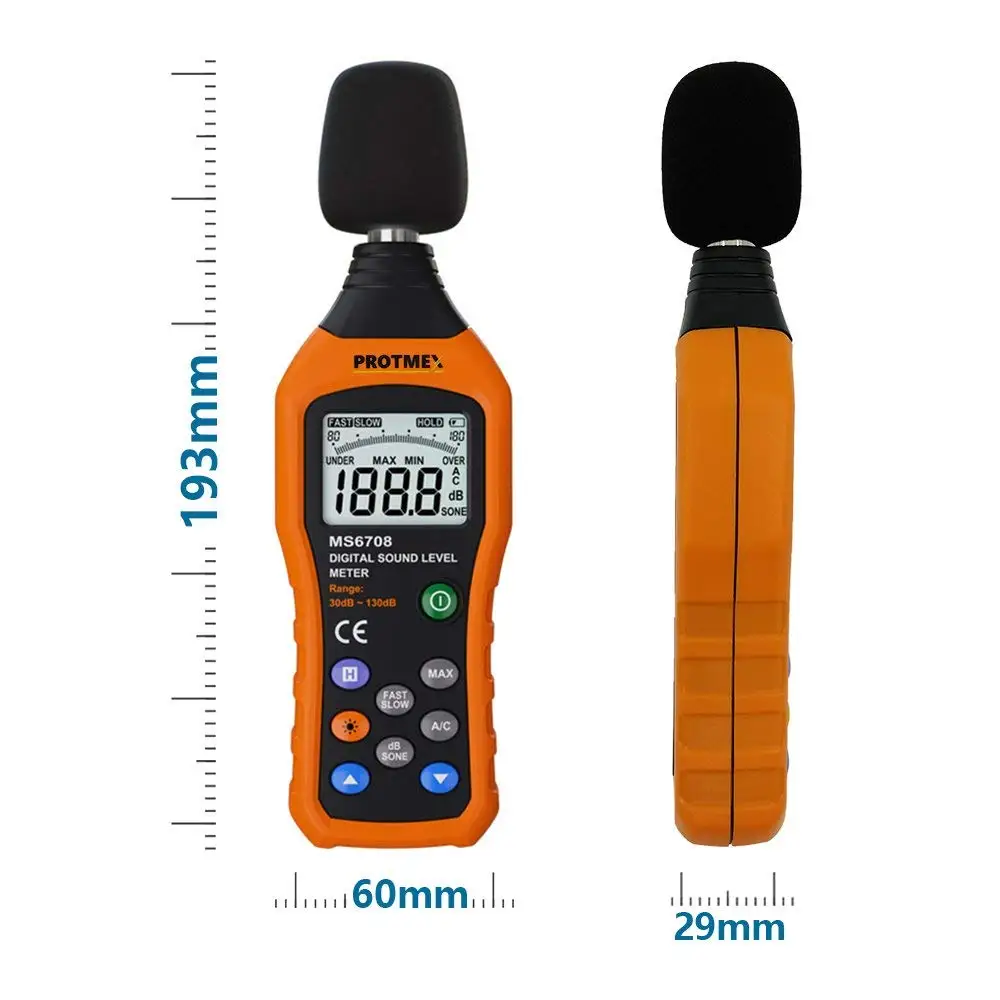

Compact, Lightweight Design

User-friendly Settings

Wherever you need to monitor sound levels, the Protmex sound meter will do the job.

The meter utilizes a 1/2-inch electric condenser microphone to monitor sound levels from 30 to 130 decibels at an accuracy of +/-1.5 dB with a 0.1 dB resolution.

A windscreen is included to prevent distortion in the readings.

The large LCD display gives readings in large, clear numbers.

At the same time, it shows the sound level readings using a fast-responding analog bar graph with a 50-decibel range that updates every 40 milliseconds for viewing varying trends.

The unit has AC analog output and records max/min values over time.

The Protmex sound meter weighs less than 6.7 ounces, and is designed to fit comfortably in the palm of your hand.

Choose between either A or C weighting, auto or manual ranging.

Other useful features include auto power-off, max hold functions, and fast/slow response time.

Record sound values over time to track sound changes.
