Russian French Spanish Netherlands languages menu voice 3g gsm wifi burglar alarm APP control system with 24hours warning card |

Russian French Spanish Netherlands languages menu voice 3g gsm wifi burglar alarm APP control system with 24hours warning card |

Russian  French Spanish Netherlands languages menu voice 3g gsm wifi burglar alarm APP control system with 24hours warning card

Features :

1. Multi-language words menu 3G/ WIFI /GSM/GPRS/SMS home alarm system

   Support Contact ID/SIA protocol for center monitor station

2.Android + IOS APP application easily control, Easy to give authorization.

3.Free charges through WiFi network. When there is no WIFI, the host will work with GPRS network. If there is neither WiFi nor GPRS network ,then the alarm host will send alarm SMS and make alarm call.

4.Work with IP camera, The IP camera APP embeds in the host APP.
Users can monitor what happen at home wherever and whenever.

5.Workable with 100pcs smart socket/wireless relay output to control simple home appliances.Relay outputs name and sockets name can be revised by users

6. 8 scene settings and 20 ifttt settings.
Advanced home automation functions for perfect smart home life.

7.Workable with RFID wireless keypad

8.20s Leaving message remotely in APP.

9.Information push promptly when AC power lost or recovered or detectors in low voltage

10.Smart zone function: self-checking windows/doors status and chime reminds if door open

11.100 wireless defense zones, 8 wired defense zones , Zone names can be revised by users

12.Support ”ding dong” doorbell function

13.Can store 6 alarm call phone No.+2 alarm SMS phone No.

14.Support Three zone types: 24H line, 1st line, 2st line.

15.Arm/alarm Delay for each defense zone. Timed arm/disarm function

16.Built-in rechargeable battery

17.The host support Monitoring and two-way intercom function

18. Certification :   CE-R&TTE , FCC

Function Explain :

Scene

Scene is a serial of devices’ actions.

For example, users can set a return home scene. When users Execute the scene, the living room light and the air-condition will be turned on.

Linkage

What is linkage: a trigger which can be detector or time make one device or one scene act

That is, when a sensor is triggered, the linked device will act

       When a sensor is triggered, the linked scene will act

       When it arrives the set time, the linked device will act

       When it arrives the set time, the linked scene will act

For example:

When the front door open, the front door lamp will be turned on.

When the front door open, the scene(the front door lamp turn on and the air-condition turn on) will act.

When it is 8am, the bedroom light will be turned on .

When it is 8am,the scene(the bedroom lamp turn on and the curtain open) will act .

Kit items introduce :

Alarm Technology  information :

· Black /White  color panel optional

· Power supply:AC=100~230V50Hz/60Hz

· Working voltage: DC12VIA

· Static current: < 35mA(when not in charging)

·Alarm current: < 120mA

· Built in  Backup Battery: 3.7V1050mAh

· Standby time: Around36 hours

· Charging time: 10 hours

· GSM frequency: 850/900/1800/1900MHz

  3G  frequency :  850/900/1900/2100MHz

· WiFi frequency:2.4G

· GSM Transmission power: 2W

· Receiving and emitting frequency: 433MHz

Wireless PIR sensor  technology information :

Signal light color: orange

Battery: 9V 6F22

Standby current：23UA

Alarm current: ＜23mA

Installation height: 1.7-2.5m (suggest 2.2M)

Detect distance:10m

Detect angle:110°

Sensitivity: high/low

Emission distance : ＞120M (open area)

Humidity: ≤95% RH(no freeze)

Working temperature: -10℃~55℃

Anti-EMI：0.1 - 500MHz/30V/m

Frequency：433Mhz

Wireless door sensor technology information :

Internal Antenna design

Operating Power: 23A 12V

Transmission frequency: 433MHz

It will send the alarm signal to control host once the door or window is opened

Compound multi-layer design

Built-in omnidirectional antenna

Superior circuit design

High-performance and low power consumption

Superior ABS material

Working frequency:433MHz

Shock resistence:4.7M,1.2M.3.5M,300k

Transmission distance:50-150m in open area.

Wireless remote control :

•Transmit distance：100M(in the open area)

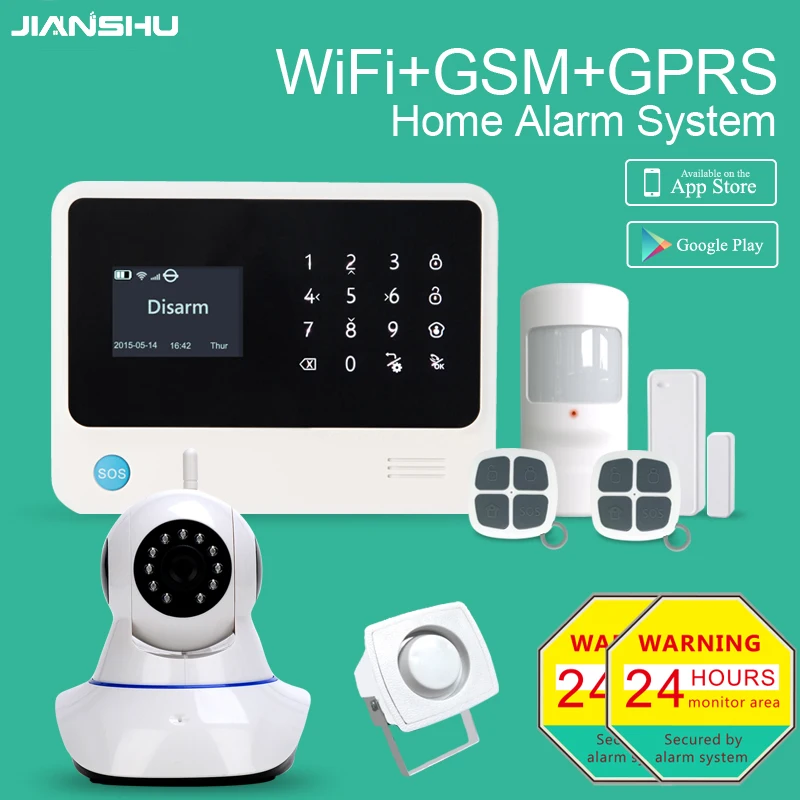

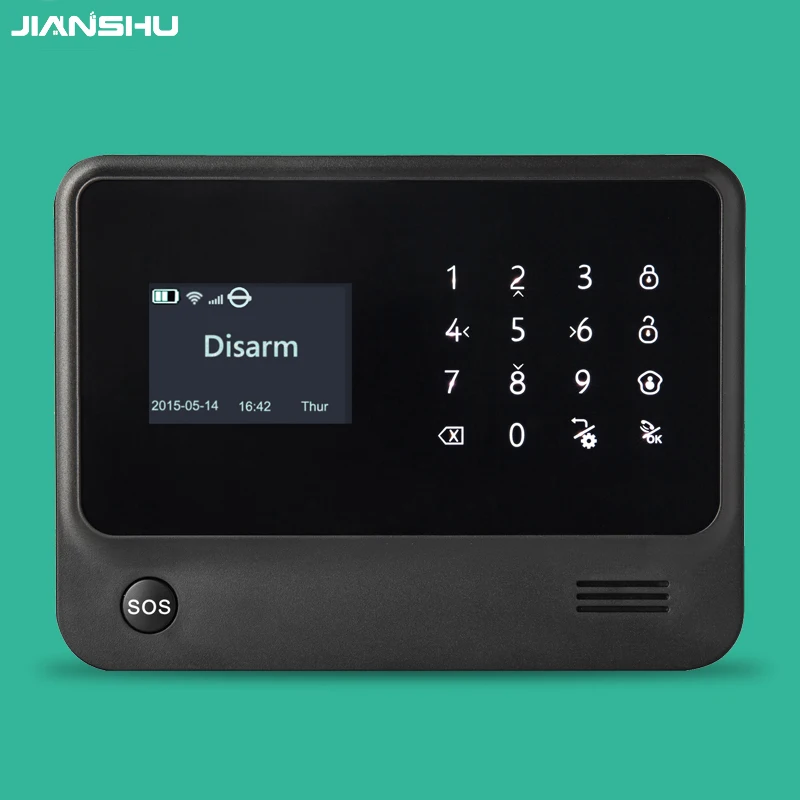

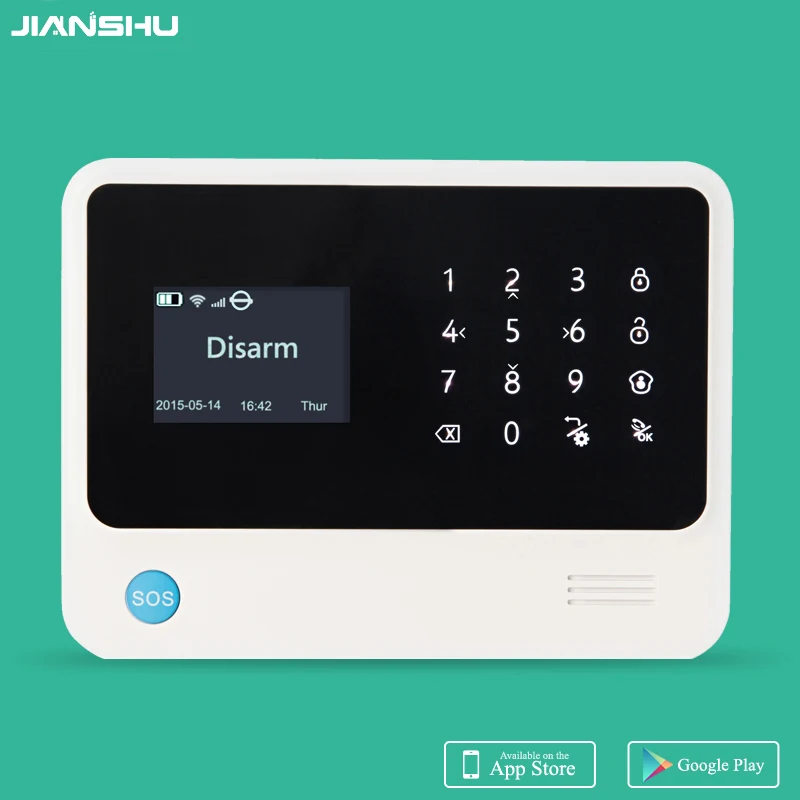

     GS90B plus-3G  plus panel *1  (without SIM card)

     08 Wireless pir motion sensor * 1

     07 Wireless door/window sensor *1

     08 Remote control * 2

​     03 mini wire siren *1

​     I1901A 720P wifi IP cameras *1

     Power adapter * 1  (UK/EU/US/AU,We will ship the correct power adapter to you based on your country)

     English user manual * 1
