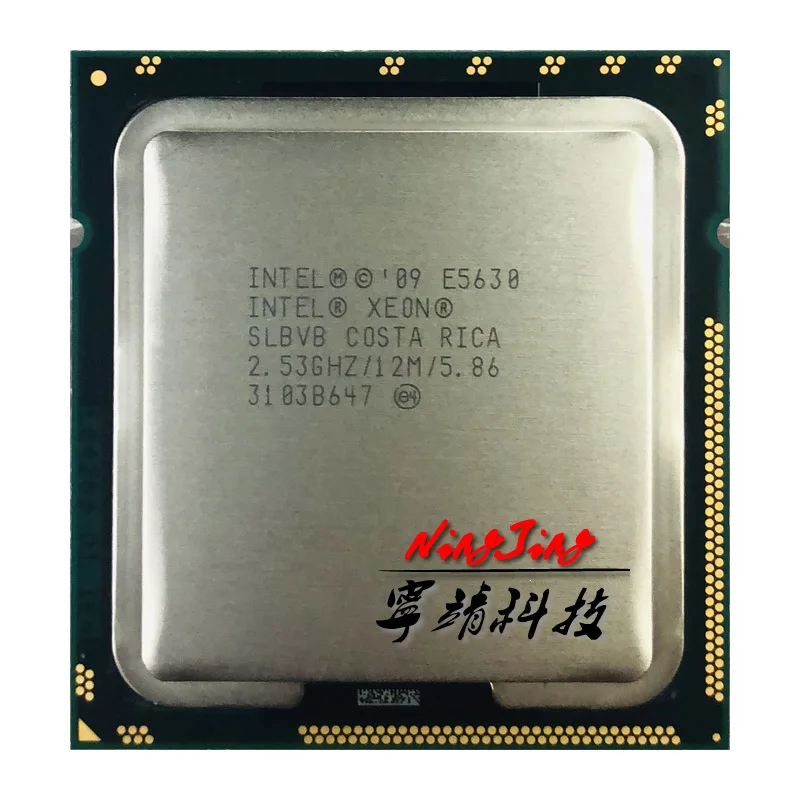

Intel Xeon E5630 2.5 GHz Quad-Core Eight-Thread CPU Processor 12M 80W LGA 1366 | Компьютеры и офис

Intel Xeon E5630 specifications The specs can be used for short-term
listings on auction and classifieds sites General information Type CPU / Microprocessor Market segment Server Family Intel Xeon 5600 Model number  ?  E5630 CPU part numbers AT80614005463AA is an OEM/tray microprocessor BX80614E5630 is a boxed microprocessor Frequency  ?  2533 MHz Maximum turbo frequency 2800 MHz (1 or 2 cores)
2667 MHz (3 or 4 cores) Bus speed  ?  5.86 GT/s QPI (2933 MHz) Clock multiplier  ?  19 Package 1366-land Flip-Chip Land Grid Array (FC-LGA10) Socket Socket 1366 / B / LGA1366 Size 1.77" x 1.67" / 4.5cm x 4.25cm Introduction date March 16, 2010 Price at introduction $551 S-spec numbers Part number ES/QS processors Production processors
Q3WT Q4EU SLBVB AT80614005463AA + + + BX80614E5630

+ Architecture / Microarchitecture Microarchitecture Westmere Platform Tylersburg-EP
Tylersburg-EN
Tylersburg-WS Processor core  ?  Westmere-EP Core steppings  ?  B0 (Q3WT)
B1 (Q4EU, SLBVB) CPUIDs 206C1 (Q3WT)
206C2 (SLBVB) Manufacturing process 0.032 micron High-K metal gate process Data width 64 bit The number of CPU cores 4 The number of threads 8 Floating Point Unit Integrated Level 1 cache size  ?  4 x 32 KB 4-way set associative instruction caches
4 x 32 KB 8-way set associative data caches Level 2 cache size  ?  4 x 256 KB 8-way set associative caches Level 3 cache size 12 MB 16-way set associative shared cache Physical memory 288 GB Multiprocessing Up to 2 processors Extensions and Technologies MMX instructions SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?  AES / Advanced Encryption Standard instructions EM64T / Extended Memory 64 technology / Intel 64  ?  NX / XD / Execute disable bit  ?  HT / Hyper-Threading technology  ?  VT-x / Virtualization technology  ?  VT-d / Virtualization for directed I/O TBT / Turbo Boost technology  ?  TXT / Trusted Execution technology Low power features Enhanced SpeedStep technology  ?  Integrated peripherals / components Integrated graphics None Memory controller The number of controllers: 1
Memory channels: 3
Supported memory: DDR3-800, DDR3-1066
Maximum memory bandwidth (GB/s): 25.6
ECC supported: Yes Other peripherals Quick Path Interconnect (2 links) Electrical / Thermal parameters V core  ?  0.8V - 1.3V Maximum operating temperature  ?  77.6°C Thermal Design Power  ?  80 Watt
