TIPS: For international delivery, there may have customs taxes in your country, we are willing to declare the products and value according your request, and according the internaional standard rules, local customs fees should be paid by buyer.

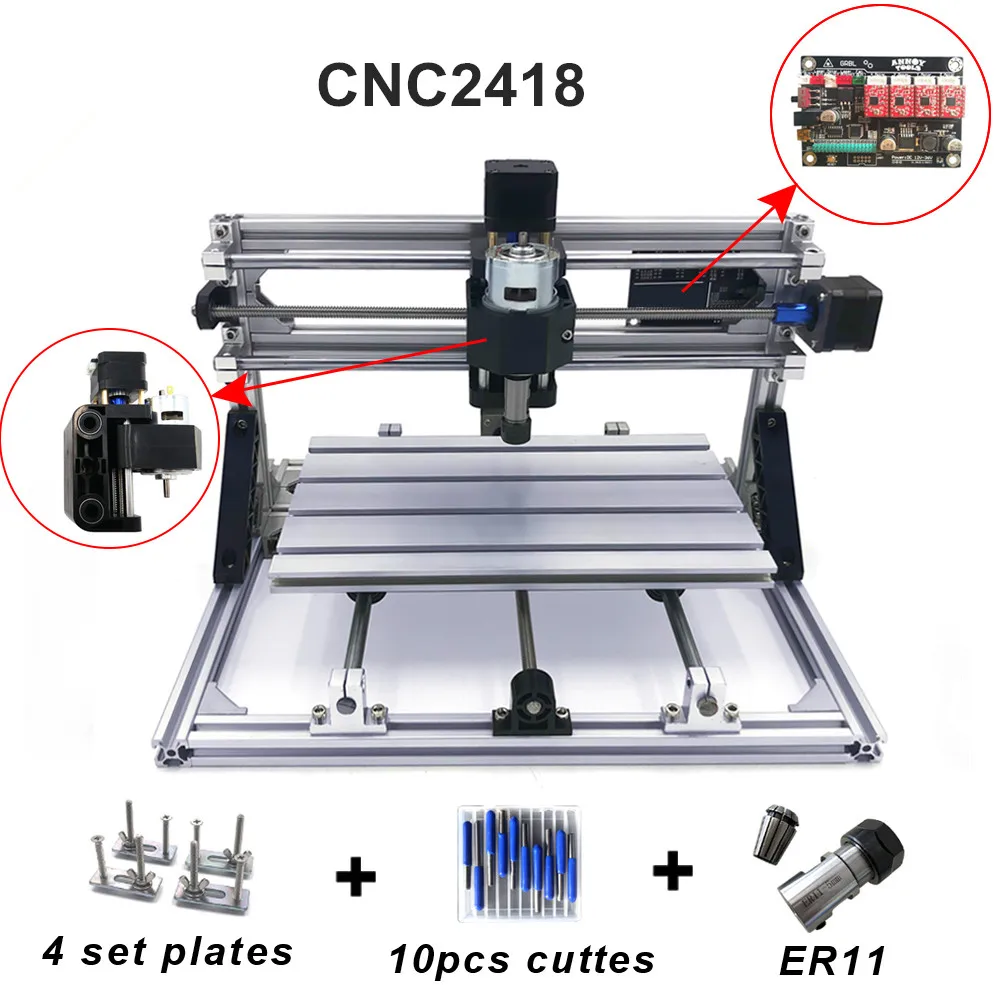

Package includes:

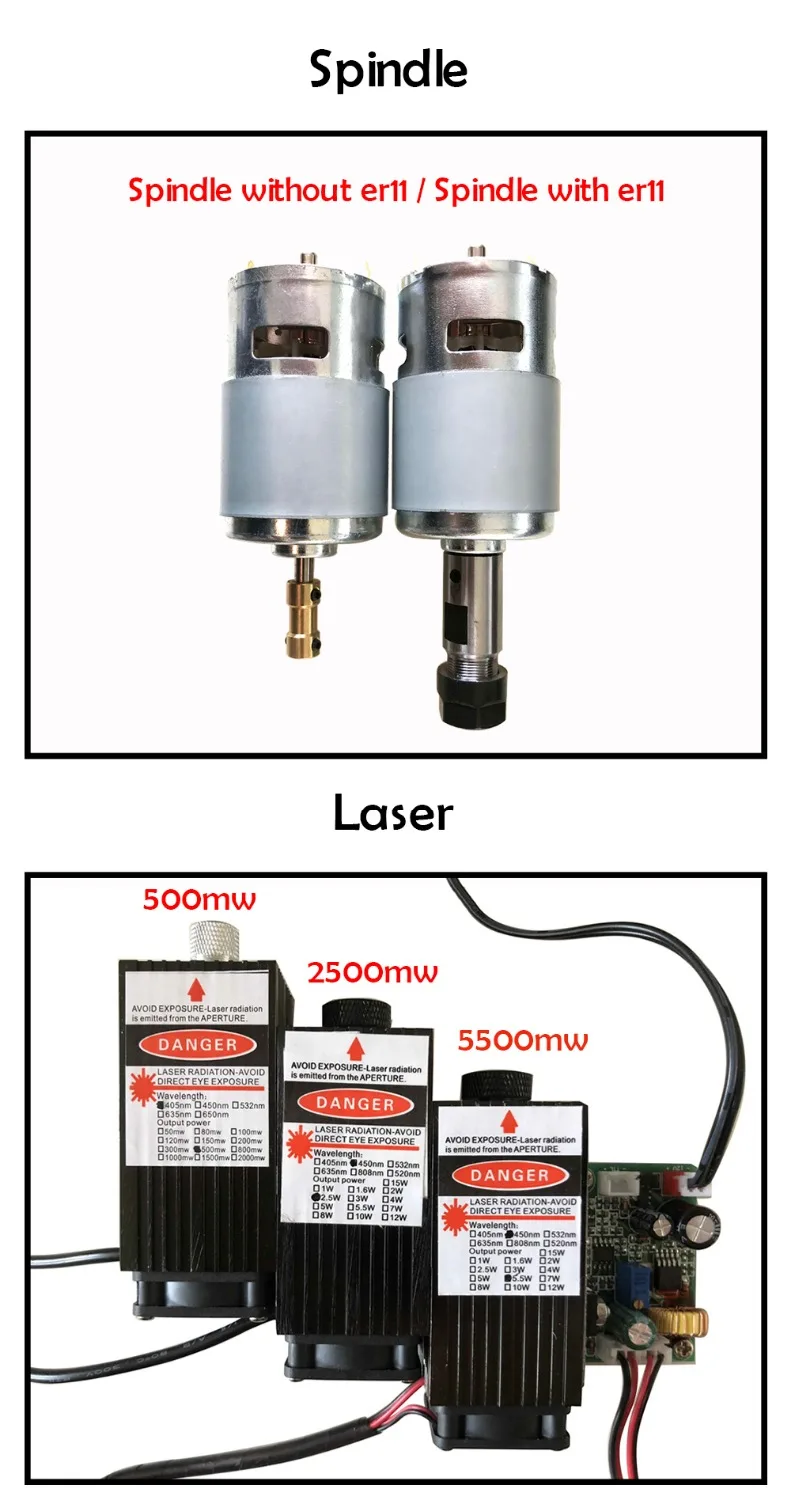

package one: All parts of the machine+free 10pcs pcb cutter+1pcs ER11 shalf rod +collet

​package two:All parts of the machine with 12v 500mw laser +10pcs cutter+Protective glasses+1pcs ER11 shalf rod +collet

​package third:All parts of the machine with 12v 2500mw laser +10pcs cutter+Protective glasses+1pcs ER11 shalf rod +collet

​package fourth:All parts of the machine with 12v 5500mw laser +10pcs cutter+Protective glasses+1pcs ER11 shalf rod +collet


Feature:

Profile Dimensions: 33x34x24cm

engraving area:24x18x4.5cm

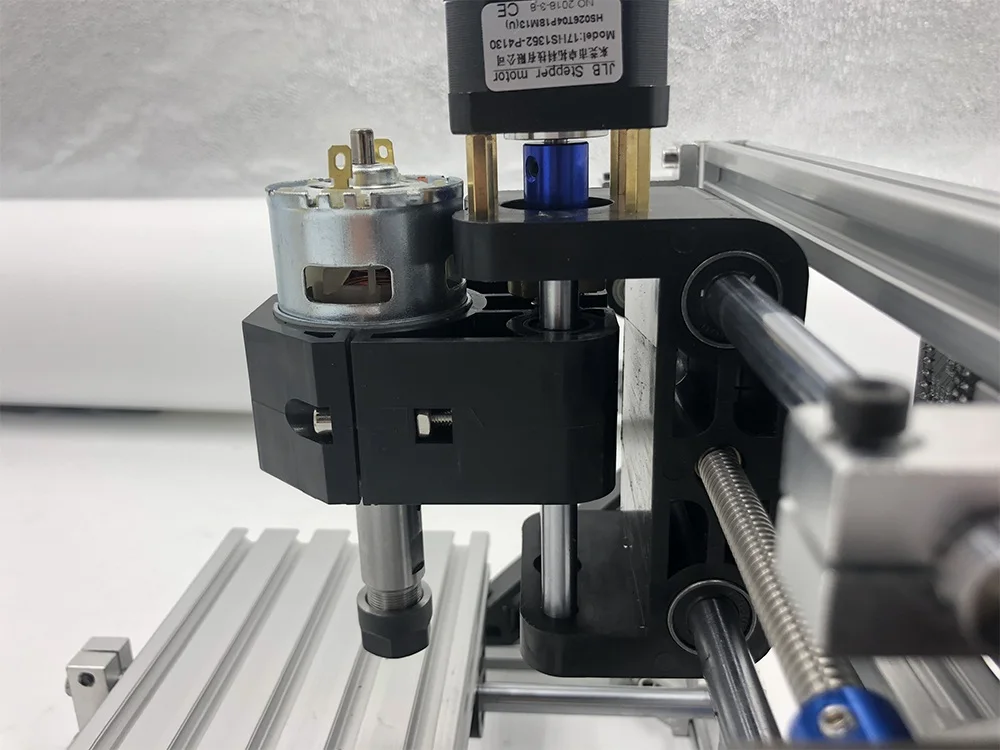

Spindle:775 spindle motor

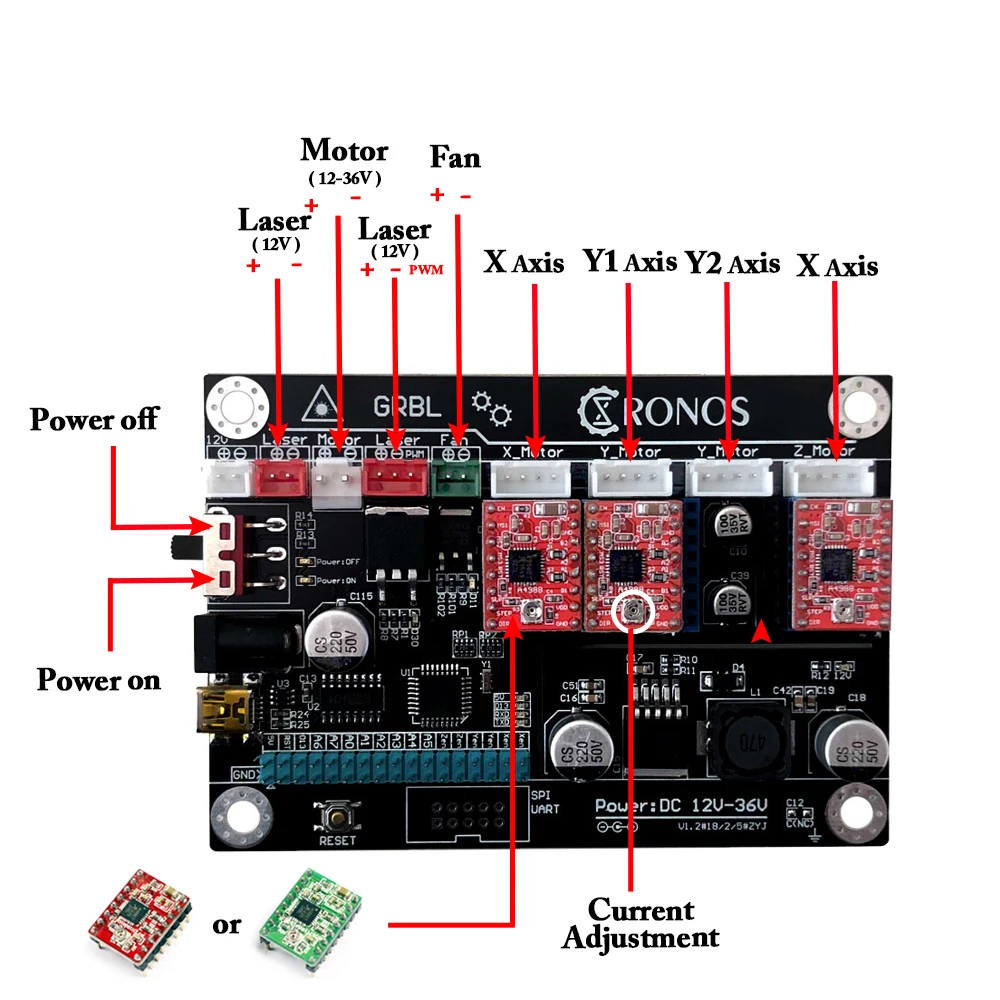

Softwear :GRBL control systems

support system:24V 5.6A adapter

Stepper motor:3pcs two phase stepper motor 1.5A 0.25nm

Spindle: 775 spindle motor (12-36V) 24V:7000r / min

 Summary:

Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers.



Description: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack



Usage : can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material.

 Attention

1. This machine does not work on metal.  Contact us for further information.

2. ER11 needs to be shrink fitting, you can NOT mount ER11 to the spindle with your bare hand. (Contact us for more details.)

3. All the laser modules can NOT cut plywood.
