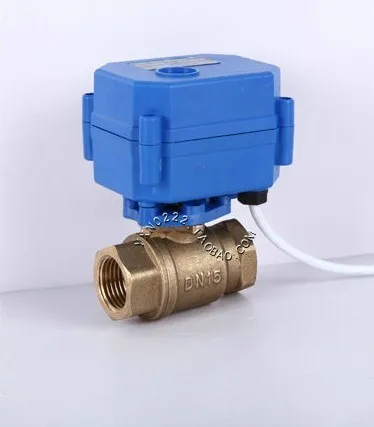

DN15 DN20 DN25 Brass Two Way Electric Ball Valve CR01 CR02 CR03 CR04 CR05 DC5V DC12V DC24V AC220V motorized ball valve | Обустройство



electric brass ball valve DN15 DN20 DN25 DC5V DC12V DC24V AC220V motorized valve for water   Details:   1. Model: CWX-15N   2. Product size: G(BSP) DN15= 1/2",  DN20=3/4'',  DN25=1''    3. Valve material(body/ball/stem):  brass   4. Working voltage: DC5V DC12V DC24V AC220   5. Wiring control mode: CR01 CR02 CR03 CR04 CR05   6. Working current: <100mA   7. Power consumption:<2W   8. Working pressure:1.0MPa/145Psi/10Bar   9. Medium:Water, air, gas, fluid   10. Medium temperature:   0°~90°    11. Environment temperature: -15-50℃   12. Actuator torque: 2.0Nm   13. Open/close time: 3sec/5sec   14. Working life: 100,000 times   15. Protection class: IP65   16. Actuator material: ABS Engineering plastic   17. Actuator rotation: 90°   18. Sealing material: EPDM&PTFE   19. Cable length: 40cm   20. Manual override function: No       Features:  1. Smart shape, perform reliably, brass gear, PPO parts,large output torque, long product life for 100,000 times.  2. Electrical limit and machinery limit design, accurate position, avoid gear with switch.  3. Multi-angle assembling, easy to install.  4. Float ball structure, no leakage, especially suitable for heavy pollution conditions.  5. Good substitution for solenoid or pneumatic valve.  6. High protection class, can be worked in moist conditions. IP65.   Situable for: 1. IC card meters, heat energy meters. 2. Air-warm valve. HVAC and fire works. 3. Water equipment, auto-control watersystem, industrial mini-auto equipment, Small equipment for automatic control 4. Irrigation equipment, drinking water equipment, solar water heaters, washing machines, water heaters, industrial humidifier. 5. Solar thermal, under-floor, rain water, irrigation, plumbing service,hot water heating and solar glycol loop, ideal for off-grid system. 6. Domestic water, Irrigation system, cooling/heating system, Low voltage plumbing system 7. Multiple voltage and control mode, applicable to a variety of occasions.
