50 KM TYT TH-9800 Plus Walkie Talkie Quad Band 50W Car Mobile Marine Radio Station 809CH TH9800 TH 9800 Repeater Scrambler | Мобильные

50 KM TYT TH-9800 Plus Walkie Talkie Quad Band 50W Car Mobile Marine Radio Station 809CH TH9800 TH 9800 Repeater Scrambler | Мобильные

Brand name: TYT                                                                 Model type: TH-9800

Output power: 50W                                                              Voltage: 13.8VDC

Channel: 809                                                                        Talking range: more than 10km

Antenna impedance: 50 OHM                                             Frequency stability: 5ppm

Measure: 140x41.5x168mm

Frequency Range:

- 26-33MHz (RX/TX) (AM band RX)

- 47-54MHz (RX/TX) (AM band RX)

- 136-174MHz (RX/TX)

- 400-480MHz (RX/TX)

- 108-136 (AM band RX only)

- 320-399.000 (RX only)

- 750-950 (RX only)

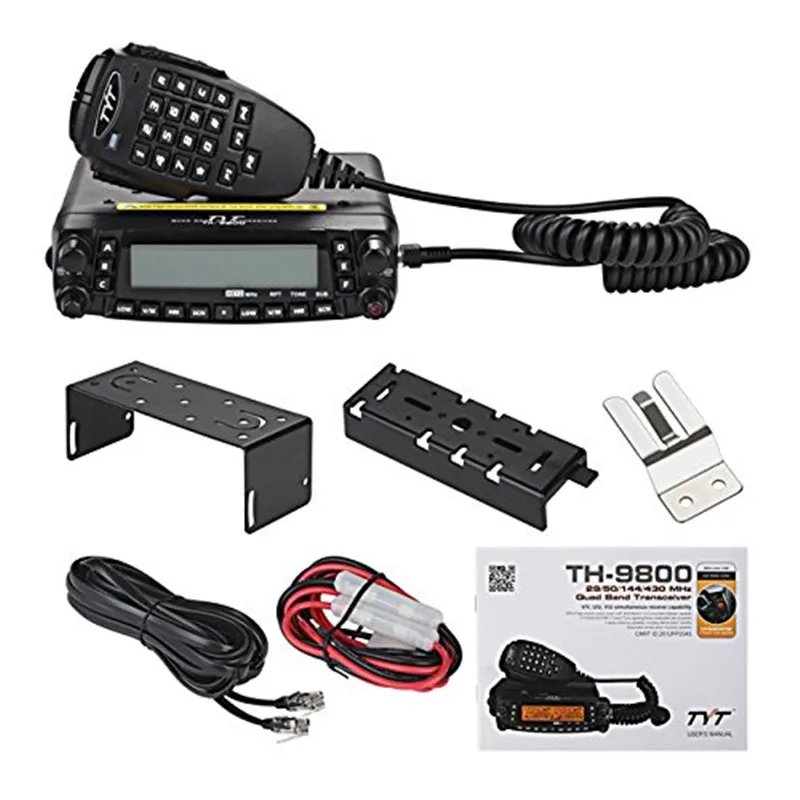

Package Content:

1x TYT TH-9800 Mobile Transceiver

1x Handheld Microphone

1x Power Cable

1x Screws and Accessories

1x User’s Manual

1x Fixed Bracket

1x Microphone Hanger

Functions:

Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands

Brilliant crossmodulation, intermodulation rejection and strong signal performance-
similar to commercial radios.

Commercial quality and commercial performance, too

809 memory channels

DTMF mic included

Digital FM broadcast band radio

High/low output power levels

Reverse frequency selection

Dual (V/U) squelch set levels

Dual repeater offsets selectable

Multi-function scanning

Repeater offset selectable

Keypad lock function

Channel name editing

CTCSS/DCS encode/decode

Dual Band/Dual Receive: (Full Duplex)

Cross Band Repeat

TX Power: 5-50 Watts

Memories: 256

Antenna Connection: Single SO 259s

Specification:

Channel Capacity: 809 channels

Channel Spacing: 5/10/12.5/15/20/25/50KHz

Modes of Emission: F3, F2, F1

Antenna Impendence: 50 Ohms, unbalanced(Antenna Duplexer bulit-in)

Frequency Stability: ±5 PPM@-140°F~+140°F(-10-+60)

Operating Voltage: -4°F~+A140°F(-10-+60)

Operating Temperature Range: 13.8VDC (±15%). Negative ground

Current Cunsumption(Approx): RX: 0.5A (Squelched);TX:8.0A (50/430MHz), 8.5A(29/144MHz)

Case Size(WXHXD): 140x41.5x168mm (w/0 knobs & connectors)

Weight(Approx): 2.2lb(1Kg)

Transmitter:

Output Power: 50/20/10/5W(29/50/144MHz)

Modulation Type: Variable Reactance

Maximum Deviation: Better than -60dB(29MHz:Better than -50dB)

Modulation Distortion: Less than 3%

Microphone Impedance: 2kΩ

DATA jack Impedance: 10KΩ

Receiver:

Circuit Type: Double-conversion super-heterodyne

Intermediate Frequency:

45.05MHz/450KHz(left band)

47.25MHz/450KHz(right band)

Sensitivity(for 12dB SINAD): Better than 0.2μV

Squelch Sensitivity: Better than 0.16μV

Selectivity(-6dB/-60dB): 12KHz/30KHz

Maximum AF Output: 2W@8Ω for 5% THD

AF Output Impedance: 4-16Ω
