Function and function:

1. will0-100%PWMDigital signals are converted into analog signals.

2. the input digital signal can be3.3Vor5Vor24VLevel0-100%PWMSignal,

3. output analog signal can be0-10VVoltage or voltage0-5VVoltage.

4. according to the different input and output signals, there are 4 product models to choose from.P-10V; P-5V; 3.3P-10V; 3.3P-5V.

P-10orP-5VType, inputPWMThe signal can be5Vor24VThere are jumps on the board to choose directly.

Custom input3.3VLevelPWMAt the time of the signal,5VThe needle jumping is input.3.3Vlevel.

P-10V: input5Vor24VLevel0-100%PWMsignal Output0-10VVoltage

P-5V: input5Vor24VLevel0-100%PWMSignal output0-5VVoltage

3.3P-10V: input3.3VLevel0-100%PWMSignal output0-10VVoltage

3.3P-5V: input3.3VLevel0-100%PWMSignal output0-5VVoltage

5. widely usedPLCThe signal interface of MCU or other industrial control panel is switched.

Two.Parameters:

1,PWMSignal reception frequency range:100HZ-3KHZ. recommends 1KHZ-3KHZ.You can also customize other frequencies.PWMSignal.

2,PWMSignal input level range:

Peak and peak value4.5Vreach10VOn electricity, jump pins are inserted.5VThe place. This level signal is mainly directed against conventional industrial control cards (e.g.MACH3card),5VACPUThe interface.,

Peak and peak value12reach24VOn electricity, jump pins are inserted.24VThe place. This kind of level signal is mainly for conventional.PLCInterface

Customized peak value3.3VOn electricity, jump pins are inserted.5VThe place. This level signal is mainly targeted at3.3VLevel MCU interface.3.3VThe level is to be customized.

3Analog voltage output parameters, the following is output.0-10VVoltage to illustrate

After power on, there is no input signal, the output is 0V, input has output.

If you require the first power on, it is best to do a calibration debugging: find a 50% duty cycle signal connected to DIN -, DIN +, the amplitude of the corresponding jump needle. Frequency in 1KHZ-3KHZ, with the multimeter measuring AO, GND two ports, when the meter is displayed at about 5.4V, adjust the board potentiometer, so that the multimeter display at 5.4v. This calibrates your pulse signal and the corresponding relationship between the module.The resolution of this module is 0.1V. Output current capability 10MA. If the duty cycle percentage is inversely related to the voltage, check (or cross-select) the pin setting PWM output in the MACH3 software STEP LOW, ACTIVE for the foot check box.

This PWM signal to 0-10V module, linearity applicable to general occasions, if the linearity requirements are very high, you can see whether another function of the shop is appropriate, frequency to voltage (0-10KHZ to 0-10V) this, this linearity to a higher degree.

Power input range:12V-30V. (Power requirements:Greater than 100MA.

Small powerOutput. It's about 10 mA.

Installation and fixation:4 M3 screw holes.

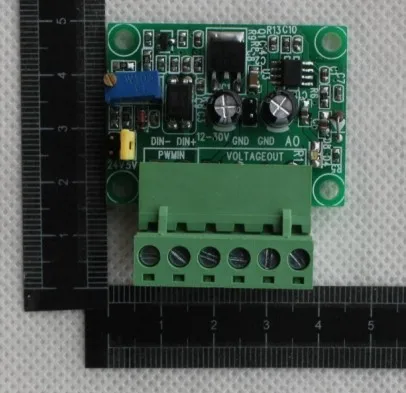

The front of the module is marked with silk screen, and can be connected according to the logo.

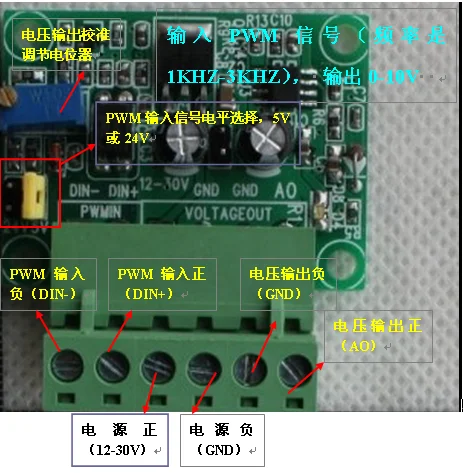

The meaning of the logo is as follows:

1,DIN+:PWMThe signal input is positive.(In common negative connection. Here is the connectionPWMWhen the signal is connected, the signal ends are connected.5Vor24V)

2,DIN-:PWMSignal input negative terminal.(In common negative connection. Here's the signal end.GNDWhen the joint is connected, it will be connected here.PWMsignal)

3,12-30V:The power input is positive.

4,GND:Power ground wire.

5,GND :Signal ground wire. Power groundGNDPorts are interlinked.

6,AO :Analog voltage (0-10Vor0-5VOutput port.

Other functions:

1., the power supply has anti reverse power supply.

2. power after the power indicator light.

3. by adjusting the potentiometer on the board, the PWM signal pulse with different frequency can be matched.
