Skype/email:export21 at acctekcnc.com

Phone/whatsapp:+86 151 6902 2087

1.It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting, 3D embossment, etc.

2.Tool sensor enables the machine compensate the tolerance of the tool length.
3.Mach3 pc control system, separated keyboard control, color LCD display , 20mm Hiwin linear guide rail and TBI ball screw from Taiwan.

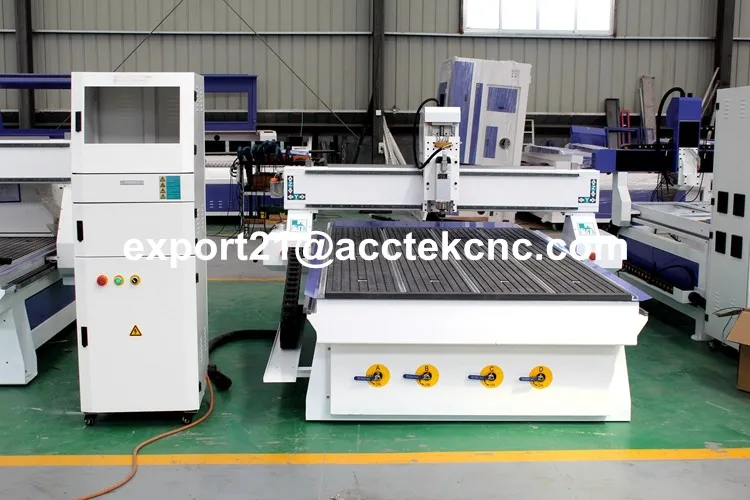

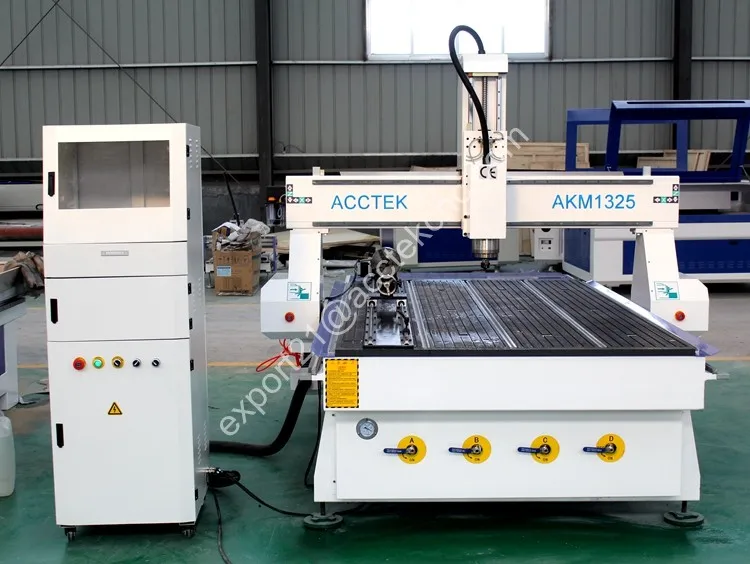

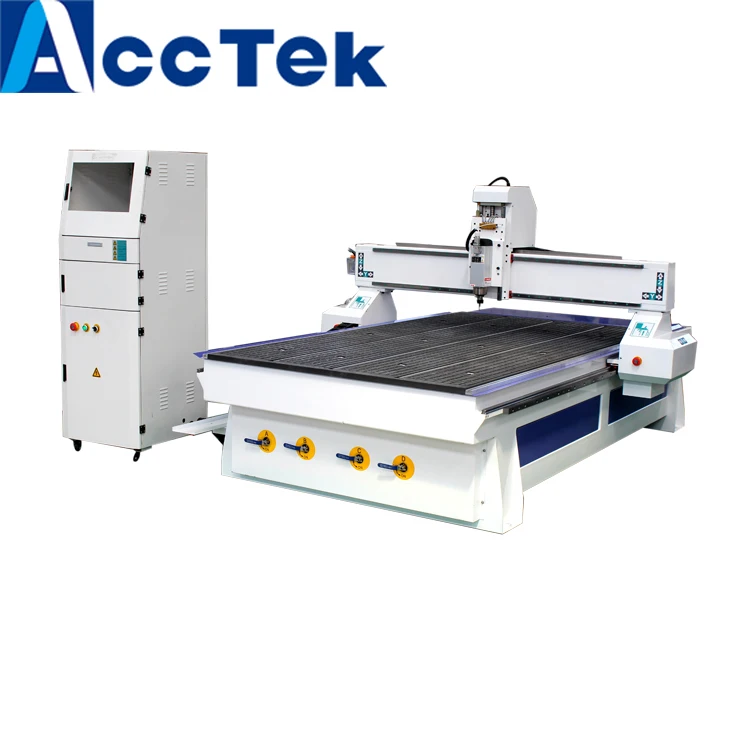

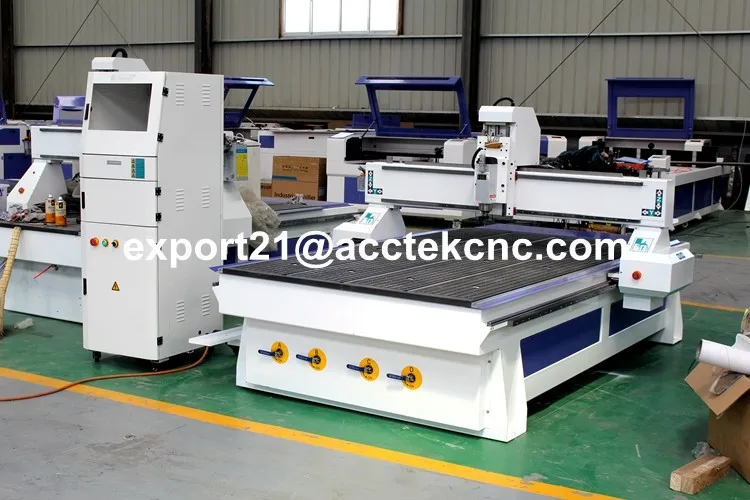

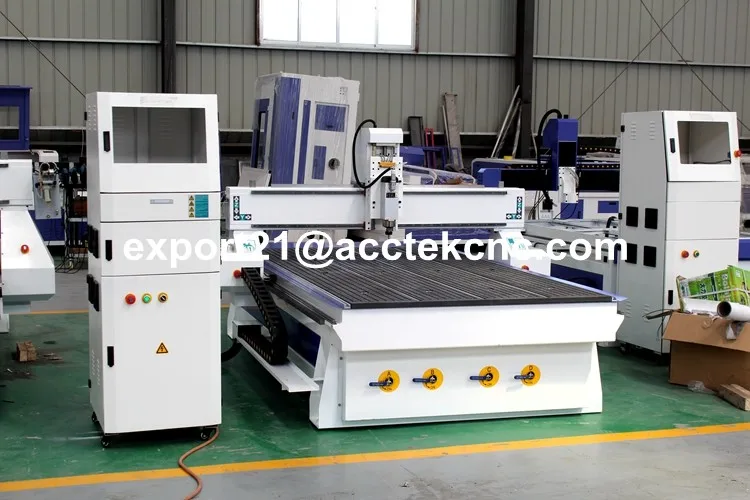

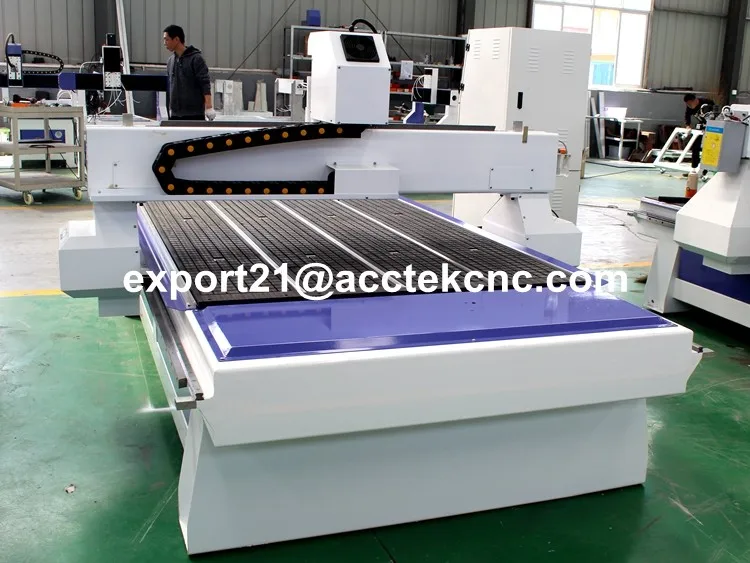

CNC router AKM1325 with 4.5kw air cooling spindle:

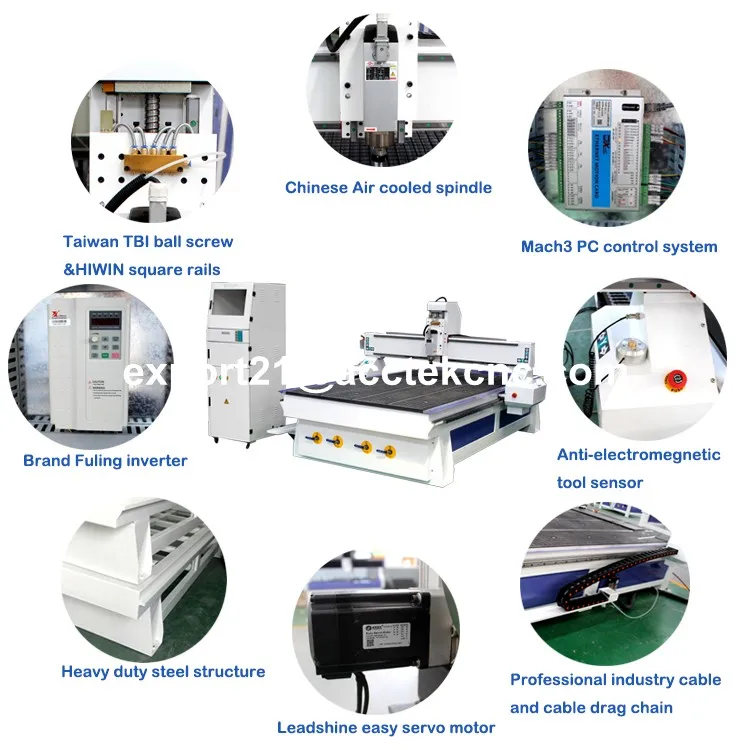

Details:

Technical parameters:

1

Model Name

AKM1325

2

X Y Z working area

1300*2500*200mm

3

Whole structure

High bed and Cost iron structure

4

Table surface

T-slot table with PVC/ vacuum table optional

5

Movement parts

XY axis gear transmission, helical rack 1.25M, Hiwin 20# Rail Linear,Z axis Taiwan TBI Ball screw transmition

6

Spindle

3.0 kw water cooling spindle/optional

7

Spindle speed

24000 RPM

8

Drive Motor

Leadshine M860 driver

9

Max. Rapid Travel Rate

33000 mm/min

10

Max. Working speed

25000mm/min

11

Control System

Mach3 controller with USB port

12

Software

Type3, Artcam, Ucancam

13

Machine precision

±0.01mm

14

Repositioning precision

±0.03mm

15

Command language

G code

16

Working Voltage

AC380V/50/60Hz,3PH (Option: 22

17

Machine Size

1630*1840*1640mm

18

Package size

1960*1760*1800mm

19

Weight

400kg/550kg(net/gross)

20

Dust Collector

Optional

21

Color

Blue-white/optional

22

Operating System

Mach3 PC Software with USB port

 Other model cnc router with 1300*2500mm working size, if you are interested in it, pls contact me to confirm the main configurations:

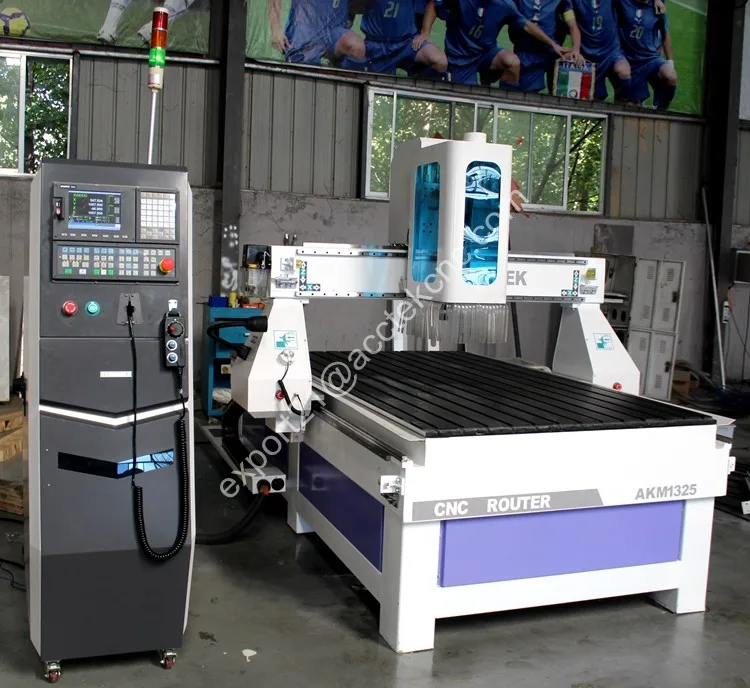

#AKM1325 cnc router with T-slot table, syntec control system, water cooled spindle with protector:

#AKM1325 cnc router with water cooled spindle, vacuum table, rotary device for cylinder materials and Mach3 control system:

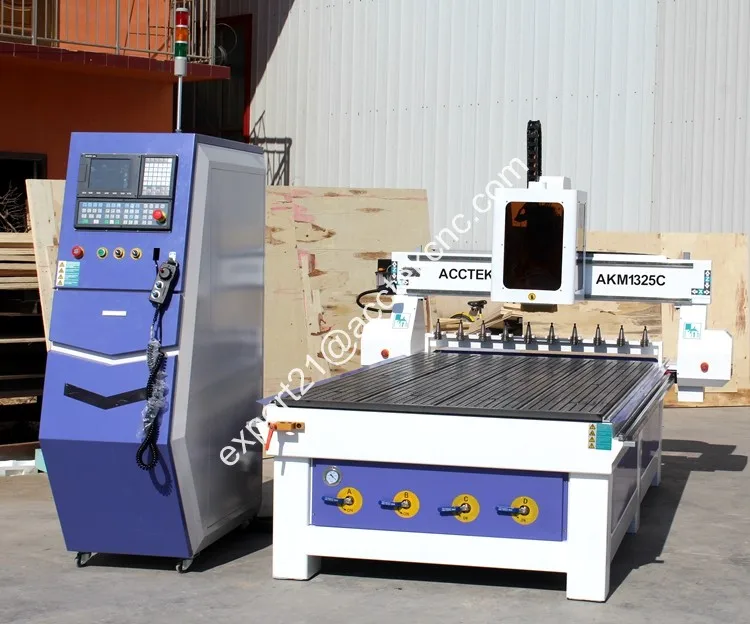

#AKM1325C ATC cnc router with 10 pieces linear auto tool change, syntec control system, vacuum table and spindle protector:

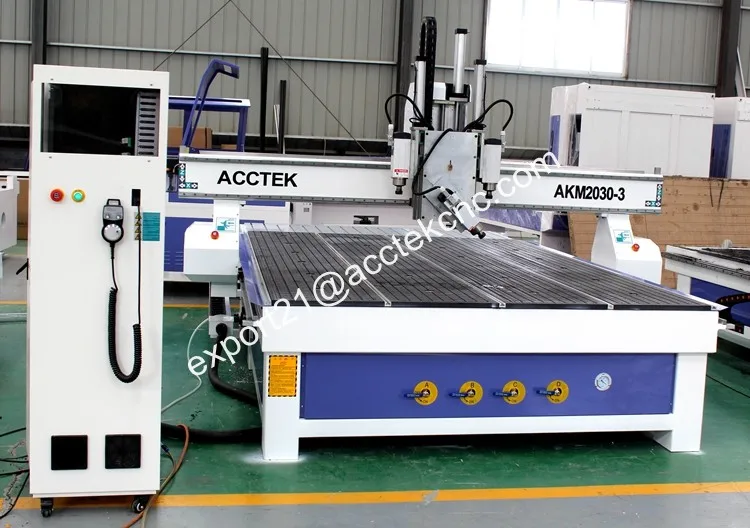

#Pneumatic three Heads cnc router AKM2030-3  Wood CNC Router Furniture Making Machine

Applications:

Application Industry:  Stone processing engraving, milling, Cutting, mold manufacturing cutting, wood processing cutting, art and craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board and MDF processing cutting, stamp cutting.

Material:  Stone, marble, granite, wood, soft metal, rubber, acrylic, plastic and so on.

Wood Processing

Processing density boards ,stiletto for surfing boards ,processing of marbles, cabinet and furniture.

Craft

Engraving characters of any language and patterns on gifts and souvenirs, promitive processing and shaping of arttistic crafts and stiletto.

Advertisment

Engraving and cutting of various labels and number plate ,marble,ect for aristic effects on materials including marble ,brass ,steel and other metallic material.

Moulding

Engraving and cutting of various labels and number plate ,marble,ect for aristic effects on materials including marble ,brass ,steel and other metallic material.

Artitechtural models

Engraving fine window ,fencing and wall patterns .ect.

Seal

Engraving seals and medal on materials such as buffalo horn ,wood ,ect.

Engraving character, number and other pattern on label for products and product directly

Engraving character, number and other pattern on label for products and product directly.

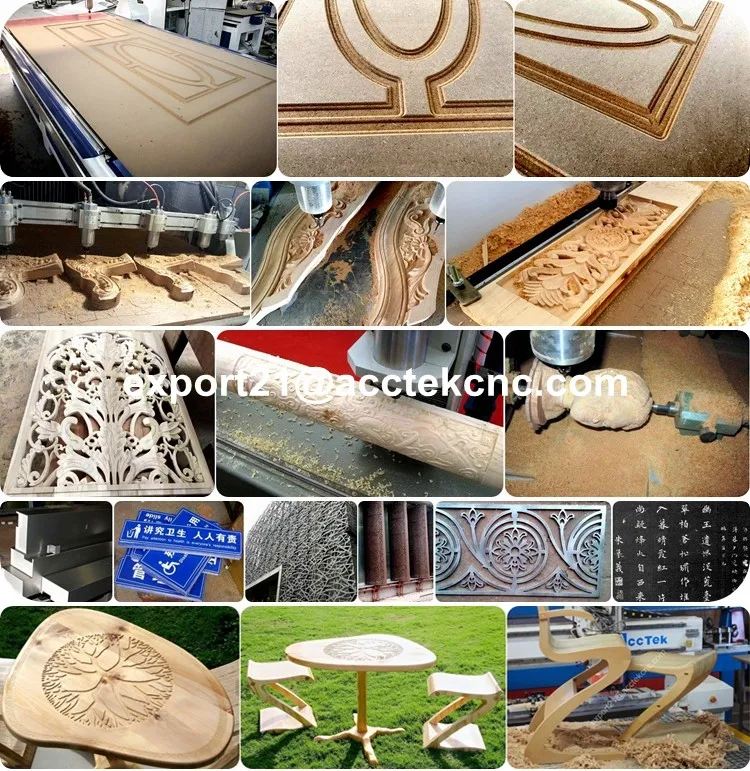

Samples:

FAQ

 Q1:I knew nothing about this machine,what kind of machine I should choose?

Very easy to choose, just tell us : 1. the work you want to do?  2. the maximum size of your materiaols,  then we give you perfect solutions and suggestions.

 Q2:When I got this machine,but I did not know how to use it,What should I do?

We will send video and english version manual with the machine,If you still have some doubts,we can talk by telephone or skype. Or even send our engineers oversea to help you.

 Q3:If some problems happened to this machine during warranty period,what should I do?
We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

 Q4:What is the MOQ?

MOQ for our products is 1 set machine, we could send it to the nearest port to you.

*Each machine can be custom-made according to your work, Before the payment, pls contact us about your work, then we will recommend you a suitable machine.
