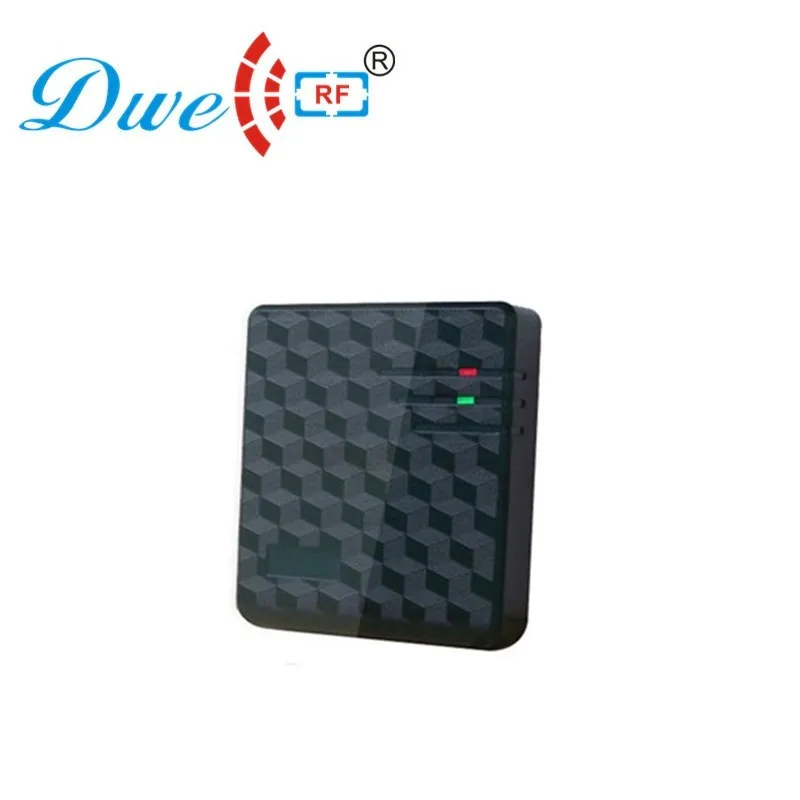

Free shipping control card readers lf rf id card scanner wiegand 34 wiegand 26 mini rfid reader 125khz

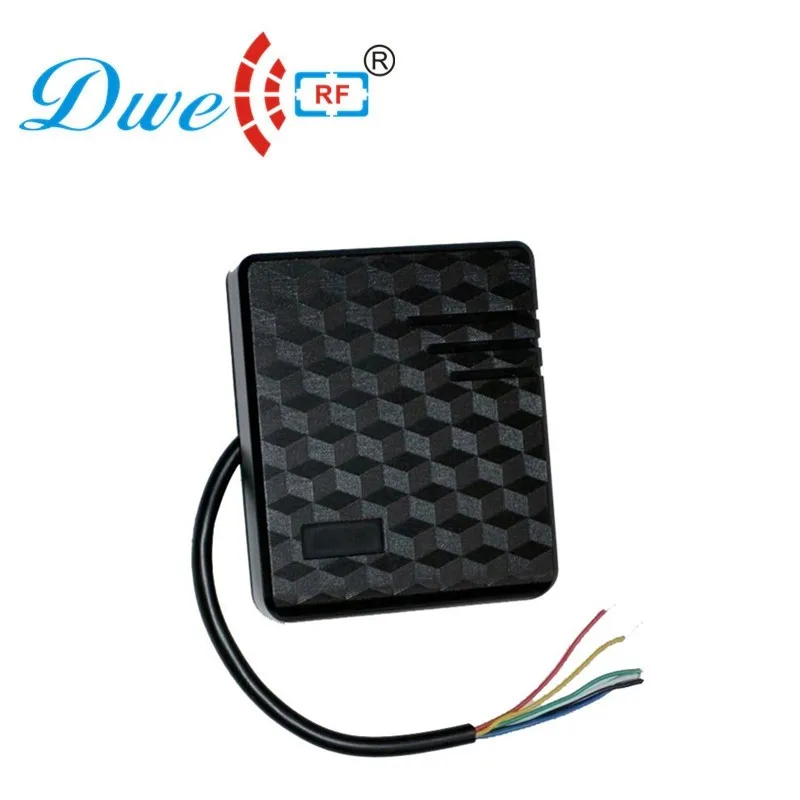

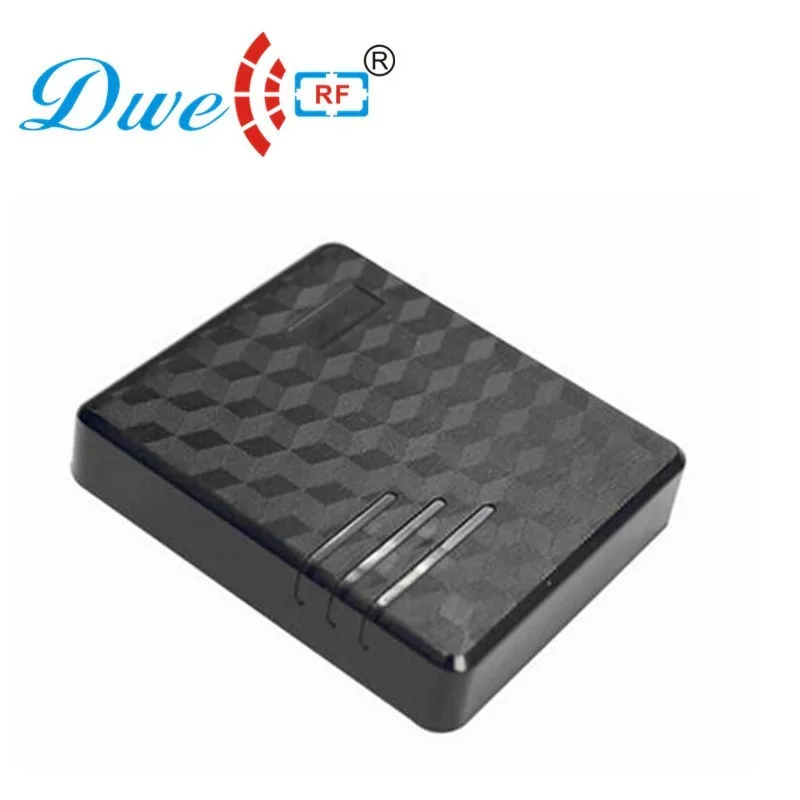

002Q 2 to 10 cm short range 125 KHz reader with wiegand 26, wiegand 34 protocol

Optional Model:

002Q-26/34, (Black Color, wiegand 26/34 interface)


Specification

*Wiegand 26bits/ Wiegand34bits Standard Format Data Output

*Less than 0.2 second Response Speed

*5-10cm Proximity Range

*Ambient Temperature:-25ºC to 75ºC

*Ambient Humidity: 10%-90%

*Built-in Antenna

*Built-in LED (Double Color LED)

*Built-in Loud Speaker (Buzzer)

*DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

*100 Meters Communication Distance

*Real Time Data Transfer

*With Water-Proof Function

*Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

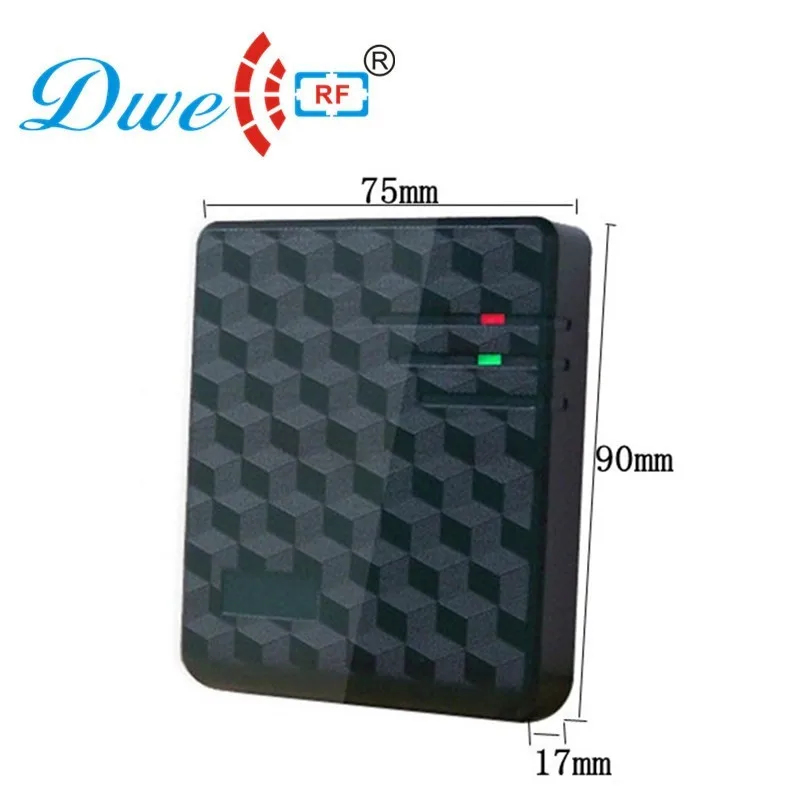

*90*75*18(mm)


Package:

1 * RFID reader(This reader can not work standalone , need work with tcp ip paccess controller )

1* Gift box

Installation Description

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 12V

Black GND

Green D0

White D1

Yellow BEEP

Blue   LED

Orange  Wiegand 26/Wiegand 34( defualt is Wiegand 26 bits, if you need weigand 34 function , connect orange  wire to GND)

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
