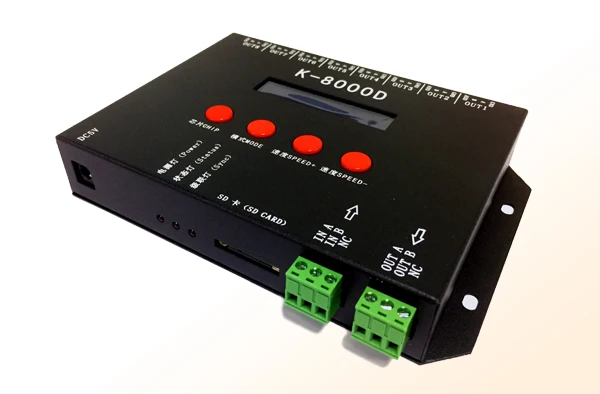

K-8000D DMX SD card pixel controller;8ports(512pixels*8);support standard dmx512 chip/DMX512AP-N/WS2821A;address writer function

K-8000D system features:

1,32 level -65 536-level grayscale control, software Gamma correction process.
2,supports a variety of point, line, surface light source, supports a variety of rules, shaped handle.
3,the controller 8 output ports, with each port maximum 512 lights.
4,the controller can use more than one cascade, Taiwan and Taiwan cascade distance of up to 200m; play content stored in the SD card.
5,K-8000D store up to 30 files.
6,K-8000D has joined the screen, the controller can be encrypted.

Notes: 1,requires the use of global wireless GPS synchronization, channel distributor and timing console when playing contact sales or technical support for further details

Support chips:
Standard DMX protocol 250Kbps
Standard DMX protocol 500Kbps
UCS-DMX lights IC
UCS1903 1909 1912 High Speed

DMX512AP-N series IC

WS2821A series IC
Note: A single-IC simply pick and GND

Specific parameters:
    Card:
          Type: SD Card
           Capacity: 128MB-2GB
           Format: FAT format
           Save the document:. * Led
    Physical parameters:
          Working temperature: -30-85
           Power supply: DC5V input
           Power consumption: 3W
       Weight: 0.8Kg

Note:
      1, before copying the files to the SD card, you must format the SD card, attention is to be formatted before each copy.
      2, SD card must be formatted as "FAT" format.

Note: SD card controller can not hot-swappable, plug the SD card each time that you must first disconnect the power controller.

silk meanings:

  Key meaning:

KEY

MEANING

Chip SHIP

Select the model and write code IC chip models

Mode MODE

Switching file / write code

Speed SPEED +

Speed

Press the SPEED + and SPEED-, then enter the file loop playback mode

Speed SPEED-

Slow down

Power supply

DC5V power input

Power lamp POWER

Power Indicator

Error lights ERROR

Error indicator

SD Card / SD CARD

SD card slot

    Signal output (485):

A

Signal +

B

Signal -

GND

Ground

ADD

Write-yard line

Write code process:
Wiring:

Start state

Chip00—03 support for the IC

     00-- standard DMX 250KB
         01-- standard DMX 500KB
         02 - UCS curtain lights
         03 - UCS1903-DMX series

Chip04-06 address writer code IC

         04 - UCS512A dmx address setting
         05 - WS2821 dmx address setting
         06-- DMX512AP-N dmx address setting

speed”3” means three channels

         Note: In the 00-03 mode, press Mode 8 seconds directly UCS512 write code, write code mode is the default three-channel

Encryption Glossary

Password is OK

Password normal!

Num

The remaining boot times

Password exist

Password already exists

Can't repeated

Encryption can not be repeated

Set Password OK

Set Password success

Clear Pwd OK

Clear Password success

Pwd not right

The password is incorrect

No Password

Password does not exist

Has expired! Contact factory

Password has expired, please contact the factory!

Wiring

Notes: 1, such as the controller proposes to add a differential relay over 50 m distance to the lamp.

       2, If you can not pull the controller sync signal lines between two buildings, it is recommended to use the global wireless GPS synchronization module, please consult the back of the GPS synchronization module synchronization scheme.
       3, wire transfer signal is recommended to use a good quality UTP or RVVP shielded cable for transmission.
