Best Price&Excellnt Quality Laser cutting/carving machine for nonmetal material



No find the laser you like?Try to click the laser name as follows

    Dual head Metal&Nonmetal Laser Cutter                                 Mid-size Metal&Nonmetal Laser Cutter

For special working size,PLS contact Whatsapp:+8613066019927 Jack

Laser parameter

1.Laser head with autofocus system and red dot

2. Beijing Reci laser tube 3. Independent switch

4.Laser operation system 5.Knife edge table 6.Controller box

​

Items  Parameter Product name  CNC Co2 laser cutting machine Processing area  600mm*900mm  Laser power  90-100W Laser type Sealed Co2 glass laser tube Controller Ruida 6442S laser system Working table Aluminum knife edge/honeycomb Knife Following up system With autofocus system Cooling mode Circulation water cooling and protection system water pump Transmission and rails Taiwan HIWIN linear guide rails and Fulong belt and pinion  Positioning accuracy ±0.05mm  Compatible Software Laser cut /CorelDraw/AutoCAD/Photoshop  Engraving speed 1-6000mm/min Cutting speed 1-1000mm/min Position system Red dot Interface USB Minimum shaping character letter 0.5mm, Chinese 0.5mm Support graphic format DST, PLT, BMP, DXF Driving mode Stepper motor Air pump With Exhaust fan With 550w Working voltage AC 110 - 220V±10%, 50 - 60Hz or depend on customer Operating temperature  0-45°C Operating humidity 5-95% Options Up and down working table Rotary attachment for column materials Chiller CW3000-6000 Multi-head Guarantee time 2year






Product Description



 On the road,we still focus on the products details.



Sample & Application

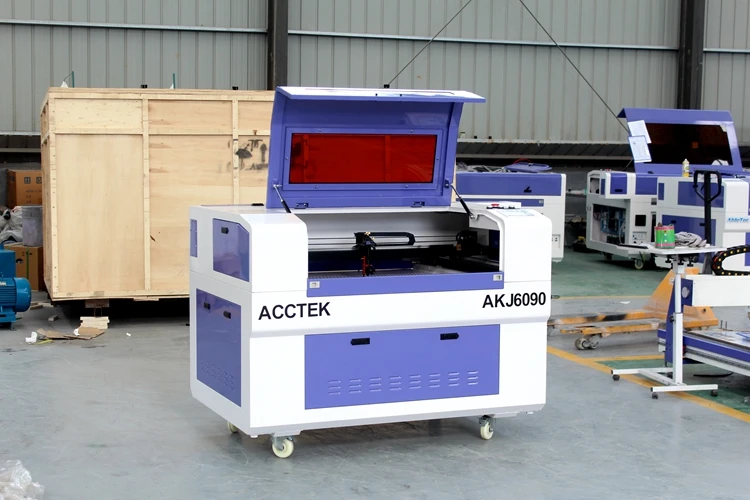

This co2 laser cutting machine can use for cutting nonmetal material.

Non-metallic materials: Wood, Bamboo, jade article, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, acrylic etc.





Our Services



Rather careful and professional packing way for machine protection.

1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.

2. Free-fumigation wooden case with steel tube support on wooden cover. The humidity-proof paper above the wooden plate. This kind of package could protect the machine very well from dust and humidity etc.

 Guarantee:

12 months for the whole machine.You will also get technical support and service all the lifetime.



Technical support:

1. Our technician can give you remote guide online(Skype or WhatsApp) if any question.

2. English version manual and operation video CD disk

3. Engineer available to service machinery overseas



After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.

Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/skype/tel etc
