Wolf-Guard 3G GSM Wifi Wireless Home Alarm Security Burglar System DIY Kit w/ 120dB Solar Siren Door Sensor PIR Motion Detector

TIPS:

1.IOS and Android user search "S-Home" on IOS store and Google play to download.
2.Pls scan the two-dimensional Code of the user manual to download the APP!
3.Our Panel is only work with 2.4GHZ Wifi, not work with 5GHZ Wifi!

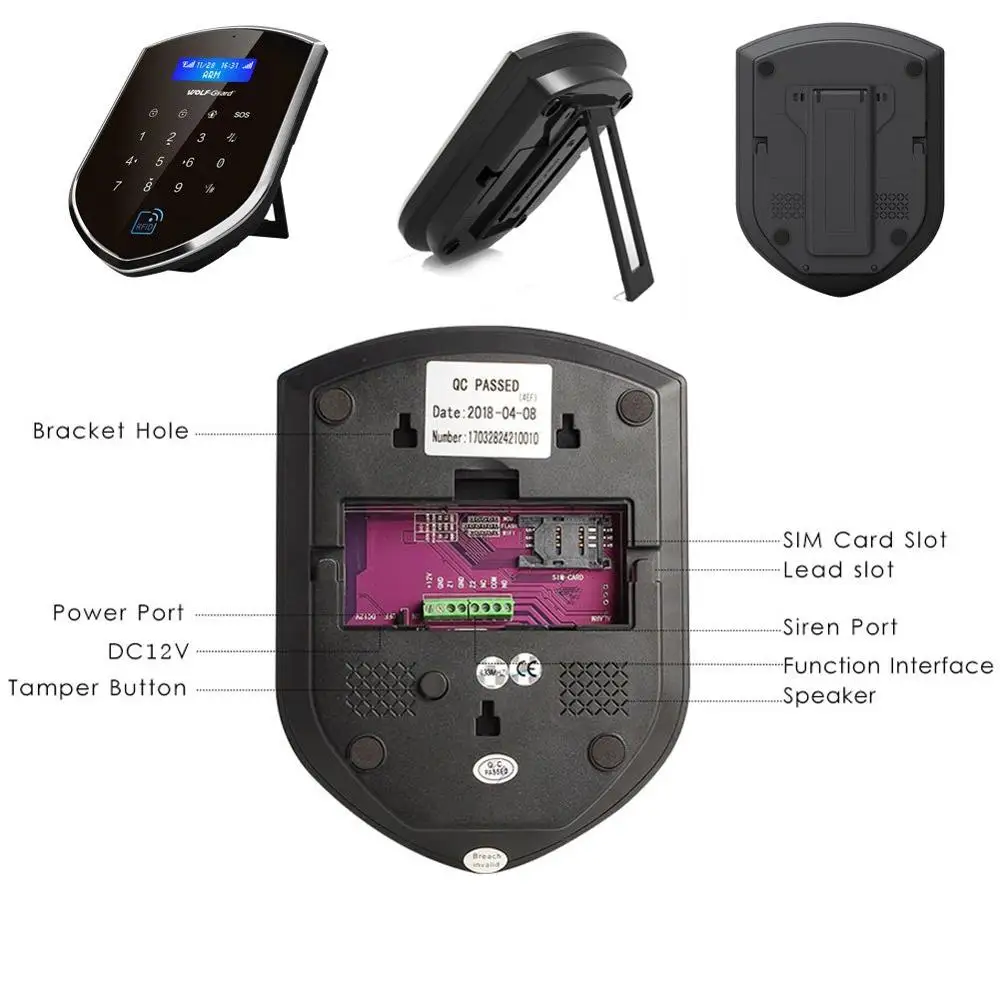

WM3GR:(Alarm Host)
1.WIFI and 3G dual-network alarm technology;
2.LCD display and capacitive touch buttons;
3.Can learn 8 wireless remote controller and 10 RFID cards;
4.10 wireless zones (80 detectors in total) and 3 wired zones;
5.Each zone can be independently armed ,support accessories alarm, low voltage alarm, tamper alarm and other SMS tips;
6.Can preset 6 groups of alarm calls ,3 groups of SMS alarms;
7.Support mobile phone APP (Android and IOS ) operation;
8.With one-way relay alarm linkage output,4-way wireless home appliances control;
9.Timing arm/disarm, delay arm, delay alarm, alarm time can be reset;
10.30 alarm records can be queried;
11.Remote arm, disarm, monitor, intercom and other functions;
12.Built-in high-capacity lithium battery, can also work properly when power off.

Technical Parameters:
1.Power Supply: AC=100V-240V±10%, DC 12V
2.Standby Current: <180mA
3.Alarm Current: <450mA
4.WiFi Frequency Range: 2.412MHz-2.484MHz
5.WiFi Standard: IEEE 802.11 b/g/n
6.Wireless Reception Frequency: 433MHz±0.5MHz
7.GSM Band: 850/900/1800/1900 4 band
8.3G Mode:UC15-E:GSM900/1800 UMTS900/2100 UC15-A:GSM850/900 1800/1900 UMTS850/1900 UC15-T:GSM850/900 1800/1900 UMTS 850/2100
9.Anti-interference Strength: 1V/m (frequency range 20-100MHz)
10.External Alarm Siren Sound Intensity: 110dB
11.Working Temperature: -10℃~40℃
12.Relative Humidity: ≤90% without condensation
13.Configurable Wireless Device Capacity: 8 remote controls, 80 detectors, 10 RFID cards
14.Wireless Transmission Frequency: 315MHz/433MHz/868MHz
15.Wireless Reception Frequency: 433MHz

HW-06D:(PIR Detector)
HW-06D Wireless Dual Pet-immune PIR detector adopts a number of advanced analysis techniques of dynamic threshold adjustment, artificial intelligent process etc. According to infrared spectra from human body to do intelligent analysis and quantum chemical calculation, then compared to the current environment, accurately send alarm for the movement of human body, make sensors more stable, more effectively , avoid false alarm by pet.

Key Features:
1.Adopt high-end double infrared sensor and artificial intelligent algorithm technology;
2.Two important detection windows, immune to pets weighing below 25KG;
3.Dynamic threshold adjustment technology, with good resistance to light and electromagnetic interference;
4.Detecting sensitivity is adjustable to meet different environment requirements;
5.Unique intelligent power saving mode, can prolong battery life;
6.Built-in 2262 and 1527 encoding, can work with most alarm panels in the market;
7.Use the precision Fresnel lens technology to improve the efficiency of energy reception;
8.Adopt SMT manufacturing, more reliable performance.
9.Suitable for residence, shopping mall, machine room, warehouse, factory etc.

Technical Parameters:
1.Operating Voltage: DC 3V (2 AA LR6 AM3 1.5V,not include battery)
2.Quiescent Current: ≤18uA
3.Working Current: ≤15mA
4.Detecting Range: 7-9 meters
5.Wireless Transmission Distance: 70 meters (open area)
6.Detection Angle: 70°
7.Detection of Walking Speed: 0.3m/s-3m/s
8.Self-test Time: ≤60s
9.Alarm Indication: Red LED light
10.Infrared Sensor: 2 pairs of pyroelectric infrared sensor
11.Wireless Transmission Frequency: 433/868MHz (optional)
12.Relative Humidity: 5%-95% RH (no condensation)
13.Installation: Wall or corner installation
14.Installation Height: 1.7m-2.2m
15.Storage Temperature: -10℃~65℃
16.Detector Size: 107mm*52mm*41mm
17.Meet the Standard: GB10408.1; GB10408.6; GB16796

JD-W06:(Solar Siren)
1.JD-W06 outdoor siren is very easy to install, When the alarm of your system is triggered, it rings out and its LEDs switch on.
2.It also can be use as an alarm device to match the wolf-guard host to build a home alarm security system!!
3.The Wireless Distance is >80 Meter(no obstacle)!and the Solar Battery's Standby Time is about 10 days!!
4.Fashionable and Waterproof Design: With double-deck waterproof coil design, it can work in normal state in any weather outdoor.

Technical Parameters:
1.Standby current: <10mA
2.Solar power recharging current: 155mA
3.External power supply: DC12V/1.2A
4.Recharging current: 310mA
5.Alarm current: 350mA
6.Wireless receiving frequency: 315/433±0.5MHZ
7.Wireless receiving distance: >80M (no obstacle)
8.Working temperature: +10℃ ~+40℃
9.Humidity: £ 90% (no fog)
10.Built-in battery: Polymer battery 7.4V/2100mA

MC-03B:(Door Sensor)
1.Ultra-thin modern design (appearance design has patent), suitable for various kinds of doors and windows;
2.Shell buckling design for convenient battery changing;
3.Power switch can extend life span of the battery;
4.Auto manual alarm button, as well as emergency button;
5.Built-in antenna, delicate and modern looking.

Technical Parameters:
1.Working Voltage: DC 3V (built-in 3V button battery);
2.Static Working Current: 10uA
3.Alarm Current: <30mA
4.Working Temperature: 10℃~40℃
5.Working Humidity: ≤95%
6.Emitting Frequency: 315/433/868 + 0.5MHz
7.Emitting Distance: (No exterior soft antenna) no obstacle 80M; (with exterior soft antenna) no obstacle 100M
8.Gap Distance: 15mm Max
9.Coding Method: PT2262 or EV1527

YK-11:(Remote Controller)
1.Model: YK-11
2.Transmitting distance: 80m
3.Transmitting Current: ≤7mA
4.Frequency: 433MHz
5.Shell Material: silica gel + ABS
6.Power supply: 2PCS 3V CR2016 Li-ion battery
7.Temperature: -10℃- 40℃ Humidity: ≤90% RH
8.Size: 68.8 x 35.8 x 11mm

RFID Card:
1.Chipset: EM4100
2.Frequency: 125kHzUsed for Wolf-Guard Alarm Panel with RFID function.
3.Size: 40*40MM
4.Operating Distance: 0-10cm
5.Operating Temperature: -20° - +50°
6.Ony Read!!!

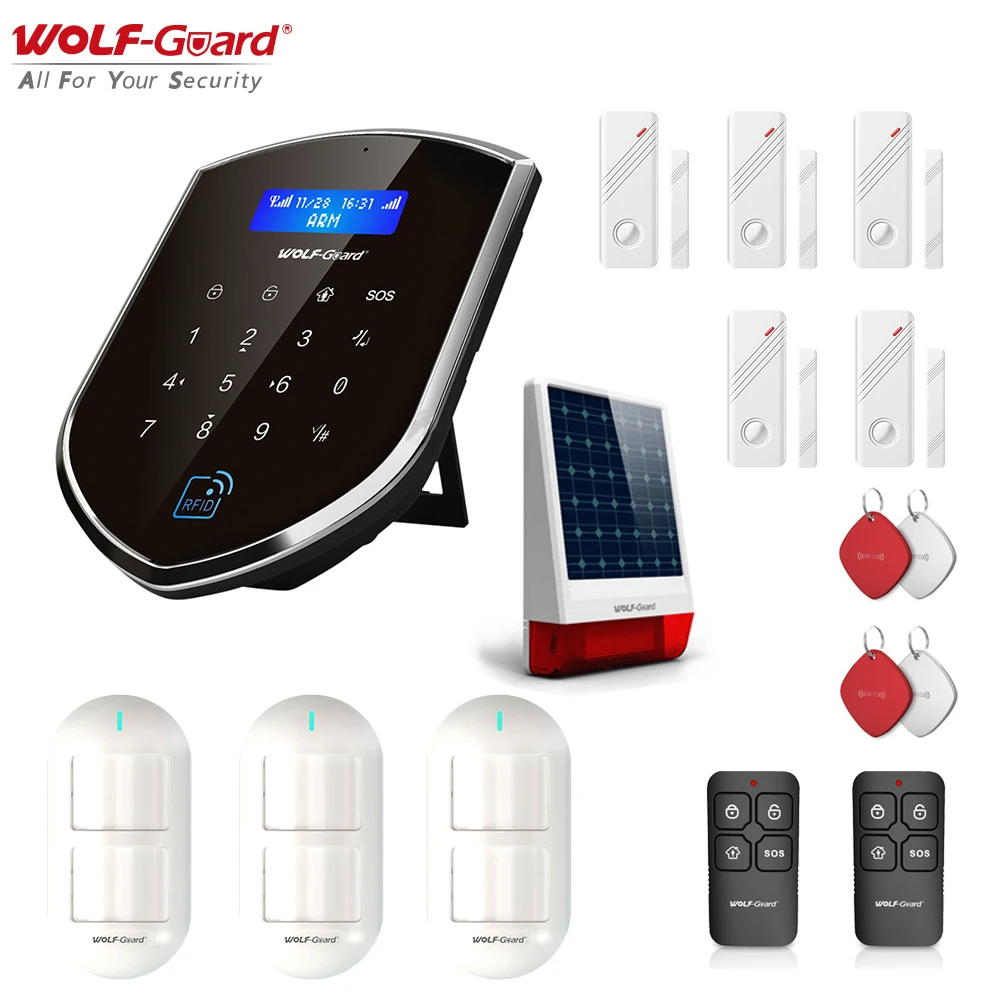

Package Including:
1 x WM3GR Sheild Host(SIM card is not included)
3 x HW-06D PIR Detector(not include AA battery)
2 x YK-11 Remote Controller
5 x MC-03B Door Sensor
1 x JD-W06 Solar Siren
1 x Power adapter
1 x Bracket
1 x Screws Pack
1 x User Manual
4 x RFID Card

Question & Answer:

Q: Can this alarm system work with WIFI and 3G Sim Card together? So if the WIFI failure,the machine can switch 3G/GPRS mode to work?
A: Yes. User can connect alarm system with WIFI and 3G Sim Card to work. And when WM3GR Alarm System be triggered, it will push alarm message to the APP via WIFI.

Q: It just with WIFI in my house and without 3G Sim Card,can I use this alarm system?
A: Yes. WM3GR Alarm System can work in WIFI mode only.

Q: Can I add additional remote controllers, door sensors, pir sensors, smoke detectors, gas detectors or other sensors to work with this alarm system?
A: Yes. WM3GR alarm system can work up to 10 wireless zones (80 detectors in total) and 3 wired zones.

Q: Does the alarm panel with backup battery?
A: Yes. WM3GR alarm system with internal rechargeable backup battery. It can support WM3GR work when AC Adapt is cut.
