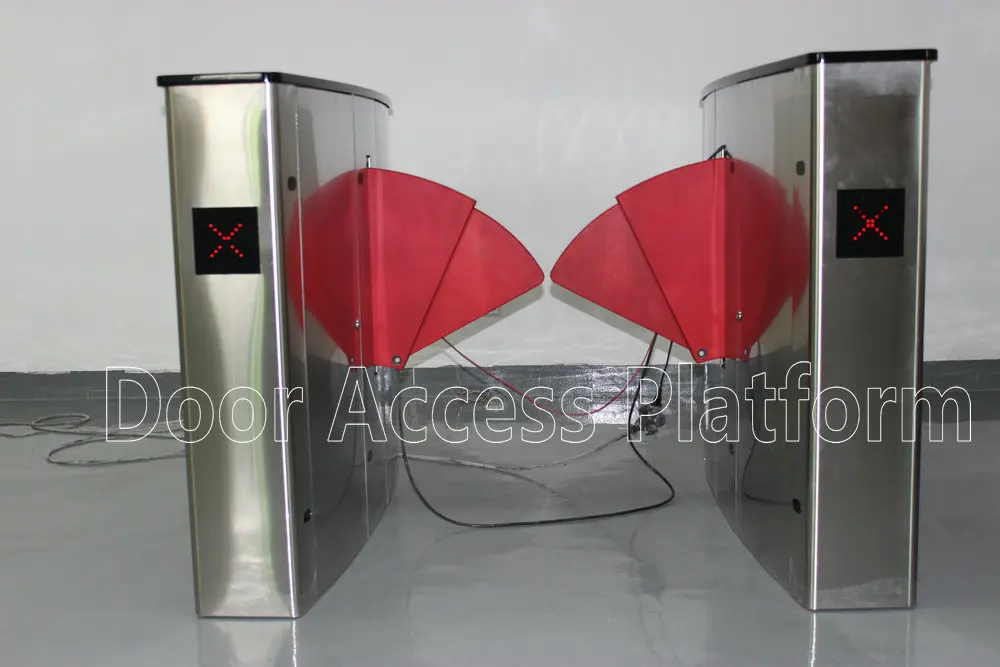

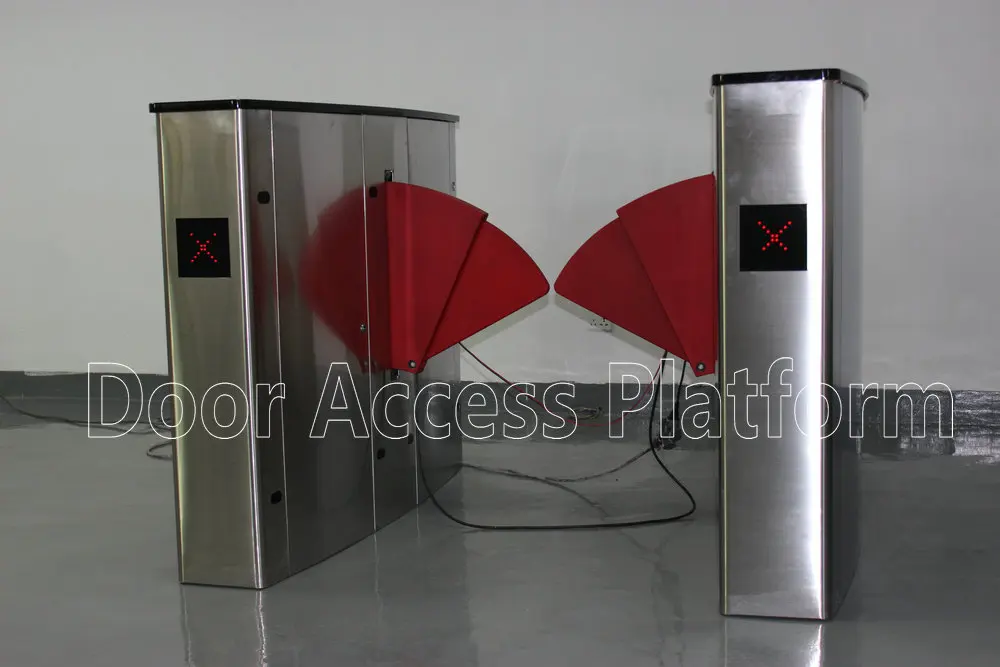

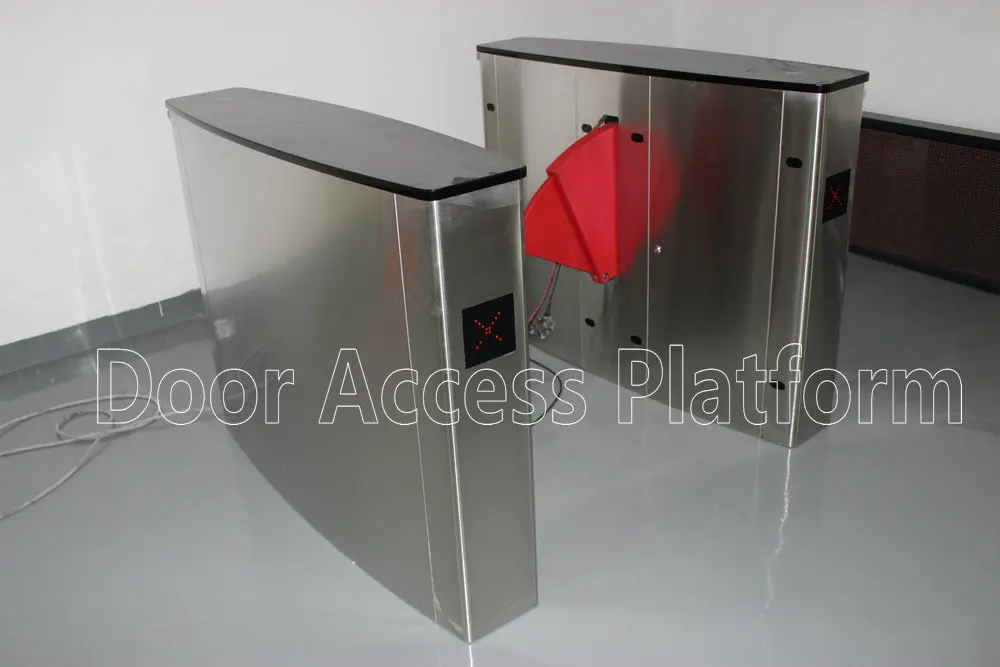

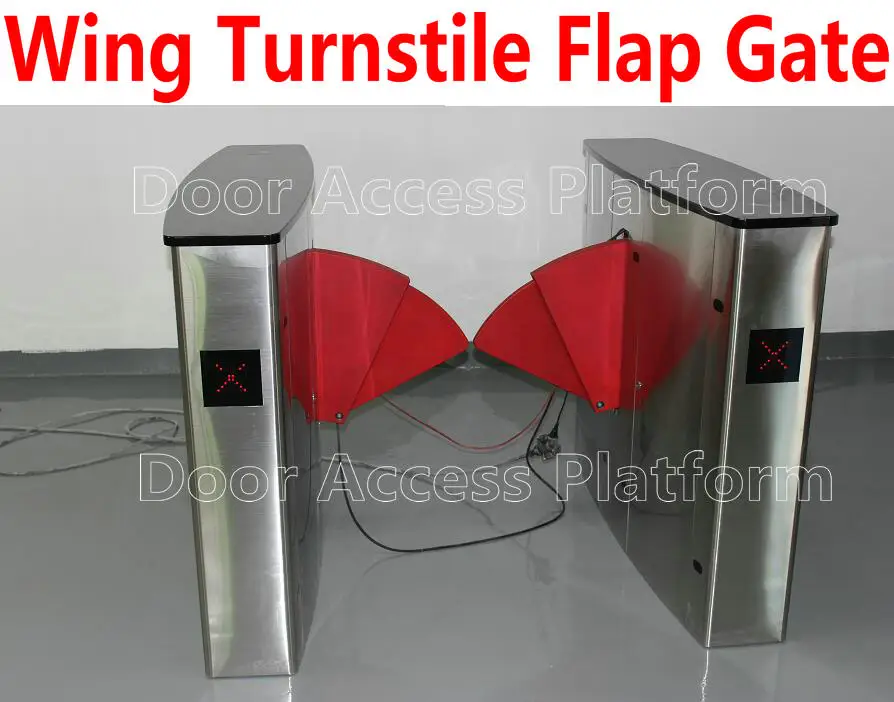

1 Pair of Wing Turnstile Flap gate Pedestrian SwingTurnstie Passageway access control Security barrier |



















The Wing Turnstile gate serials are the Industry standard Security Access Control products, and it can be integrate with different turnkey solution project system,









Key Features:



-    Structure Materials: High-End Industry standard Stainless steel shell#304 Materials,



-    This Turnstile system can be integrated with IC Card reader, ID Card reader,



-    This Turnstile system also can be work with Fingerprint reader,Face Recognization reader,



-    The machine can work with Magnetic force card,Barcode card,



-    It can work for Variety reads/writes the way,



-    The Core parts: Electro Machinery Magnetic Lock, DC12V German Technology Applied,



-    The Code Controller board of Turnstile system be work with AC 18V and AC 12V power,



-    Having the power failure meets an emergency the function,



-    Memory function(Option). Can join circulate, also can take off the machine circulate,



-    Have the breakdown from the check and report,



-    Automatic covariance and manifestation function,



-    The machine can be directly connect with RS485 and TCP/IP Controller panel,



-    There is Turnkey solution to pick up a people, gather the company the best head chooses,



-    Working Enviroment :IP65 Waterproof for both Indoor and Outdoor application,



-    220V power is standard,(can also provide 110V,160V as option),



-   -30C - 50C Temperature,



-   Humidity:<=95%,

























Technical Specification:

Power Supply

220V,50Hz(Option110V-260V)

Machine Core Magnetic Lock

DC12V

Electric Current:

0.1A

Working temperature

-30degrees ~ +60degrees

Relative Humidity

<=95%

Machinery core rotate speed

850r/m

Dimension(L*W*H)

Special Size Customized

Weight

95KG Gross Weight,

Materials Case

@304 Stainless Steel

Arms max stress endurance

80KG

Arms rotation driving force

<=3KG

Passage speed

25~37 person/min(adjustable)

Data input interface

Dry contact for both sides

Data output interface

Via RS485,TCP/IP Control PCB

















Packing List:   -  1   x    Right-side High-End Wing Turnstile Gate -  1   x    Left-side High-End Wing Turnstile Gate -  1   x    1 Year Warranty Service For Broken Items replacement





Free Shipment Explanation:   Free Shipment listed on this page is just     only used     for part of     European, East/South     Asia,Middle East     and North,Middle America countries     , Not including South Amercia, Russian, Middle Asia, Africa, Macedonia, Kosovo,etc, Even if you chose it online but we will not ship accordingly,   Because these countries are very difficult for Import Custom clearance plus with crazy high import tax by DHL/TNT/UPS, So before shipment, Please better for u to negotiate with us and discuss together to get a final shipping method, Thanks for understanding,   In addition, We will write the real value of goods on shipment invoice, If you need us write smaller value on invoice for you save money on import tax/import duty, Please do let us know in advance before shipment but we can not guarantee it can be process Custom clearance successfully and smoothly,   and plesae make sure you have real + legal import license or related certificate and you confirmed it can be approve of you to import products from us seller,  Meanwhile all the import tax/import duties plus with local shipping fees happened in your country is your responsibility,  Please handle it quickly as soon as you received the phone call from local DHL office or the Customs    How much you need pay for the import tax/import duties to DHL or Customs is absolutely depend on your bought product's tax rate and Custom regulation in your country, Please call them before buy if you are not sure about that, Thank you for your understanding
