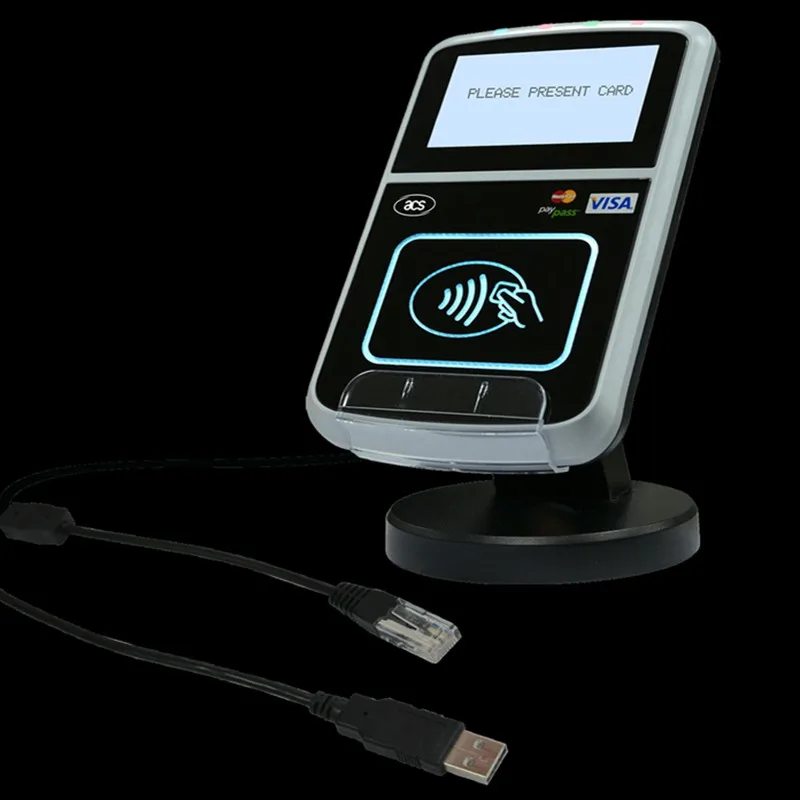

  • 13.56MHZ USB +RJ45 Interface ACR123S Intelligent Contactless RFID Reader With LCD For ISO 14443 A B cards | Безопасность и защита - Фото №1
  • История цены

    *История изменения цены! Указанная стоимость возможно, уже изменилось. Проверить текущую цену - >

    Месяц Минимальная цена Макс. стоимость Цена
    Sep-18-2025 271.25 руб. 285.93 руб. 278 руб.
    Aug-18-2025 269.16 руб. 282.83 руб. 275.5 руб.
    Jul-18-2025 226.45 руб. 237.17 руб. 231.5 руб.
    Jun-18-2025 264.81 руб. 277.88 руб. 270.5 руб.
    May-18-2025 230.82 руб. 242.26 руб. 236 руб.
    Apr-18-2025 260.40 руб. 273.52 руб. 266.5 руб.
    Mar-18-2025 258.72 руб. 271.94 руб. 264.5 руб.
    Feb-18-2025 255.60 руб. 268.31 руб. 261.5 руб.
    Jan-18-2025 253.77 руб. 266.63 руб. 259.5 руб.

    Новые товары

    Характеристики

    13.56MHZ USB +RJ45 Interface ACR123S Intelligent Contactless RFID Reader With LCD For ISO 14443 A B cards | Безопасность и защита

    Описание товара

    13.56MHZ Contacless USB RFID Card Reader Writer for ACR123U With LCD Compatible with EMV-based Payment Support for ISO 14443 Part 4 Type A and B cards +SDK Kit





    Overview

    Contactless technology revolutionizes the everyday purchasing experience of consumers throughout the world. This ramps up the demand for a powerful product that will provide support for contactless payment applications. The ACR123S is specifically designed to cater to this market need.

    The ACR123S Intelligent Contactless Reader is a cost-effective, flexible and intelligent contactless reader that can be integrated to existing POS (Point-of-Sale) terminals or cash registers to enable the convenience of a cashless payment system. Developed based on the 13.56 MHz contactless (RFID) technology, it supports any contactless card following the ISO 14443-4 standard.

    Aside from its contactless features, the ACR123S is equipped with a large graphical LCD that allows merchants to flash messages, as well as a large tapping area with backlight, to guide customers in carrying out their payment transactions.

    The ACR123S is compliant and certified with major payment and safety standards such as M asterCard, Visa, EMVCo Level 1 and EMVCo Level 2. ACR123S is compatible with EMV-based contactless payment applications such as M asterCard P ayPass , V isa payWave, and A MEX ExpressPay. Moreover, the ACR123S Intelligent Contactless Reader is also Apple Pay-ready.

    The ACR123S, will ease movement in checkout counters, since customers can complete payment transactions by simply tapping their cards. This presents an opportunity to revolutionize the shopping experience through faster and more convenient payments.



    Feature



    Serial RS232 Interface with RJ45 connector USB interface for power supply ARM 32-bit CortexTM-M3 Processor Smart Card Reader: Read/Write speed of up to 848 kbps Built-in antenna for contactless card access, with card reading distance of up to 50 mm (depending on tag type) Support for ISO 14443 Part 4 Type A and B cards and MIFARE series Built-in anti-collision feature Three ISO 7816-compliant SAM slots Payment Applications: M asterCard P ayPass M ag Stripe and M/Chip V isa payWave MSD and qVSDC American E xpress E xpressPay 3.0 Apple Pay-ready Built-in Peripherals: 16 alphanumeric characters x 8 lines Graphical LCD (128 x 64 pixels) Four user-controllable LEDs (Blue, Yellow, Green, and Red) User-controllable tapping region backlight (Red, Green and Blue) User-controllable speaker (Audio tone indication)





    Application



    Banking & Payment e-Healthcare e-Purse & Loyalty Transportation



    Tech Specs



    Dimensions Main Body: 159.0 mm (L) x 100.0 mm (W) x 21.0 mm (H)
    With Stand: 177.4 mm (L) x 100.0 mm (W) x 94.5 mm (H)
    Weight Main Body: 281.0 g
    With Stand: 506.0 g
    Interface Serial RS232 Interface with RJ45 connector for data communication, USB for power transmission Operating Distance Up to 50 mm (depends on the tag type) Supply Voltage Regulated 5V DC Supply Current 500 mA (max.) Operating Temperature 0-50°C Operating Frequency 13.56 MHz Smart Card Interface Support ISO 14443 Type A & B MF1 Payment Applications M asterCard P ayPass Mag Stripe and M/Chip V isa p ayWave MSD and qVSDC American E xpress E xpressPay 3.0 A pple Pay-ready Compliance / Certifications ISO 14443, CE, FCC, RoHS 2, REACH, VCCI, KC EMVCo Level 1, EMVCo Level 2, M asterCard P ayPass, V isa p ayWave, A MEX ExpressPay, Microsoft WHQL Operating System Support Windows Linux
