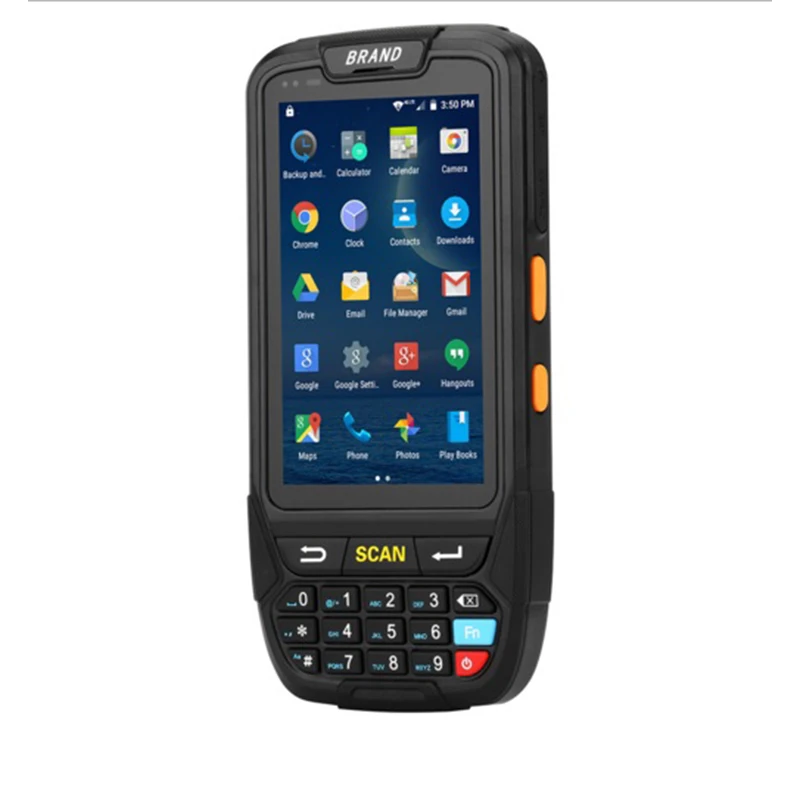

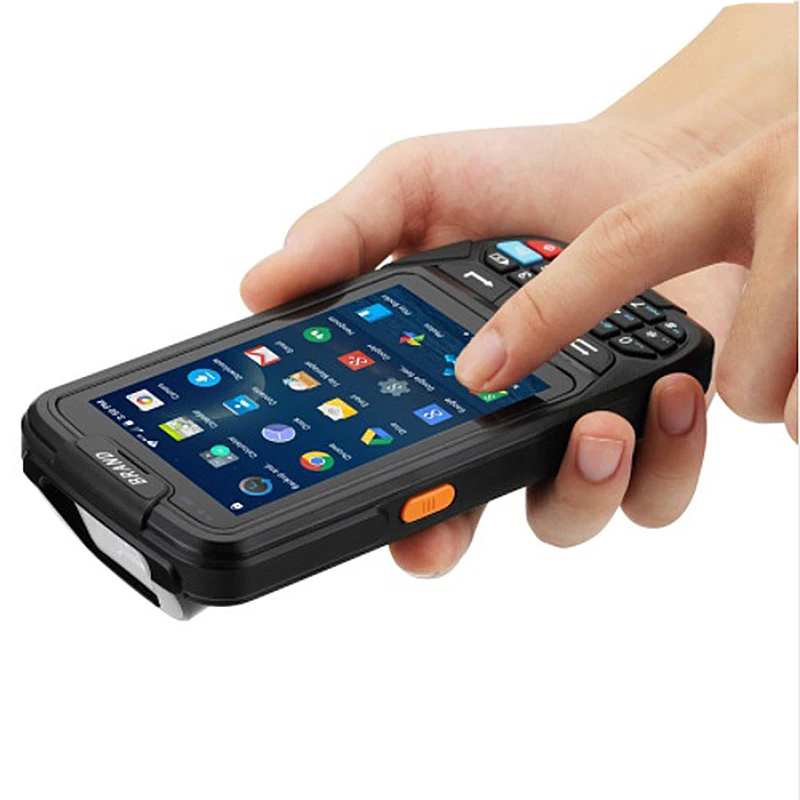

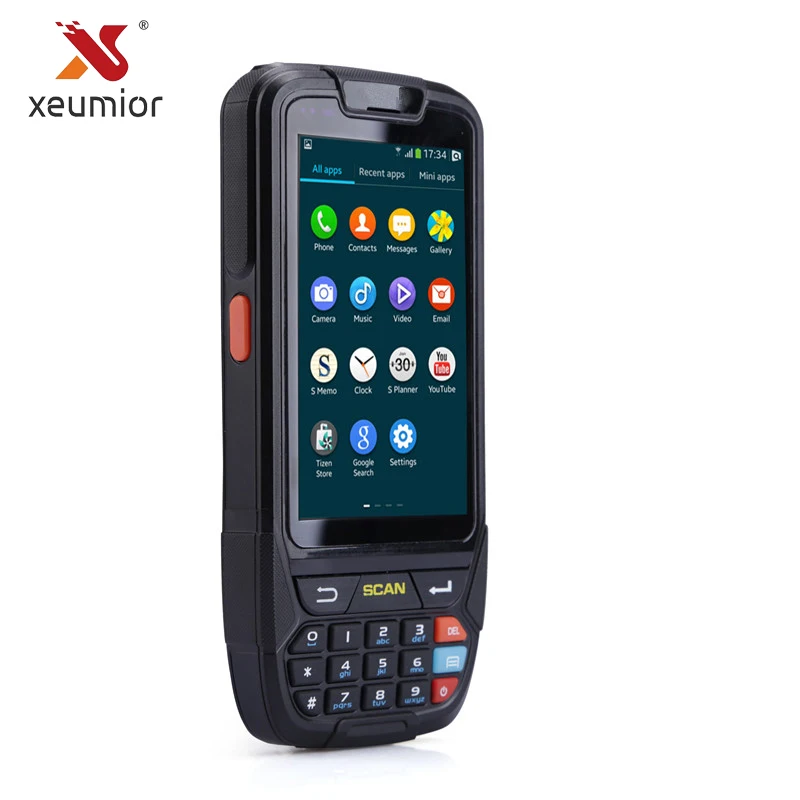

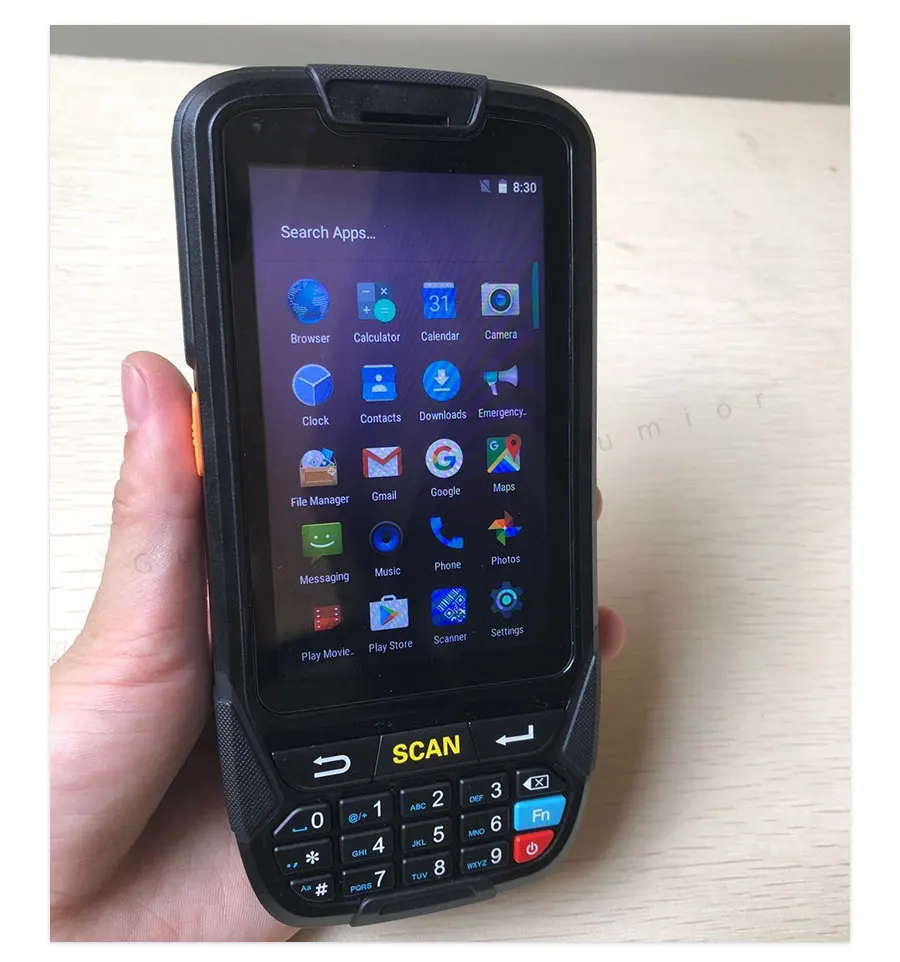

Android 7.0 PDA Handheld POS Terminal 4G Touch Screen 1D 2D Barcode Scanner Wireless Wifi Bluetooth GPS Barcode Reader

Standard Function:

1.Wifi, 4G, GPS,camera

2.Bluetooth

3.1D/2D laser barcode scanner

4.NFC(Optional)

Feture :

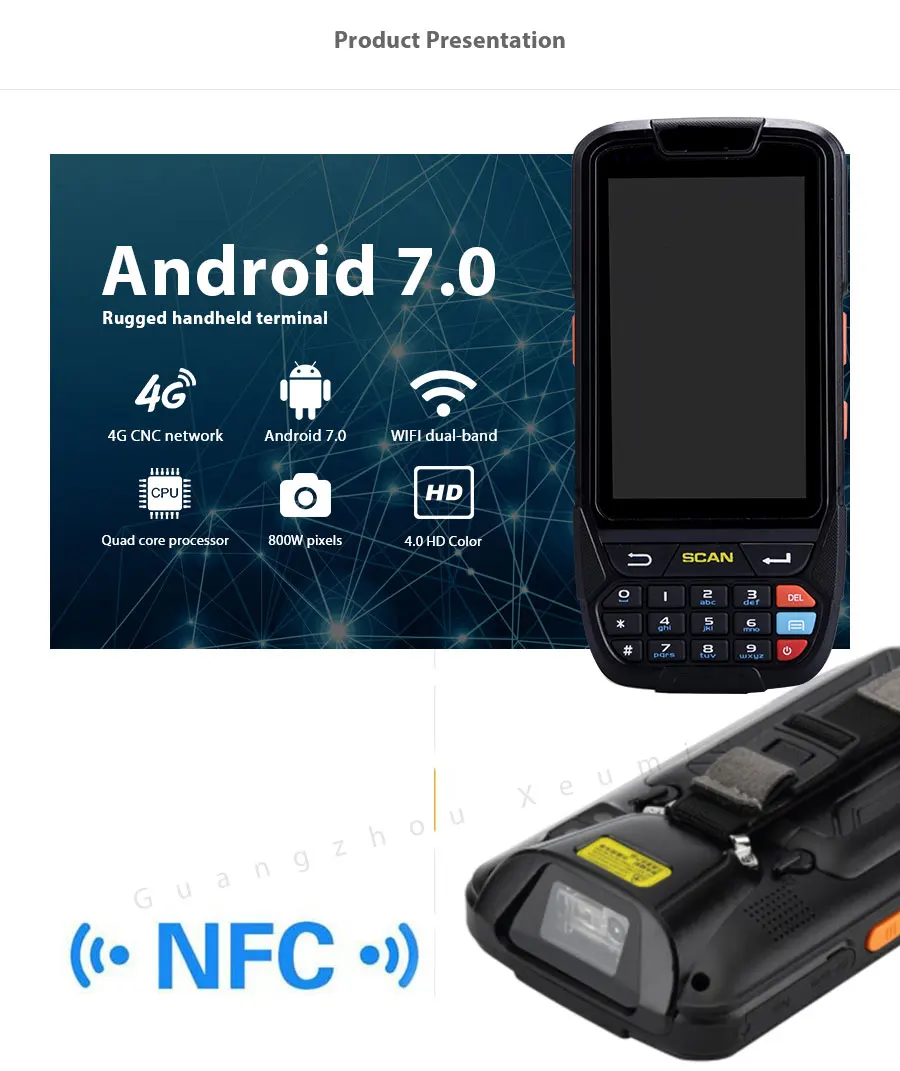

1.Android7.0 operation system;
2.Quad-Core ARM Cortex-A53 Quad-core 1.3G;
3.Hd 8 million pixels, with LED, automatic focusing;
4.SIM card, PSAM card, Micro SD (TF) Card Expand Port;
5.Rechargeable Li-polymer Battery 3.7V 4000mAh;
6.Color 4.0 inch QVGA imitative glass durable touch screen.

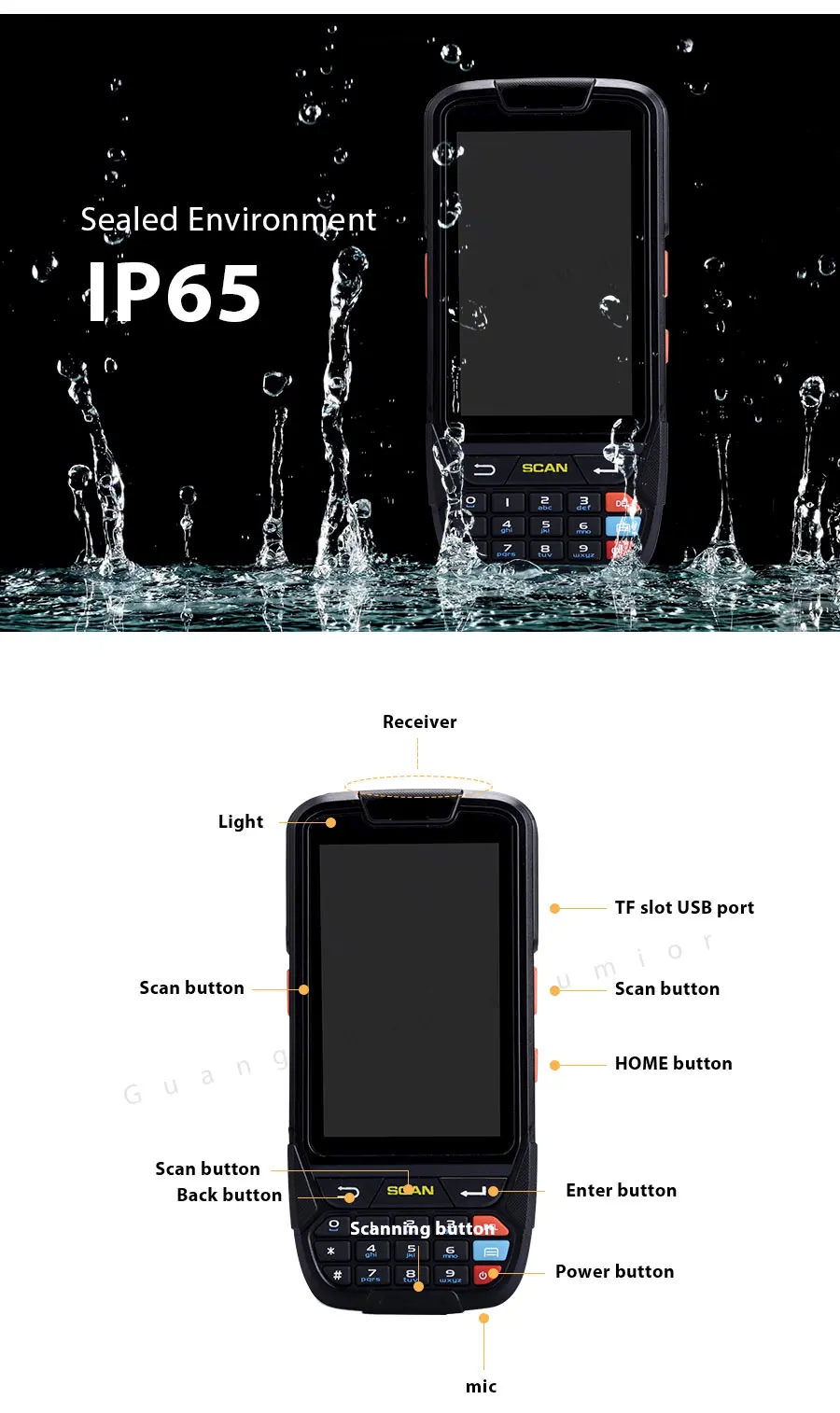

7.Sealed Environment: IP65

8.Support 1d barcode scanner

9.Support NFC(HF.13.56M rfid) or 125K RFID

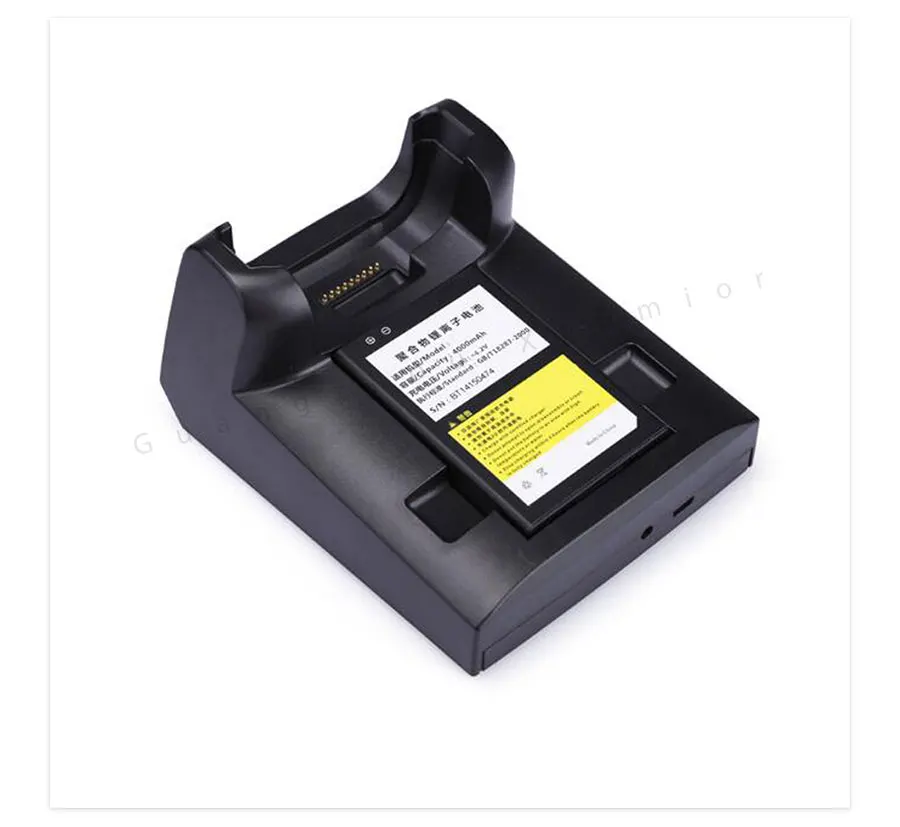

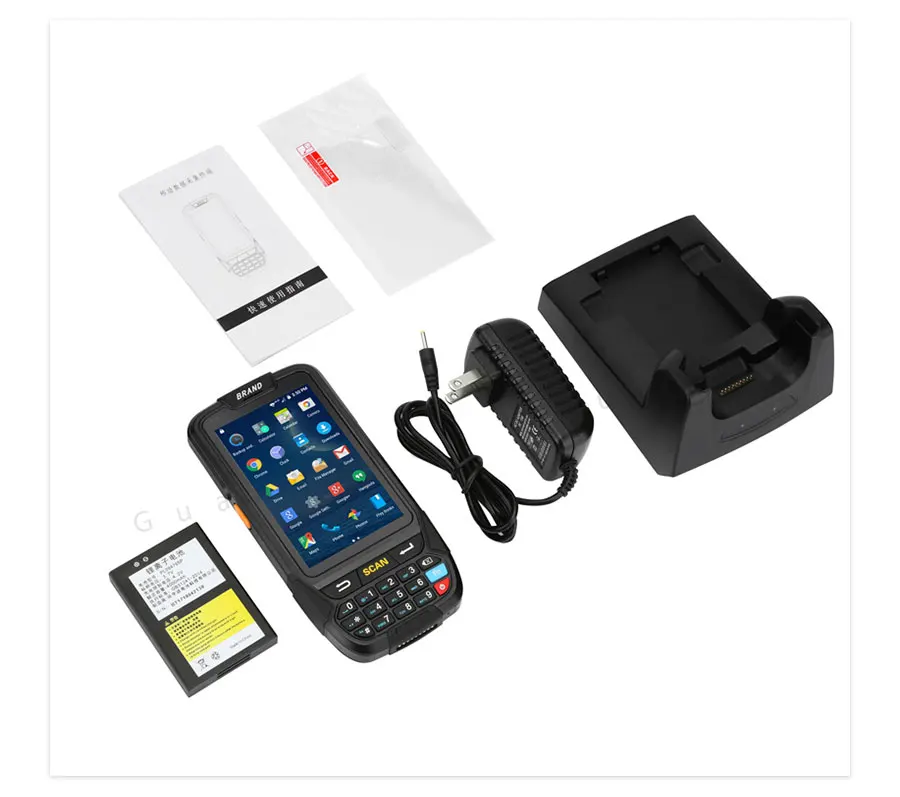

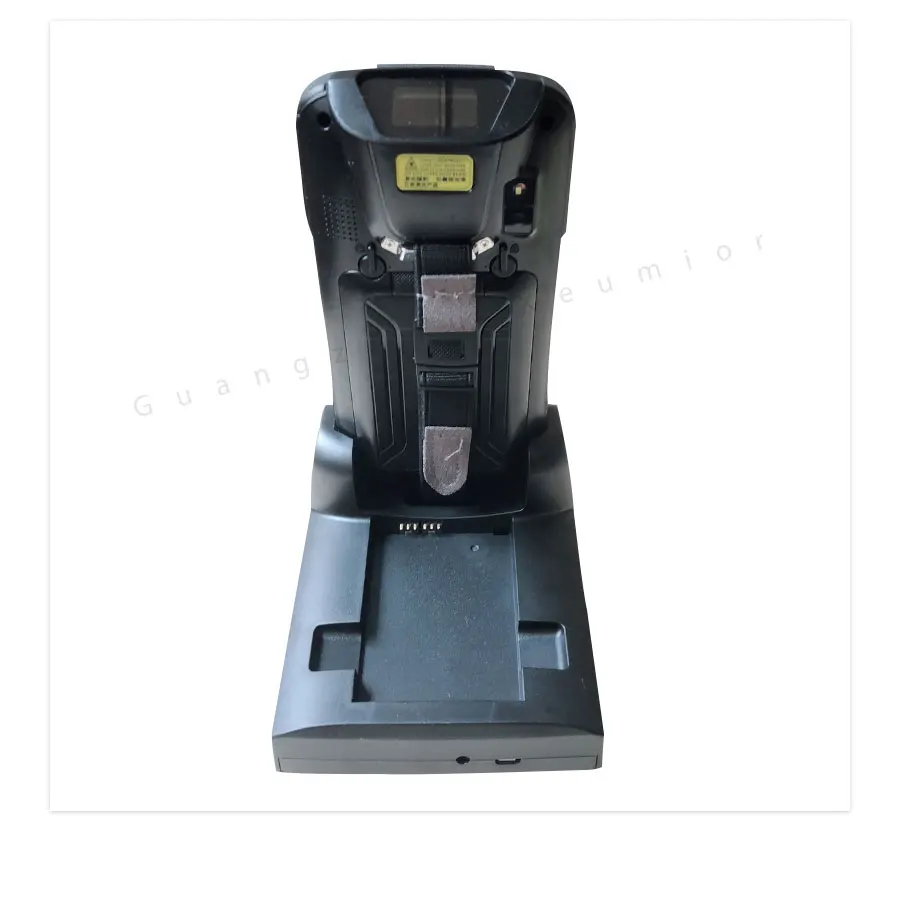

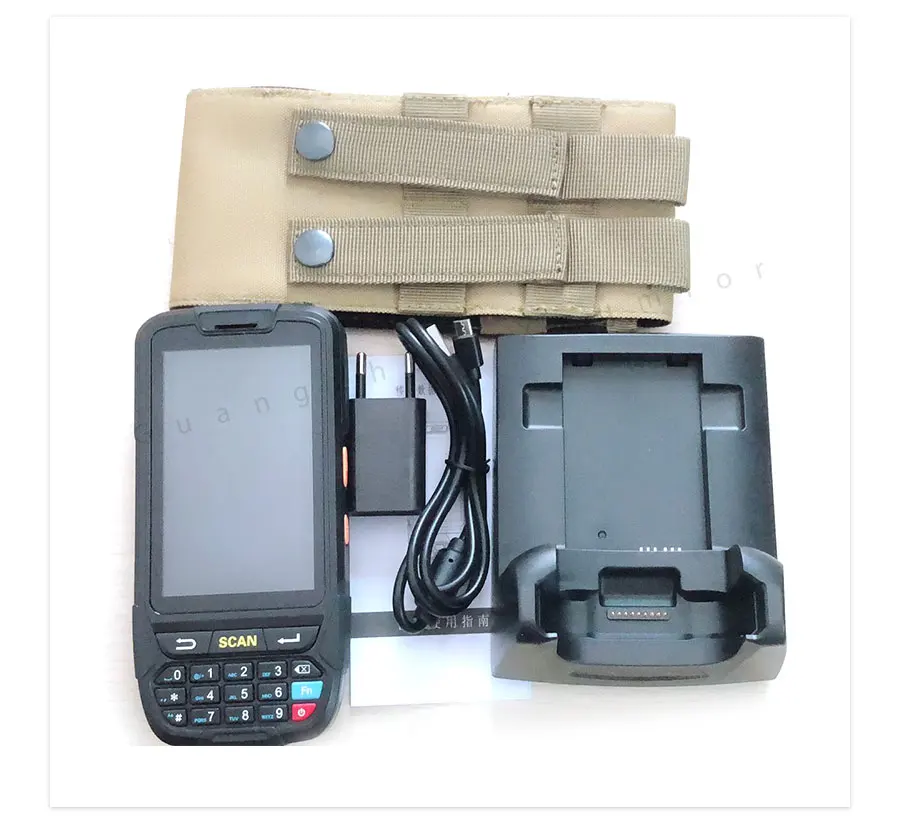

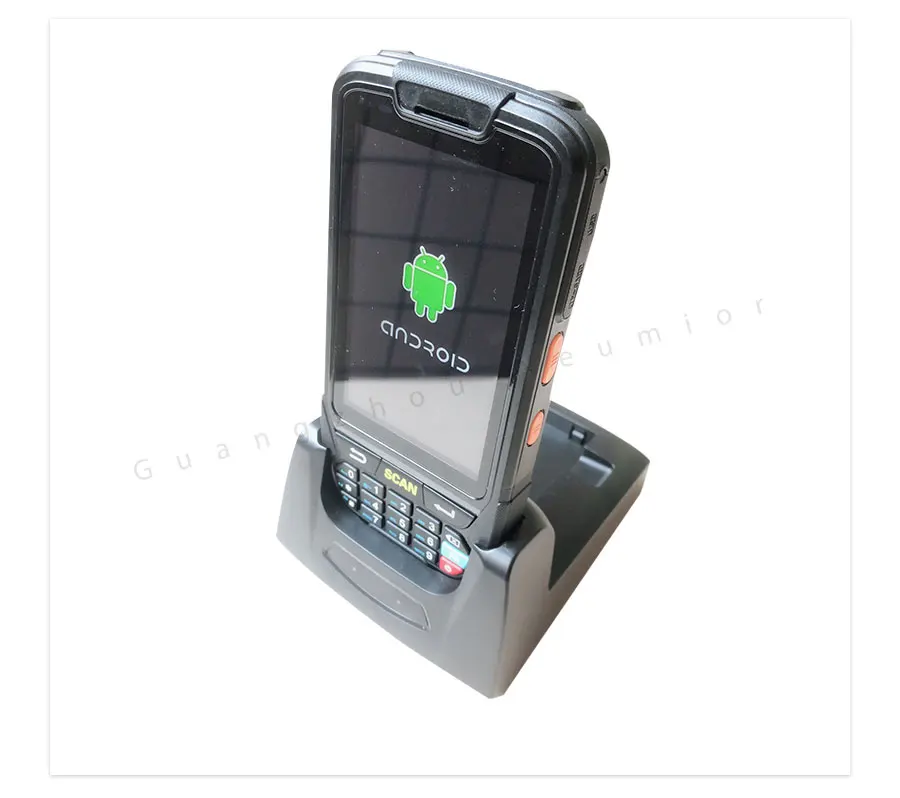

If you want charge cradle, please order from blow link:

https:/store/product/Xeumior-Charge-Cradle-for-Android-PDA-Barcode-Scanner-SM-DT40-SM-DT50/814481_32963096969.html?spm=2114.12010611.8148356.15.7a4855d2LWlNx5

Technical specifications

Physical Parameter

Size

152mm(L)X77mm(H)x25mm(W)

Weight

<300g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port

SIM card, PSAM card(optional), Micro SD (TF) Card

Communication Interface

USB2.0 Device, RS-232(Optional)

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh Optional

Frequency

8Ω 1W speaker

Key

21pcs soft silicon key

Performance Parameter

CPU

Quad-Core ARM Cortex-A53 CPU1.3G

RAM

2G RAM

Flash ROM

Standard 16G NAND Flash Storage

Micro SD/TF port  Max up to 32G

Data Communication

WI-FI

Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover

4G All netcom

Support FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/CDMA/EVDO and GSM)

Bluetooth

Support Bluetooth 4.0, transmission distance is 5-10m

Operating Environment

Operating Temperature

—20 to 50

Storage Temperature

—25 to 70

Environment Humidity

5%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

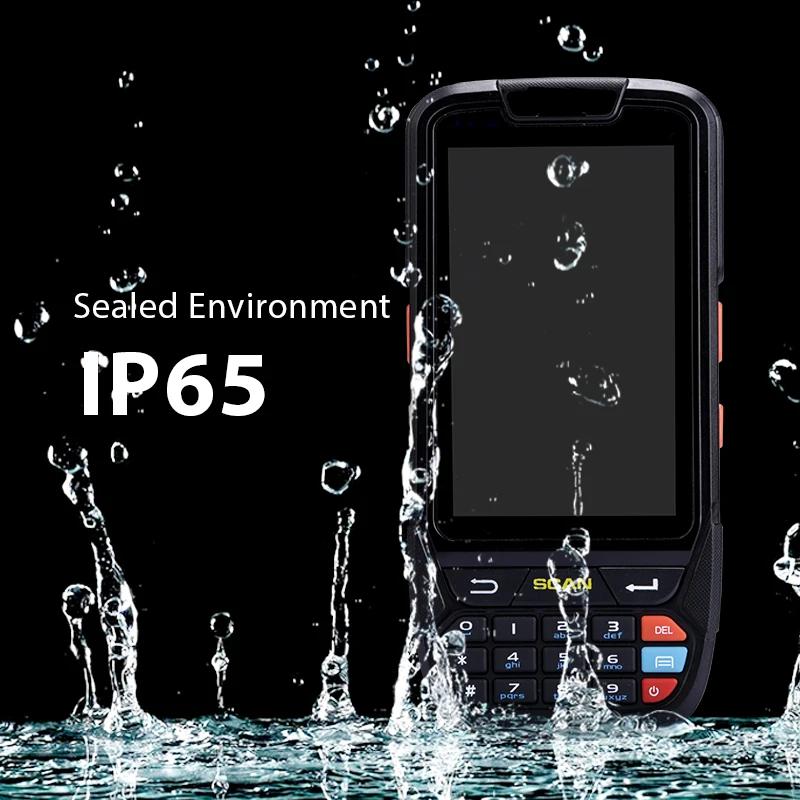

Sealed Environment

IP65

Development Environment

Operating System

Android7.0

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect

One dimensional laser scanner

Honeywell N43XX

Resolution

4Mil minimum width

Ambient Light

10000ft.candles 107640 lux

Scanning Speed

104(±)12/sec (bothway)

Scanning Angle

47º±35º(Standard) / 35º±3º(narrow angle)

Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

Two-dimensional bar code acquisition

CMOS Scanner

Honeywell 3680

The Sensor Resolution

752(level)x480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

Focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

RFID

LF

125K/134K;ISO11784/ISO11785 protocol

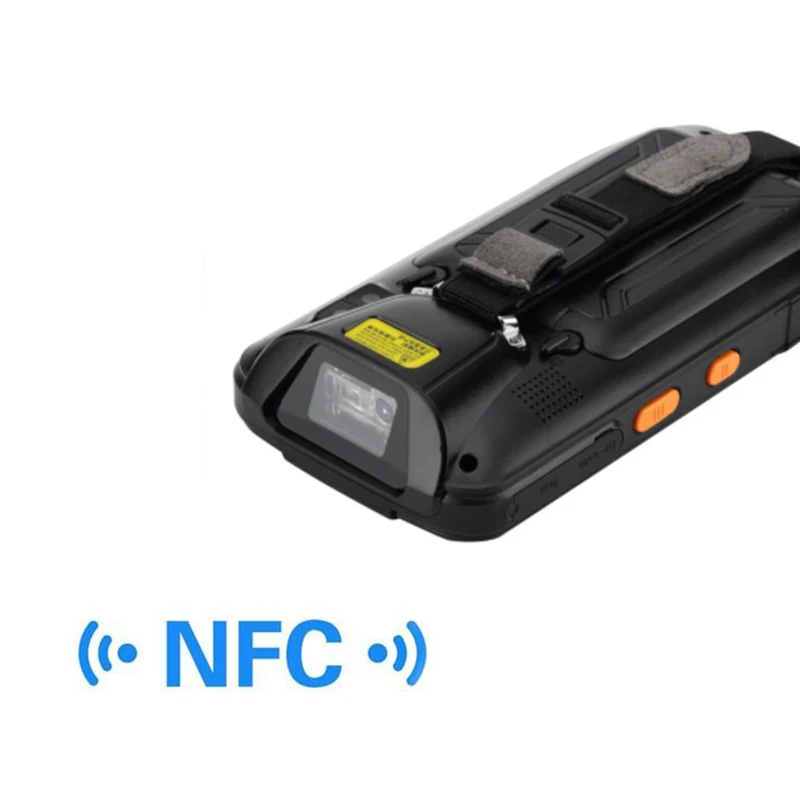

HF(NFC)

13.56MHz;ISO14443A/B 15693 protocol

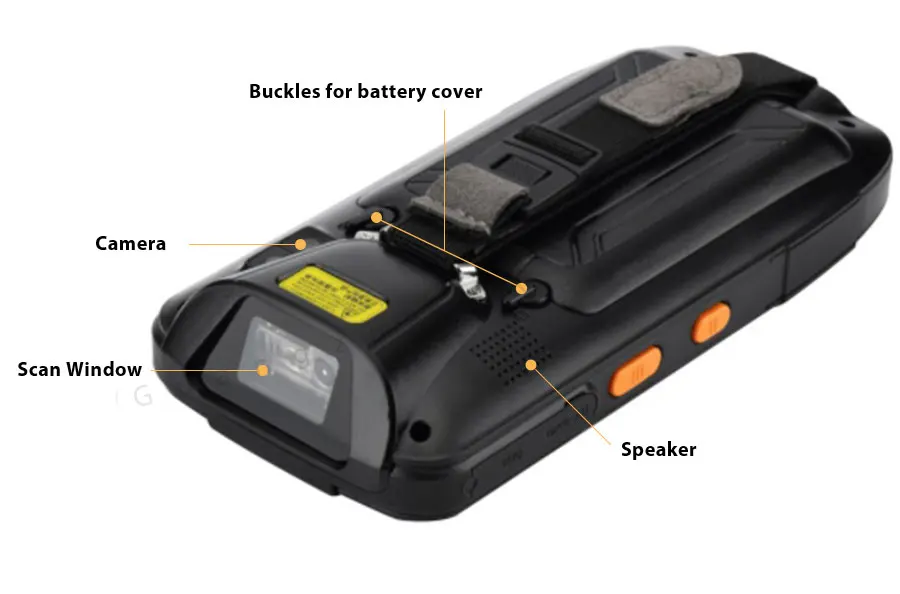

Camera

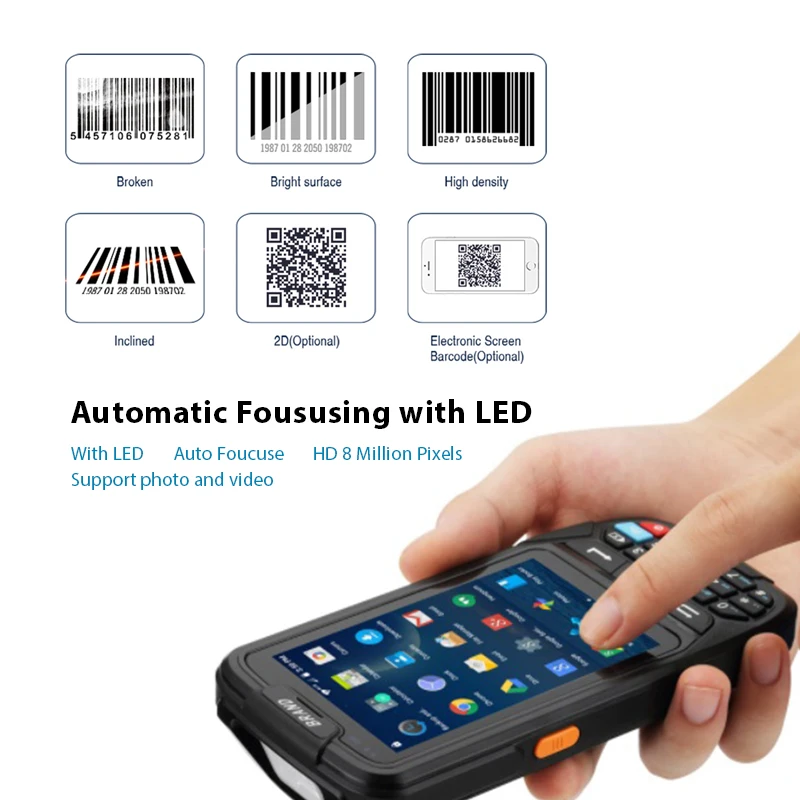

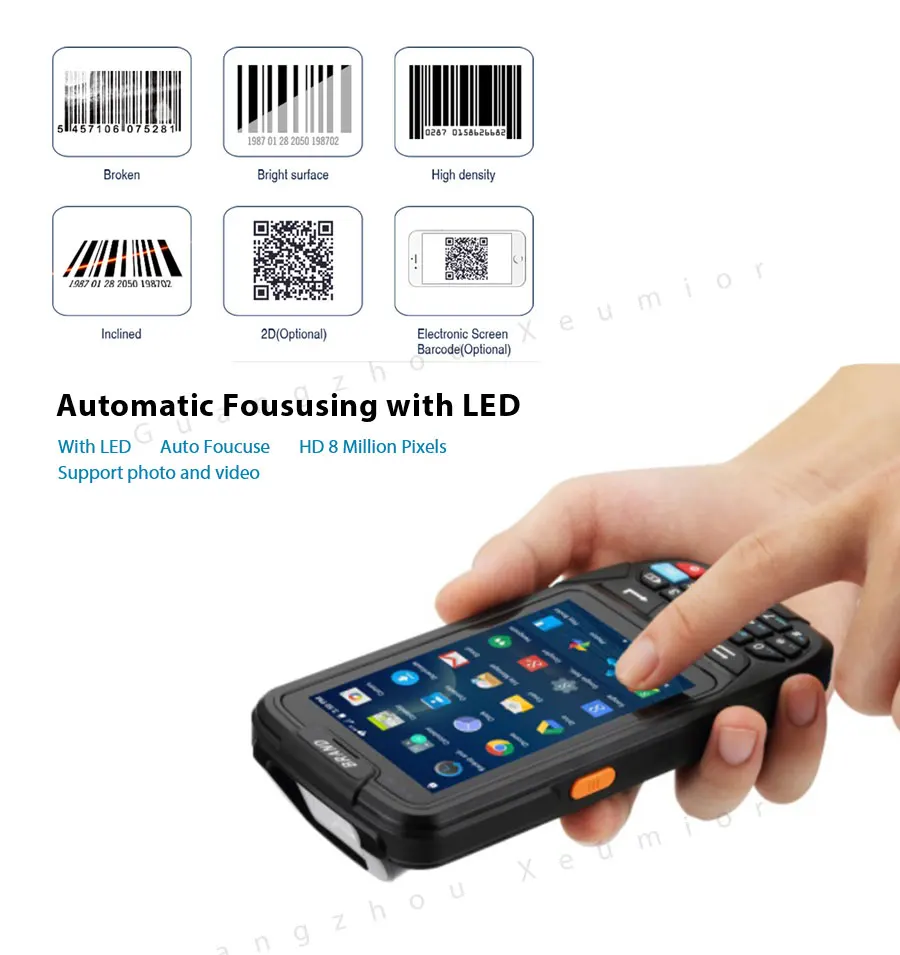

Hd 8.0 million pixels, with LED, automatic focusing

GPS

Support A-GPS
