Регулятор газа двухступенчатый с входным давлением 3000PSI и выходным давлением 100PSI, изготовленный из нержавеющей стали ss316L с никелевым покрытием, с креплением CGA320.

Регулятор газа двухступенчатый с входным давлением 3000PSI и выходным 100PSI изготовленный из нержавеющей стали ss316L никелевым покрытием креплением CGA320.

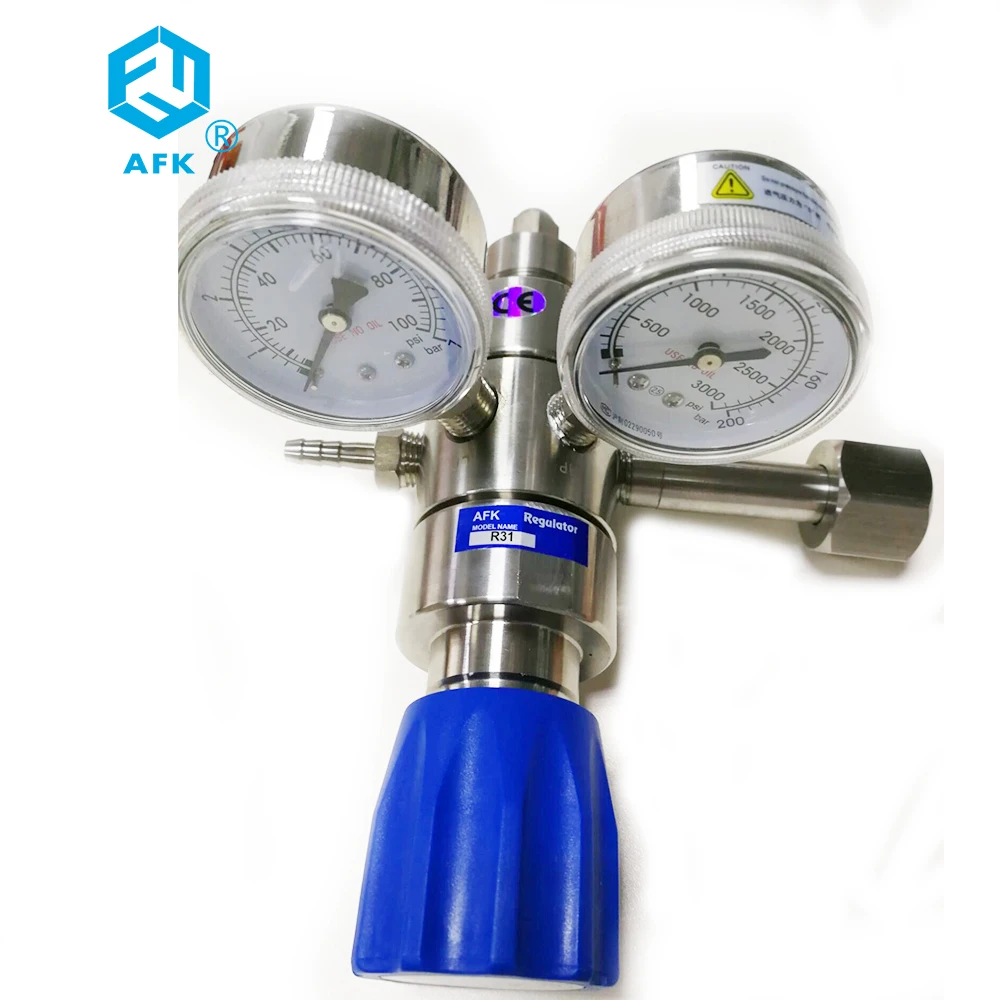

3000PSI Inlet 100PSI outlet pressure ss316L/nickel plating dual stage co2 gas pressure regulator With CGA320 fitting

Specification

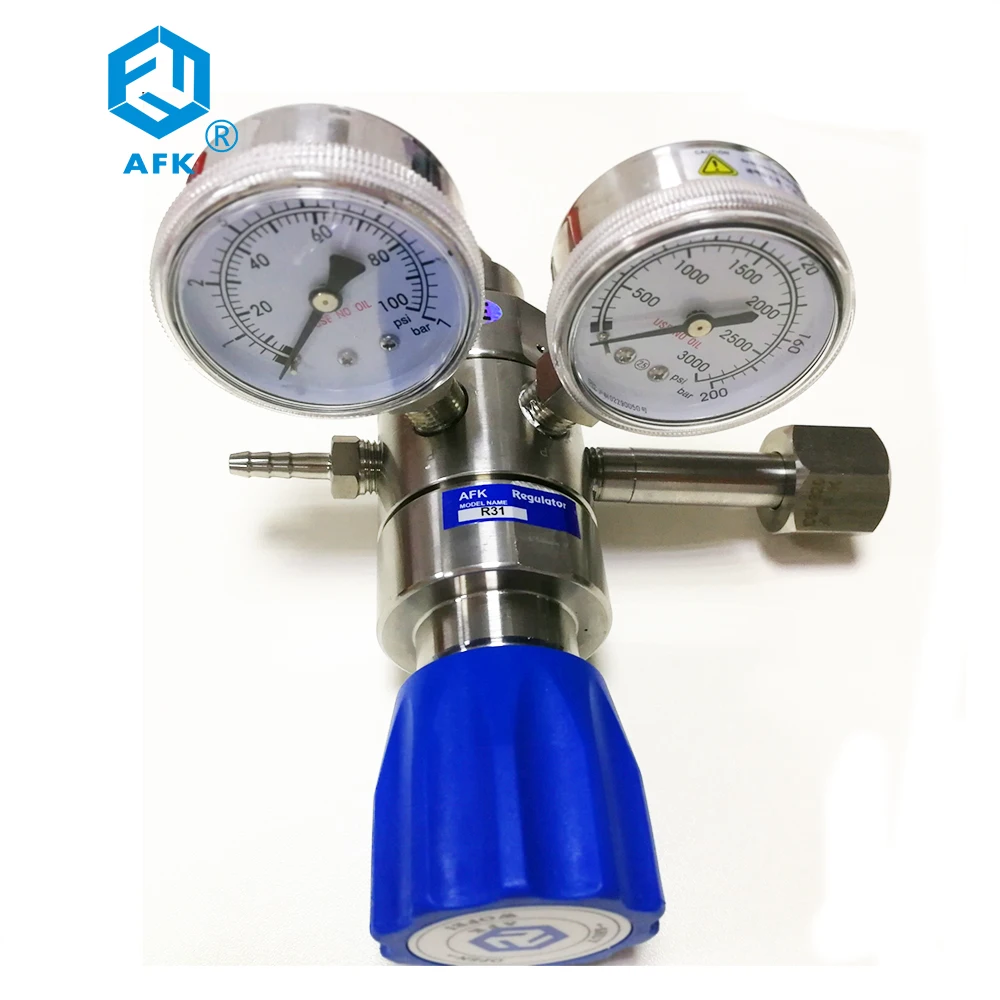

---Model NO: R31

---Type: dual stage pressure regulator

---Inlet pressure gauge range: 0-3000PSI

---Outlet pressure gauge range:0-100PSI

---Inlet connection:CGA320

---Outlet connection: 1/4 hose barb fitting

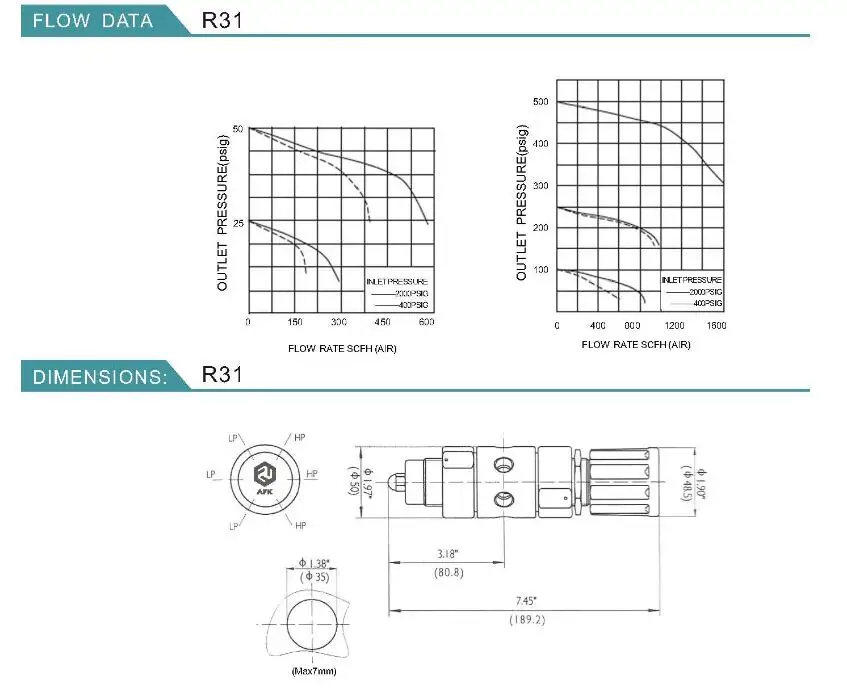

---CV:0.06

Product details

Pls note: the price included a regulator, two regulators,  one cylidner fittings, a hose barb fitting.  If you have difference betwen specification we mentioned, pls leave message.

Or you can choose the below information:

Please leave a message including the following parameters when order:

1. Media: what gas will the pressure regulator be used for?

2. Inlet actual working pressure(not pressure gauge range):

3. Outlet acatual working pressure(not pressure gauge range):

4. Inlet end connection: such as 1/4"NPT female threaded, 6mm ferrule(connected to 6mm outside diameter tube), CGA320, CGA350, CGA580 and so on.

5. Outlet end connection: such as 1/4"NPT female threaded, 1/4" ferrule(connected to 1/4" outside diameter tube), 8mm hose barb and so on.

6. If you have special requirements for flow rate, please indicate.

 We will equip the pressure regulator according to your description. Thanks for your attention.

General Description about R31

 R31 Serie stainless steel pressure reducers, double-stage diaphragm pressure reducing construction, stable output pressure, applied to high pure gas, standard gas, corrosive gas and so on

Design Features

l Five holes on the body

l two-stage decompression structure

l Metal-to-metal diaphragm seal

l Body thread:  1/4” NPT(F)

l Easy to clean inside

l Filter  inside

l Panel mounting and wall mounting available

l Optional outlet: needle valve, diaphragm valve

Specification

l Maximum inlet pressure: 3000, 500psig

l Output pressure:0~25, 0~50, 0~100, 0~250psig

l Safe testing pressure: 1.5 times maximum inlet pressure

l Working temperature: -40℉~+165℉(-40℃~+74℃)

l Leakage rate: 2×10-8 atm.cc/sec

l CV  value=0.06

Typical Application

l Laboratory

l Gas laser

l Gas bus-bar

l Petrochemical industry

l Testing equipment

Material

l Body: 316L, Brass

l Bonnet: 316L, Brass

l Diaphragm: 316L

l Strainer: 316L(10μm)

l Seat: PCTFE, PTFE, Vespel

l Spring: 316L

l Stem: 316L
