WELCOME TO OUR SHOP!

1500W 16A 90V switching power supply 90v adjustable voltage 110V  220V ac to dc power supply 90V switching power supply



Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload
Air cooling

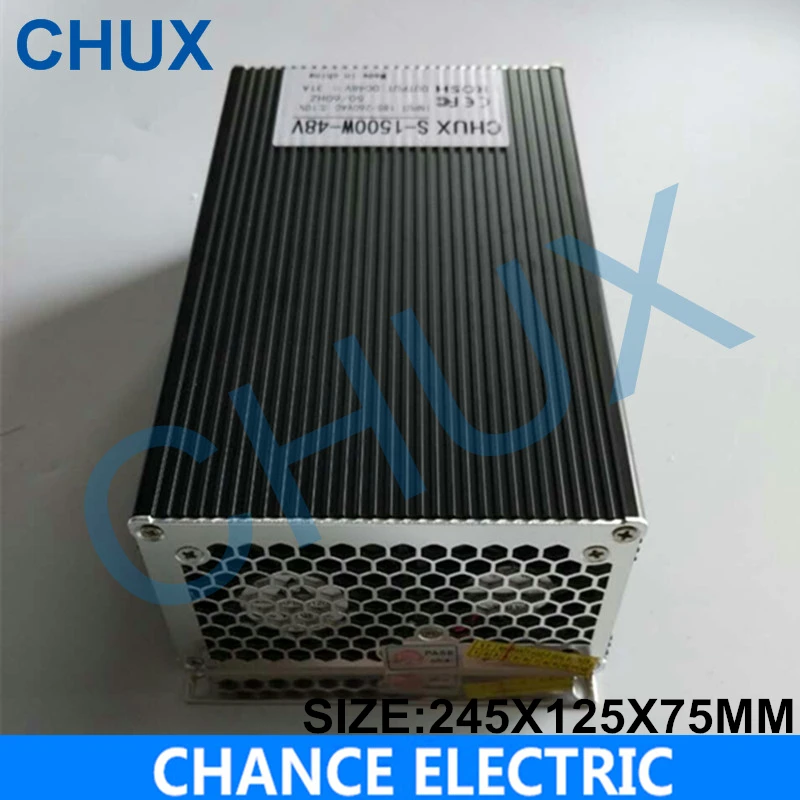

Model   S-1500-12 S-1500-15 S-1500-24 S-1500-48 Output DC output Voltage 12V 15V 24V 48V Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0% Rated Current 125A 100A 62A 31A Related Power 1500w 1500w 1500w 1500w Wave&Noise 240mVp-p 240mVp-p 240mVp-p 300mVp-p Adjustable range for DC Voltage ±10% ±10% ±10% ±10% Set up,rise,hold up time 200ms  100ms  30ms  Input Voltage Range 170-264VAC  47-63HZ Input Current 7A/230VAC Efficiency 83% 84% 85% 87% AC inrush current Cold start current 50A /230VAC Leakage current <3.5mA/240VAC Protection Overload Related output power 105-150% start overload protection Protection type: cutoff output, recovery after restart power Over voltage 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V 55V-64.8V Hiccup mode,recovers automatically after fault condition Environment Working temp humidity -10~+60°C 20%~90%RH Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing Safety Withstand voltage I/P-O/P:1.5KVAC  1min I/P-FG:1.5KVAC 1min O/P-FG:0.5KVAC 1min Standard Safety standard Fit UL1012 Refer  Design refer to GB4943,UL60950,EN60950 EMC standard Design refer to GB9254,EN55022 Class A  Size size 245X125X75mm Package 3kg
