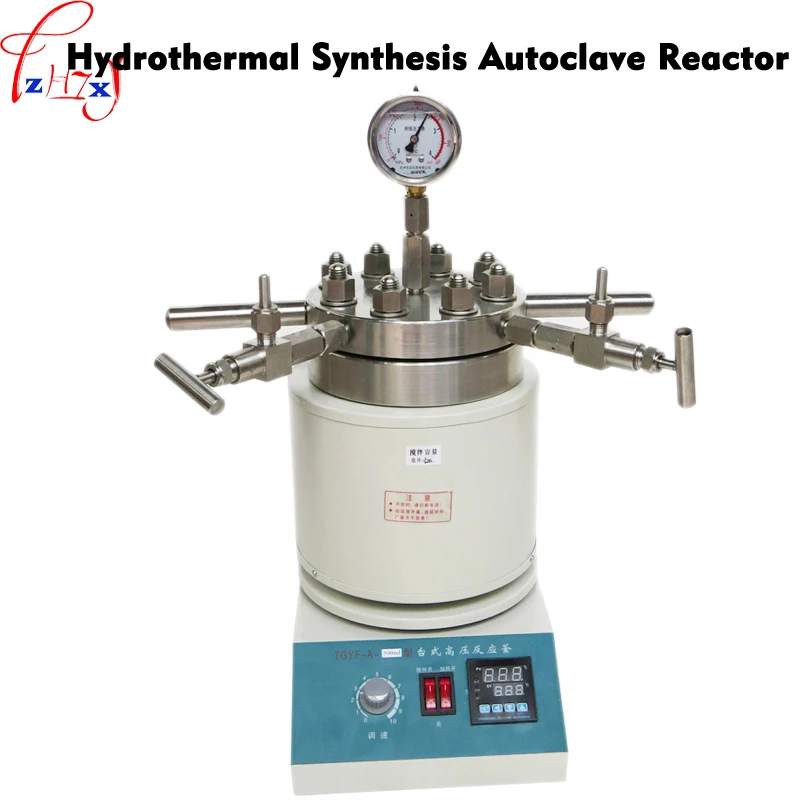

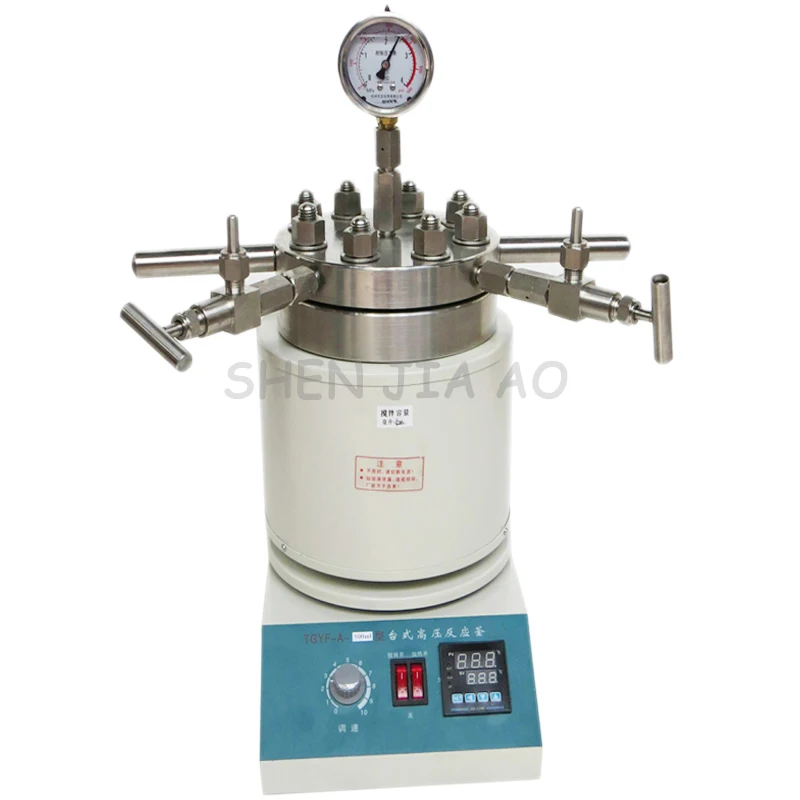

1PC CDF-0.25L Hydrothermal Synthesis Autoclave Reactor 250ml Tabletop High Pressure Stainless Steel Reaction Kettle Machine | Инструменты

1PC CDF-0.25L Hydrothermal Synthesis Autoclave Reactor 250ml Tabletop High Pressure Stainless Steel Reaction Kettle Machine | Инструменты

1PC CDF-0.25L Hydrothermal Synthesis Autoclave Reactor 250ml Tabletop

High Pressure Stainless Steel Reaction Kettle Machine

Picture showing:

​

    Small high-pressure reactor stainless steel high-pressure reactor gas - liquid, liquid ---- liquid,

solid - gas - liquid ---- solid three - phase chemical materials for chemical reaction of the mixing

Reaction device, can make a variety of chemical materials in high temperature, high pressure,

vacuum conditions, full mixing, to strengthen the mass transfer and heat transfer process.

Stainless steel high pressure reactor is characterized by a static seal structure, static seal to replace the

dynamic seal, stirrer and motor drive between the use of magnetic coupler connection, contactless torque

transmission completely solve the problem of direct mixing seal material leakage, so that the whole The

media and the agitating member are completely in an absolutely sealed state. Stainless steel high-pressure

reactor is more suitable for a variety of flammable and explosive, highly toxic, expensive media and

other highly permeable chemical medium for mixing reaction, is the petrochemical, organic synthesis,

polymer polymerization, food and other processes Vulcanization, fluorination, hydrogenation and other

reaction of the best non-leakage reaction equipment.

Can be customized according to customer specific requirements Simple high

pressure reactor Description:

1. The kettle body and the kettle cover are made of high quality stainless steel. The kettle body is connected

with the flange through the thread. The kettle cover is the body plate cover, and the two are made of the main

bolt and the nut tightening connection.
2. High-pressure reactor main seal using A-type double-line seal, the rest of the sealing points are used arc

surface and plane, circular surface and circular surface of the line contact with the seal, relying on the

contact surface of high precision and finish, To achieve a good sealing effect.

Simple high pressure reactor Note:

1. Work is outside the heating temperature is recommended not more than 350, the heating rate of 5min,

you can use the PID temperature control system to control the temperature, cooling rate of 5min. The safety

pressure is 10MPa.
2. After mixing the screw symmetrical compression, when the reaction is completed by the kettle body can be

cooled to room temperature to open the kettle cover.
3. Do not fill more than 80% of the kettle. Stainless steel simple high pressure reactor CF stainless steel

simple high pressure reactor, is based on customer requirements in accordance with the functional

characteristics of high pressure reactor production of a simple high pressure reactor can be placed in the

electric blast oven, constant temperature oil / water bath, Environmental work, stainless steel, can be

configured with computer communication terminals, according to customer needs to customize the volume size.

Description:

Volume: 250ML

Design pressure: 10Mpa

Design temperature: 350 °
