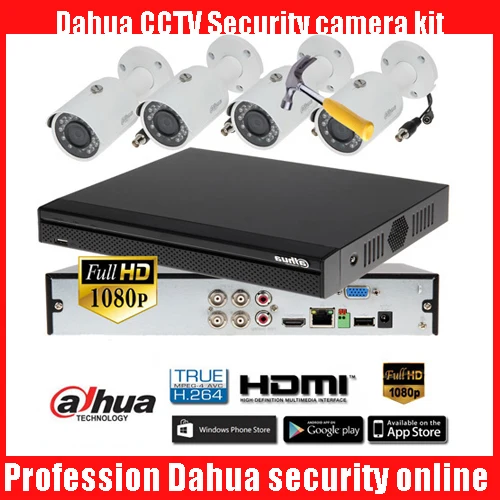

Dahua HCVR5104HS-S3 4ch CVI Security Camera System with 4pcs 2Megapixel 1080P Waterproof HDCVI IR bullet DH-HAC-HFW1200S | Безопасность



Dahua HCVR5104HS-S3 4ch CVI Security Camera System 2Megapixel 1080P Waterproof HDCVI IR Eyeball audio Camera HAC-HDW1220EM-A









The DHI-XVR5104HS digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and PAL interface is a professional device applicable in surveillance systems.


The menu options layout has been designed for all users, even beginners can easy navigate and change parameters in DVR settings without any problem.









Standard: AHD, HD-CVI, HD-TVI, PAL, TCP/IP Video inputs: 4 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS Video outputs: 1 pcs HDMI
1 pcs VGA Audio inputs: 1 pcs CINCH Audio outputs: 1 pcs CINCH Image compression method: H.264 / H.264+ Number of compression levels: 6  Image records resolutions: AHD / HD-CVI / HD-TVI : 1920 x 1080, 960 x 1080, 1280 x 720  AHD-L / PAL : 960 x 576, 720 x 576  IP : max. 2592 x 1944  Maximal total frame rate: AHD / HD-CVI / HD-TVI :
60 fps @ 1920 x 1080 px,
100 fps @ 960 x 1080 px,
100 fps @ 1280 x 720 px, AHD / PAL :
100 fps @ 960 x 576 px,
100 fps @ 720 x 576 px IP :
150 fps @ 2592 x 1944 px Recording speed adjustment: 1 ... 25 fps @ 2592 x 1944 px - IP
1 ... 15 fps @ 1920 x 1080 px
1 ... 25 fps @ 960 x 1080 px
1 ... 25 fps @ 1280 x 720 px
1 ... 25 fps @ 960 x 576 px
1 ... 25 fps @ 720 x 576 px
for each channel Operation modes: 4 x  AHD / HD-CVI / HD-TVI / PAL @ 1080p 3 x  AHD / HD-CVI / HD-TVI / PAL @ 1080p + 1 x IP @ 5 Mpx 2 x  AHD / HD-CVI / HD-TVI / PAL @ 1080p + 2 x IP @ 5 Mpx 1 x  AHD / HD-CVI / HD-TVI / PAL @ 1080p + 3 x IP @ 5 Mpx 4 x  AHD / HD-CVI / HD-TVI / PAL / TCP/IP + 2 x IP @ 5 Mpx All modes allow for any combination of the AHD-H, HD-CVI, HD-TVI, PAL cameras Recording modes: Manual, Motion Detection, Schedule Supported hard drives: 1  x 6 TB SATA External storage devices backup: Save single frames and whole records from DVR drive to the USB drive Searching and playback the records: Records searching: by time + timeline with record type. Playback: forward, fast, slow, step
Advanced searching (to the one second accuracy) Network functions: Network Client Software and IE browser: live view, playback and backup the records, partial configuration of the recorder parameters Mobile phones support: Port no.: 37777 or access by a cloud Android: Free application gDMSS Lite iOS (iPhone): Free application iDMSS Lite There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus Main features: Intelligent Image Analysis : crossing the line (tripwire), crossing the line (tripwire), abandoned/missing object, face detection Multi-operation: Pentaplex Alarm inputs / outputs:   PTZ control: IP Speed Dome Cameras ,
Control compatible with coax PTZ HD-CVI ,
RS-485 - PELCO-D/P Motion Detection: Split the screen into zones : 22 x 18 motion zones Mouse support:   IR remote controller in the set:   Power supply: 12 V DC / 2 A (power adapter included) Color: Black Weight: 0.89 kg Dimensions: 260  x 236  x 47 mm Supported languages: English, Bulgarian, Czech, Finnish, Greek, Polish, Romanian, Serbian, Slovenian, Hungarian Country of origin: China Manufacturer / Brand: DAHUA Guarantee: 3 years





waterproof  IR 20M outdoor HDCVI bullet Camera



Megapixel camera with 1/2.7" CMOS sensor and HD-CVI (High Definition Composite Video Interface).


The HD-CVI interface allows to transmission of analog, composite video signal via coaxial cable. Via single coaxial cable can be transmitted three signals: video, audio and control. It enables the transmission of HD resolution images for even 500 m distance with keeping the low costs of the installation. During transmission there are no delays and is maintained the original, high quality image.


Camera is according to IP67 Index of Protection norm. The 3-Axis integrated camera bracket has a regulation in all three planes, which allows to turn the camera to any direction.





Standard: HD-CVI Sensor: 1/2.9 " CMOS Matrix size: 1.0 Mpx Resolution: 1280 x 1080  - 1080p IR illuminator support: ICR - Movable InfraRed filter Video output: HD-CVI Lens: 3.6 mm View angle: 88 ° (manufacturer data) 78 ° (our tests result) S/N ratio: > 65 dB Range of IR illumination: 30 m IR illuminator power adjustment: Automatic Main features: D-WDR - Wide Dynamic Range 2D-DNR - Digital Noise Reduction BLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Sharpness - sharper image outlines AGC - Automatic Gain Control Privacy zones Mirror - Mirror image Auto White Balance OSD menu:   Power supply: 12 V DC / 290 mA Power consumption: max. 3.5 W Housing: Compact, Metal Color: White "Index of Protection": IP67 Operation temp: -30 °C ... 60 °C Weight: 0.36 kg Dimensions: 165  x 70  x 70 mm Manufacturer / Brand: DAHUA





Why Choose HDCVI (High Definition Composite Video Interface)?



Package:

camera x8

Power supply X1

20m cable x 8

1V4 cable x 2



Why Choose HDCVI (High Definition Composite Video Interface)?

1.HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. The technology offers two specifications: 1080p (1920×1080) and 720p (1280×720).

2.HDCVI is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.With no new cabling or IP hassle required, HDCVI is one option for upgrading existing systems from standard definition to high definition, offering longer transmission via coaxial cable and lower total cost.

3.Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Cable 75-3 and 75-5 are recommended for transmissions within 500m, cable 75-5 and above for over 500m. Connectors and welding process also affect the transmission distance.

4.HDCVI composites video, audio, and control signals together and then transmits them over one coaxial cable, simplifying installation.
