MASTECH MS8218 Digital Multimeter 50000 Counts True RMS DMM dB Meter w/RS232 Interface High Accuracy Precision Multimetro | Инструменты







MASTECH MS8218 Digital Multimeter 50000 Counts True RMS DMM dB Meter w/RS232 Interface High Accuracy Precision Multimetro



Features:

 Measuring 50,000 counts / 50 segment analog bar display

 Manual / automatic range selection

 ACV and DCV measurements reach up to 1000V

 DC measurement accuracy of 0.03%

 0.01Ω resistor voltage resolution resolution and 1μV

 Voltage / Current linear frequency measurement, logic frequency / duty cycle measurement

 Capacitance measurement from 0.01nF to 5000μF

 AC / AC + DC true RMS measurement

 dBm measurement, calculate the resistance 4Ω ~ 1200Ω, a total of twenty choices s

 Max / Min / Max - Min / relative measurement

 Data Hold / Backlight control / automatic shutdown / continuous working mode selection

 RS-232C infrared interface / PC's display, record, mapping software

 Software automatic calibration / completely overload

 Current file position error sound alarm

 Battery low voltage detection / Overrange indication OL

 Overmolded casing, insulation up to 1000V CATIII



Technical Specifications:

 AC voltage / DC voltage + AC voltage: 50mV / 500mV / 5V / 50V / 500V / 1000V ± 0.5%

 DC voltage: 50mV / 500mV / 5V / 50V / 500V / 1000V ± 0.03%

 Alternating current / direct current + AC current: 500μA / 5000μA / 50mA / 500mA / 5A ± 0.75%, 10A ± 1.5%

 DC Current: 500μA / 5000μA / 50mA / 500mA / 5A / 10A ± 0.15%

 Resistance: 500Ω / 5KΩ / 50KΩ / 500KΩ / 5MΩ ± 0.1%, 50MΩ ± 0.5%

 Capacitance: 50nF / 500nF / 5μF / 50μF ± 1%, 500μF / 5000μF ± 2%

 Diode: 2.5V ± 1%

 Duty cycle: 5Hz ~ 500KHz, range: 5% to 95%

 Logic Frequency: 5Hz ~ 2MHz ± 0.006%, Vpp 2 ~ 5V square wave

 Linear frequency: 10Hz ~ 200KHz ± 0.006%, sensitivity: Minimum 100mV

 Display: LCD Size: 44mm X 70mm

 Power: 6 X 1.5 volt AAA battery (not included)

 Volume: 200mm X 100mm X 40mm

 Weight: about 600g

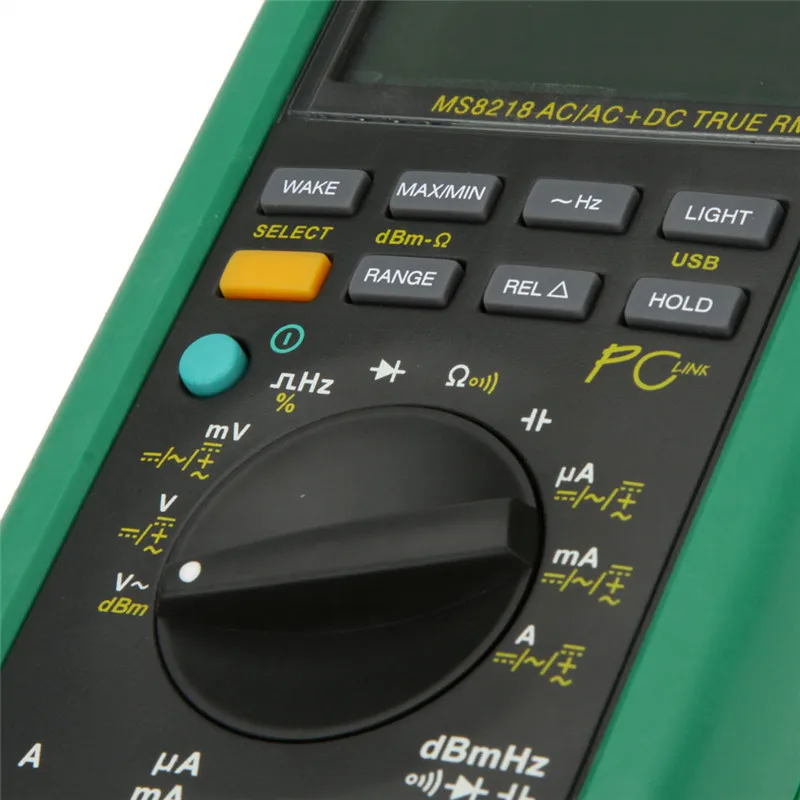

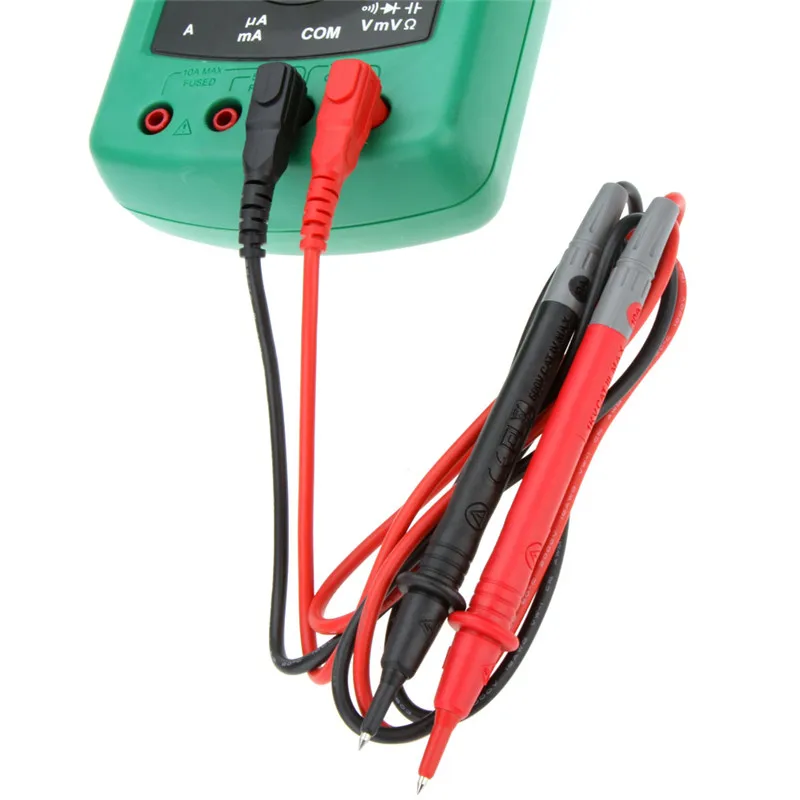

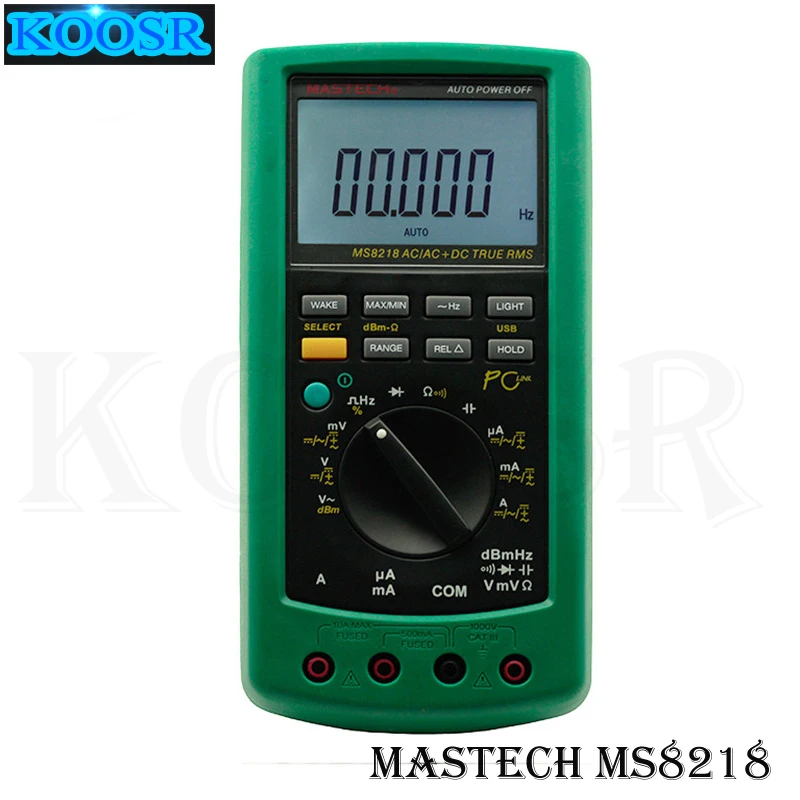

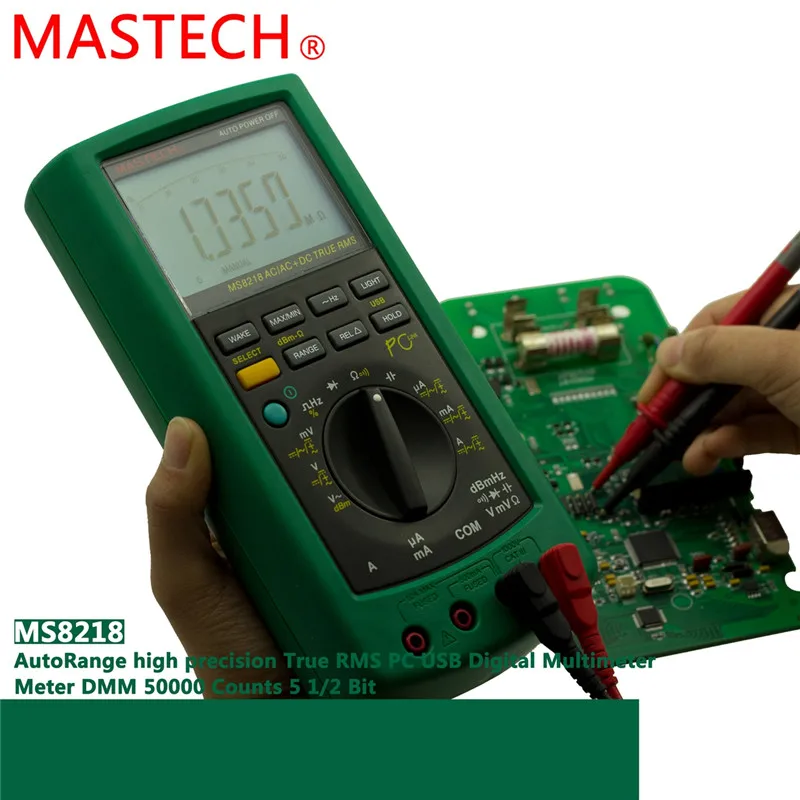

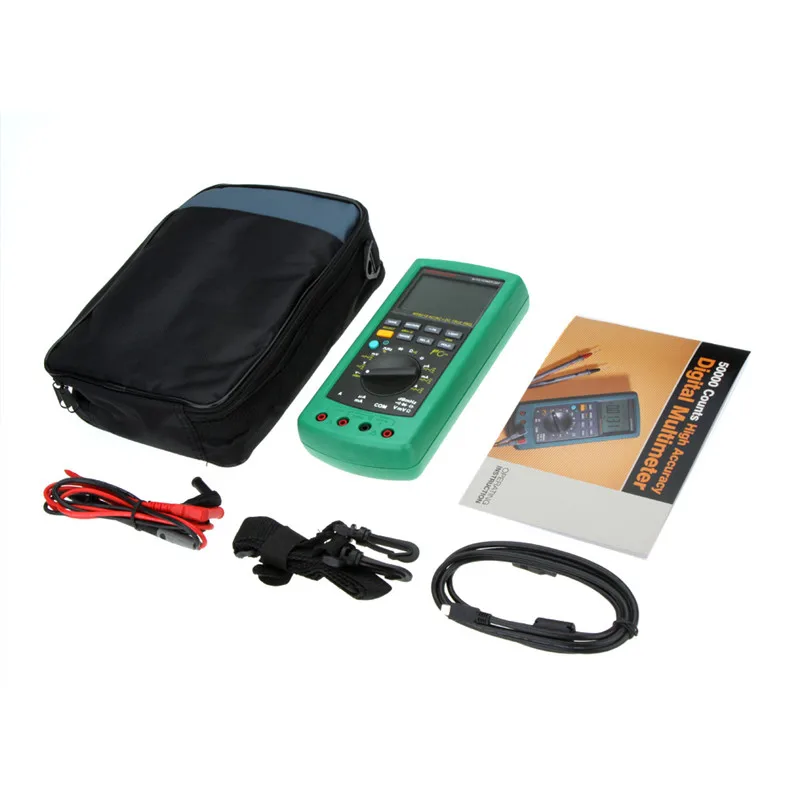

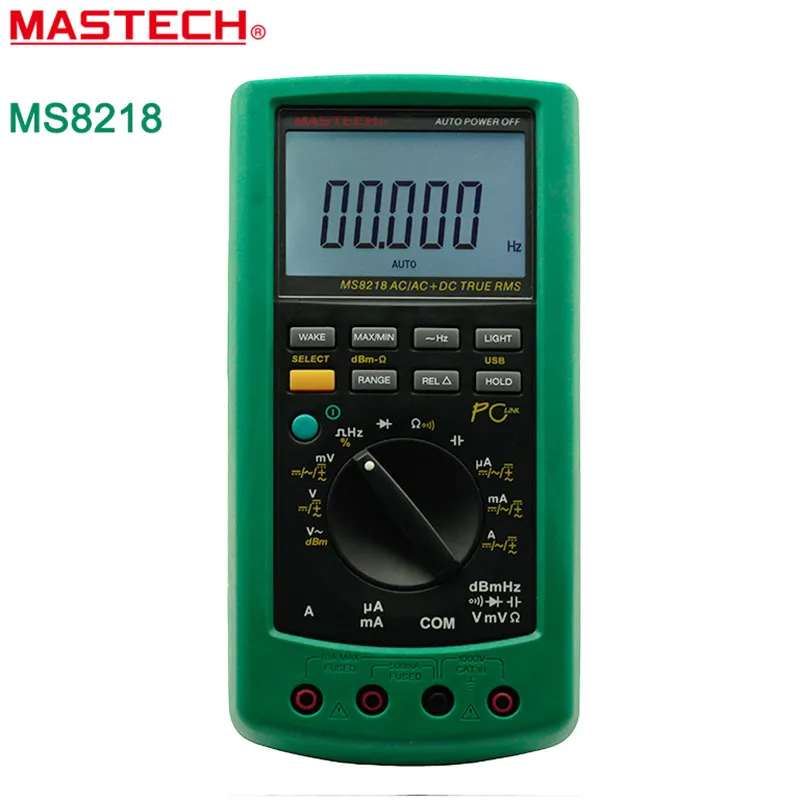

Product display:
