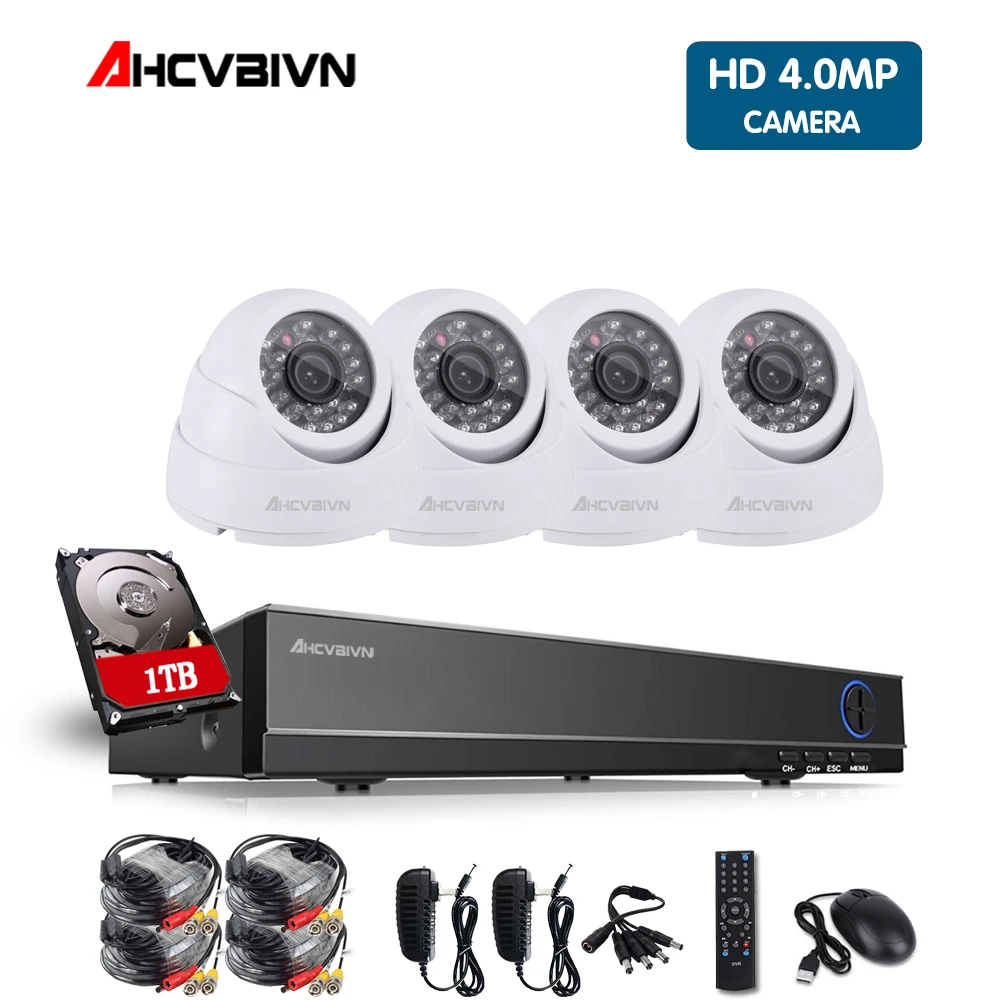

4CH AHD DVR KIT 5MP CCTV System Record 4MP HD Camera P2P Dome indoor IR Night Vision Video Surveillance Kit | Безопасность и

4CH AHD DVR KIT 5MP CCTV System Record 4MP HD Camera P2P Dome indoor IR Night Vision Video Surveillance Kit | Безопасность и

Main processor: Embedded processor

Operating system: Embedded Linux

Video&Audio

Video Fortmat :PAL or NTSC

Video compression:H.265

Encode capacity:4*5MP@8fps

Decode capacity:4*5MP@8fps or 4MP@15pcs

Analog input:4*5MP

Digital input:4*5MP or 8*1080P(Network)

Hybrid input:2*5MP(analog)+2*5MP(Network)

Audio Input:4 RCA Input

Audio Output:1 RCA Output

Audio compression:G.711A

Recording

Compression Format: H.265

Recording Resolution: NTSC: 5MP PAL:  5MP

Recording Modes: Manual/Motion/Schedule

Hard drive: Internal SATA hard drive required for recording,support up to 6TB

Network

LAN Connection: YES

Network Interface: RJ45

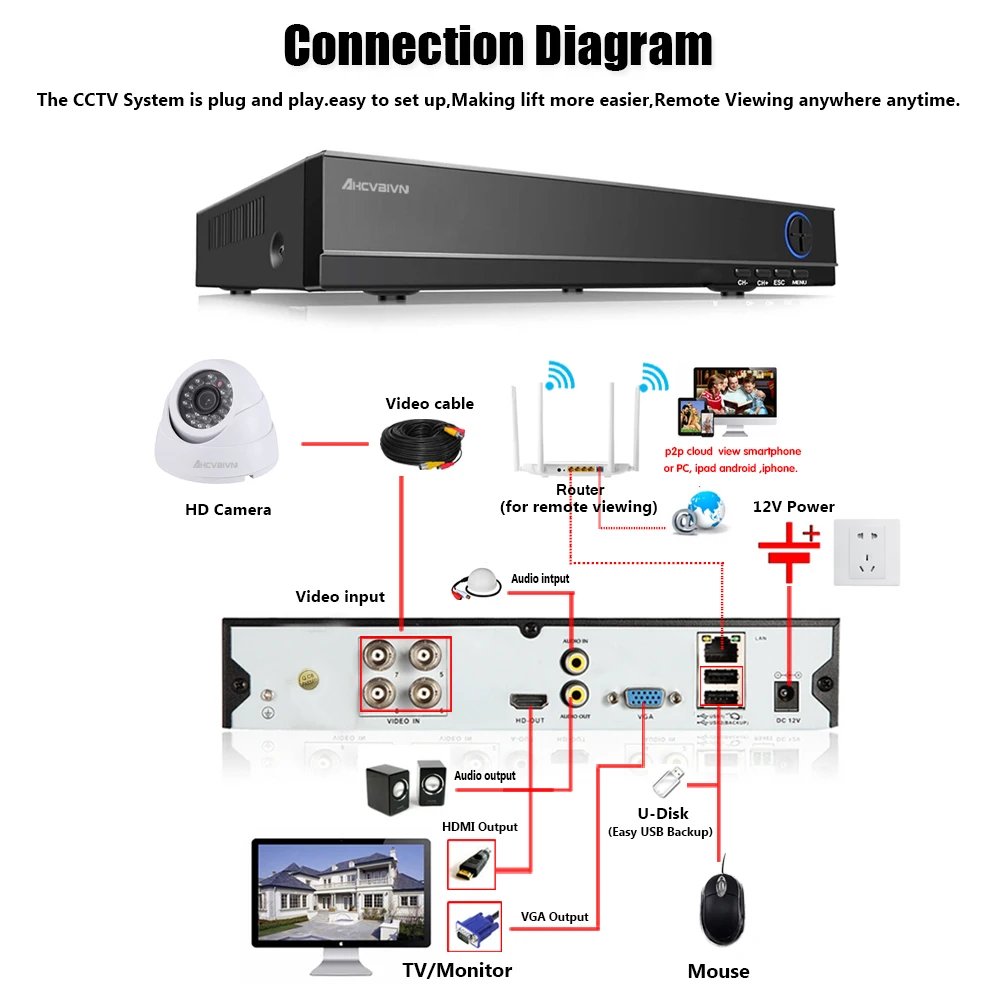

Interface

Video input : 4ch BNC

Video output :1ch VGA, 1ch HDMI

Audio input :4ch RCA

Audio output :1ch RCA

Network interface :RJ45 10M/100M

PTZ control :1*RS485, Support multiple PTZ protocols

USB :2* USB 2.0

HDD :1*SATA port (Max 6TB/per)

Wireless :3G, WIFI (extension via USB)

General

Power Supply : DC 12V

Back up method : External storage via USB

Temperature：-20℃+50℃

Humidity ：-10%-90%

USB Mouse：included

Remote Control : YES

Dimension：255mm(length)*235mm(width)* 45mm(height)

Weight：1.5KG

DVR Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

Video

Image sensor:1/3"inch CMOS

Video quality:4MP

Lens:3.6mm lens

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-35°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Weatherproof:no

Minimum Illumination: 0.0 Lux

Body Construction:Dome with Built-in Wall Mount

Night Vision

Distance:Up to 40m

IR Cut Filter:yes

Number of IR Lens:24pcs

1.High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display
with 5MP Resolution.The angle will be more larger,and the image will be more clearer.

2.Why chooses H.265

You can freely enjoy five connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 5 recordering modes.for your option:Analog / Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

clarity. (HD Cable Not Included)

View on TV or PC Monitor

For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

1.Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

2.CMS for Local Review

Default Username of CMS:Super  Password: null(empty)

By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion.

Analog HD AHD video output;

The transmission distance is 500 meters;

Support automatic electronic shutter function, adapt to different monitoring environment;

Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

Easy installation & operation, as same as analog CCTV system

More acceptable, lower price than analog surveilance system

NO Delay, Real time Display.

Wide Video angle

see more video view angle !!!!
