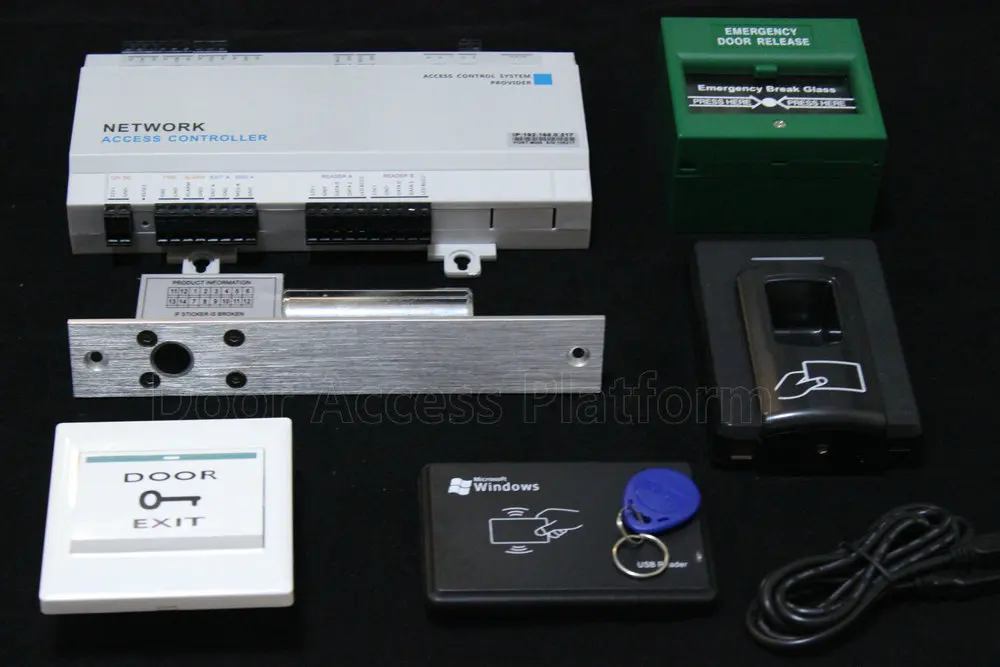

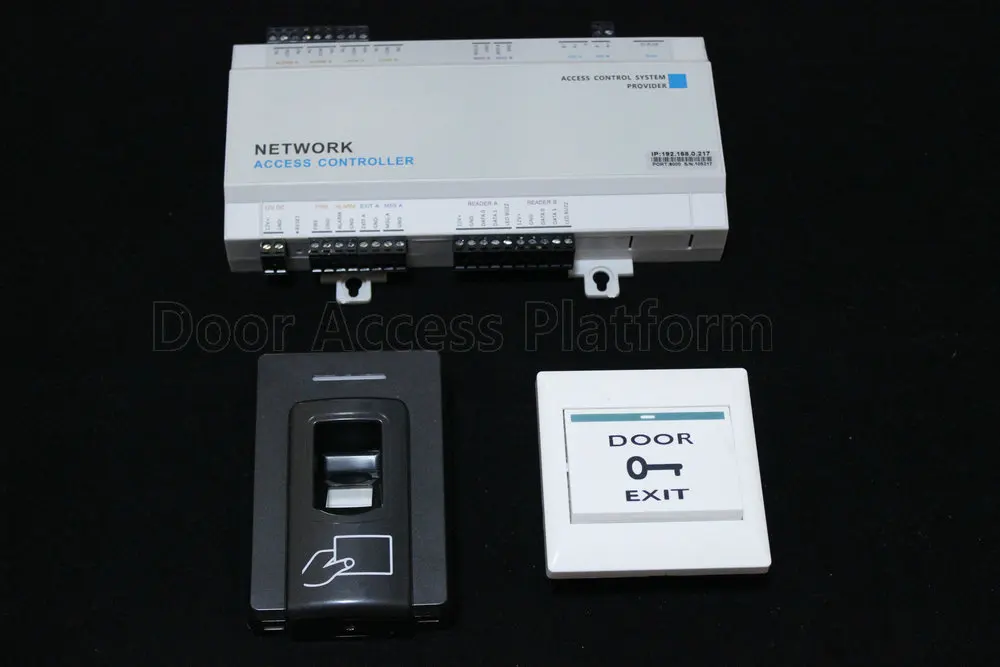

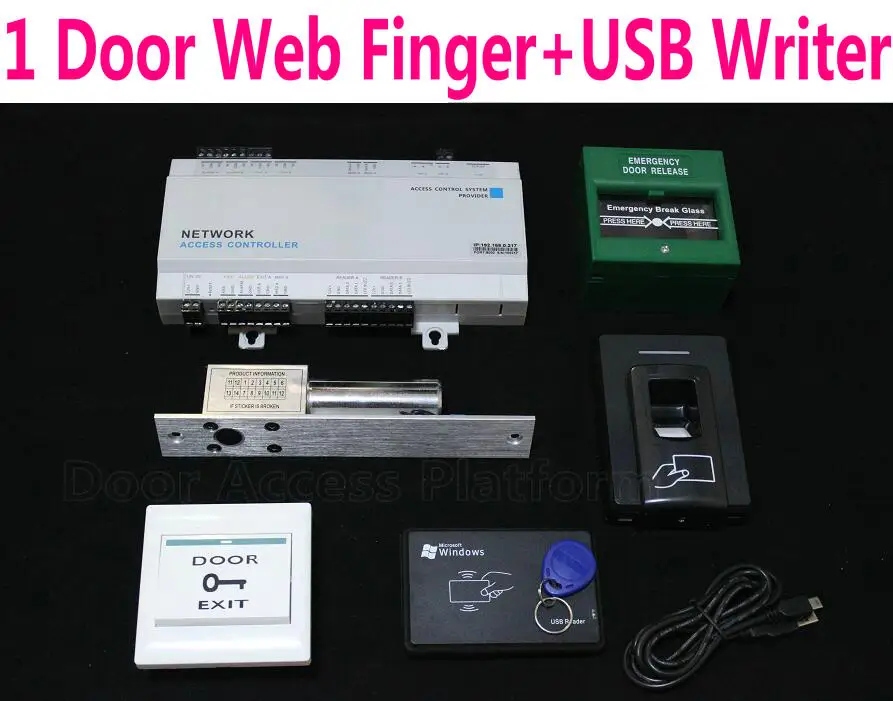

1 Door IP Control Full Kit Access Controller

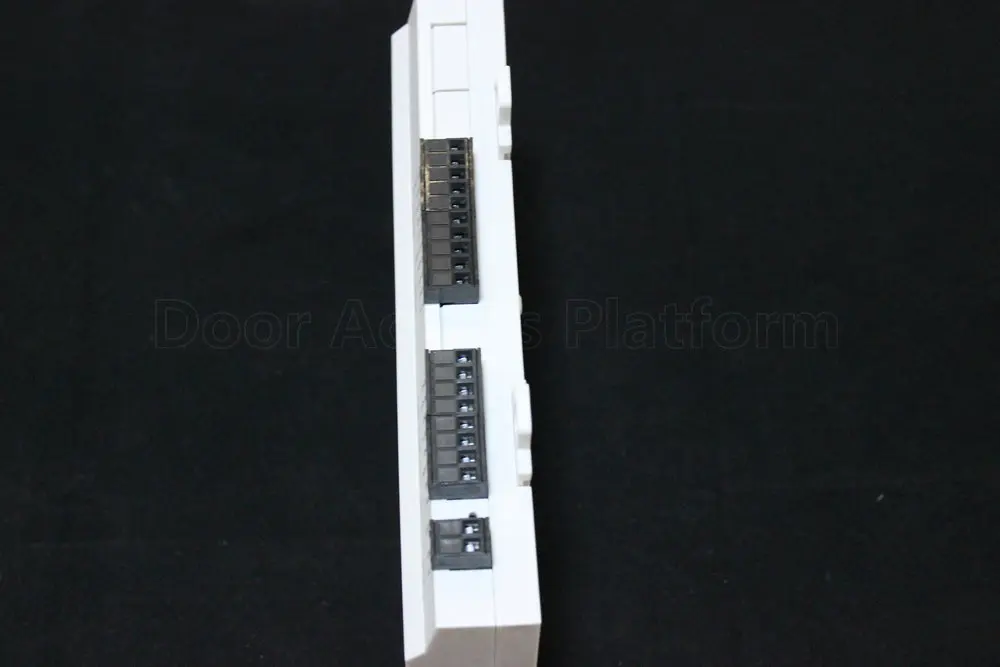

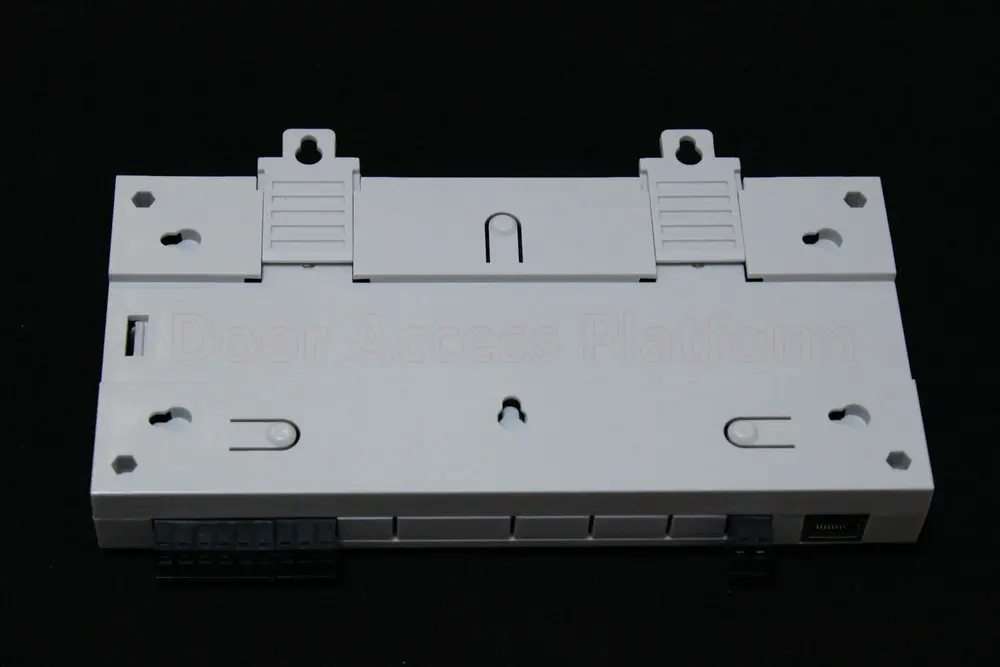

 1 pc of IP Control Web One DOOR/1 Door Access controller Panel Box TCP/IP

1 pcs of High End Door Drop Bolt Lock

 1 pcs of 3,000 User Fingerprint+RFID ID Card Wiegand reader

1 pcs of USB Card Writer/Issuer

1 pcs of Emergency Break Button

1 pcs of Plastic Exit Button

10 pcs of ID Keytag

Same One Software in the Same System with Management Platform

Buy 1 order, Can get all of above items listing, Full Package Kit for You!!!

​

This 1 Door Controller Panel integrated with Taiwan and Korean Imported Electronic Components &IC Chip with High speed processor,

It is the most stable and excellent quality of all in the field of security access control market in China,

The Panel work with the system by TCP/IP network communication and Web-based platform, The user can manage the door system by remotely control via Browser and realize the real time monitoring for data and record,

The Panel support WG 26/34 interface for many type of WG reader accessing, Such as RFID Card reader, Fingerprint Reader, Password Reader,

Note:

This 1 Door Panel is a Double way reader control panel, Not a Single way reader control panel, Which means  In--> door by card swipe reader, Out--> door by card swipe reader or push button,

So People Entry to the door by swipe his card to the card readers,  While Exit to the door he have two method, 1st is by Press the Release Button, 2nd is by swipe Card reader to go out,

1 Door Panel don't have single way reader control version, Only have double way reader control version,

What this Controller Panel can do for you???

@ Work with Magnetic Lock,Power Supply,Release Button and Door Access Reader,

@ Work with Turnstile, Tripod Turnstile and RFID Card Reader,

@ Work with Car Parking Barrier Gate,Car Parking One-Card Platform,

@ Work with as Network Terminal /Platform and open the SDK for u development work,

Connection

Card readers：

2 pcs （WG 26/34 reader）

Alarm output：

1 pc（1－65535 sec.）

Alarm input：

1 pcs

Fire alarm output：

1 pc

Fire alarm input：

1 pc

Release button：

1 pcs

Door sensor input：

1 pcs

Lock output：

1 pcs

Parameter

Card holder：

30000

Logs：

50000

Alarm capacity：

10000

Communication：

TCP/IP + Web Interface

Communication distance：

100 meters between access controller and HUB

Card reading：

WG 26/34

Communication ：

< 100 meters

Door opening methods:

card,password, card+password, double bard, first card opening,

software, fire alarm, release button,timing door opening

Features

  - Standard 10M Eternet TCP/IP Network Communication

  - Built in Webserver function, Do not need install software, Just inputting IP address of Controller Panels,

  - and proceeding setting and log checking for remote control management

 - Can connecting other multi door access controller via TCP/IP to set up a network and manage in one software

 - Capacity: 30000 cards, 50,000 records, alarm records

- Time zone: 16 groups, and can setting related multi door opening method like card, card + password,

  double card

- Support remote door opening, remote open or close fire alarm, alarm

- Support many alarm events’ output, like invalid card, invalid time, door alarm

  door opening time surpassing

-  Support 4 WG card reader, 2 reader for entry and another 2 for exit,automatically WG 26,34,37 protocal

 - Support 6 output to control door and alarm output together, and timing alarm output

 - Support multi door inter lock, and anti pass back function

We will change to send you the   2018 Newest Version reader with Full Metal Case

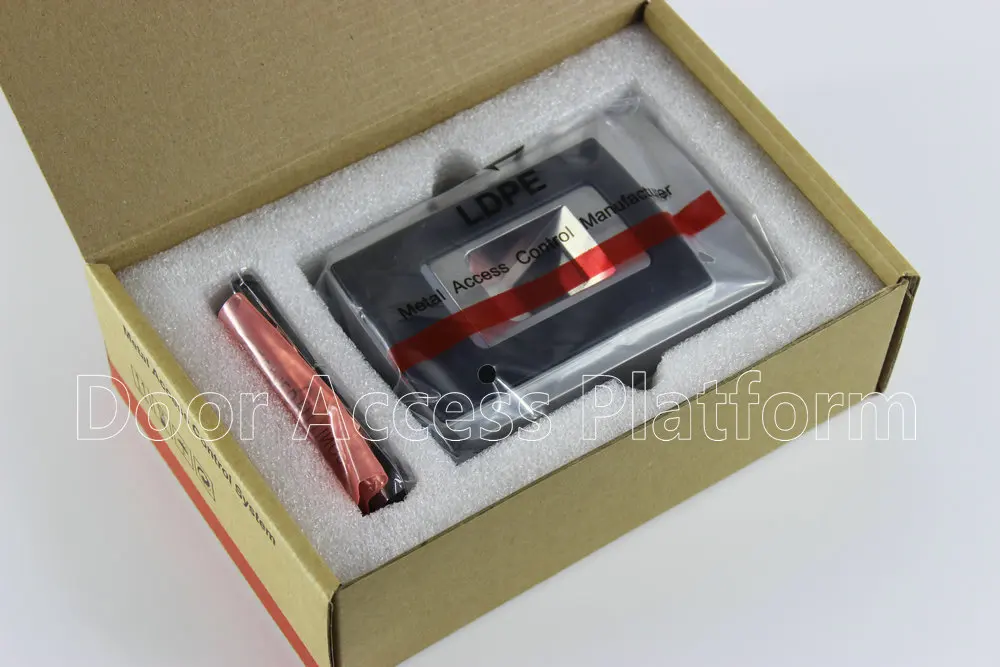

This Fingerprint+Card machine is Full Metal Case Machine and Quality is much better than previous plastic case reader

The plastic case fingerprint reader already stop production and all is old stock before 2016 year,

It support both fingerprint and rfid card at the same time,

People enroll/register the finger/card by the add/delete card of machine,

Weigand 26 output port, can be act as an extra RFID reader for controller panels,

Work as both Standalone Access Control kit and Slave reader,

PC Software:

-   Support Web IP Browser and TCP/IP Network communication at the same time

-   All of connected controller panel can be using the same one software management

-   Support door access control and lift floor access controller and locker access controller management at the same time

-   Support 3 kinds of language, and customer can add their own language as their will

-   Simple operation, finishing operation by single click, double click, or right click

-   Real time monitoring and kinds of alarm, card swiping

-   Support color indicating, using different color to stand for different records

-   Support full screen showing

-   Support Access and SQL server, The default is Access

-   Three operation authorized: set up users for door, set up door for users, and set up permission teams

-   Support automatic shift arrangement(only SQL available)

-   Support daily records, user can check the operation and management history record, easy to manage and system maintenance

Web Interface Show:
