 Application

for 2003-2007 Dodge Ram 6BT 5.9/ 5.9L

(Fits Models with 5.9L l6 OHV Turbocharged Diesel Calif. Emission Engines ONLY)

Specification
Horse Power: Capable of Boosting Horse Power up to 400+ BHP

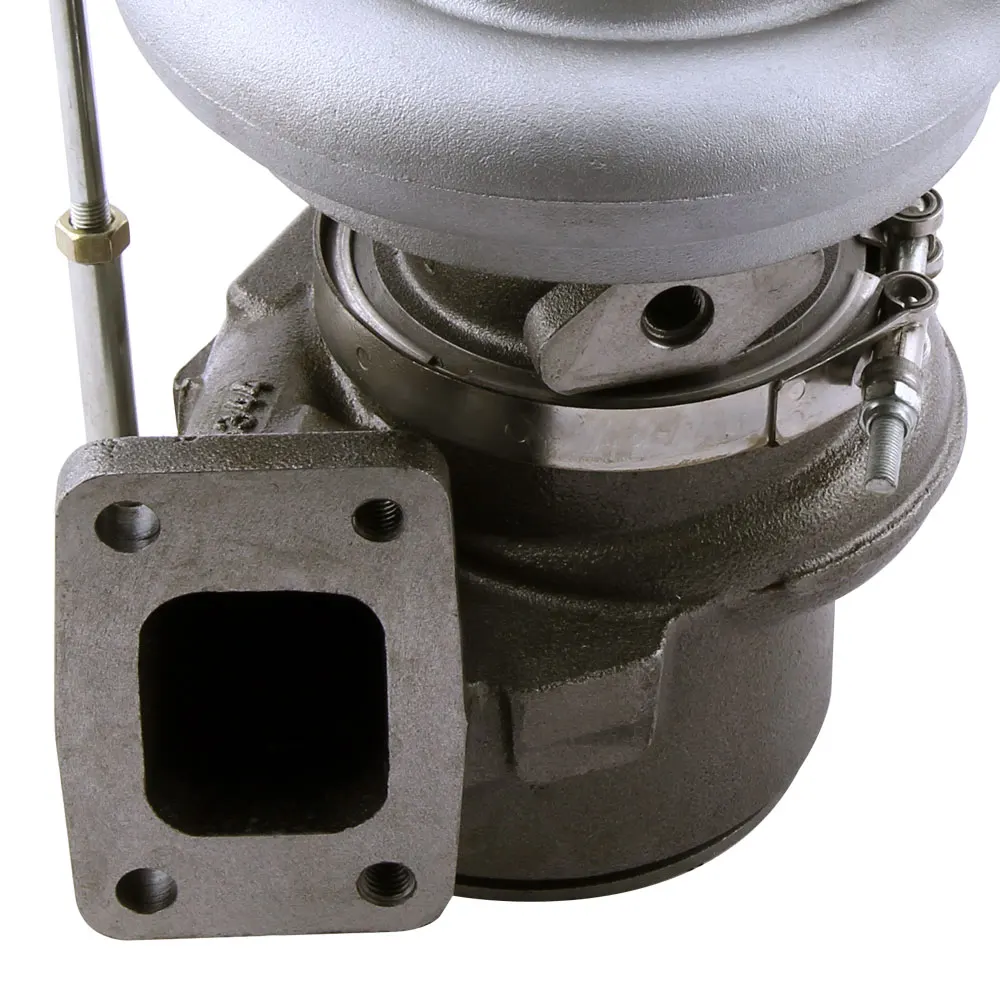

Exhaust Inlet (Turbo Manifold) Flange: Standard T3
Exhaust Outlet (Downpipe) Flange: Standard HY Dodge Cummins 4.375" Diameter V-Band

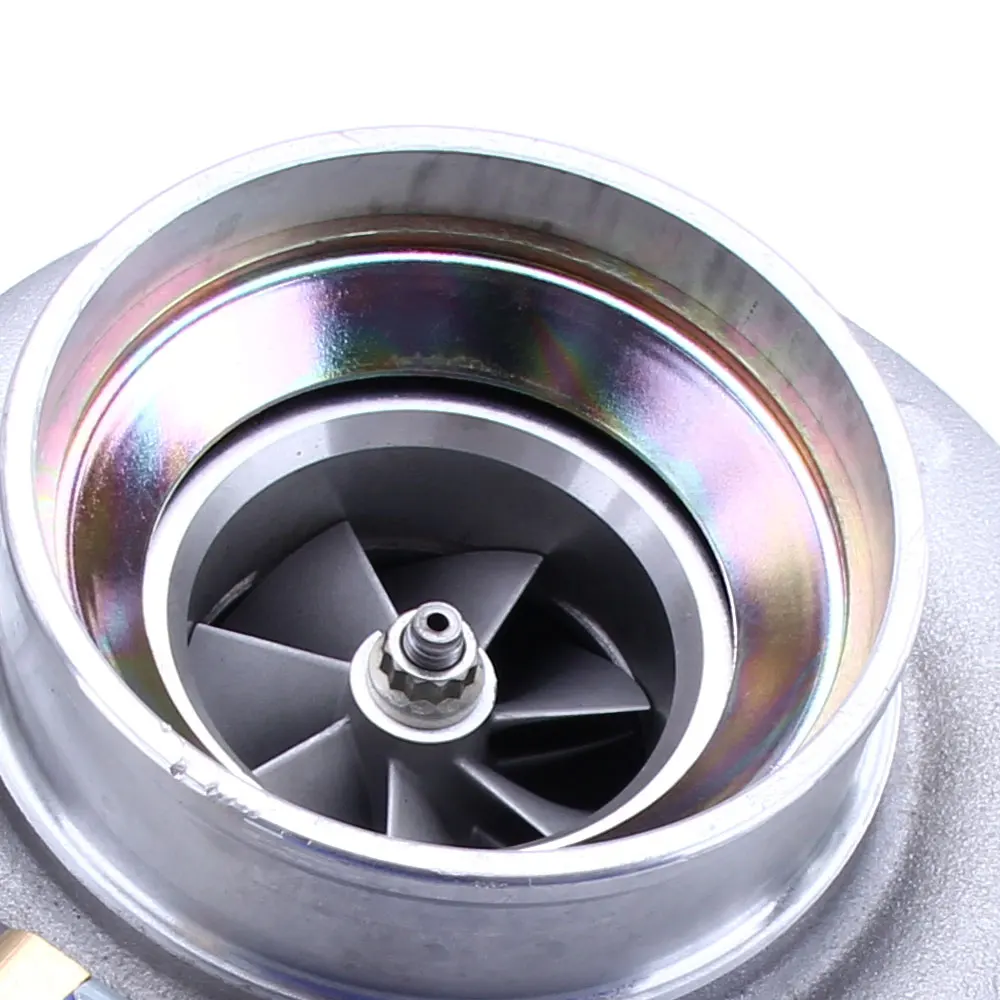

Compressor Side:
Trim=69
Inducer Diameter=68.7 mm
Exducer Diameter=97.8 mm
A/R=0.66
Turbine Side:
Trim=92
Inducer Diameter=87.4 mm
Exducer Diameter=77.8 mm
A/R=0.96

Notice
This turbo doesn't use a wastegate control solenoid, if your turbo has it, it is another Hy35w turbo.

Key Features

- OEM specs coincidence to ensure the perfect fitment to the related parts

- Material qualification for durable and reliable use

- Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit

- Accuracy producing on all procedures to reduce possible metallic contacts under different condition

- Large range of turbochargers for easily locate the turbo with the target horse power and size you need from us

- Quality fully guaranteed and professional installation highly recommended
