Service
Ship from China
Gift optional,Ebrake or brake sensor optional
Ship from Russian Federation (Base on Moscow ,usually from 2-15 days.15-30 days if far away from Moscow)
With shift sensor cable (No shift sensor) and light cable
With Ebrake (No brake sensor)
Gift :front light (No tool)

1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.

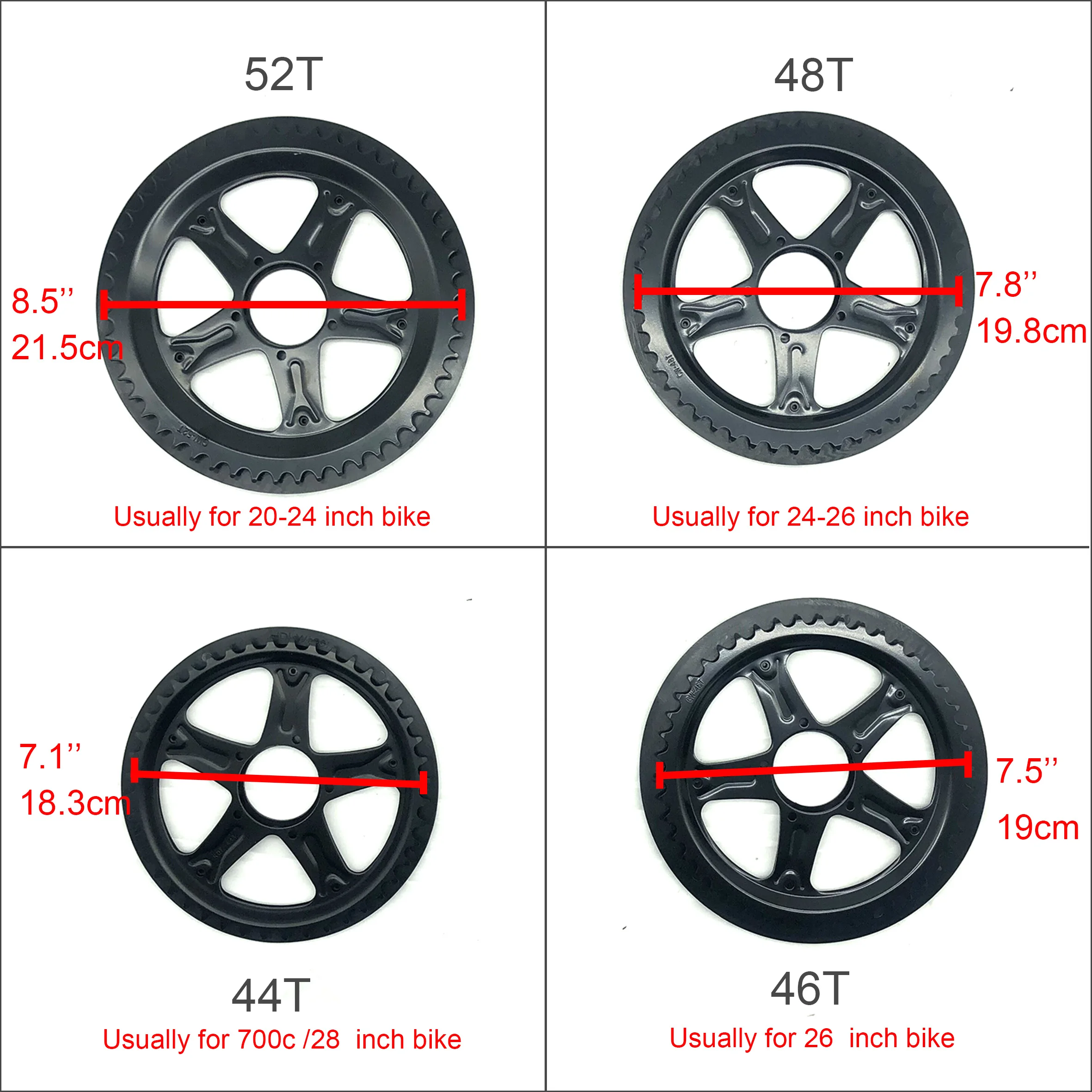

2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 48V 250W.Please tell me .We can send the sticker to you.

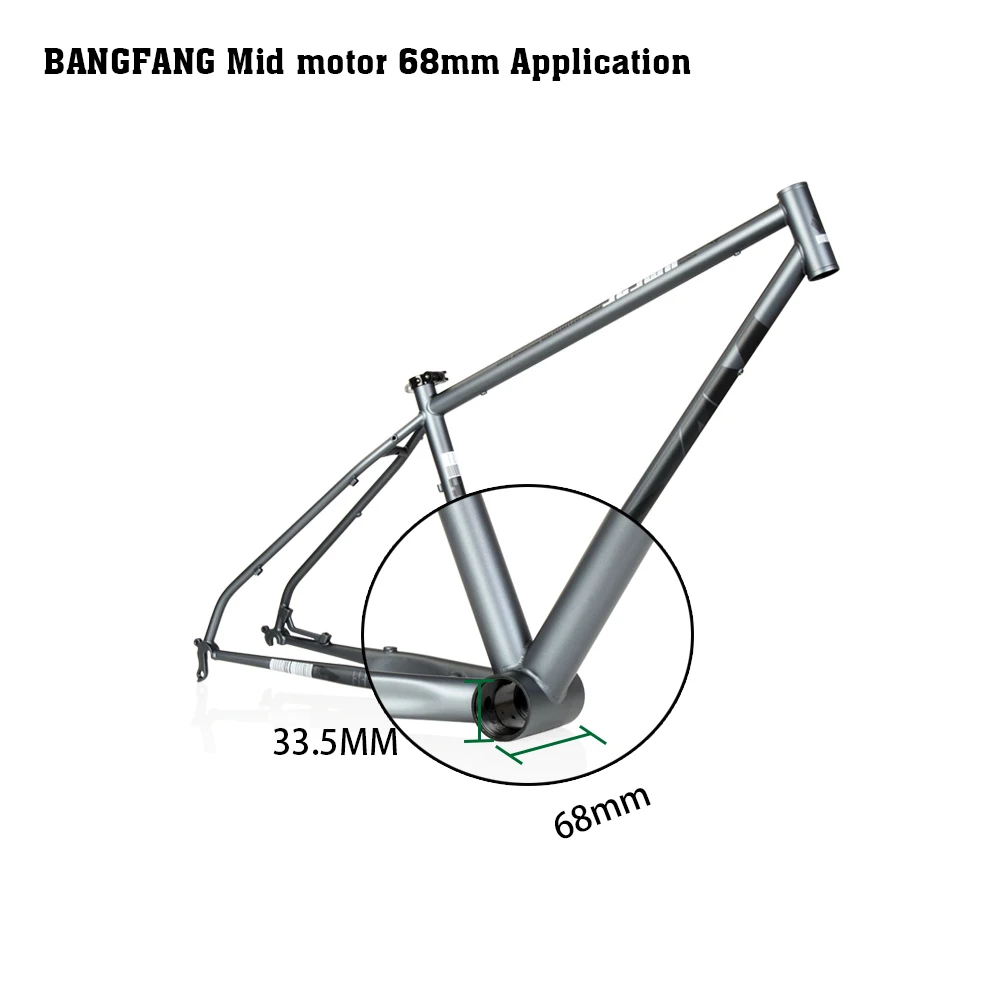

5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7.We provide a front light OR a installation tool as a gift.Please leave me a message which one do you need.The default gift is tool.

8.In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.

the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland.

Main parameter
Power:750W
Max Torque: 160 N.m

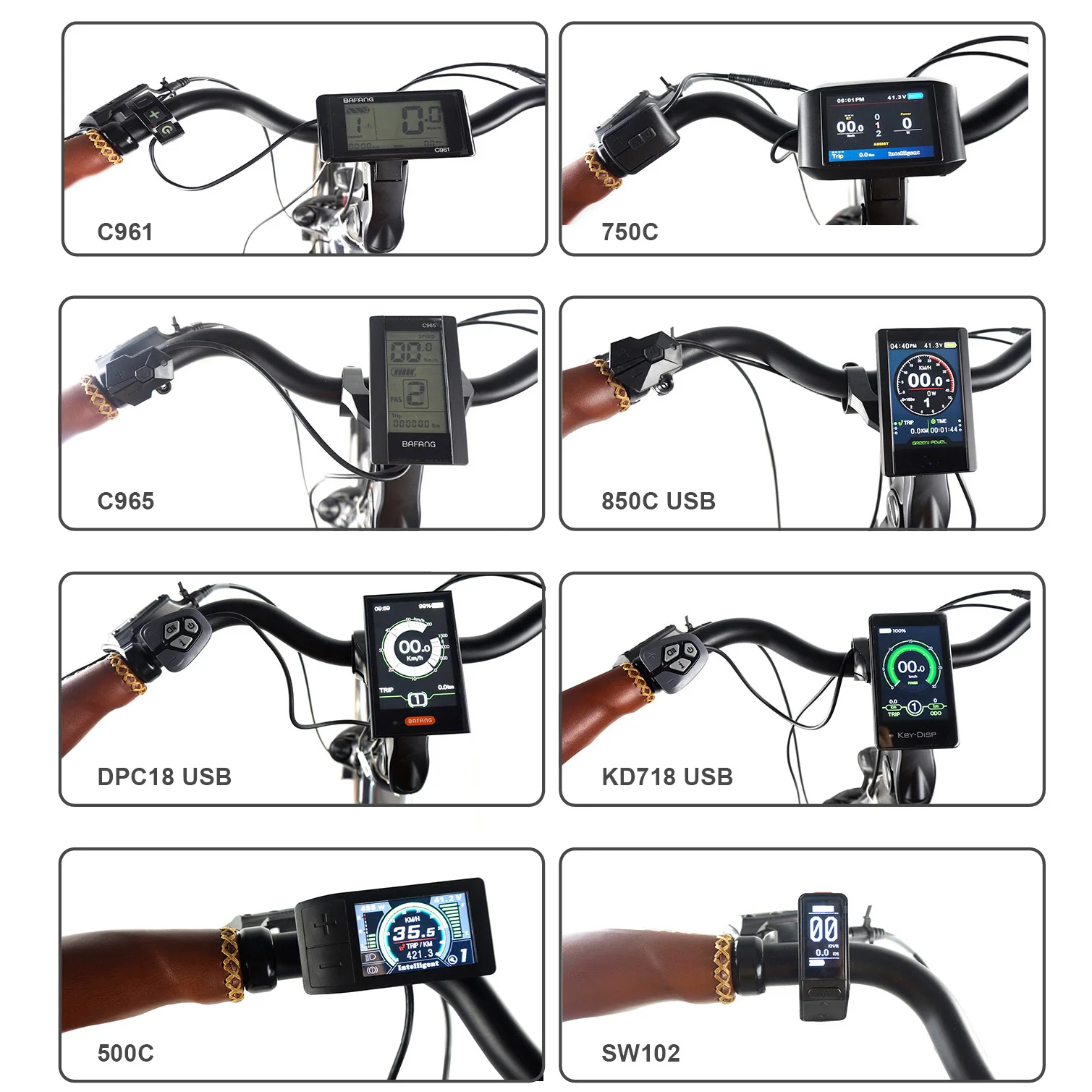

Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display) Optional
Integrated Controller Current :25A
New Controller Code : 214
Stator Widing : 9T
Teeth Number:44T 46T 48T 52T (Optional)

Net Motor Weight: 5.6kg

Bracket bottom length:68mm

Display Working Temperature:-20-80C

Waterproof Grade:IP65

Efficiency ≥80
Pedal sensor: speed sensor
Noise Grade: ＜55dB
​Shaft Standard: JIS
Certifications: CE / EN 14764 / ROHS
Salt Spray Test Standard(h):96

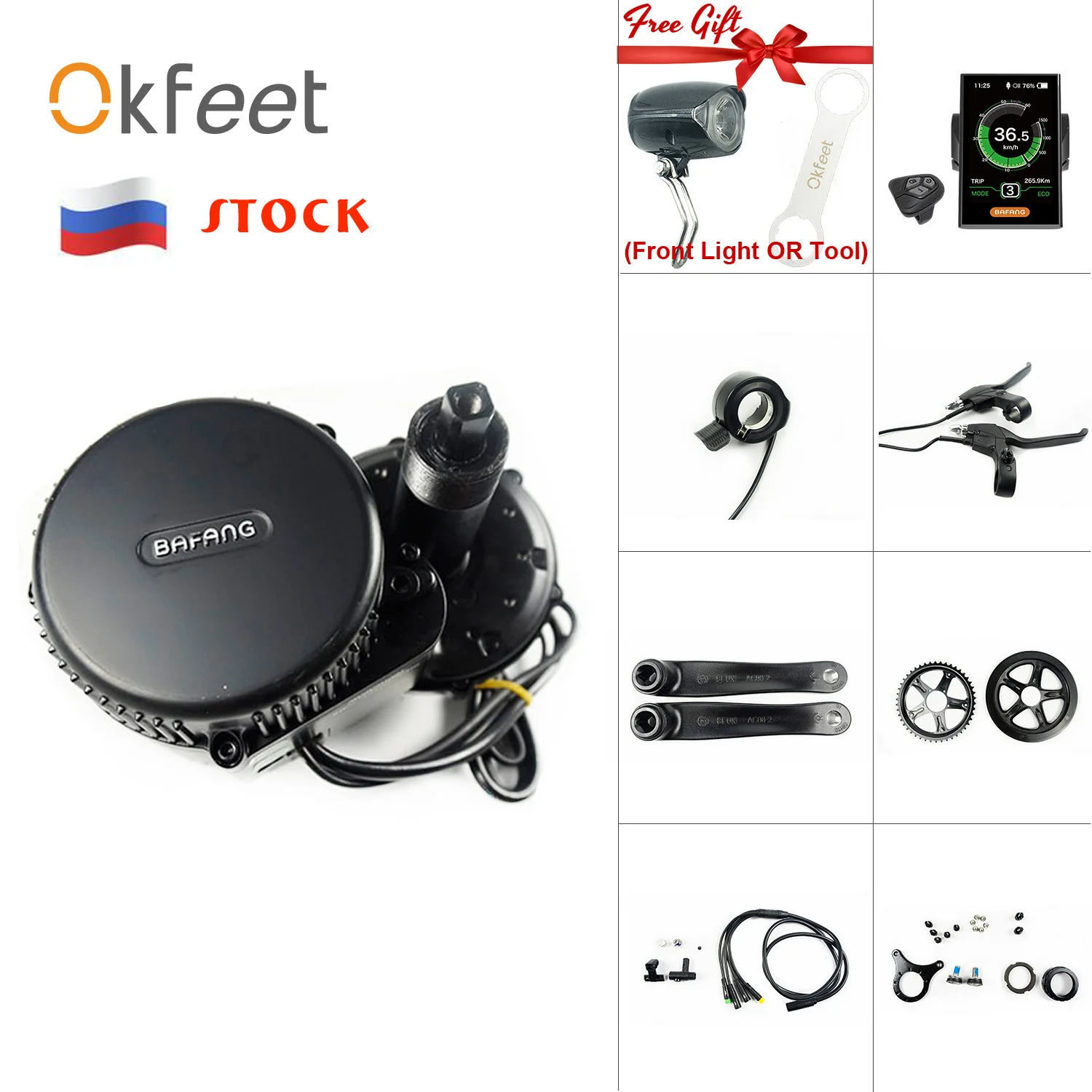

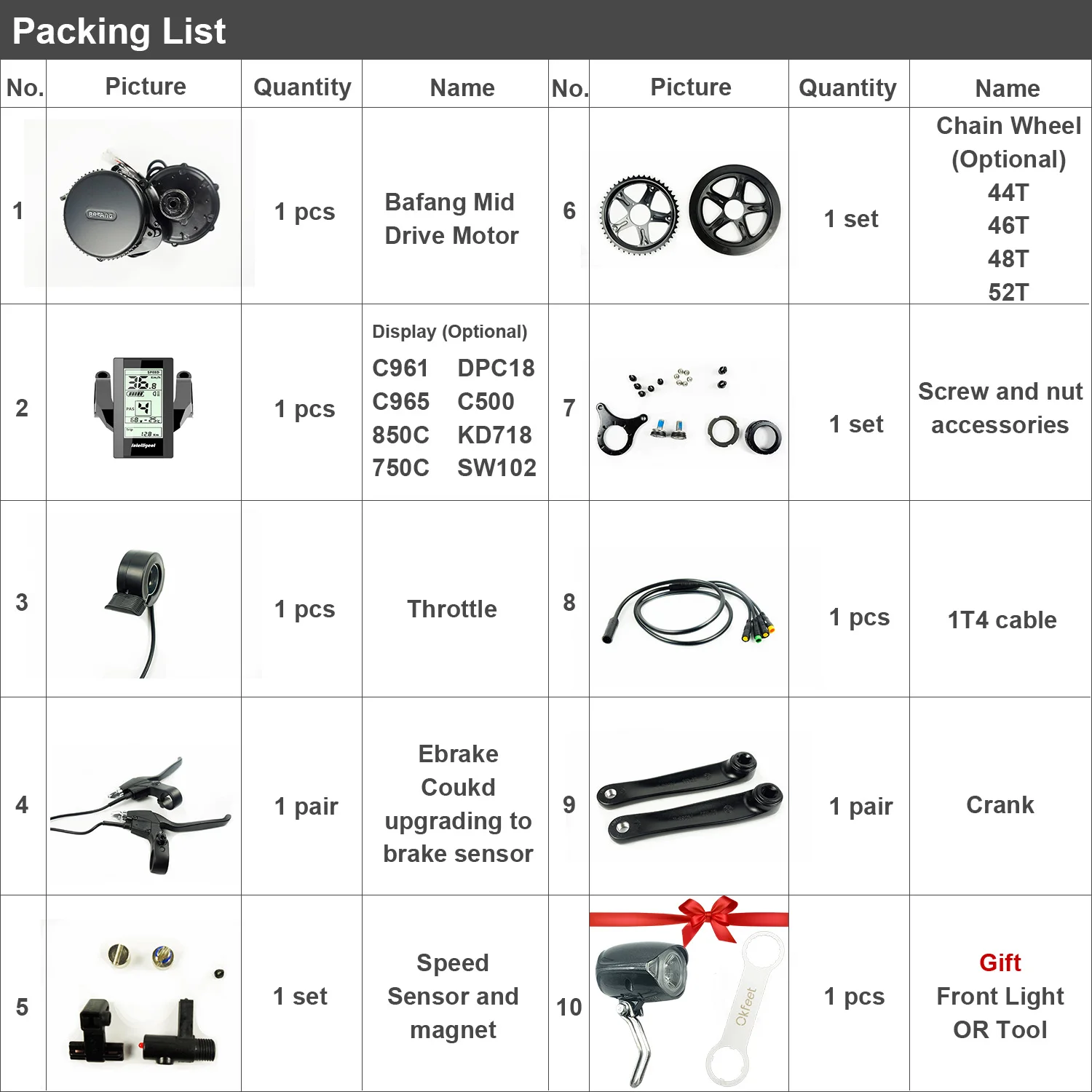

Packaging included:

1 * 48V 750W Mid Drive Motor

1 Pair * Brake Levers (can be changed to brake sensor for free, please kindly leave us message if you need)

1 Pair * Crank

1 Pair * Chainwheel (44T/46T/48T/52T opition, please kindly leave us message if you want change the chain wheel)

1 Set * Thumb Throttle

1 Set * Speed Sensor

1 * Display ( Optional)

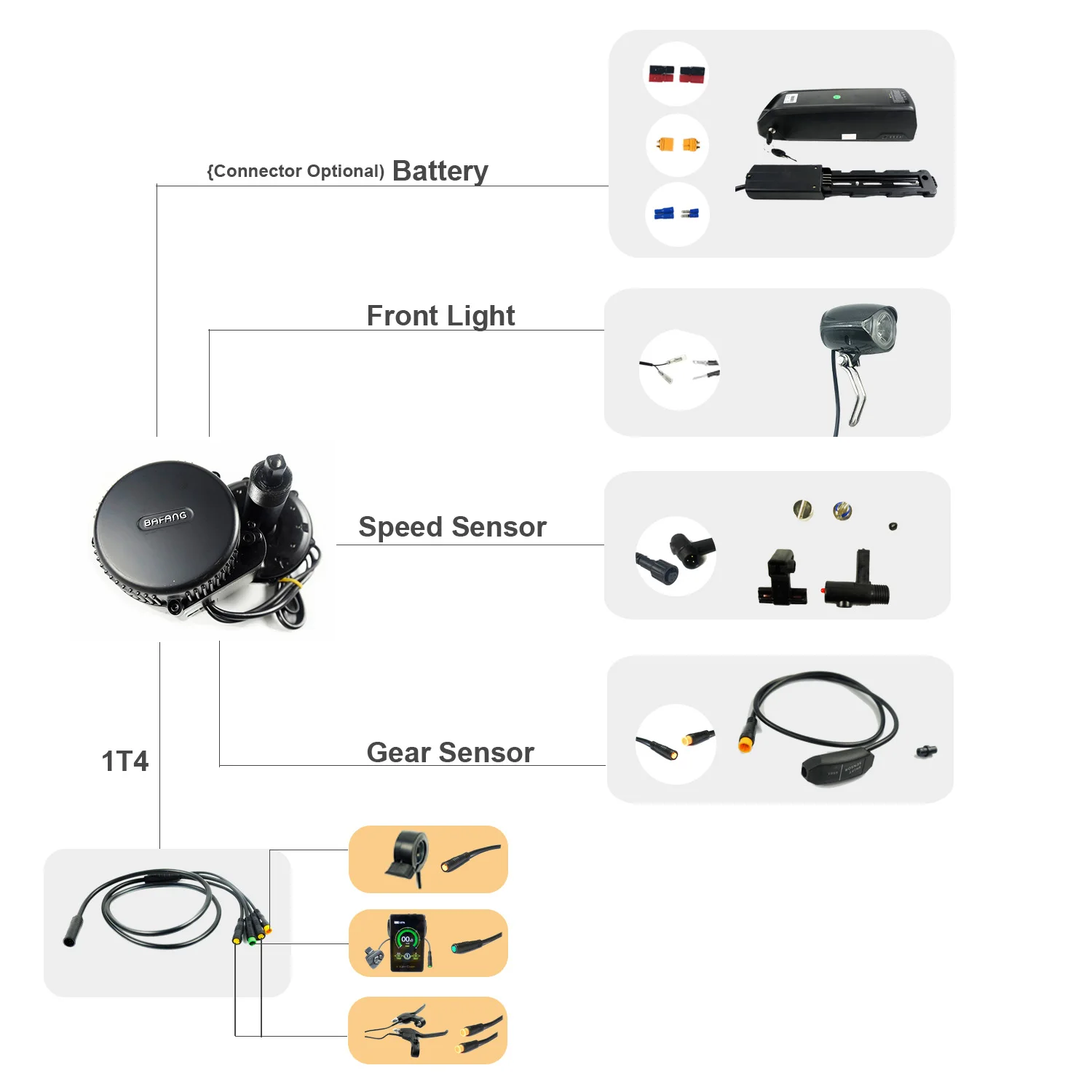

1 * 4 in 1 Cable

1 * Accessories

Gifts: 1 pcs 6V Front Light OR a installation tool
If you need different power connector.Please contact me.
If you need a 36V 250W label sticker.Please tell me .
Thanks!
