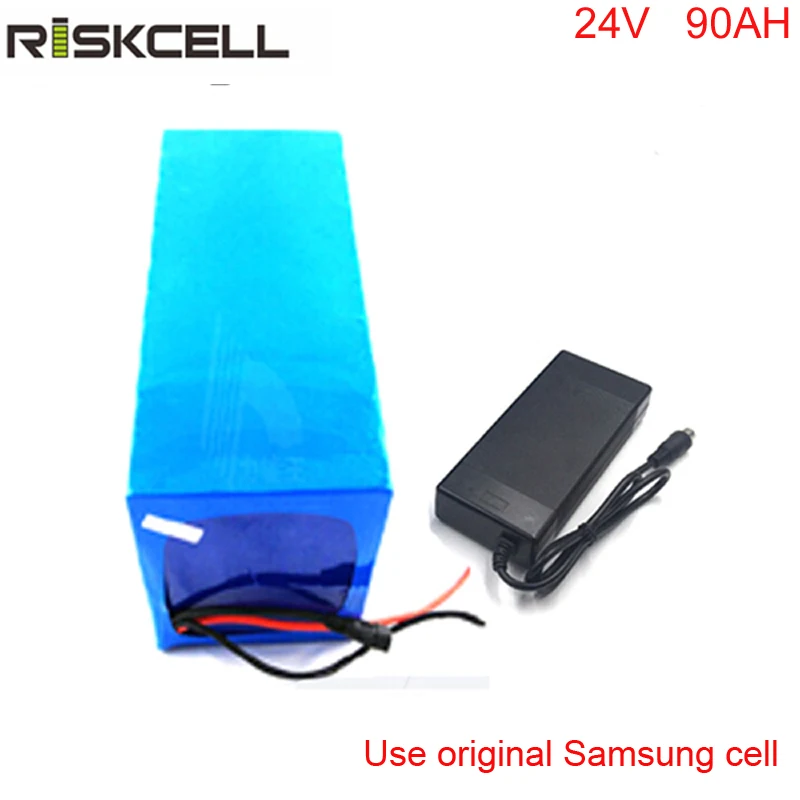

Newest DIY 24V 1000W Electric Golf Caddy Battery 90Ah Li ion Pack with 5A Charger For Samsung cell | Электроника

Newest DIY 24V 1000W Electric Golf Caddy Battery 90Ah Li ion Pack with 5A Charger For Samsung cell | Электроника

Battery Model

2490

Voltage

24V

Capacity:

90AH

Type:

3.7v 3C Samsung 18650 cell

Source Resistance

40

Charge

Way of charge

CC/CV

Standard charge Current

2A

Max charge current

5A

Charge Cut-off Voltage

29.4V

CellOvercharge protection Voltage

4.2V/CELL

Discharge

Continouns Discharge Current

50Amp ( can be customized)

Peak Discharge Current

150Amp( can be customized)

Cell Overdischarge Voltage

2.8v/cell

Discharge Cut-off Voltage

19.2V

Cycle Life

1000 times

Safety test

No firs ,No explosion

Overcharge Safety Test

Crush Safety test

Needling safety test

130 C high Temperature safety test

Weight

13kg

Size

140*180*280mm (can be customized)

Fit moto power

Less 1400w

Working Temperature

0C—45C

-20-C—65C

Retention of charge

>95%

Certificate

CE,UL,ROSH,UN38.3,MSDS

Application

E-bike,E-motorcycle,E-scooter,ups,bike ,ev,golf car,

Warranty

One year









2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5.  Long life cycle, No memory, environment friendly.



Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our

battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short

circuit, over temperature and balancing, Our BMS owns the following features,

1. Master-Slave architecture makes the system flexible;

2. Two level warning makes maintenance easier;

3. CAN2.0 and industrial level electronic components make system reliable;

4. Contactor makes high rate charge & discharge feasible;

5. Periodic insulation measurement makes personnel safety possible;

IT can be good used in electric vehichles(EV, HEV, PHEV, EREV, LEV, electric car, patrol car, recreational vehicle, electric motorcycle, e bike, electric bike/bicycle, electric scooter, electric wheelchair, golf cart, fork lift,etc) and energy storage system(solar/wind/off-grid system, UPS, telecommunication base station, electric power tools,etc).
