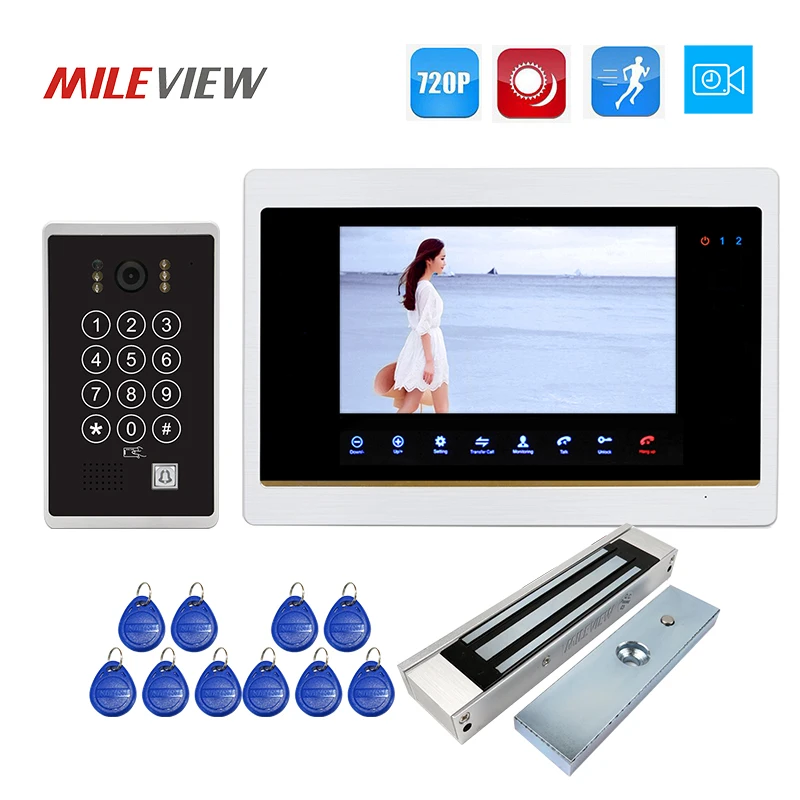

Free Shipping 1.0MP 720P AHD 7" Video Door Phone Intercom Record Screen Keypad RFID Unlock Camera Electric Magnetic Lock |

  720P AHD 7" Color Video Door Phone Intercom  1 X 720P AHD Code KEYPAD Camera + 1 X 7" Color LCD Monitor

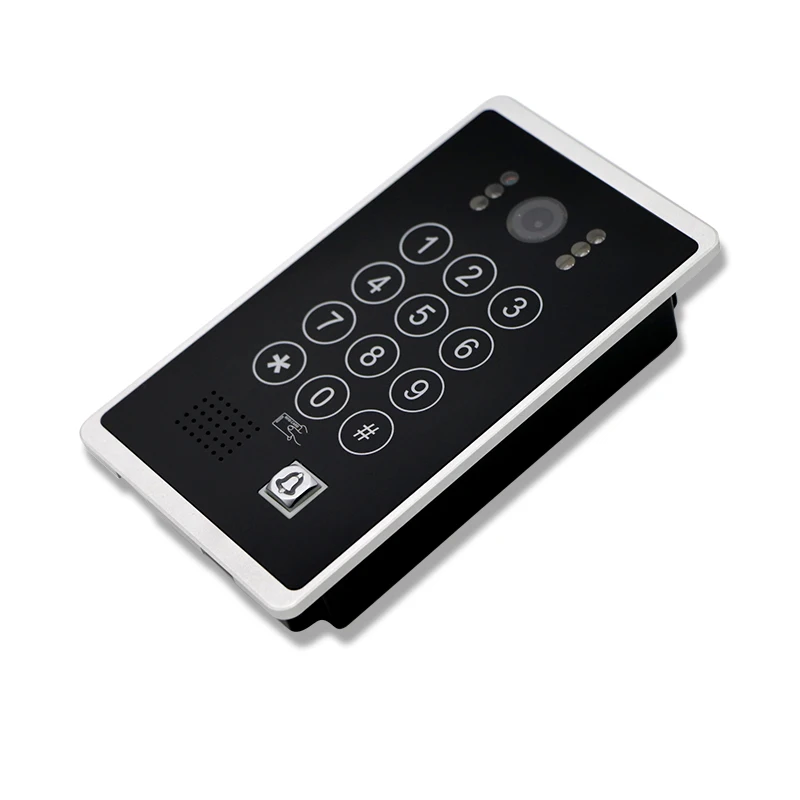

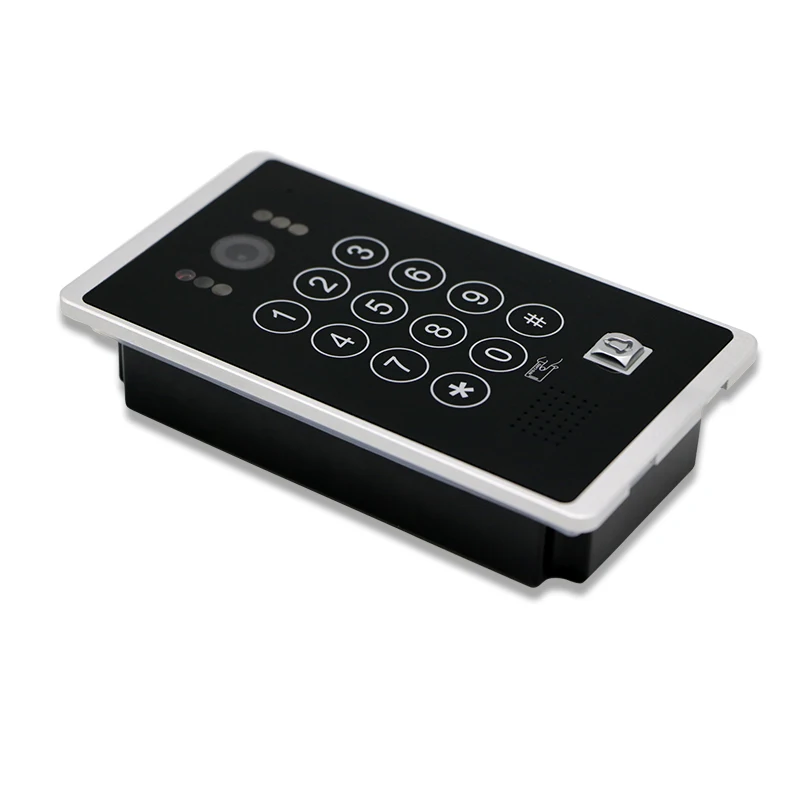

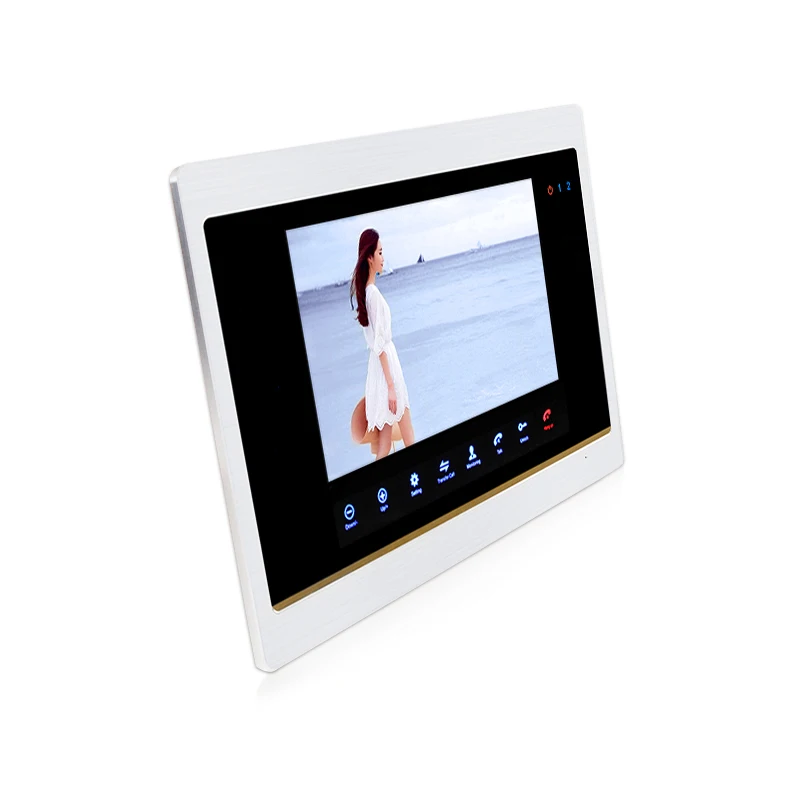

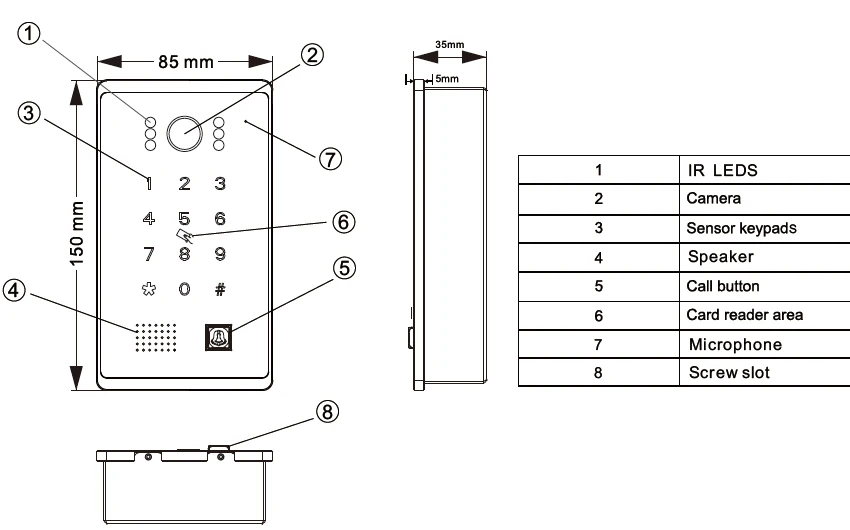

    Features   Outdoor Unit 720P AHD HD camera. 940nanometer IR LEDs for night vision. RFID Reader: 125khz Code keypad password unlock. supports to set maximum 200 codes Capacity: supports 200pcs RFID keys and 200 passwords. Metal material, touch sensor button keypad, with blue back light. Dual-way intercom. IR sensor, turn on/off IR LEDs automatically. View angle: 92 degree Waterproof, supports outdoor working.   Indoor Monitor

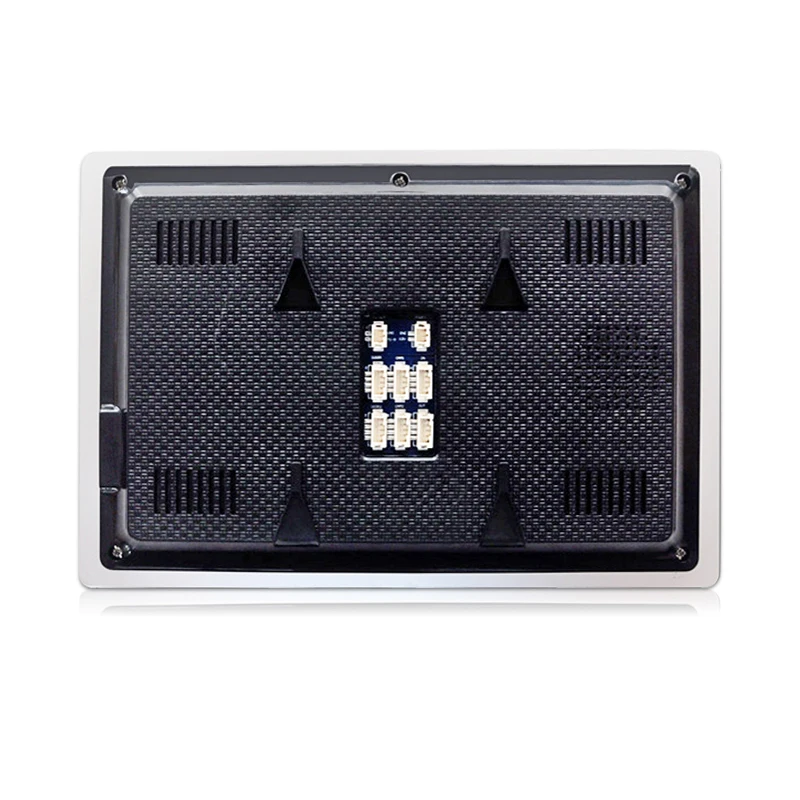

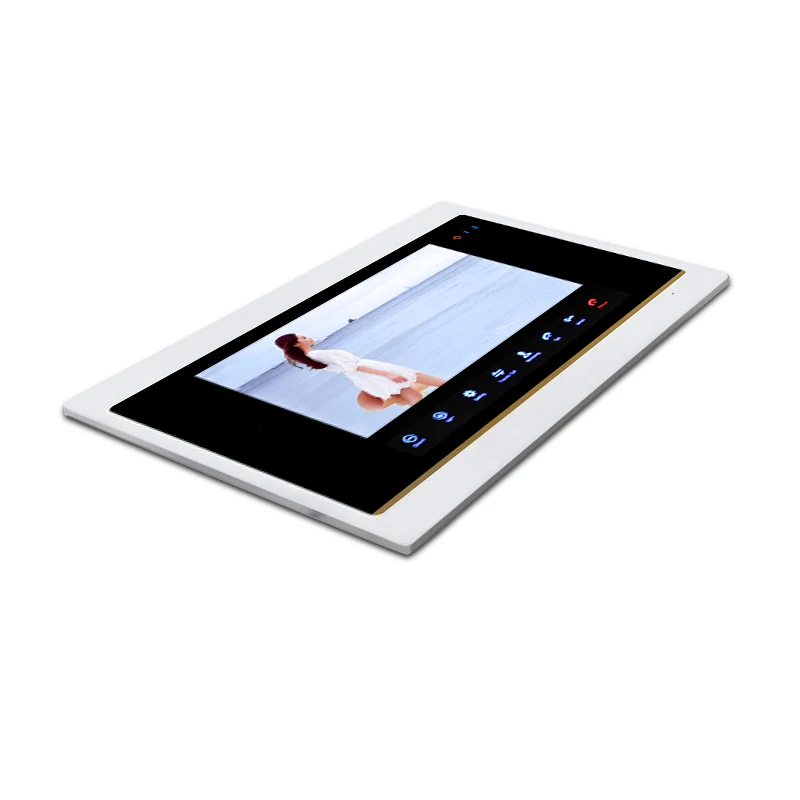

Adjustable unlock time 0-10 seconds. 1.0MP 720P AHD High resolution screen with digital photo frame auto carousel pictures. Customs melodies and wallpaper.  Point to point transfer call to any indoor monitor.     Experience HD movie by indoor monitor.    Compatible with most models of CVBS or AHD doorbell.   Motion detection without extra device. Take photo or record video when motion detection trigger.     Supports  6 languges in the OSD menu of monitor: English, Russian , Spanish, French, Arabic and Japanese.  When the monitor in standby mode, you are able to set the monitor to show the time and date if you want. 7" TFT Hight resolution Color screen. Door answering, monitoring and Unlocking. Adjustable color, brightness and volume. Touch Sensor Buttons :   Touch sensor button with blue and red back-light LED make the monitor mor fashionable beautiful. Variety of Interfaces :   Support 2 outdoor video camera doorbell phone, 2 secuity CCTV cameras,slave 4 indoor monitor etc, Acrylic Wire Drawing Panel Material :   Slim design, Highlight the noble quality. The system could record by video or snapshot,supporting up to 32GB SD Card.When SD card is applied, video recording mode could be set.Built in memory could save 80 pictures.   Details

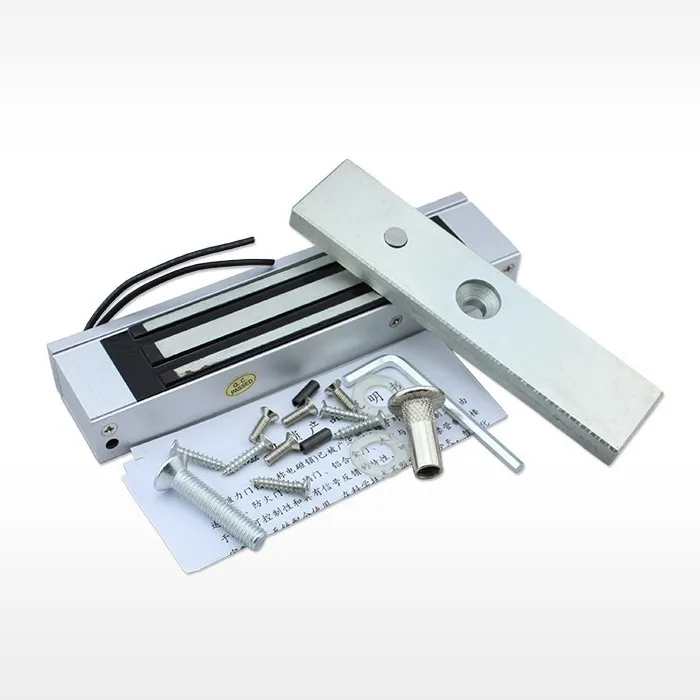

Electric Magentic lock



It is a High-performance   180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!







Voltage: 12V DC  Mode: NC (locked whilst power supply is operating), fail safe mode  Application: wood, iron doors Main body dimensions: 171 x 39.2 x 22mm  Pack includes: electric magnetic lock, installation diagrams  Construction: stainless steel. Performance Testing: 1000000 times aging test Safety function: Built-in voltage spike suppressor Anti-Residual Magnesium Designed Weight: 1.3kg





Wiring

More Products

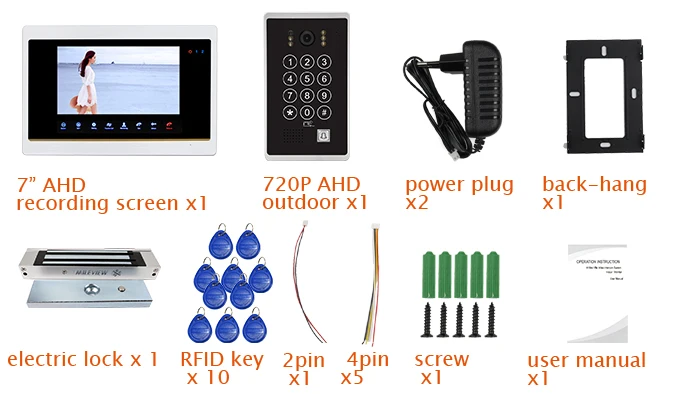

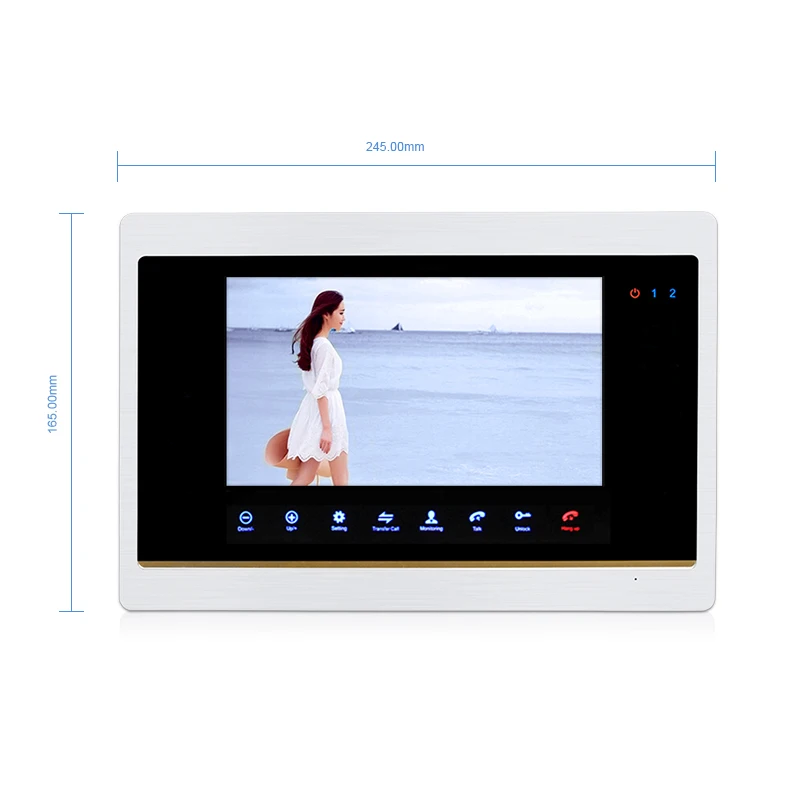

Specification Outdoor Camera Camera Resolution 720P AHD Night Vision Distance More than 2 meters Working Temperature -35 °C ~ +55 °C Intensity of Illumination 0.01 lux Lens 2.7mm  Waterproof IP65 Installation flush mounted Material aluminium alloy panel Net Weight 1000G Model 213H Indoor Monitor Screen 7" LCD Digital 16:9 Display Effective Pixels 800 x 480 Delay Calling Time 120s ± 10% Delay monitoring time 40s ± 10% Adapter Input AC100 - 240V 50-60HZ Adapter Output DC12V Unit Consumption Less than 6W, standby less than 1W Working Temperature -35 °C ~ 55 °C Installation surface mounted Recording picture:jpeg format;video:avi format Material Aluminum Drawing Panel Memory Built-in memory can save 80 pictures, support external max. 32GB SD card   Package
