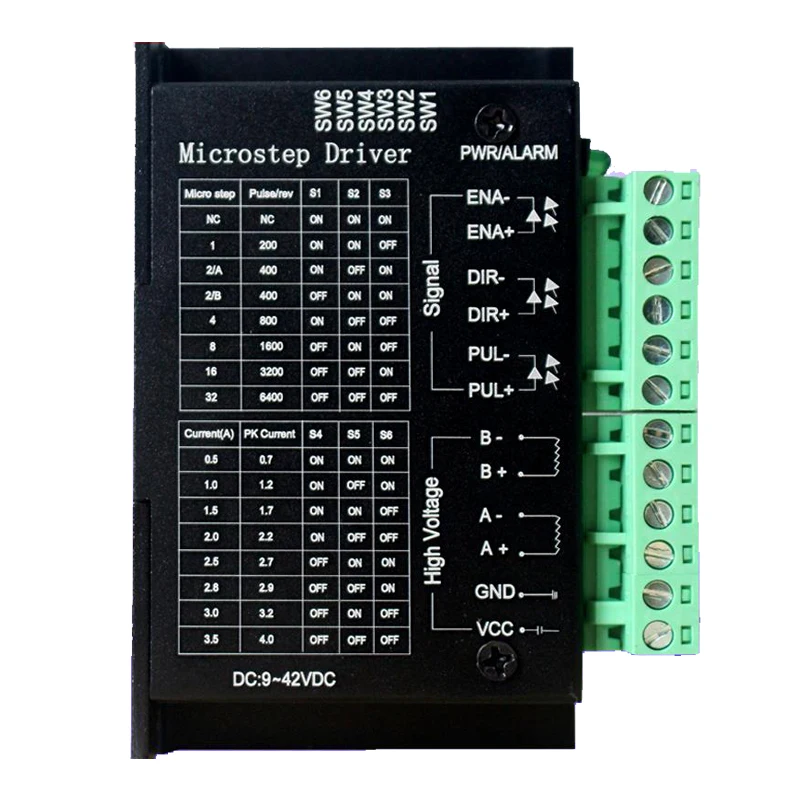

42/57 Stepper Motor Driver TB6600 Upgrade 32 Subdivision 4.0A 42V (Pulse 3-24V) | Обустройство дома



Features:

1.9-42V DC power supply, 12-24V power supply the best

2. Control signal input voltage 3.3-24V common 3. Segmentation accuracy 1-32 subdivision optional 4. Output peak current 4.0A 5.H bridge bipolar constant current drive 6. Input signal high-speed optocoupler isolation 7. Built-in temperature protection and over-current protection 8.Automatic half-flow to reduce heat 9. Motor noise optimization 10.Small size, save space     Electrical environment:   cooling method  Natural cooling or forced air cooling.  occasion

Do not place it near other hot equipment. Avoid dust, oil, corrosive gas, excessive humidity and strong earthquakes. Do not use combustible gas or conductive dust.

humidity  40-90％RH  shock  10-55Hz/0.15mm Save the temperature  -20-65℃  weight  0.15KG

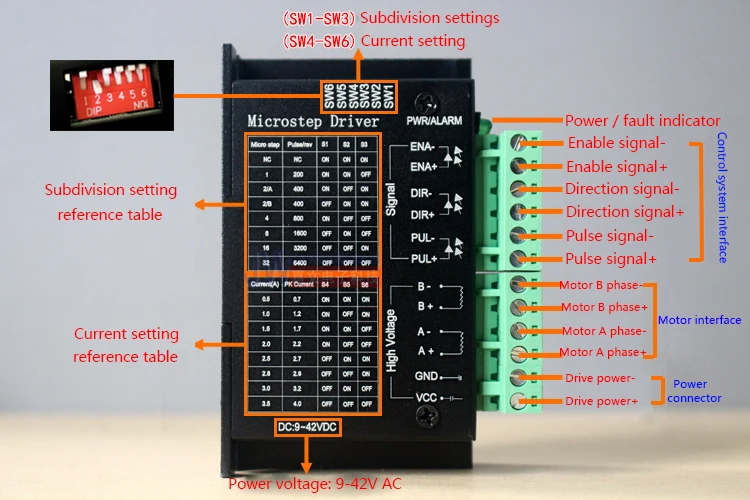

Subdivision settings:

Set the pulse with 1, 2 and 3 DIP switches as follows:

1、2、3三位拨码开关设定脉冲，如下表：

Subdivision Pulse / circle  S1  S2  S3  NC  NC  ON  ON  ON  1  200  ON  ON  OFF  2/A  400  ON  OFF  ON  2/B  400  OFF  ON  ON  4  800  ON  OFF  OFF  8  1600  OFF  ON  OFF  16  3200  OFF  OFF  ON  32  6400  OFF  OFF  OFF     Current setting: Use 4, 5, and 6 DIP switches to set the running current as follows:   Average current  Peak current  S4  S5  S6  0.5  0.7  ON  ON  ON  1.0  1.2  ON  OFF  ON  1.5  1.7  ON  ON  OFF  2.0  2.2  ON  OFF  OFF  2.5  2.7  OFF  ON  ON  2.8  2.9  OFF  OFF  ON  3.0  3.2  OFF  ON  OFF  3.5  4.0  OFF  OFF  OFF

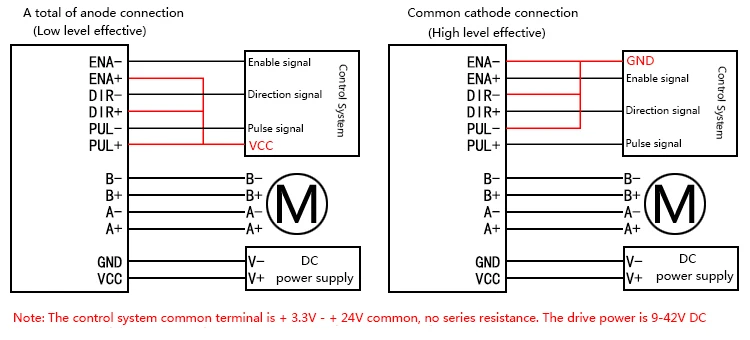

Wiring diagram:

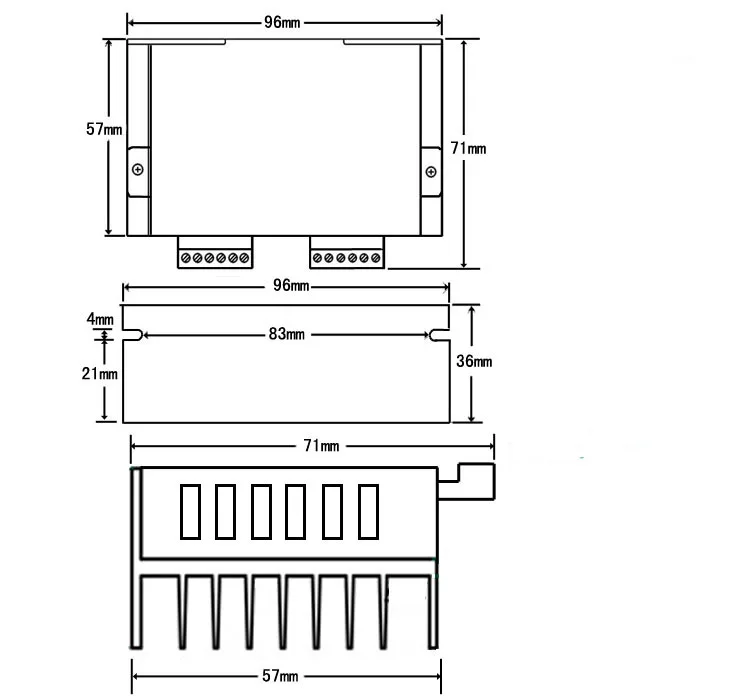

Product Size:

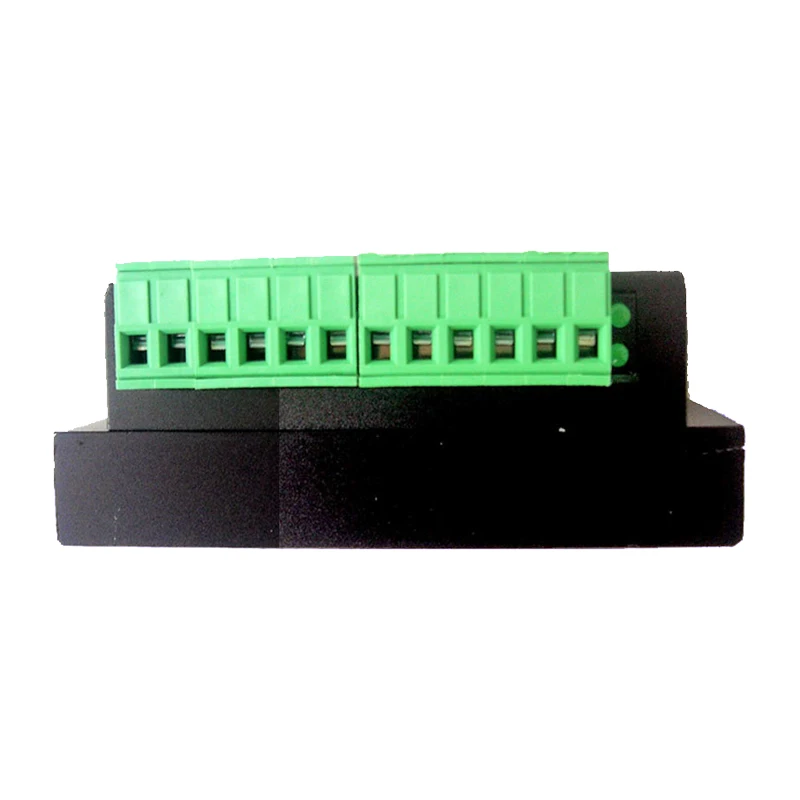

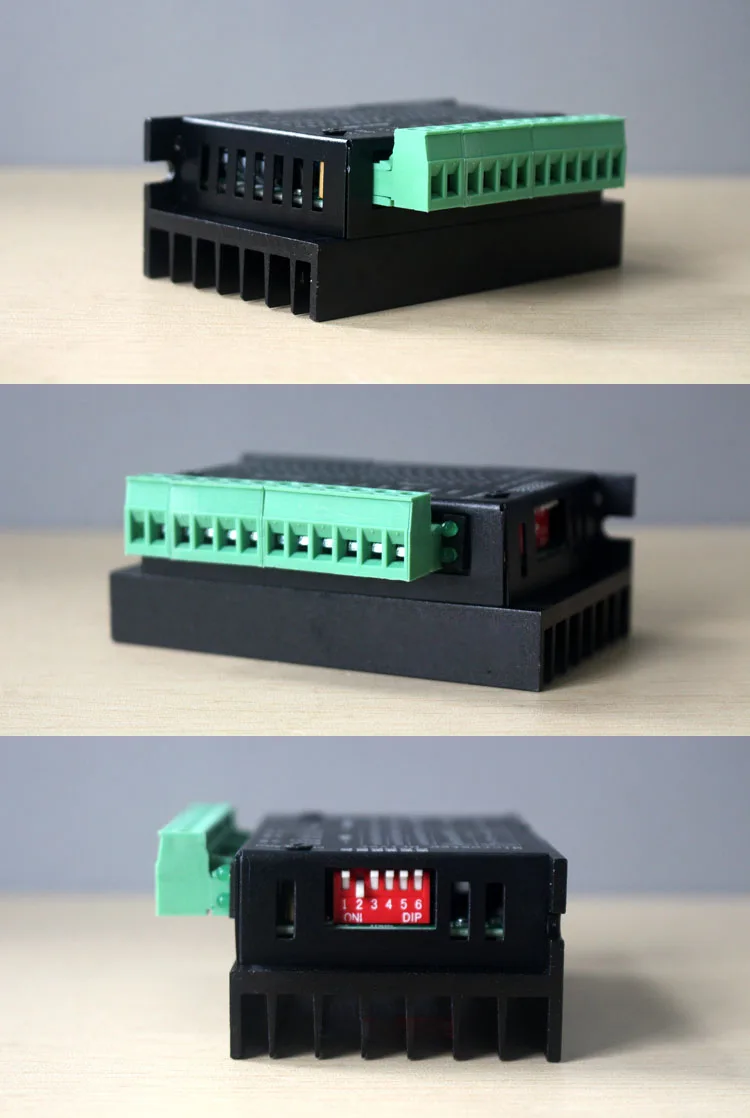

Product physical map:
