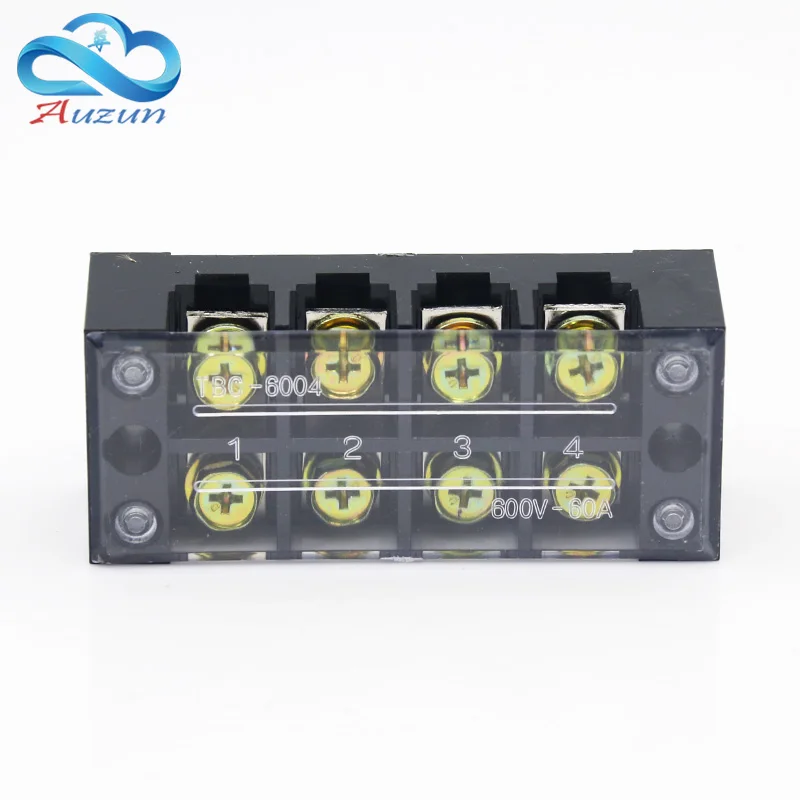

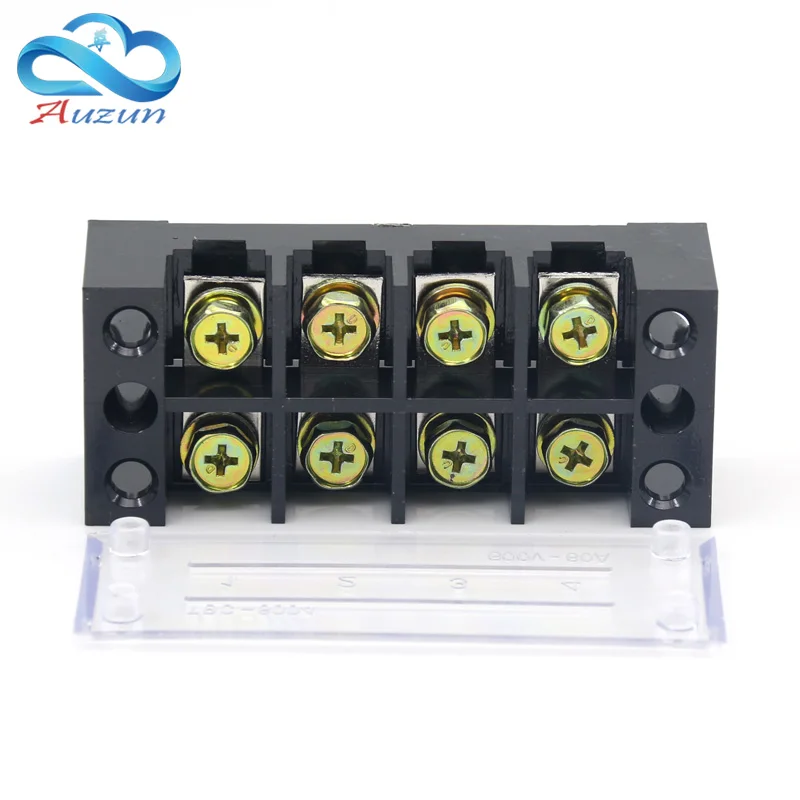

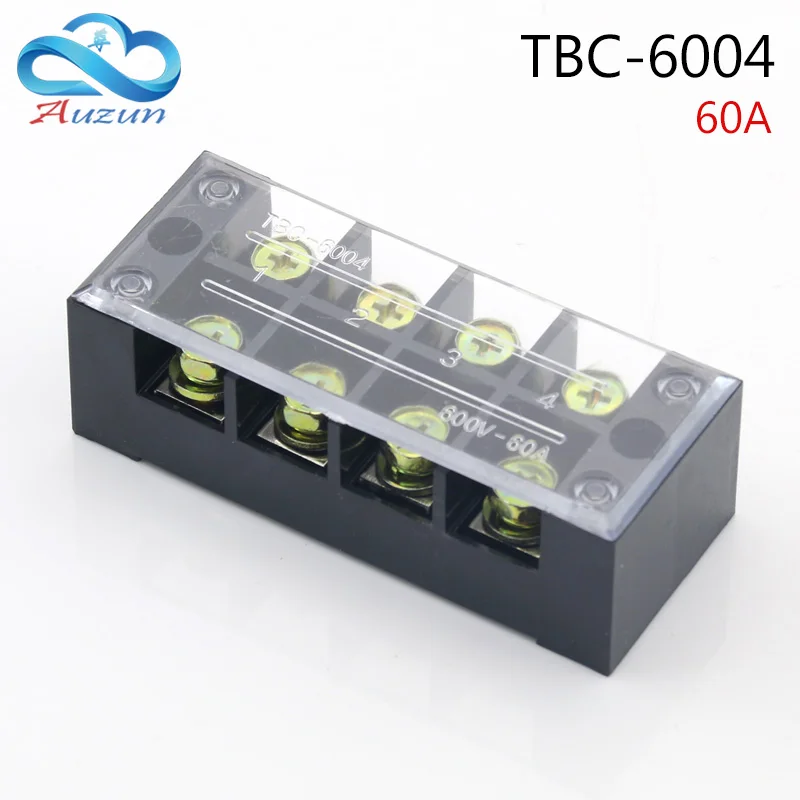

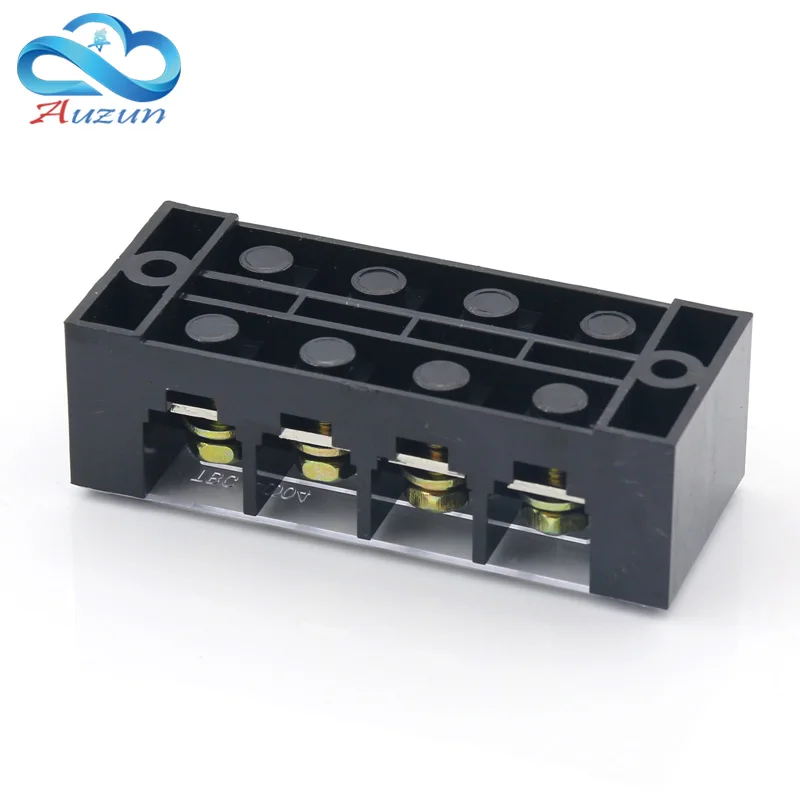

TBC-6004 Terminal Blocks Fixed Terminals High Current 60A 4P Copper Contact | Обустройство дома

TBC-6004 Terminal Blocks Fixed Terminals High Current 60A 4P Copper Contact | Обустройство дома

Product name: fixed terminal

Model: TBC-6004

Number of products: 4

Shell material: ABS fire retardant

Installation: fixed screw mounting

Working voltage: 600V

Working current: 60A

Guide material: copper

Model number     Conductor cross section     Number of digits     current       voltage    length   breadth  highly

   TB1503                         0.5-1.5mm²                         3                   15 A          600V       45.5        22       17.5

   TB1504                         0.5-1.5mm²                         4                   15 A          600V        57          22       17.5

   TB1505                         0.5-1.5mm²                         5                   15A           600V        63          22       17.5

   TB1506                         0.5-1.5mm²                         6                   15A           600V        72          22       17.5

   TB1508                         0.5-1.5mm²                         8                   15A           600V        90          22       17.5

   TB1510                         0.5-1.5mm²                        10                  15A           600V       107         22       17.5

   TB1512                         0.5-1.5mm²                        12                  15A           600V       125         22       17.5

   TB2503                         0.5-2.5mm²                         3                   25A           600V        55          22       17.5

   TB2504                         0.5-2.5mm²                         4                   25A           600V        67          22       17.5

   TB2505                         0.5-2.5mm²                         5                   25A           600V        79          22       17.5

   TB2506                         0.5-2.5mm²                         6                   25A           600V         91         22       17.5

   TB2508                         0.5-2.5mm²                         8                   25A           600V        115        22       17.5

   TB2510                         0.5-2.5mm²                        10                  25A           600V        139        22       17.5

   TB2512                         0.5-2.5mm²                        12                  25A           600V        163        22       17.5

   TB4503                         0.5-4mm²                            3                   45A           600V          69        38         24

   TB4504                         0.5-4mm²                            4                   45A           600V          85        38         24

   TB4505                         0.5-4mm²                            5                   45A           600V         103       38         24

   TB4506                         0.5-4mm²                            6                   45A           600V         120       38         24

   TB4508                         0.5-4mm²                            8                   45A           600V                      38         24

   TB4510                         0.5-4mm²                           10                  45A           600V         187       38         24

   TB4512                         0.5-4mm²                           12                  45A           600V         220       38         24

   TBC6003                      0.5-10mm²                          3                   60A            600V         75       37.8      30.5

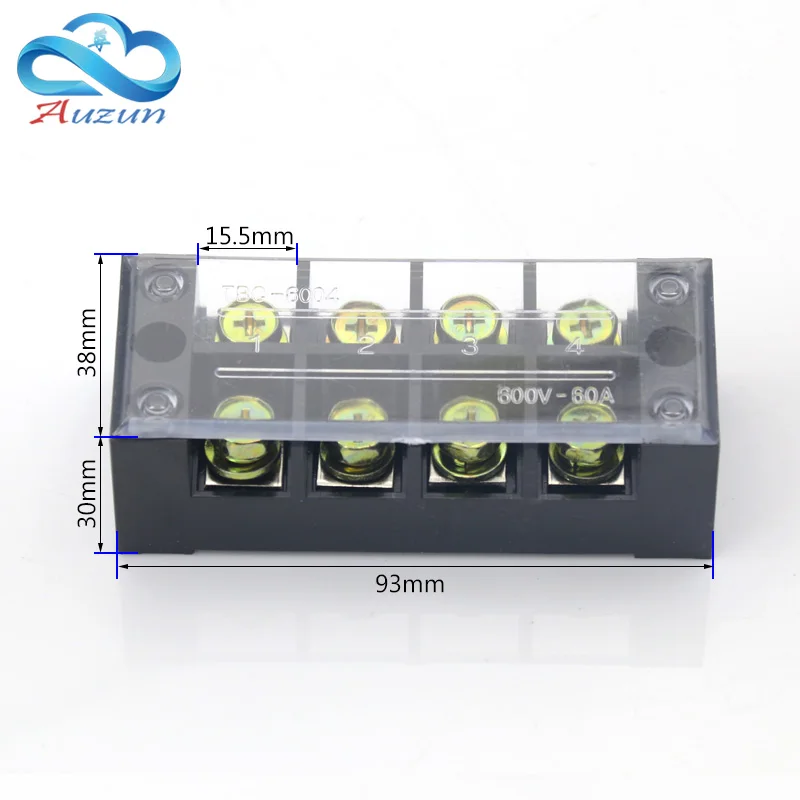

   TBC6004                      0.5-10mm²                          4                   60A            600V        92.2     37.8      30.5

   TBC6005                      0.5-10mm²                          5                   60A            600V                    37.8      30.5

   TBC6006                      0.5-10mm²                          6                   60A            600V        128      37.8      30.5

   TBC6008                      0.5-10mm²                          8                   60A            600V                    37.8      30.5

   TBC6010                      0.5-10mm²                         10                  60A            600V        199      37.8      30.5

   TBC6012                      0.5-10mm²                         12                  60A            600V         234     37.8      30.5
