Набор проводки для автомобиля из 400 штук: 255 штук разъемов и 145 штук термоусадочных трубок 2:1 RSFR Heatshrink для обмотки кабеля.

Набор проводки для автомобиля из 400 штук: 255 штук разъемов и 145 термоусадочных трубок 2:1 RSFR Heatshrink обмотки кабеля.

Item description:

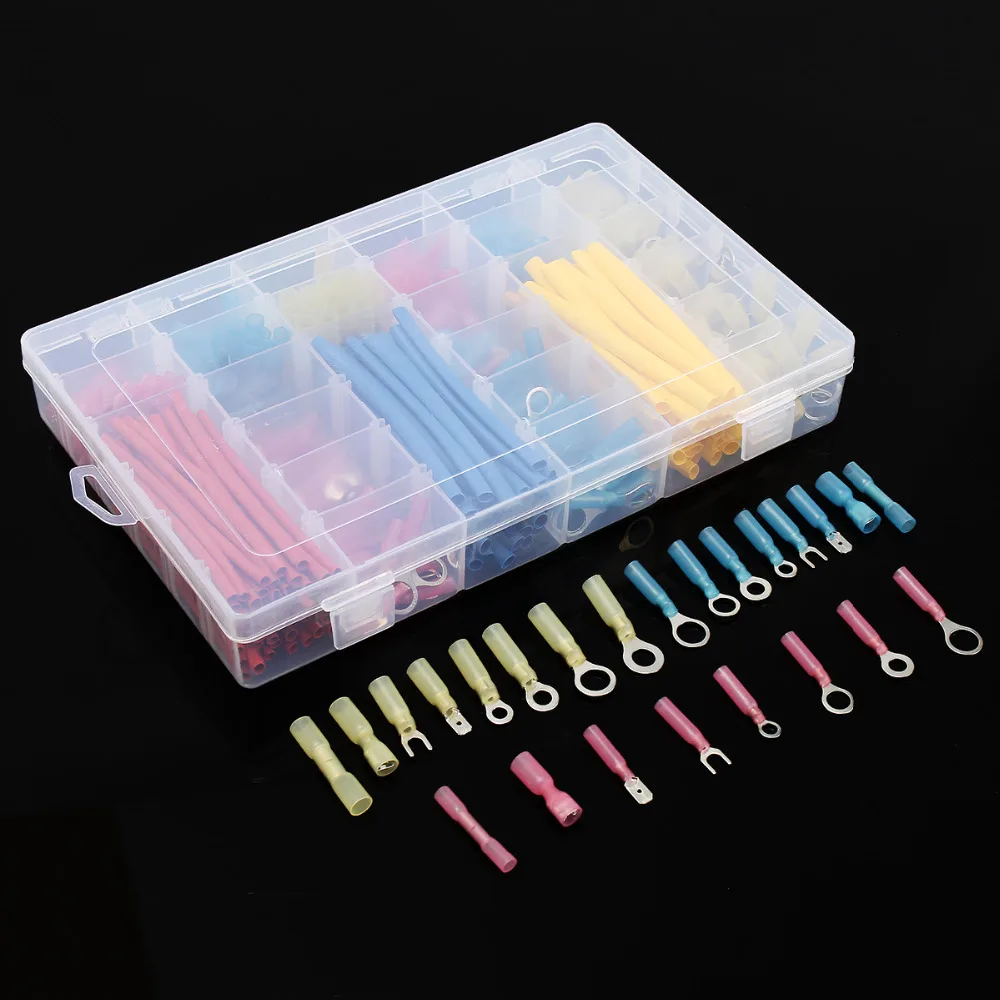

This listing features 255 pieces of P.E heatshrink assorted wire connector (box-packed)kit and 145 pieces of 2:1 heat shrink tube.
When properly heated and shrunk, they provide a seal that is resistant to water, steam, salt and other contaminants.
Heat shrink insulated connectors will provide improved pullout strength and strain relief.
Excellent splice for marine, automotive, outdoor, or harsh environment use.The translucent heat shrink material allows for visual inspection of the connection, and has the wire gauge printed on it.
Crimp style with a true plated copper core.

Features:
- Comply with UL and RoHS standards
- Eco friendly,not wasteful so as to save your money
- Idea for cars,bike,motor homes,household usage,industry usage,workshops,etc...
- Suitable for electric wire crimp and connect
- Crimp well with a good tight connection.

1. Material: Insulation: P.E(polyethylene); Terminal Body: Copper; Plating: Tin
2. Voltage: 600V
3. Storage Case Size: 270x170x45mm(Length x Width x Height)

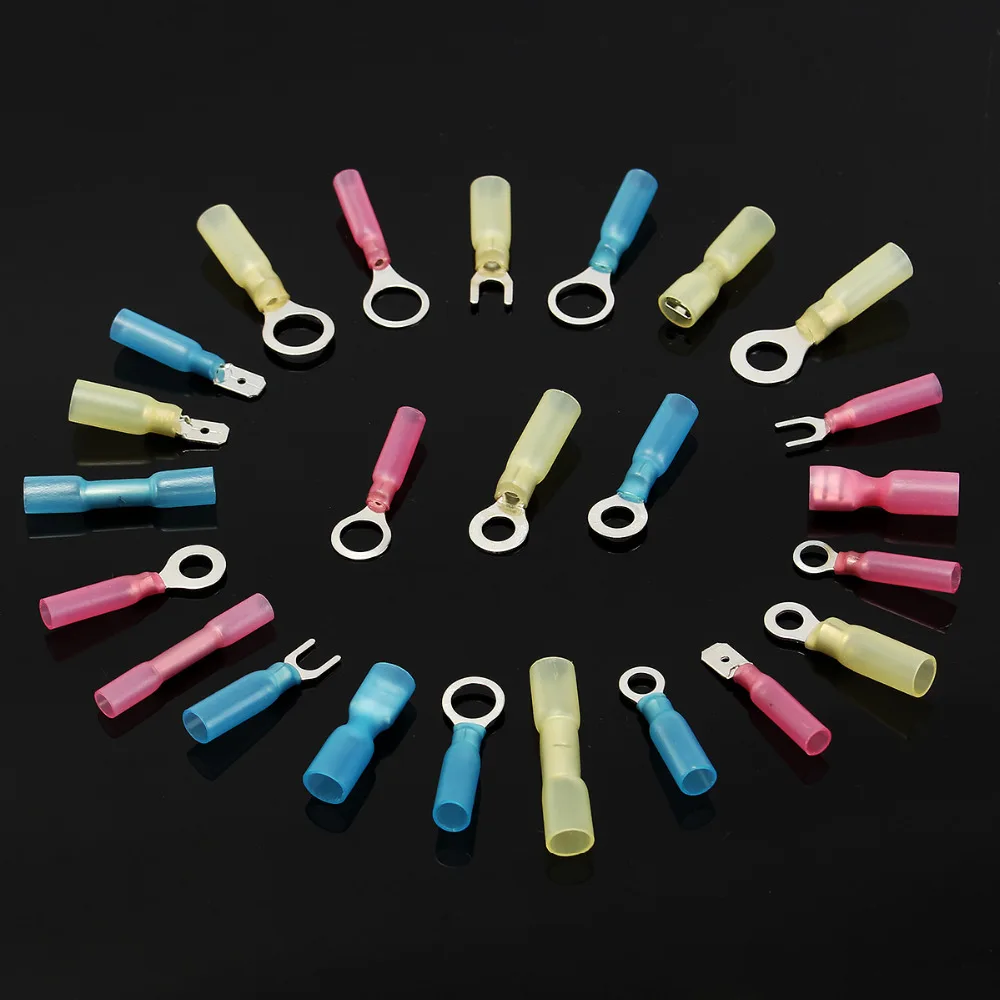

Wire Connector Detail As Follow:
(Color X Suited Wire/Wire Size)
Quantity X Model X Terminal Size&Type

Red: 22-16AWG/0.5-1.5mm2;
15 x Butt Connector
10 x M5/#10 Fork Terminal
10 x M5/#10 Ring Terminal
10 x M6/1/4" Ring Terminal
10 x M8/5/16" Ring Terminal
10 x M10/3/8" Ring Terminal
10 x 6.5mm/1/4" Male Spade Connector
10 x 6.5mm/1/4" Fully-insulated Female Spade Connector

Blue: 16-14AWG/1.5-2.5mm2;
15 x Butt Connector
10 x M5 Fork Terminal
10 x M5 Ring Terminal
10 x M6 Ring Terminal
10 x M8 Ring Terminal
10 x M10 Ring Terminal
10 x 6.5mm/1/4" Male Spade Connector
10 x 6.5mm/1/4" Fully-insulated Female Spade Connector

Yellow:12-10AWG/4.0-6.0mm2;
15 x Butt Connector
10 x M5 Fork Terminal
10 x M5 Ring Terminal
10 x M6 Ring Terminal
10 x M8 Ring Terminal
10 x M10 Ring Terminal
10 x 6.5mm/1/4" Male Spade Connector
10 x 6.5mm/1/4" Fully-insulated Female Spade Connector

145 Pieces of Heat Shrink Tubing
60 Pieces of Red 1/8"/3.2mm X 4"/100mm
50 Pieces of Blue 3/16"/4.8mm X 4"/100mm
35 Pieces of Yellow 1/4"/6.5mm X 4"/100mm
