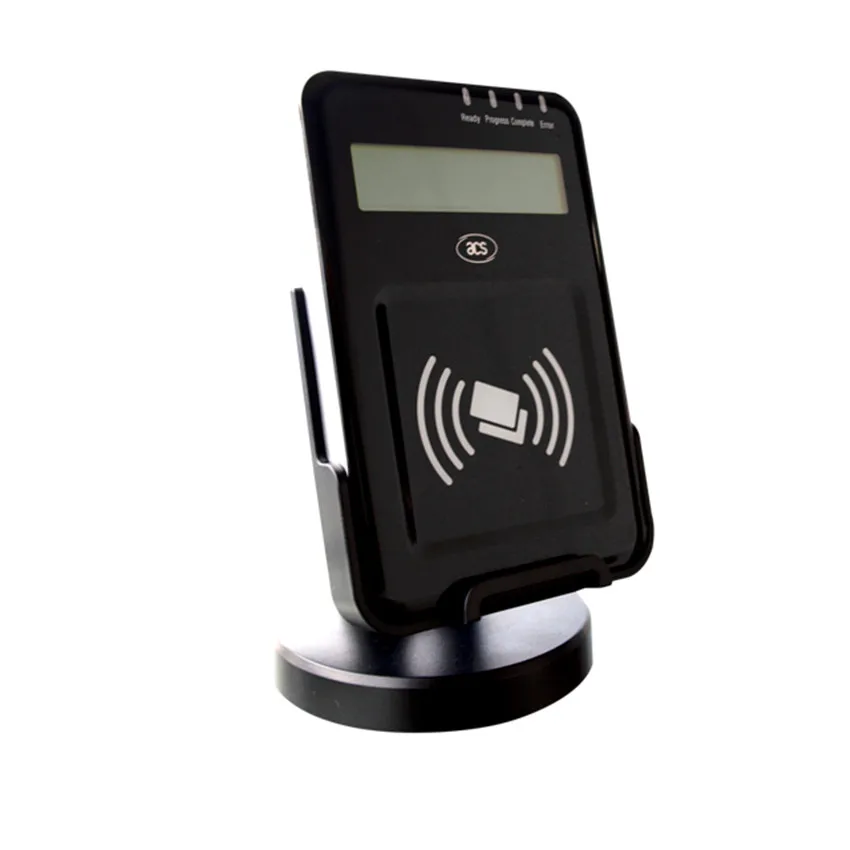

    Yongkaida ACR122L RFID Reader with LCD Contactless | Безопасность и защита

    Описание товара

    ACR122L is a serial interface NFC contactless reader with LCD. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 NFC standard, and supports ISO 14443 Type A and B cards, and all four types of NFC tags.

    ACR122L is a plug-and-play device that does not require any driver installation. It comes with 4 LEDs, a buzzer and an LCD, which both provide users with a clear indication of the reader\\\\\\\'s status. The 2-line graphic LCD has multiple language support, including language support for Chinese, English, Japanese and some European languages. It allows interactive operation, such as scrolling up and down, left and right, etc. Moreover, it is equipped with three built-in SAM slots for enhanced security in contactless operations.

    The reader can read and write more quickly and efficiently by using up to 424 Kbps of tag access. It also has a proximity operating distance of up to 50 mm, depending on the type of tag in use. Further, its built-in anti-collision feature and direct card type polling commands ensure a smooth operation, allowing the device to access only one card, even in cases where multiple cards are present and detectable.

    Typical applications of ACR122L include e-payment, loyalty programs and access control.



    Features

    Serial RS232 Interface
    7V DC power adapter for power supply
    CCID-like frame format (Binary format)
    Smart Card Reader:
    Read/Write speed of up to 424 kbps
    Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    Support for ISO 14443 Part 4 Type A and B cards,FeliCa and all 4 types of NFC (ISO/IEC 18092) tags
    Three ISO 7816-compliant SAM slots
    Built-in Peripherals:
    Two-line graphic LCD with interactive interoperability (scroll up and down, left and right, etc.) and multi-language support (Chinese, English, Japanese and some European languages)
    Four User-controllable LEDs
    User-controllable buzzer

    Applications

    e-Government
    Banking & Payment
    e-Healthcare
    Network Security
    Access Control
    e-Purse & Loyalty
    Transportation

    Tech Specs



    Dimensions Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
    With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) Weight Main Body: 202 g;
    With Stand: 645 g Interface Serial RS232 Operating Distance Up to 50 mm (depends on the tag type) Supply Voltage 7V DC Supply Current 200 mA (maximum); 50 mA (standby); 100 mA (normal) Operating Temperature 0 - 50 C Smart Card Interface Support ISO 14443-4 Type A and B FeliCa 4 types of NFC (ISO/IEC 18092) tags Compliance / Certifications ISO14443, CE, FCC, VCCI, RoHS Operating System Support Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 Linux
