Profile

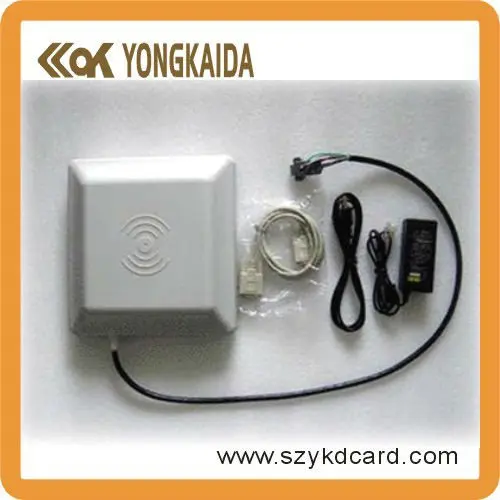

RFID TD-PB05SeriesIs a high-performanceUHFUHF RFID tag in one, completely independent intellectual property rights designs, combined with proprietary high performance signal processing algorithm, while still maintaining high reading rate, achieve fast read and write to electronic tags, can be widely used in logistics, fleet management, access control systems, security systems and process controls such as radio frequency identification (RFID) System.

Standard products:Host a (Wiegand, RS232, 485), connector set, power supply.

Optional: RJ45 network port, WIFI wireless

Features

l Design of completely independent intellectual property rights;

l Adequate support in accordance withISO18000-6BEPC CLASS1 G2ISO18000-6C) Standard RFID tags;

l Working frequencyFCC 902928MHzOrCE 865868MHz(Can be adjusted according to the requirements of different countries or regions)

l Broad spectrum frequency hopping(FHSS)Or constant-frequency operating mode;

l Output power up to30dBm(Adjustable);

l 8dbiAntenna configuration, typical read range ≥5Here metres*

l Supports auto mode, interactive answering methods, triggers and so on many kinds of working pattern;

l Low-power design, single +9VPower source power supply;

l SupportRS232RS485RJ45(Optional),Wifi(Optional), Wiggins, and other user interface;

l Provides a dynamic link library (DLL) And demo software source code, supporting secondary development.

*Effective length and protocol formats, external antenna, RFID tags, and work environment.

Electrical characteristics

l Limit parameter

Project

Symbol

Numerical

Work unit

Power supply voltage

VCC

16

V

Working temperature

TOPR

-10~+60

Storage temperature

TSTR

-25~+80

l Specifications

Unless otherwise stated, specifications shown are taken fromTA25And theVCC+9VWorking conditions

Project

Symbol

Smallest

Typical

Biggest

Work unit

Power supply voltage

VCC

8

9

12

V

Working current

IC

350

650

mA

Working frequency

FREQ

902

928

MHz

Effective distance*

DIS

300

500

800

cm

*Effective length and protocol formats, external antenna, RFID tags, and work environment.

Interface

Project

Description

Red

+9V

BLACK

GND

Yellow

WiegandDATA0

Blue

WiegandDATA1

Purple

RS485 R+

Orange

RS485 R-

Brown

GND

White

RS232 RXD

Green

RS232 TXD

Ash

External trigger (TTLLevel)

Network port

RJ45
