Unavailable in Russian Federation

Please note goods  doesnot support HDCP

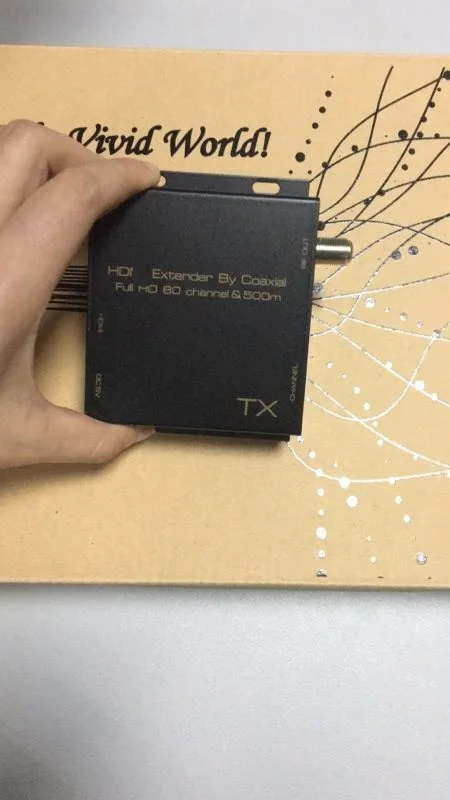

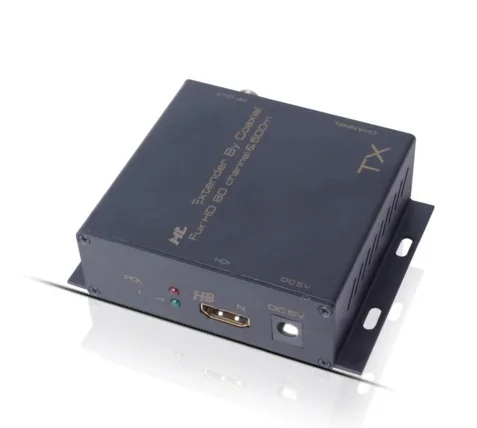

HD TO DVB-T Modulator

HD Extender By Coaxial

The HDTO DVB-T Modulator can convert HD signal to HD digital TV signal based on DVB-T

CATV transmission mode. The product applies RF modulation technology characteristic to realize the

HD signal to HD digital TV signal conversion and transmit via coaxial cable over long distance up to

500 meters.By a CATV network mixer，the Modulator over Coaxial cable supports pair to pair and

multiple to multiple video matrix.

FEATURES：

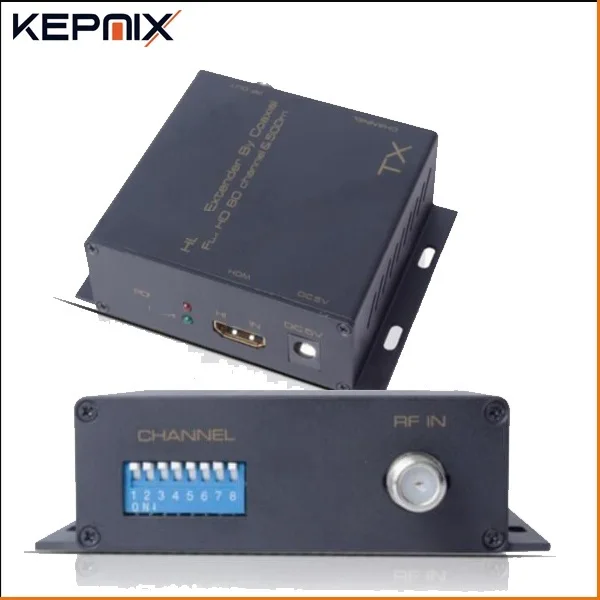

l Supports a HD input and a F type/BNC RF output.

l Support HD resolution up to 1080P/60Hz.

l Output signal accord with the relevant DVB-T standards, and it can be compatible with any DVB-T TV or receiver.

l Transmission distance up to 500 meters by SYV-75-5 coaxial cable and no need amplification.

l Support 80 channels for option; frequency ranges 139MHz~950MHz.

l Products using the broadcast signal transmission mode, only
one line can transmit 48 channels of high-definition video signal at the
same time.

l By a CATV network mixer，the Modulator over Coaxial cable supports pair to pair and multiple to multiple video matrix.

l The use of digital TV communication protocol, anti interference and error correction capability is very strong.

l Installs in minutes.The use of the existing CATV transmission network, no need wiring.

l By using a special receiver (HDEX009M1),you can decoding DVB-T
signal and output HD HD signal for non DVB-T TV/Monitor.

PACKAGE CONTENTS:

1. AC power adapter     1pcs

2. User manual         1pcs

SPECIFICATIONS:HDEX0011M1

HD resolution ……………………………………..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

HD Audio Format……………………………………………………………………………………..LPCM

RF frequency range…………………………………………………………………………...139～950 MHz

RF Channel B/W…………………………………………………………………………..................7/8 MHz

The number of Channel…………………………………………………………………............................80

RF Output power…………………………………………………………………..............................-6dBm

RF Connector type…………………………………………………………………The imperial F type/BNC

Coaxial cable Characteristic impedance…………………………………………………………………75Ω

Coaxial cable types………………………………………………………………………SYV-75/RG59 etc.

RF transmission distance………………………………………≤500mSYV-75-5 coaxial standard cable

TX Max working current …………………………………………………………….……….…….…. 650mA

Power adapter format Input ……......….….…….…….…….…. AC 100V～240V 50HZ/60Hz, DC5V/2A

Operating Temperature range ……..…………….……………………………………………. -10 to +45℃

Storage Temperature range……………………………………………………………………. -20 to +60℃

Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)

Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)

Case Dimension (L x W x H) ………………………………….…………………………….94x74x28 (mm)

Weight …….…………………………….………………………………………….………………..……120g
