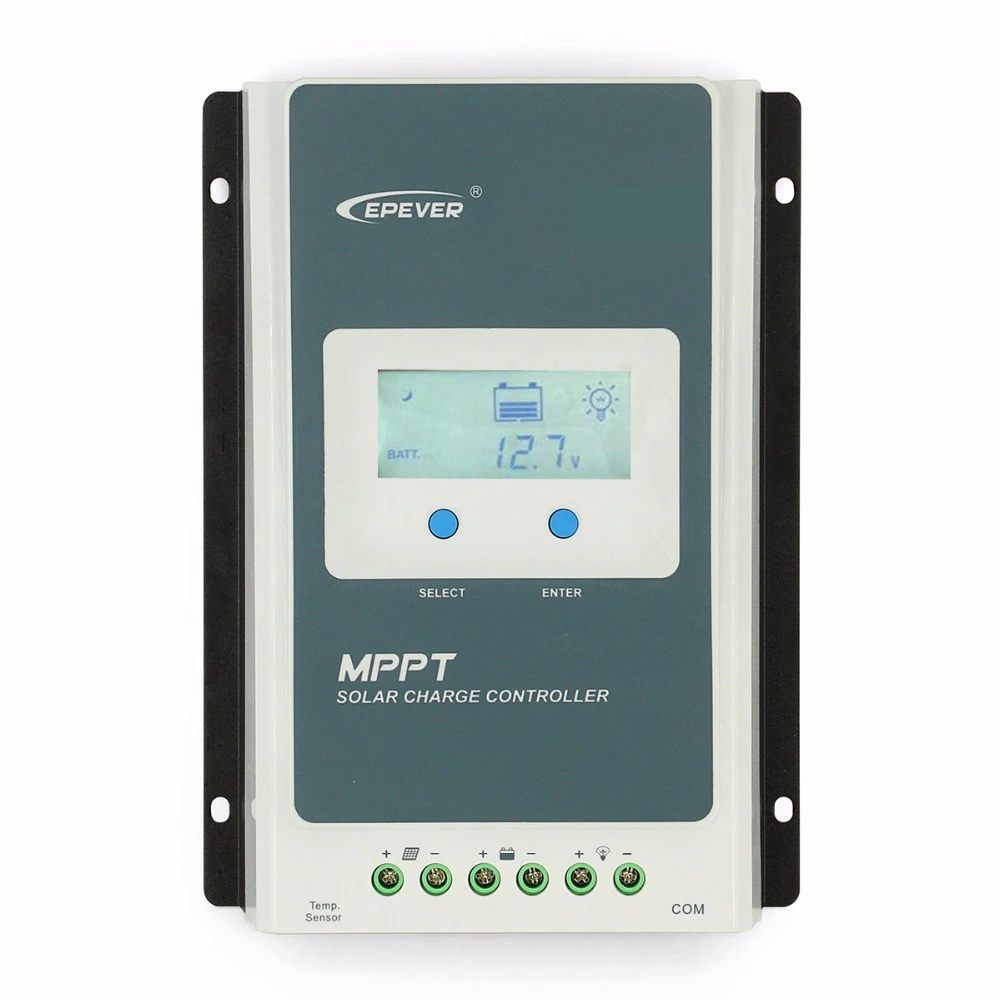

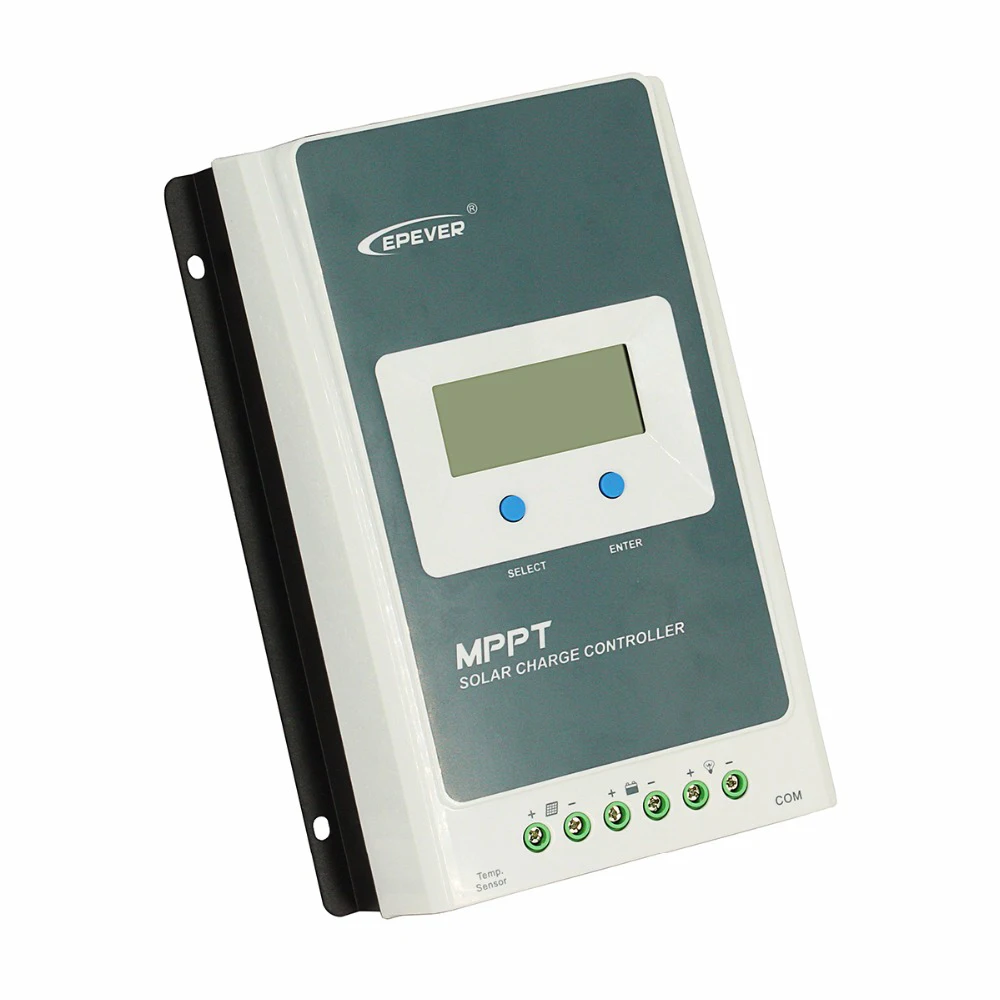

Appreciate you for choosing MPPT solar charge controller, Tracer-AN series. Based on commonnegative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical.

With MPPT control algorithm, in any situation, products of this series can fast and accurately track out the best maximum power point (MPP) of photovoltaic array, in order to obtain the maximum solar energy in time, which remarkably improves energy efficiency. There is dual display function: local LCD panel and remote meter. With Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.

All-round electronic fault self-test function and enhanced electronic protection function could furthest avoid damages on system components resulting from installation errors or system failures.

1.Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.

2.High quality components, perfecting system performance, with maximum conversion efficiency of 98%.

3.Ultra-fast tracking speed and guaranteed tracking efficiency.

4.Accurately recognizing and tracking of multiple power points.

5.Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance.

6.Wide MPP operating voltage range.

7.12/24VDC automatically identifying system voltage.

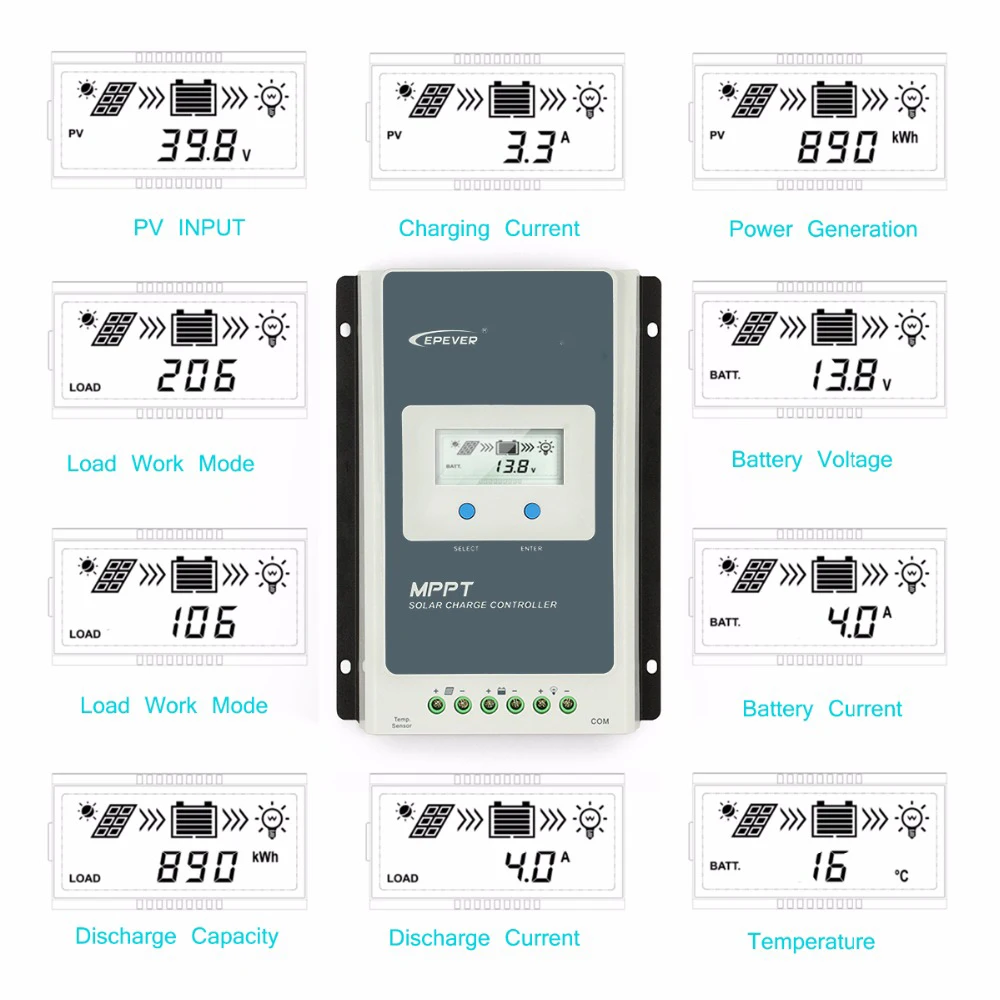

8.LCD panel display design, dynamically displaying tool’s operating data and working condition.

9.Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode.

10.Support 3 charging preprogram options: Sealed, Gel, Flooded.

11.Battery temperature compensation function.

12.Real-time energy statistics function.

13.With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.

14. Available for EPsolar network module (eBox--01)with protocol TCP/UDP/SNMP, to realize connection to internet.

15. Available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and parameters setting.

16.Support software upgrade.

Note：
Friends, for you to purchase Easy to buy,

we have set up some matching links for you,hope you like！

Accessories (optional):

Remote Temperature Sensor

(RTS300R47K3.81A)

Click

Acquisition of battery temperature for undertaking temperature compensation of

controlparameters, the standard length of the cable is 3m (length can be

customized). The RTS300R47K3.81A connects to the port (4th) on the controller.

NOTE: The temperature sensor short-circuited or damaged, the controller

will be charging or discharging at the default temperature 25°C

Click

USB to RS485 cable

CC-USB-RS485-150U

Click

USB to RS-485 converter is used to monitor each controller on the network

using Solar Station PC software. The length of cable is 1.5m.

TheCC-USB-RS485-150U connects to the RS-485 Port on the controller.

Click

Remote Meter MT50

Click

MT50 can display various operating data and fault of the system. The

information can be displayed on a backlit LCD screen, the buttons are

easy-to-operate, and the numeric display is readable.

Click

WIFI Serial Adapter

eBox-WIFI-01

Click

After the controller is connected with the eBox-WIFI-01 through the standard

Ethernet cable (parallel cable), the operating status and related parameters of

the controller can be monitored by the mobile APP software through WIFI signals.

Click

RS485 to Bluetooth

Adapter

eBox-BLE-01

Click

After the controller is connected with the eBox-BLE-01 through the standard

Ethernet cable (parallel cable), the operating status and related parameters of

the controller can be monitored by the mobile APP software through Bluetooth signals.
