Large suction JK300/100 DC 6V 12V 24V Electromagnet Lifting 5000KG Solenoid Sucker Holding Electric Magnet Non-standard custom |

Electromagnet

Model

 D

(mm)

 d

(mm)

 H

(mm)

M

Power

(W)

suction

(kg)

  JK08/20 Φ8 Φ3 20 M3 2 0.15kg Click to buy JK08/25 Φ8 Φ3 25 M3 2 0.2kg Click to buy JK10/10 Φ10 Φ4 10 M3 2 0.3kg Click to buy JK10/25 Φ10 Φ4 25 M3 2 0.4kg Click to buy JK13/27 Φ13 Φ7 27 M3 2 0.5kg Click to buy JK15/5 Φ15 Φ7 5 M3 2.5 1.0kg Click to buy JK16/16 Φ16 Φ7 16 M4 2.5 1.5kg Click to buy JK16/25 Φ16 Φ7 25 M4 2.5 2.0kg Click to buy JK20/15 Φ20 Φ8 15 M3 3 2.5kg Click to buy JK20/20 Φ20 Φ8 20 M6 3 2.5kg Click to buy JK20/25 Φ20 Φ8 25 M6 3 3.0kg Click to buy JK25/20 Φ25 Φ10 20 M4 4 6.0kg Click to buy JK25/25 Φ25 Φ10 25 M6 4 6.0kg Click to buy JK25/40 Φ25 Φ10 40 M6 5 8.0kg Click to buy JK30/18 Φ30 Φ12 18 M4 5 8.0kg Click to buy JK30/22 Φ30 Φ12 22 M4 5 10kg Click to buy JK30/25 Φ30 Φ12 25 M6 5 10kg Click to buy JK30/40 Φ30 Φ12 40 M6 5 15kg Click to buy JK34/9 Φ34 Φ16 9 M5 6 8.0kg Click to buy JK34/18 Φ34 Φ16 18 M4 6 18kg Click to buy JK38/8 Φ38 Φ17 8 M4 6 15kg Click to buy JK34/25 Φ34 Φ16 25 M6 7 20kg Click to buy JK40/20 Φ40 Φ18 20 M5 8 25kg Click to buy JK40/25 Φ40 Φ18 25 M6 8 25kg Click to buy JK40/30 Φ40 Φ18 30 M6 8 30kg Click to buy JK40/40 Φ40 Φ18 40 M6 8 30kg Click to buy JK45/30 Φ45 Φ20 30 M6 9 35kg Click to buy JK45/64 Φ45 Φ20 64 M6 9 40kg Click to buy JK49/21 Φ49 Φ22 21 M6 10 40kg Click to buy JK50/27 Φ50 Φ22 27 M8 10 50kg Click to buy JK50/30 Φ50 Φ22 30 M8 10 50kg Click to buy JK50/42 Φ50 Φ22 42 M8 11 80kg Click to buy JK50/50 Φ50 Φ20 50 M8 10 50kg Click to buy JK59/34 Φ59 Φ27 34 M8 12 70kg Click to buy JK65/30 Φ65 Φ28 30 M8 11 80kg Click to buy JK70/9 Φ70 Φ34 9 M4 8 25kg Click to buy JK70/10 Φ70 Φ34 10 M4 8 25kg Click to buy JK80/10 Φ80 Φ34 10 M8 10 50kg Click to buy JK80/38 Φ80 Φ34 38 M10 12 100kg Click to buy JK80/80 Φ80 Φ34 80 M12 15 260kg Click to buy JK100/40 Φ100 Φ42 40 M12 15 150kg Click to buy JK120/40 Φ120 Φ50 40 M12 25 300kg Click to buy JK120/70 Φ120 Φ50 70 M12 50 500kg Click to buy JK150/50 Φ150 Φ66 50 M14 11 300kg Click to buy JK160/50 Φ160 Φ79 50 M12 100 800kg Click to buy JK200/40 Φ200 Φ89 40 M12 200 1000kg Click to buy JK240/80 Φ240 Φ120 80 M16 300 3000kg Click to buy JK300/100 Φ300 Φ130 100 M20 500 5000kg Click to buy JK400/120 Φ400 Φ170 120 M22 800 8000kg Click to buy JK500/150 Φ500 Φ210 150 M24 1000 10000kg Click to buy JK600/200 Φ600 Φ250 200 M26 1200 14000kg Click to buy




Please leave a message in your order what voltage do you need The default 12v



Non-standard can be custom,Minimum thickness can be 4MM.



Notes: We often change the lables for convenient production! Please do not care about it!

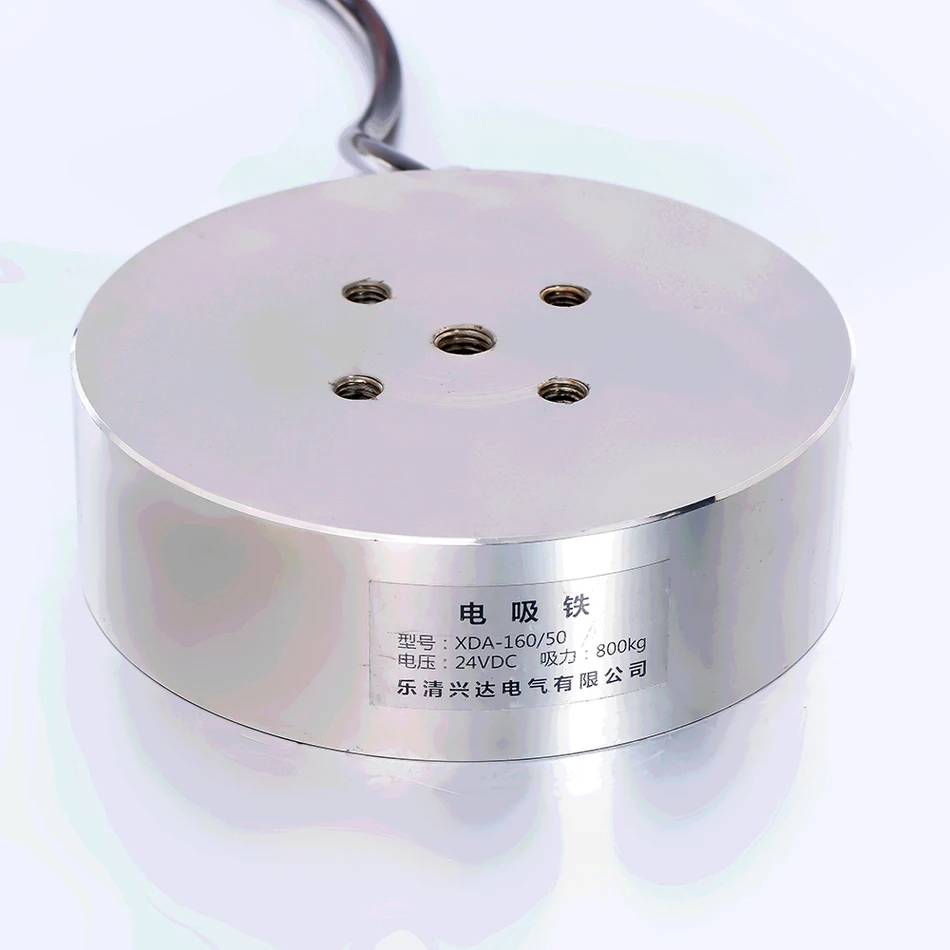

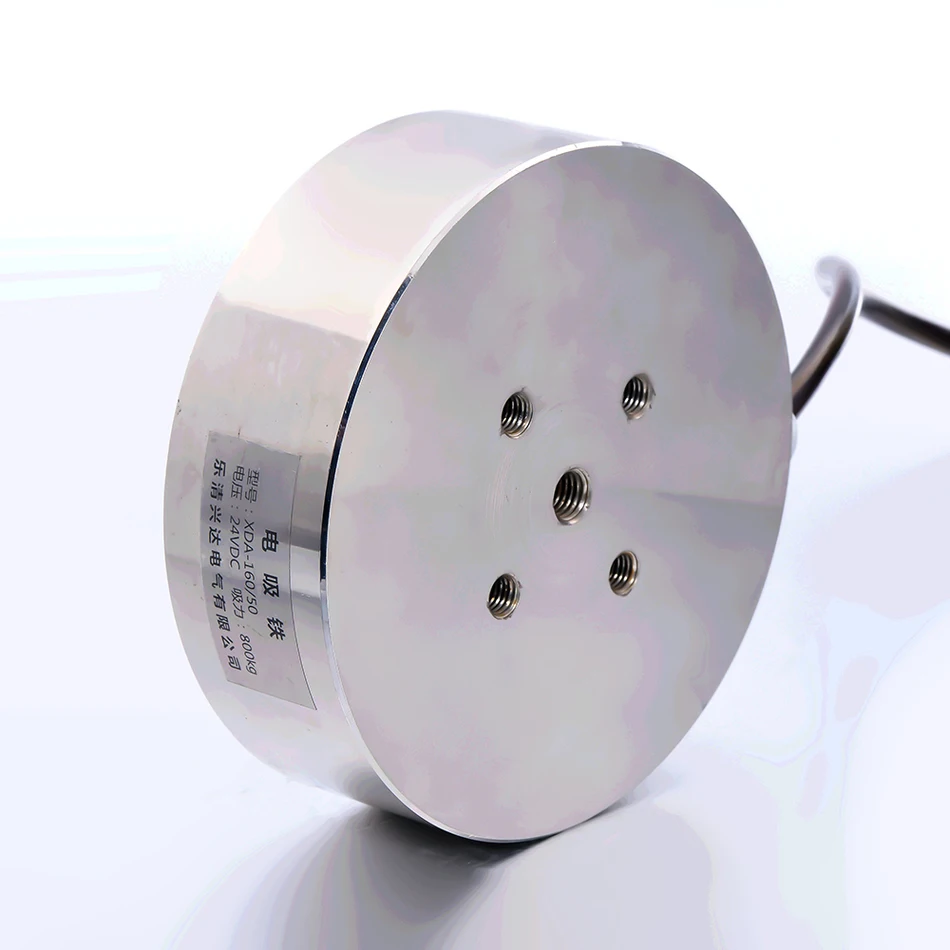

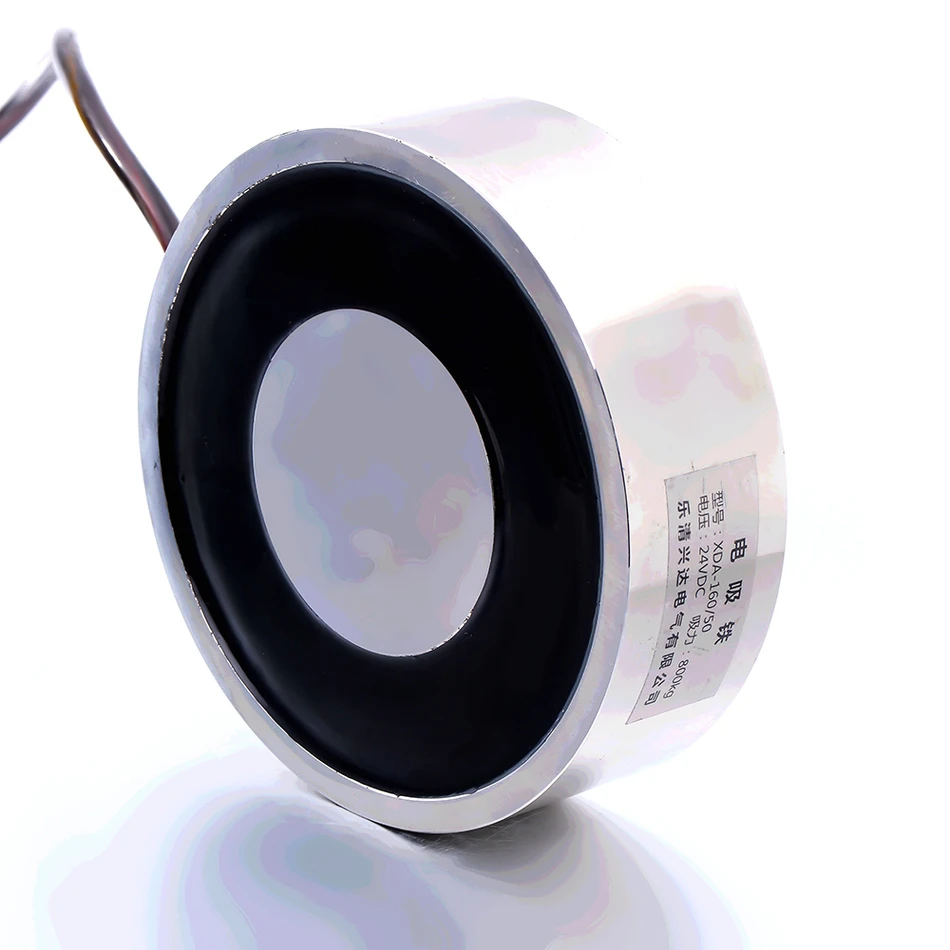

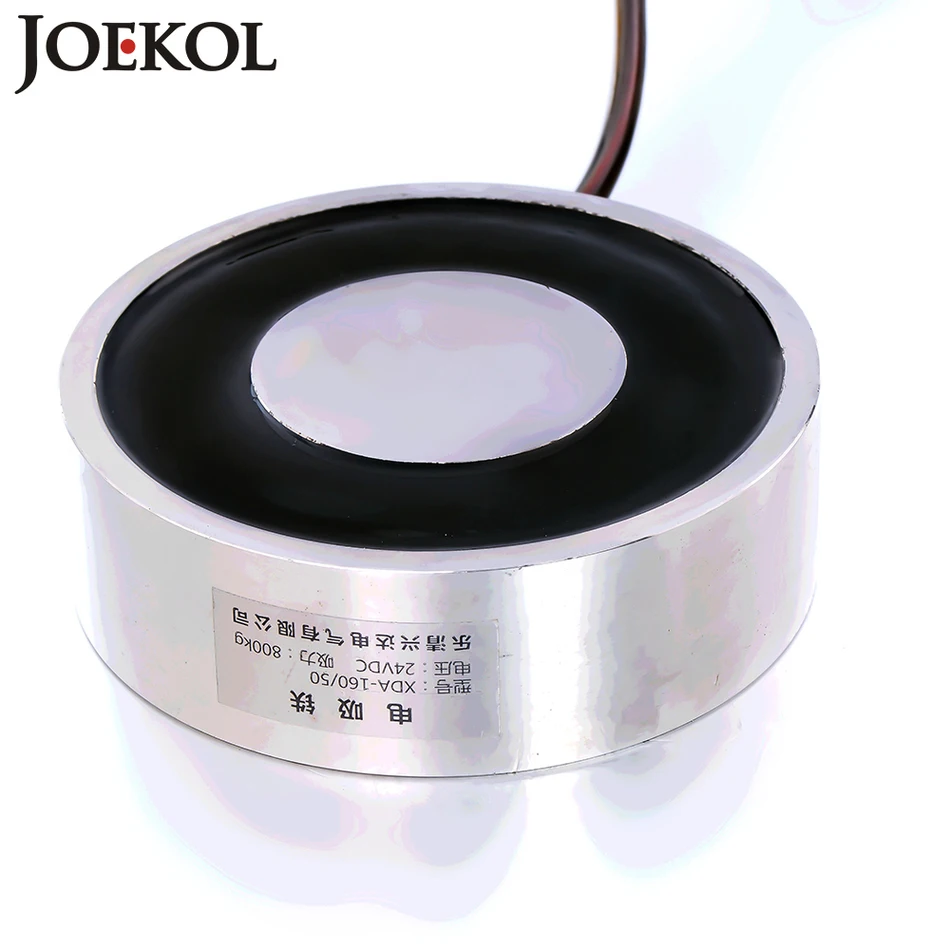

Electric lifting magnet.



Powerful and compact.

Smooth and flat surface.

Low consumption and reliable.

Ambient temperature within 130 degrees.

Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc

suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.

Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.



Model:JK300/100 Item:Holding Electric Magnet Input Voltage: DC 6V 12V 24V Optional(Remark,12V default) Power Consumption: 500W Holding Force: 5000kg Material: Metal Color: Silvery Diameter: 300 mm Center Diameter: 130 mm Height: 100 mm Lead Length: 200 mm Thread Size: M20 Package Included 1 x JK300/100 500W Electric Lifting Magnet Holding Electromagnet Lift 5000Kg Solenoid
