KB78 78Keys 6 Segment Electronic Key Locks USB Mechanical Programmable POS Keyboard With MSR Reader | Scanners

KB78 78Keys 6 Segment Electronic Key Locks USB Mechanical Programmable POS Keyboard With MSR Reader | Scanners

Pay attention before you place order:

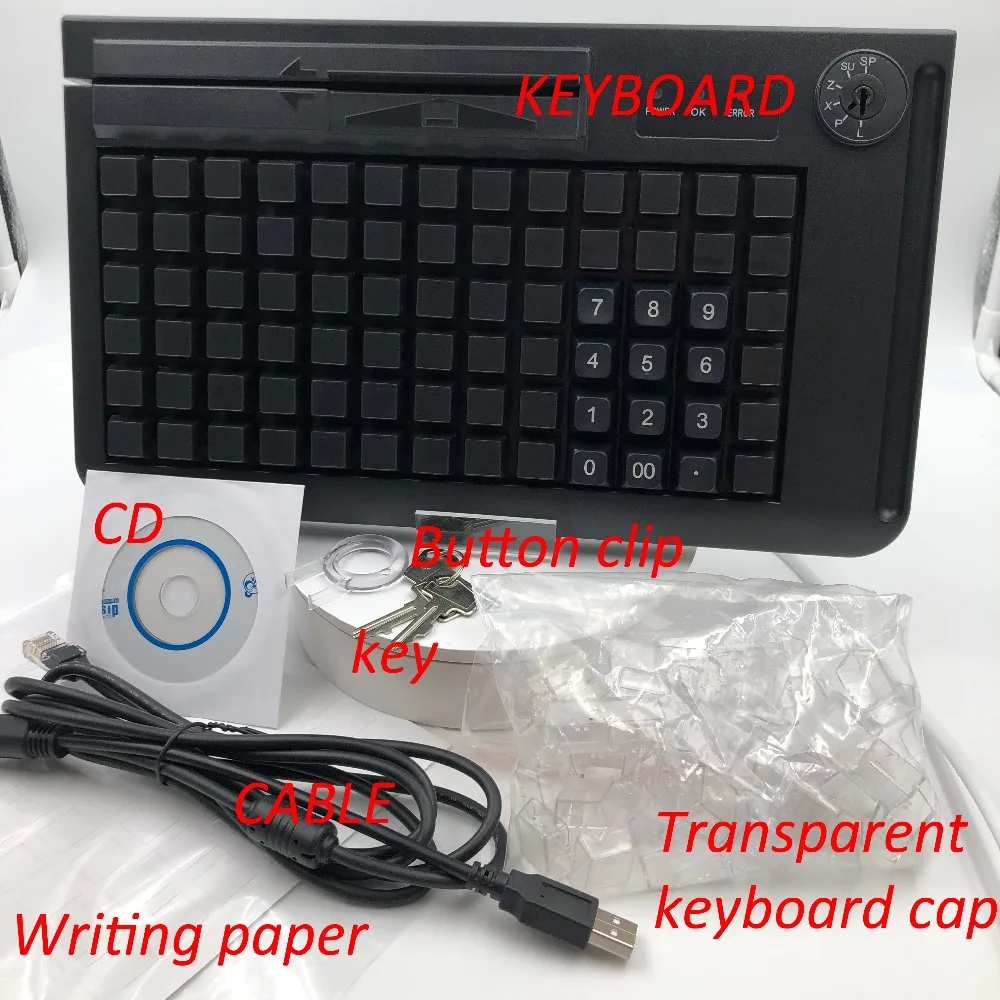

***Default interface is USB or PS2, cable is USB+PS2. A keyboard with 2 interfaces. The interface connect to keyboard is RJ11. Pls check picture in below description.

***Default color is black..

***About remote areas: please make sure buyer left correct post code with corresponding city name. If buyer’s address is remote area, please buy a “remote area charge” (https:/store/product/20170512-Remote-area-extra-delivery-shipping-cost/433898_32810924493.html?spm=2114.12010615.0.0.9dxpqo ) service when place order and leave message to us. If nothing left for a remote area address, we will not ship goods.

***About commercial invoice: If no special request, we will put an invoice with our stamp into your package. If you need the invoice for customer clearance, pls contact our sales by mail.

Key Features

·With 78 switches, good tactile feeling.

·With guide-array, patent design.

·With internal strong metal plate to enhance the protection against ESD is increased.

·Provide double output standard keyboard output cable length of alternative 1.5 m.

·Available in USB and PS/2 Interface.

Programmable Features

·All keys can be programmed with 255 characters.

·Provides multi-level programming.

·Provides for a variable time delay, of 0.5sec per interval.

·Provides true keyboard wedge function that operates with or without the normal computer keyboard connected.

·Support USB programming in Win7/Me/XP/9X,DOS and Linux.

·All programmed date are stored in the keyboard EEPROM.

MagStripe Reader Features

·Comply with ISO 7812,IBM standards.

·Support programmable MSR setting for the header,tailor,separator,suffix and prefix.

·Track 1:210BPI with max 76 characters.

·Track 2:210BPI with max 107 characters or 75BPI with max 37 characters.

·Track 3:210BPI with max 107 characters .

·Card swipe speed: 10 to 180 cm/s.

·Optional 1/2/3 rail card reader.

Keylock

·6 segment electronic keylock.

·Come with three keys of different positions.

·25,000 turning lifecycles.

Technical Data

  [Electronics]

  Power supply

        USB:+5V±0.2V

        PS/2:+5V/DC±10%

  Current input

        USB:﹤100mA

        PS/2:﹤100mA

  MTBF :50,000 hours

[Mechanical]

Total travel:4 – 0.5mm

Pre-travel:2 ± 0.6mm

Peak load before make:60±20cN

Key lifecyle: 12,000,000 strokes

Magnetic head lifecycle: 500,000 swipes.

[Others]

Storage temperature: -20℃ to +55℃

Operating temperature: 0℃ to±50℃

Operating humidity: 20% to 90%

Dimension (L×W×H, mm):310×180×45

Weight (g): 880g
