Product Specifications

Diagonal Size
The following are the same as the "

2.4 "

Color color
The following are the same as the "

GREEN

Type Type
The following are the same as the "

Monochrome

Pixel Number resolution
The following are the same as the "

128x64

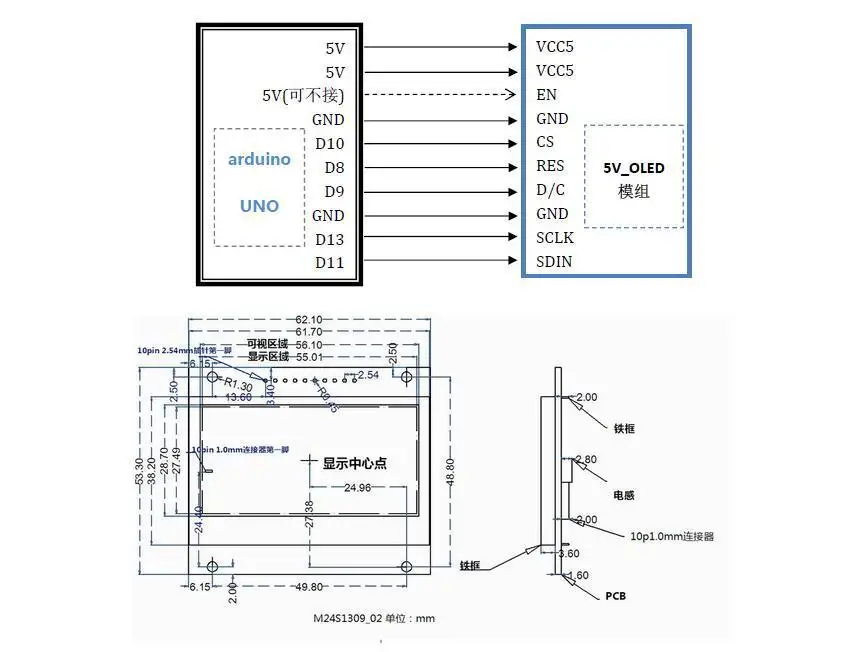

Module Size (mm) Module size
The following are the same as the "

62.1 × 53.3 × 9

Active Size (mm) display area
The following are the same as the "

55.01 × 27.49

Driver IC Driver IC
The following are the same as the "

SSD1309

Interface
The following are the same as the "

4_Wire SPI

Supply Voltage
The following are the same as the "

5v

Voltage Range Recommended Voltage Range
The following are the same as the "

4.5-5.5v

Maximum voltage limit
The following are the same as the "

6.2v

Minimum voltage
The following are the same as the "

4v

View Angle perspective
The following are the same as the "

> 160 degree full view

Contrast Contrast
The following are the same as the "

> 10000: 1

Brightness (cd / m2) (blue)
The following are the same as the "

80 (Typ) @ 13V (15000Hours)

Power consumption
The following are the same as the "

Is determined by the lit pixels

30% pixels are lit.
The following are the same as the "

<325mw

50% pixels are lit.
The following are the same as the "

<470mw

100% pixel lit (not used in actual use)
The following are the same as the "

<720mw

Weight (g) Weight
The following are the same as the "

8.6

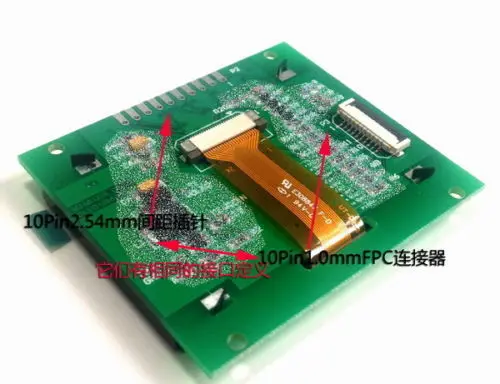

Assembly connection
The following are the same as the "

10Pin 1.0mm FPC Connector and 2.54mm Metal pins
