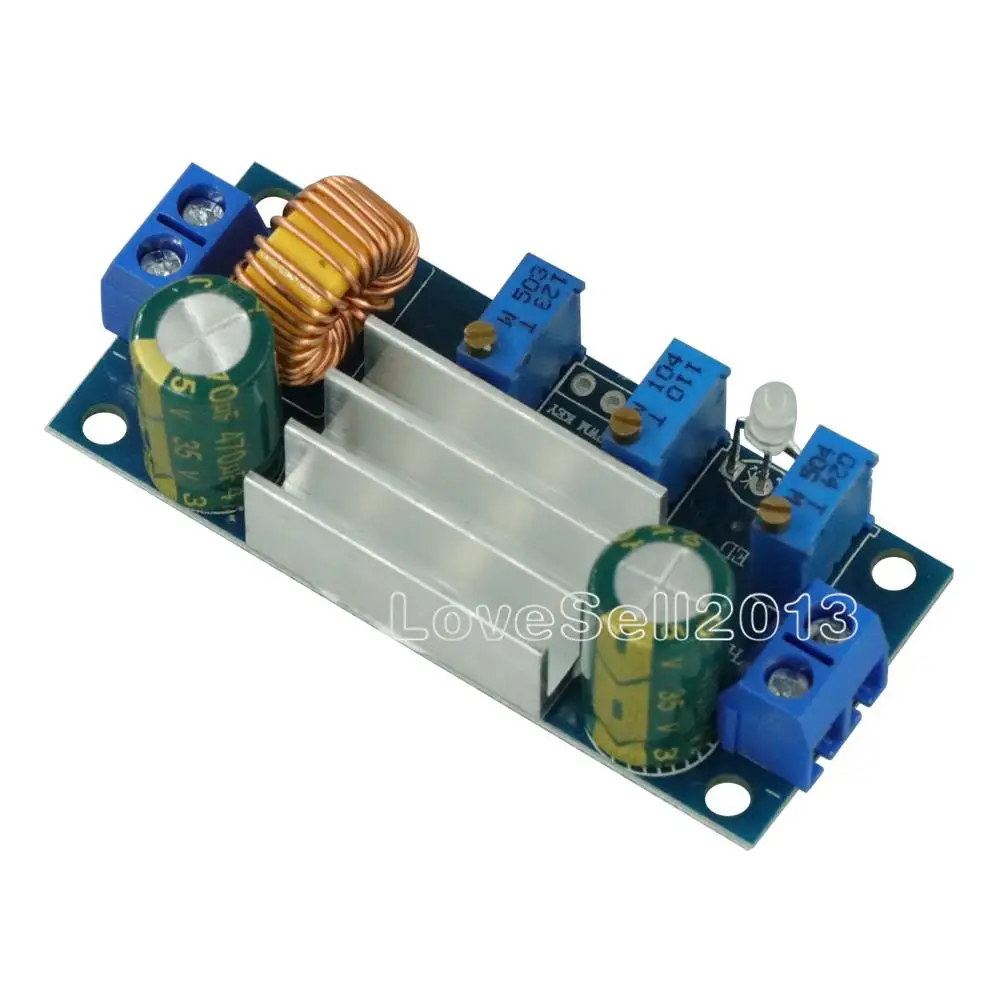

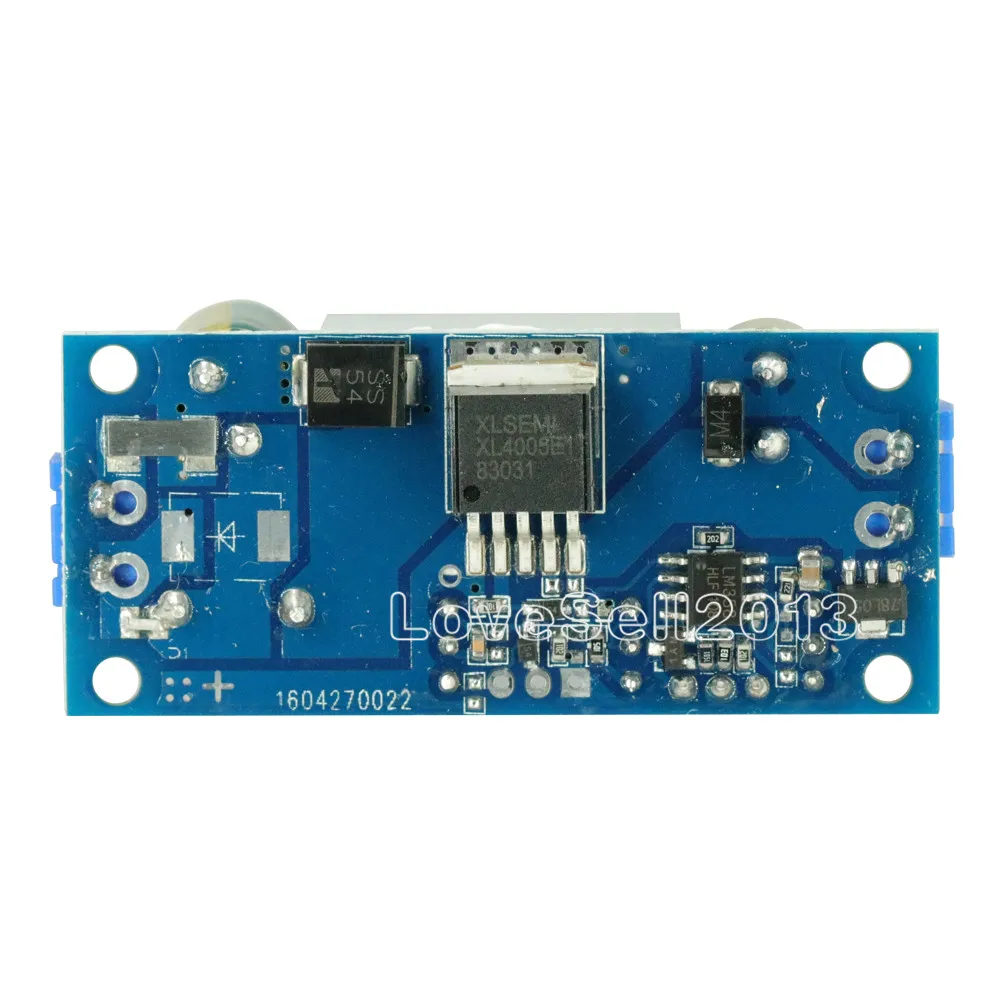

Автоматическая Защита! Модуль понижающего источника питания DC-DC XL4005 с максимальным током 5A, регулируемым режимами CC/CV и платой зарядки литиевых аккумуляторов для Arduino.

Brand NameSHANGSIMOUDLECXOriginMainland ChinaCompatible Brand/ModelNoneMeasurement unitpiece/piecesEach pack1CompatibleHandheld Player, Game Console, Kinect, PlayStation Move222,53 ₽-23%222,53 ₽-23%171,25 ₽171,25 ₽Add to CartBuy now171,25 ₽loaderReviews

5,0

1 review10000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalIgor G.20 May 2022

Show moreOpen 1 reviewDescription   The module properties: non - isolation step-down module   Input module parameters:   Voltage range: 4.5 - 30 V   Output current range: 0.1 - 5 A   Output voltage range: 0.8 - 30 V (adjustable)   The light output range: 0.1 - 5A   Working temperature: - 40 -- 85 °   Working frequency: 300 KHZ   PWM control Frequencerange: 100-300 hz   Range of transition: up to 95% (efficiency and input and output voltage, current and pressure difference)   Overtemperature protection:Yes (after overtemperature shutdown output)   Reverse connect protection:yes (input power transmission capacity greater than 2, reverse connection protection is invalid)   Module size: 64.5 mm *28.1 mm*20mm(L*W*H)       Package Included: 1PCS    * 5A Max DC-DC XL4005 Step Down Buck Power Supply Module Adjustable CC/CV Lithium Charge Board for Arduino

---
