Hantek DSO3204 200MHz 1Gs/S digital oscilloscope 4CH Oscilloscope | Инструменты

Feature

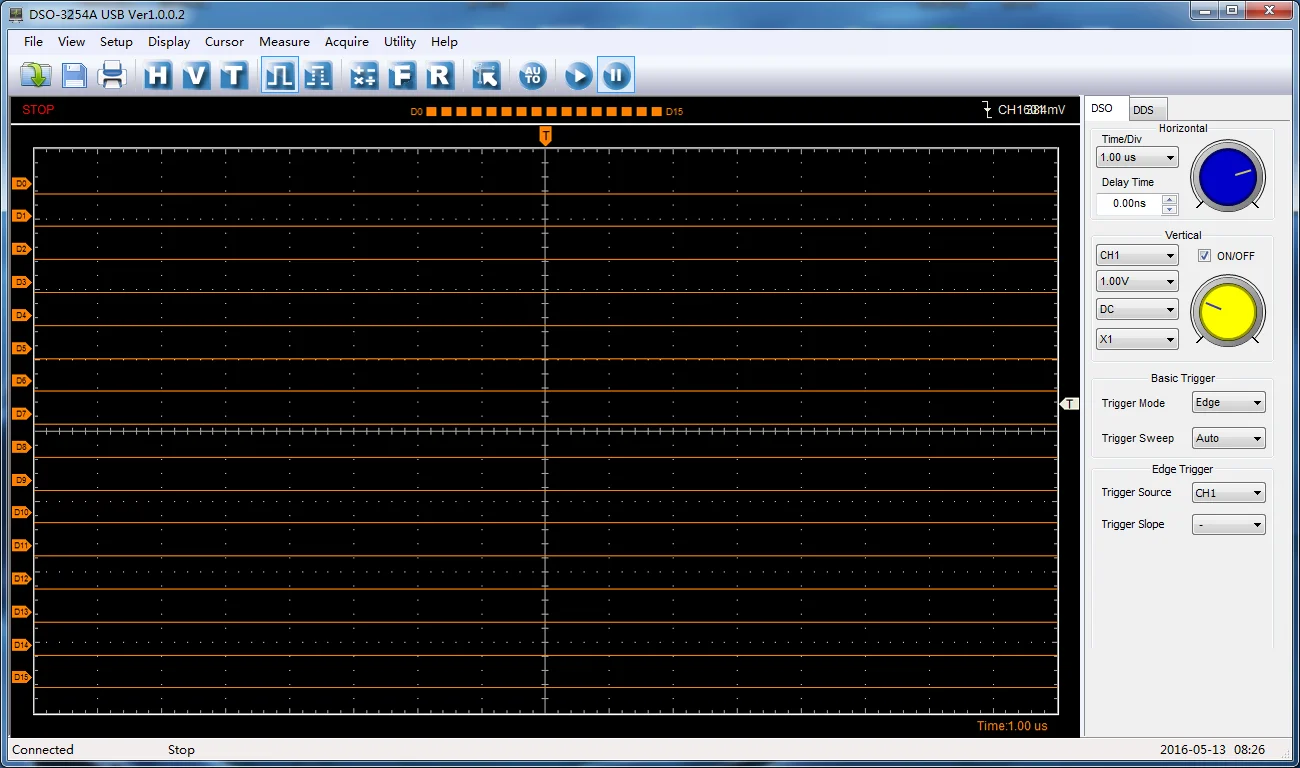

4CH Oscilloscope + 16CH Logic Analyzer + 1CH Function/Arb. Waveform Generator + 16 Bits Word Generator + 1CH EXT Trigger.

128M memory depth, save maximum 128M sampling points, accurately display sampling signal.

Support PoE module, support power supply remotely and communication.

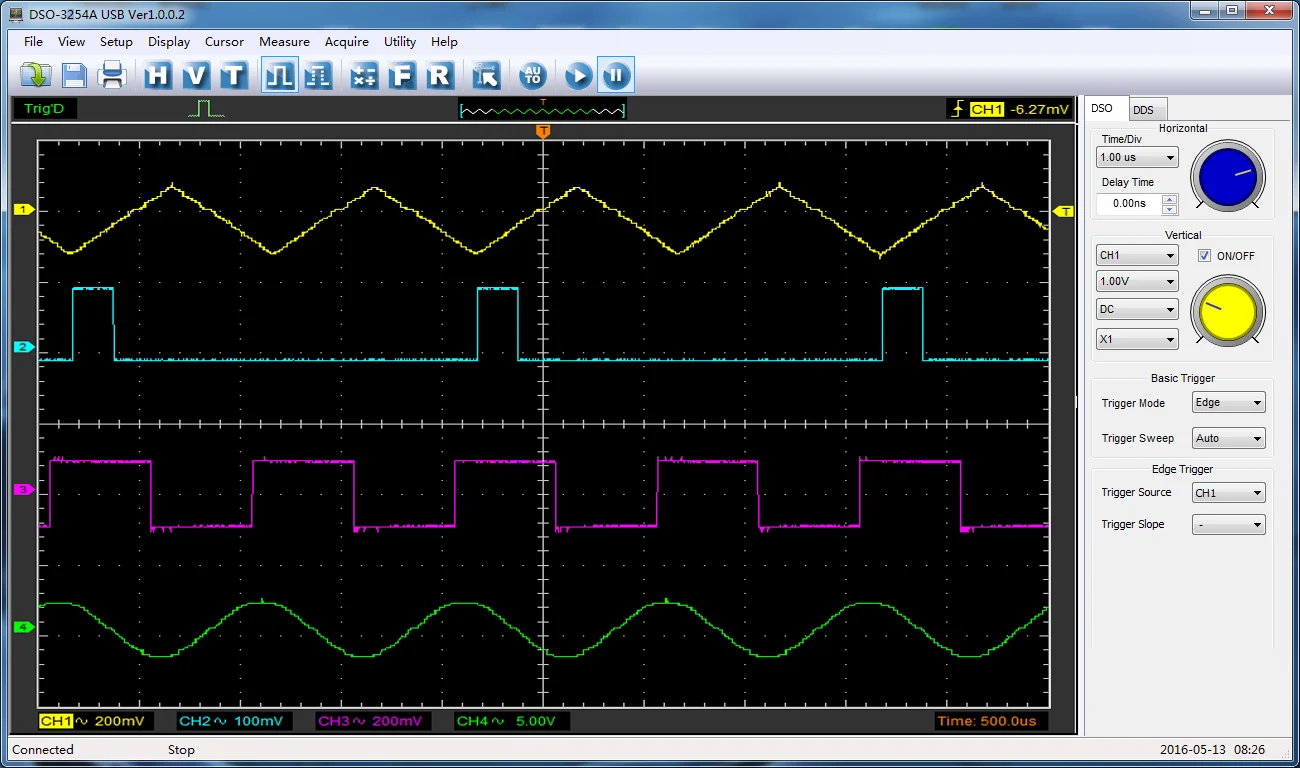

Its performance can compete benchtop oscilloscope’s, 4 independent analog channels, 1GSa/s high-speed real-time sampling rate, 1mV-10V/DIV high input sensitivity, 250MHz high bandwidth.

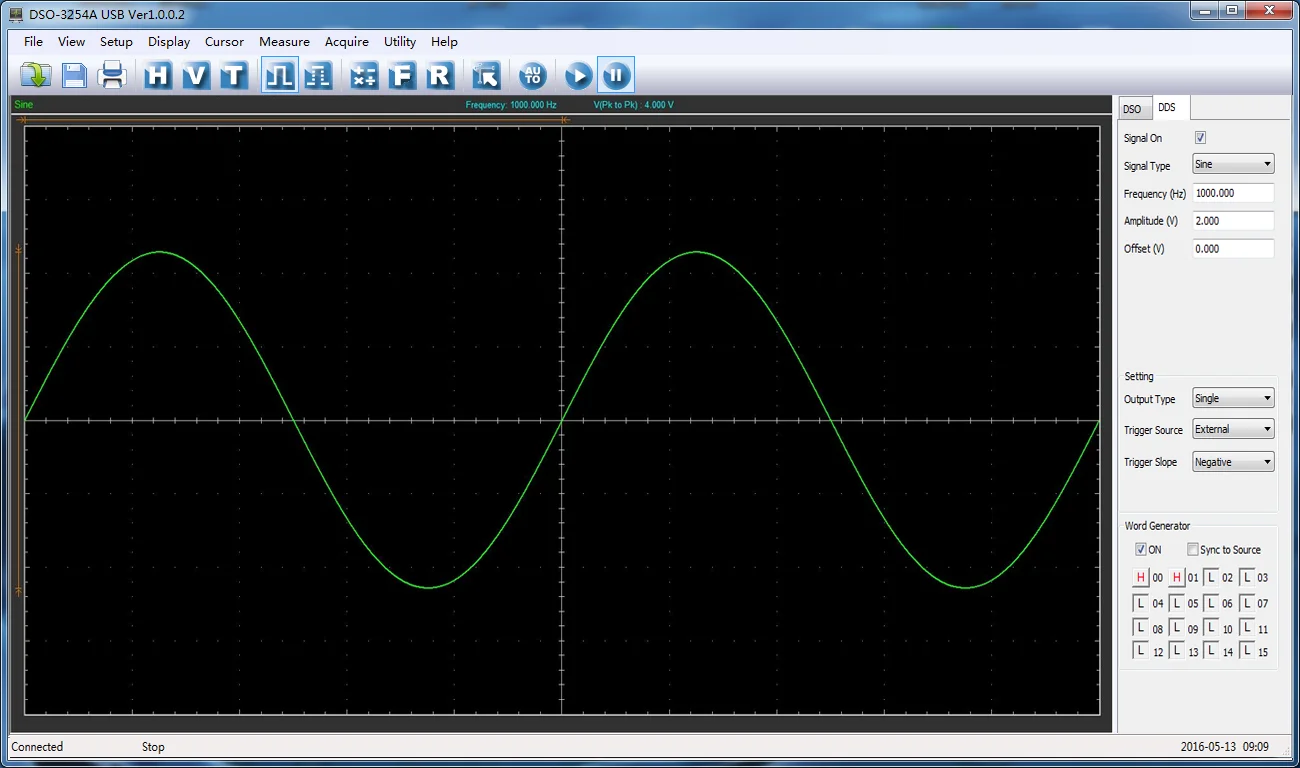

Function/Arb. waveform generator: 200MSa/s DDS, 12 bits vertical resolution, build-in various standard waveforms, arbitrary waveform which is convenient to edit and show irregular signals like transducer.

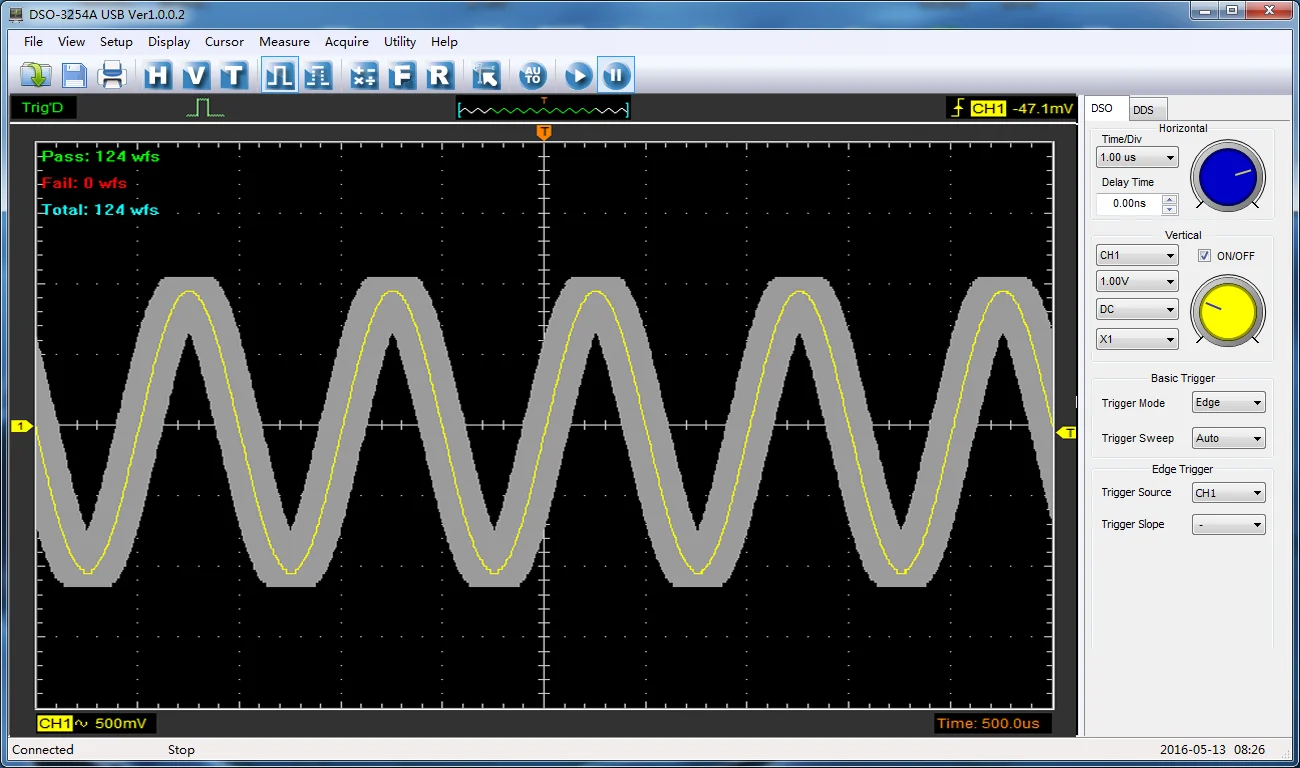

PASS/FAIL test, rich trigger function, dynamic cursor tracking, waveform recording and replay function, similar interface with bench oscilloscope, easy to use. High cost performance.

1 GSa/s sampling rate.

12-36V wide range input power.

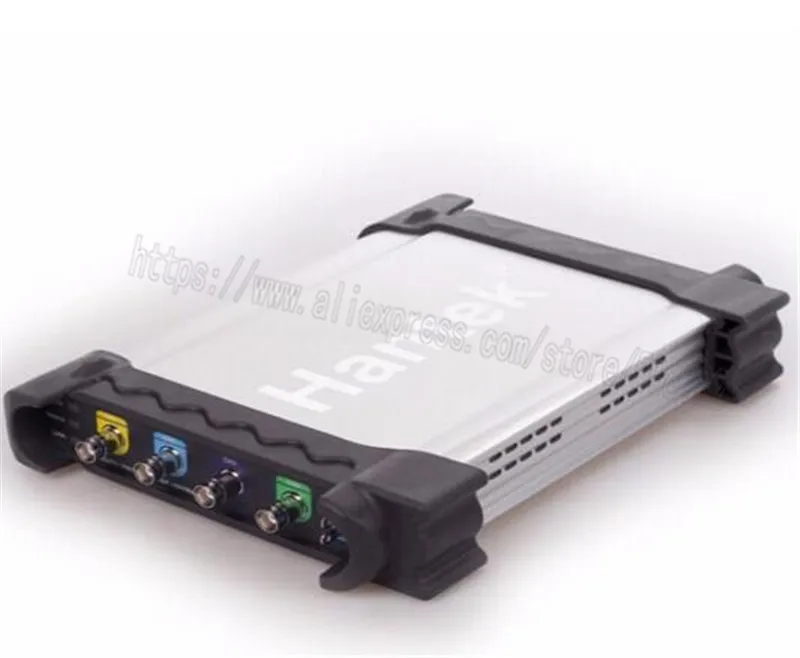

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

More fit for tablet PC, laptop PC, maintenance and adjustment of production line, convenient for travel.

Software support: Windows10, Windows 8, Windows 7

The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

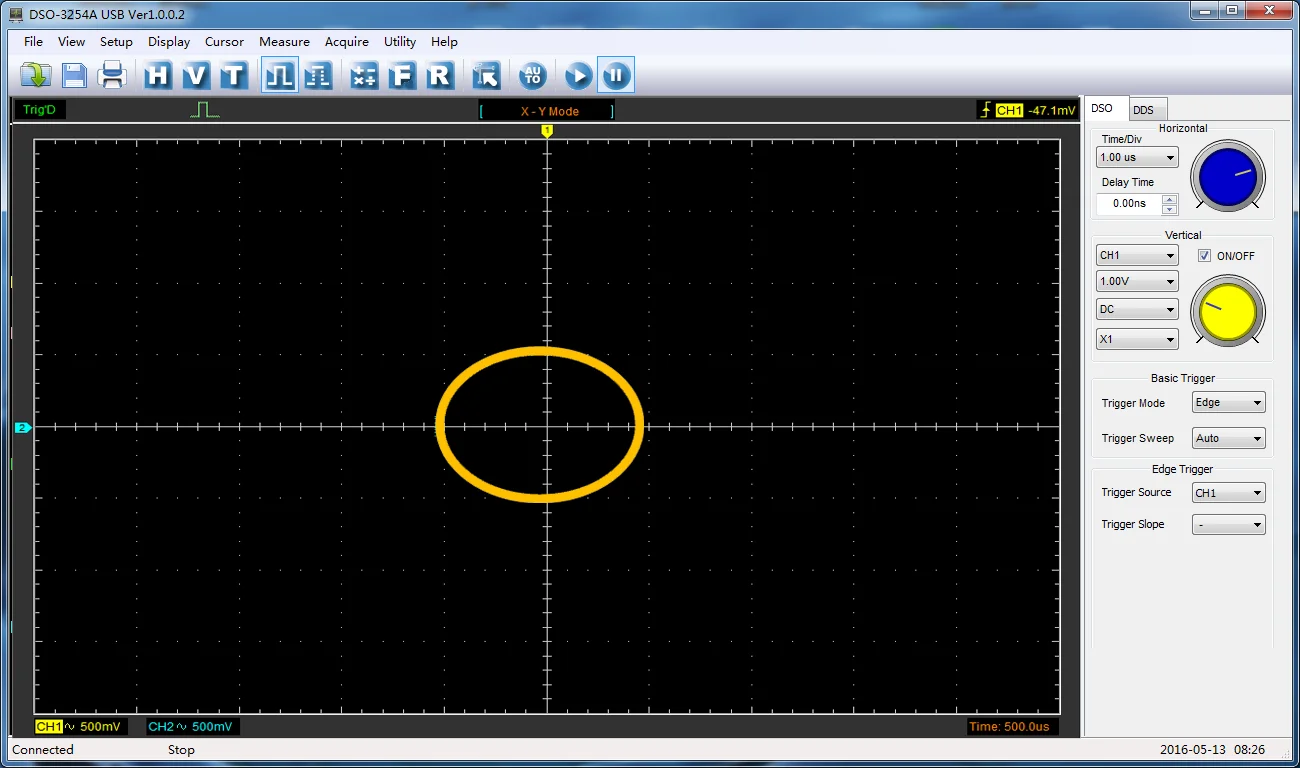

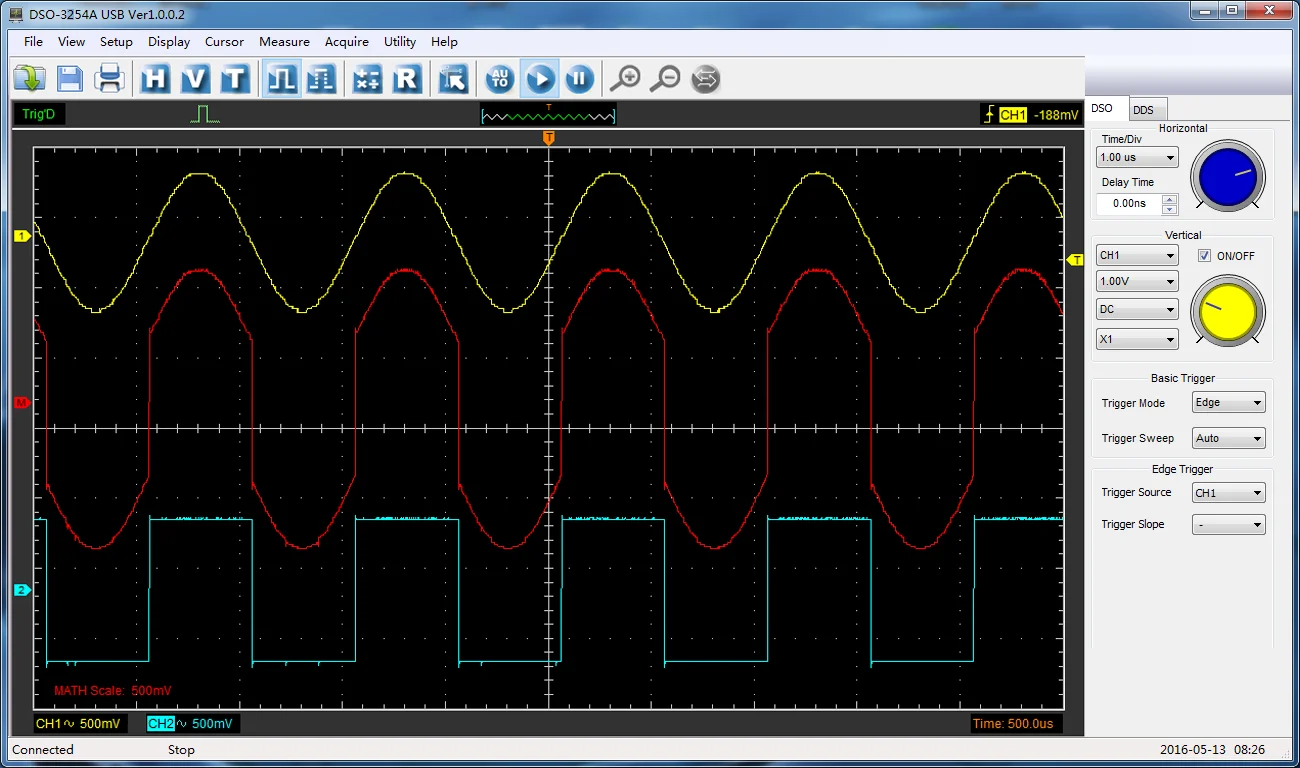

Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

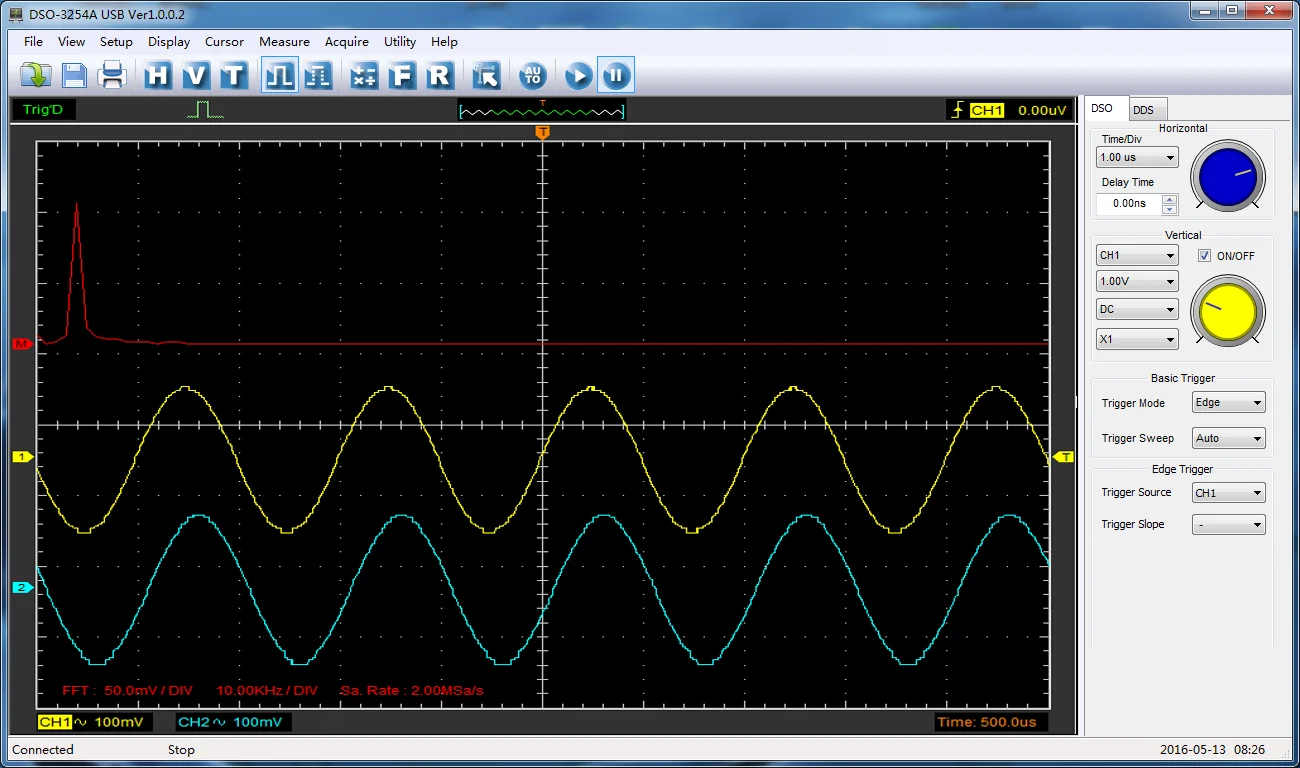

FFT spectrum analyzer

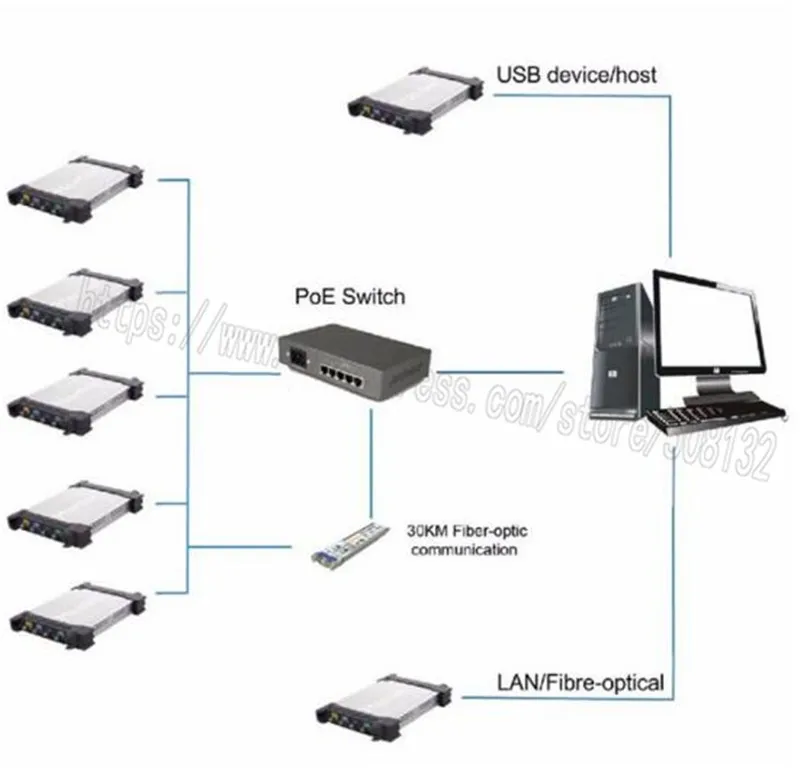

One computer could connect with multiple oscilloscopes, expand the channel number easily.

Provide secondary development library DLL; Provide Labview\VB\VC developing examples.







Notice:

The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!



Shipping:



We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can.

Standard Shipping: To USA,UK and Australia by ePacket,need 7-12 working days.

Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties.

Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.



Warranty&Reture Policy:



We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you

A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions

manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.

30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.
