1-78 PSI Auto Glue Dispenser 110V 983A PCB Solder Paste silica gel Liquid Adhesive Controller Fluid Dropper | Инструменты

1-78 PSI Auto Glue Dispenser 110V 983A PCB Solder Paste silica gel Liquid Adhesive Controller Fluid Dropper | Инструменты

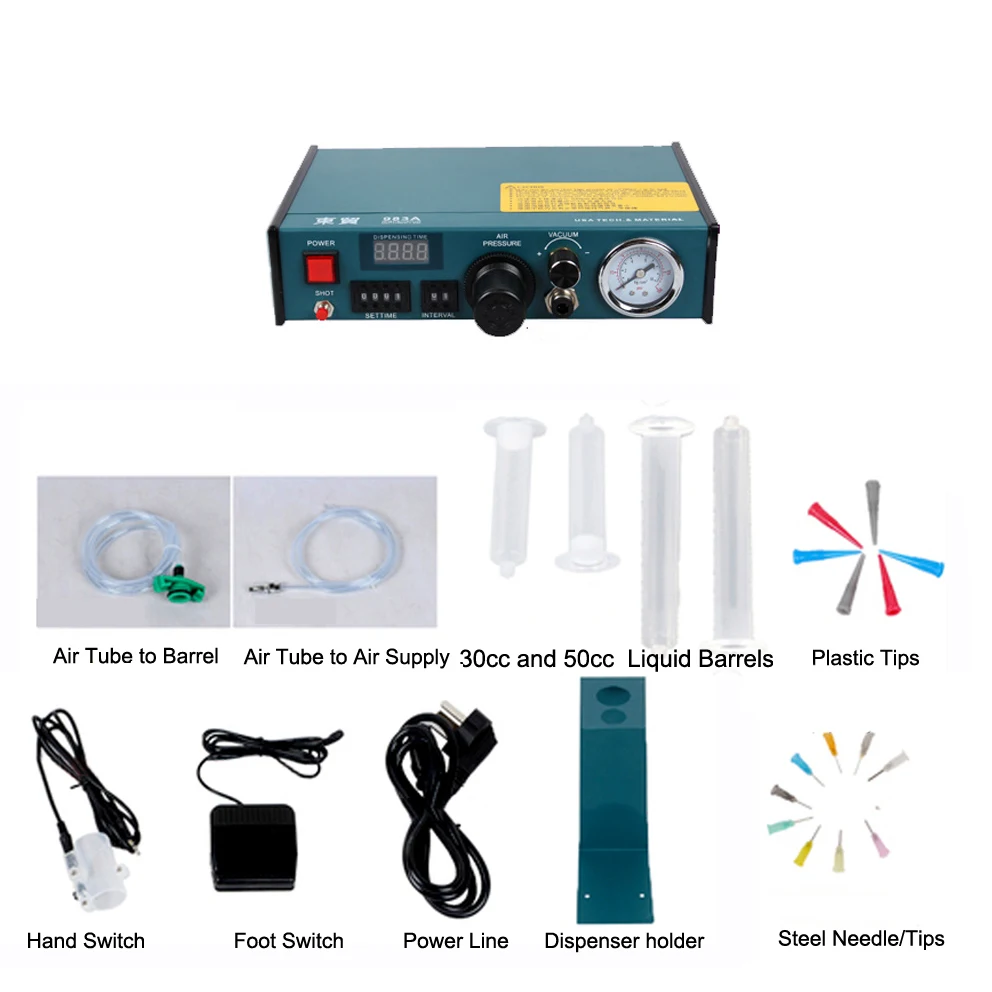

1. Packing list

　1 PCS

AD-983 Glue Dispenser

　1 PCS

Foot Switch

　1 PCS

Dispenser Holder

　2 PCS

30cc Liquid Barrels

　2 PCS

50cc Liquid Barrels

　9 PCS

Steel Needle/Tips

　5 PCS

Plastic Tips

　1 PCS

Air Tube to Barrel

　1 PCS

Air Tube to Air Supply

　1 PCS

Hand Switch

　1 PCS

Power Cable

2. Features

•Digital timed air dispenser plus the function of cycle dispensing and time display.

• Built in high-performance electronic valve to ensure the stability of pressure

• Manual or timer operation modes

• Foot pedal controlled

• Suck-back feature ensure no dripping

• Complete with an accessory dispensing kit

• Timer mode dispensing time 0.01-99.99 seconds

• Manual mode, materials could be dispensed continuously until operator release the foot pedal

• This unit need to be connected to air compressor (1.5HP or above)

3. parameters

Timer

Programmable

0.01~99.99s

Cycle Initiation

Maintained or momentary pedal

Repeat Tolerance

±0.5%

Voltage Input

110VAC

Intemal Voltage

12V DC

Minimum Deposit

0.01ml （0.00000264 gal）

Air Input

0.7~7 bar (10~100 psi)

Air Output

0.1~5.5 bar (1~78 psi)

Gluing modec

16 type for choice

Size

235x225x63mm

Machine Weight

2.2 kg (4.9 lbs)

Gross Weight

2.9 kg (6.4 lbs)

4. Applications

Applied Range

Adhesives

Silica gel

Damping oil

Grease

Adding epoxy adhesive

Solidified covering agent

Anaerobic adhesive

Solder resist

Chemical Reagents

Ink

Scaling powder

Paint

Cubond

Tin paste

Organic silicone

Fiber paint

Adhesive

Dropping liquid

Conductivity

Solvent

5 Pictures
