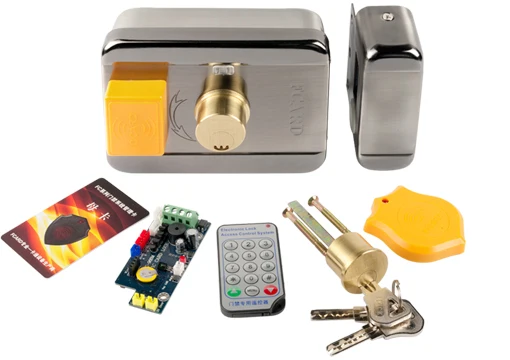

This is a new generation of multi-purpose smart card access control security locks products, using the latest reader recognition technology, combined with efficient access control system from research and development to support Mifare. the second generation ID card, residence permit, encryption IC card as an electronic key, can be networked three management management, offline management, remote control and so on. Built-in large memory support 80Krecords and 20K black and white list, the machine used to write off the card issuers mode, the number of registered personnel unrestricted.

Function:

Support two card reading antenna (come in and go out);

Support 1 voice speakers;

Supports infrared programmer;

Support 1 switch ;

Support 1 door magnetic switch ;

Support 1 door control output;

Support 1 alarm output ;

Support 1 fire alarm input ;

Support 1 police input;

Support 1 RS485 communication port ;

Support data initialization jump line;

Support the communication of linkage interface;

Support 4 button remote controller (A key: open the door, B key: protection, C key: removal key lock/unlock, D key: lock).

Model: FCL-988M

Power supply: DC12V/900MA

Reader Frequency: 13.56MHZ

Reading distance:0-6CM

Networking: RS485

Temperature : -5 ° to 55°

Humidity: 20-95%

Record capacity: 80K

User Capacity: 20K black and white lists (offline

card, users unlimited number)

Wiring Diagram:

FCL-988M Communicaton Wiring Diagram:

FCL-988M Internet Struture:
