3d good accurancy 1325 1530 woodworking carving cnc router machine with DSP | Инструменты

    3d good accurancy 1325 1530 woodworking carving cnc router machine with DSP   Applications This machine is specially designed for home furniture,such as bed, cabinet, windows, doors and indoor decoration. It can also work for many kinds of products,for example:
1) Mould: wood,wax, wood, gypsum,foams,wax.

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

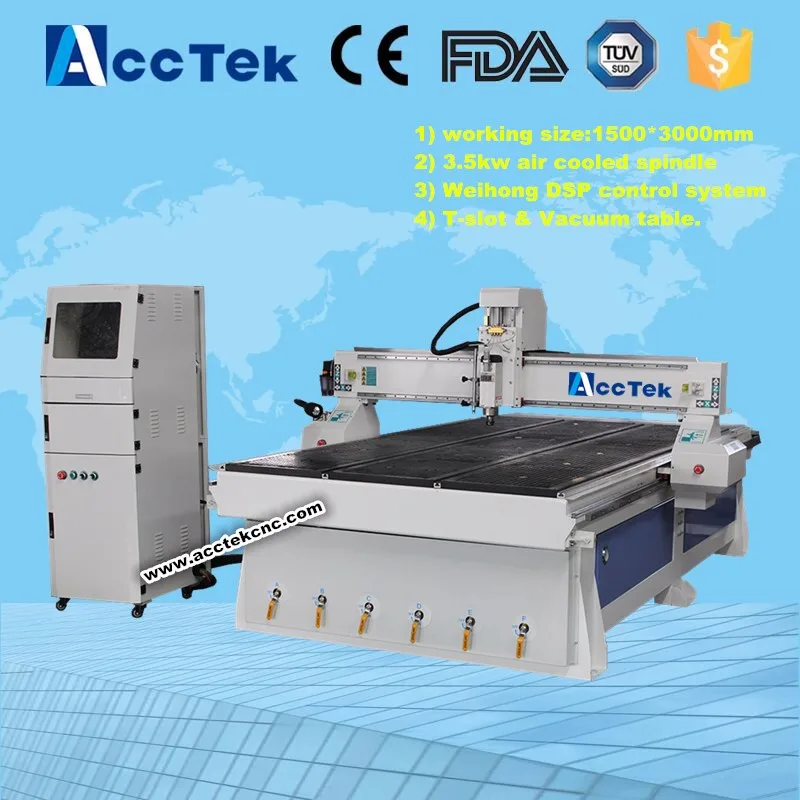

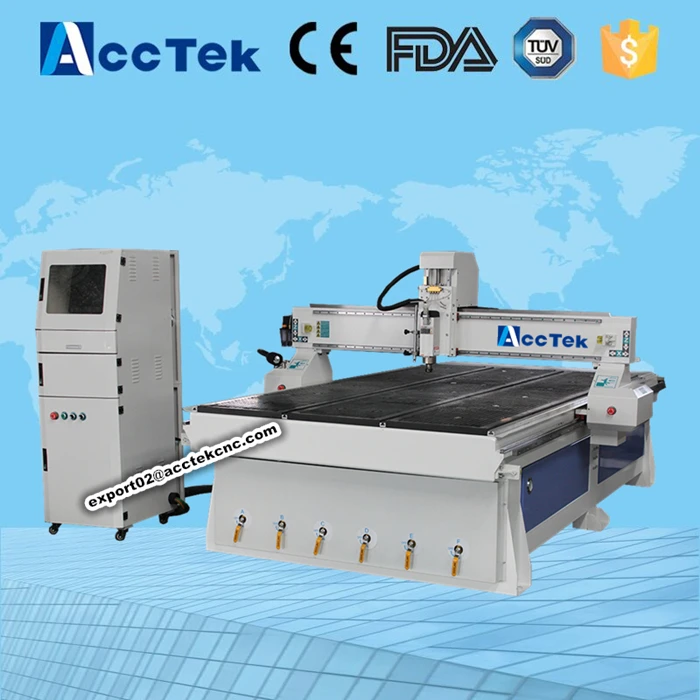

5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Machine Images Technicial Parameter Working area 1500x3000x200mm Spindle type Chinese/Italy HSD air cooled spindle / Water cooled spindle Spindle power 3.0kw / 3.5 kw / 4.5kw / 5.5kw Spindle rotating speed 0-24000rpm / 0-18000rpm Transmission  X,Y axis use guide rail and rack, Z axis use TBI ball screw and guide rail. Power supply AC220V/380V±10, 50 HZ Worktable T-slot / Vacuum working table Locating precision <0.01mm Min shaping character Character:2x2mm,letter:1x1mm Operating temperature 5°C-40°C Working humidity 30%-75%(without condensed water) Working precision ±0.03mm System resolution ±0.001mm Control configuration Mach3 control system / DSP optional Data transfer interface PC System environment Windows XP/ Windows 7 Spindle cooling mode Air cooling / water cooling for optional  Graphic format supported G code: *.u00, * mmg, * plt, *.nc Compatible software ArtCAM, UCANCAM ,Type3 and other CAD or CAM softwares Cutting thickness 0-40mm also (depends on different material) Z tool censor Yes Packing Customized Plywood case Detailed Images Installing Details Working samples Delivery Note



The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.

After you agree, please finish the balance payment. Finally.we arrange the delivery. (The package is standard export plywood,customized for every size machine.)





About AccTek     Our Service Our Business is To Improve Your Business !!!   1.1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.    2.Lifetime maintenance free of charge.    3.Free training course at our plant.    4.We will provide the consumable parts at an agency price when you need replacement.   5.24 hours on line service each day, free technical support.  6.Machine has been adjusted before delivery. 7.Our staff can be sent to your company to install or adjust if necessary.

*** Why choose we AccTek>>>



1. Our Business is To Improve Your Business !!!

2. We know your language,could supply you very good communication!

3. We focus on machine quality with sincere and integrity!

4. We win with good after sale service!

5. We care our reputation,so we will surely keep what we promise!



Buyer Feedback

If you like it, welcome to send message to me freely, I will reply ASAP !



Contact Information:

Jenny Yin | Sales Manager

Whatsapp&wechat: +86-18353150175 | Skype: acctek02

Email: export02 "at" acctekcnc.com

Jinan AccTek Machinery Co.,Ltd | W: www.acctekcnc.com

***Pls pay attention:  Don't pay on Aliexpress directly,becs with different configurations,the machine price is also different. Pls contact with us in advance and then let's confirm if the machine is suitable for you. Thanks for your cooperation very much.
