dm 800 hd se-C wifi sim internal 2.5" HDD DVB-S2 cable receiver 400mhz processor set top box dm800 se free shipping

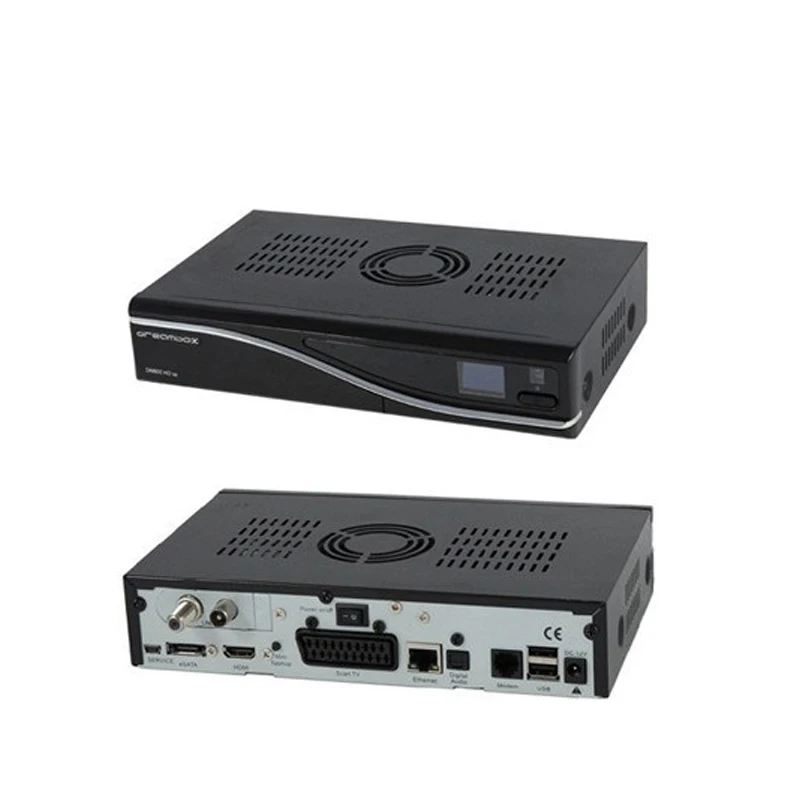

1.DM800HS SE-C PICTURE

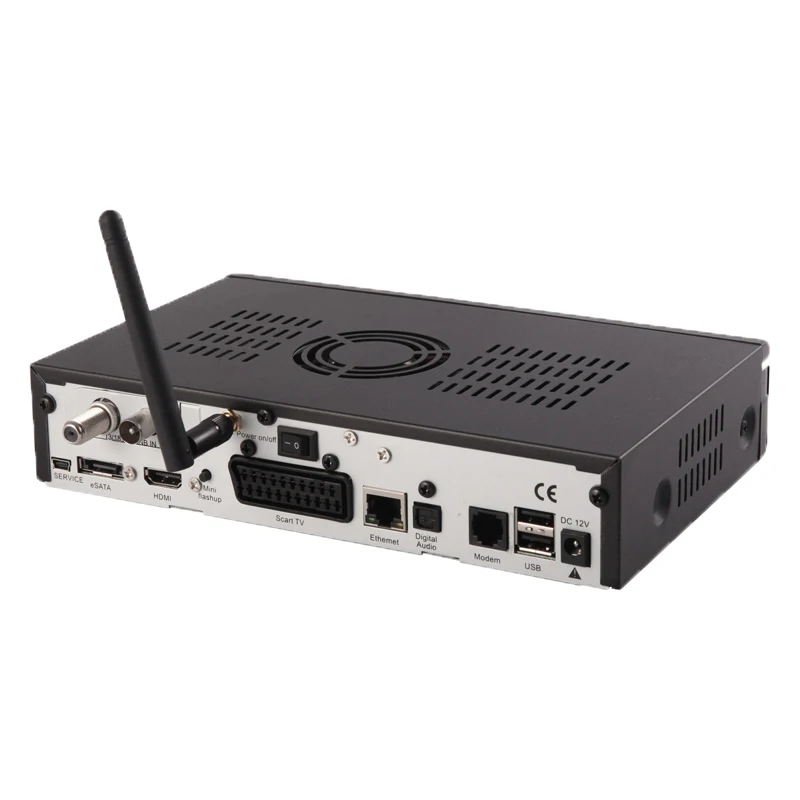

2.DM800HS SE-C WIFI PICTURE

Main features are a 400 MHz processor the 800 HD SE supports the Linux TV API

Have a look to HighDefinition TV on your 800se

· 10/100MBit compatible Ethernet Interface

· HDMI connector

· plug & play Tuner

· colored OLED display

· SATA for use either as internal HDD 2,5“ or eSATA

800HD se Technical Data

DBS-Tuner mit DVB-S2:

Frequency Range  950-2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 - 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10- 31 Mbaud/s (8PSK) , 10 ?30 Mbaud/s (QPSK)

Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.264
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink

Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

Mini USB service connector:
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

Analoge modem:
analoge modem for Internet connection

SATA Interface:
for internal 2.5" HDD

USB: 2 x USB 2.0

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption: < 15W at 12V

External PSU
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 3,0A

Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 225 mm x 145 mm x 52 mm
Weight: 940 g  without HDD

·  400 MHz MIPS Processor

·  Enigma 2, Linux Operating System

·  colored OLED - Display

·  MPEG-2 / H.264 Hardware decoding

·  Tuner: DVB-S, optional: DVB-C, DVB-T

·  Tuner Module, Plug&Play

·  2 x Smartcard-Reader (Dreamcrypt CA)

·  Mini USB for Service and software update

·  10/100Mbit Ethernet Interface

·  1 x Scart (RGB, FBAS or S-Video)

·  HDMI

·  2 x USB 2.0 (e.g keyboard)

·  analog modem

·  S/PDIF Interface for digital bit stream out (AC-3)

·  64 MByte Flash, 256 MByte RAM

·  SATA
 - for internal HDD 2,5

·  unlimited channel lists for TV/Radio

·  channel-change time < 1 second

·  automatic service scan

·  directly bouquet-lists

·  EPG (electronic program guide)

·  multiple LNB-Switching control (supports DiSEqC)

·  OSD in many languages and skin-support

·  Videotext Decoder

·  extern 12V power supply

·

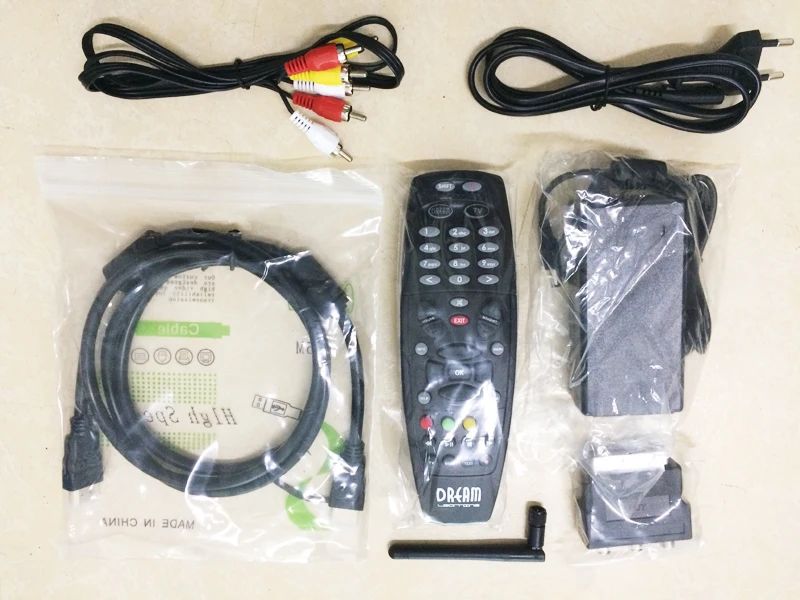

Package :

1pcs 800se cable receiver box OR 1pcs 800se wifi cable receiver box

1pcs hdmi-hdmi cable

1pcs remoter controller

1pcs power supply 3A (EU/US/AU plug)

1pcs av cable

1pcs scart covert
