Everyone have their own style and every machine is unique!
Contact me freely at email or Whatsapp to make your own style machine with best price!!

Skype: acctek09
Email: export09(at)acctekcnc.com
WhatsApp: +8618560922697

 Related products show

- CNC Router 6090 Parameter

X,Y,Z Working Area

600x900x200mm

Table Size

1270x870x710 mm

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

X,Y,Z repositioning Accuracy

±0.03mm

Table Surface

T-slot Extrusions with water channel optional

Frame

Cast Iron

X, Z Structure

TBI Ball Screw

Y Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption (Without spindle)

3KW

Max. Rapid Travel Rate

4000mm/min

Max. Working Speed

2000mm/min

Spindle Power Motor

1.5KW / 2.2KW

Spindle Speed

0-24000RPM

Drive Motors

Stepper System

Working Voltage

AC220V/50/60Hz

Command Language

G code

Operating System

Mach3 / DSP

Interface

USB

Flash Memory

128M( U Disk)

Collet

ER20/ER11/ER16

X,Y Resolution

<0.01mm

Software Compatibility

Type3 / Ucancam / Artcam

Running Environment

Temperature: 0°C~45°C
Relative humidity: 30%~75%

- Features of 6090 CNC Router

1,Advanced Control System
Mach3 or Advanced DSP numerical control system and large liquid crystal display brings out much convenient operation and simpler maintenance.
Special intelligent pre-calculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.

2,Large Memory and Perfect Data Transmission
Large internal memory of 32M is enough to simultaneously store more than 30 processing files which can be read freely.
Apply USB interface (plug and play) to communicate with computer under the system of win98/NT/2000/XP, which can instantly complete transmission.

3,Powerful Compatibility
Internationalized directives ensure that it is compatible with CAD / CAM software like type3/ artcam/ castmate/ proe/ UG/ Artcut etc, home and abroad.


4,Intelligent and Humanized Design
Intelligent control of spindle makes it able to auto-start and auto-stop, which is more safely, convenient and power-saving.

5,Powerful Diamond Drill
Powerful frequency changing spindle enables the machine to cut organic glass of 30mm~50mm thick in one cut.

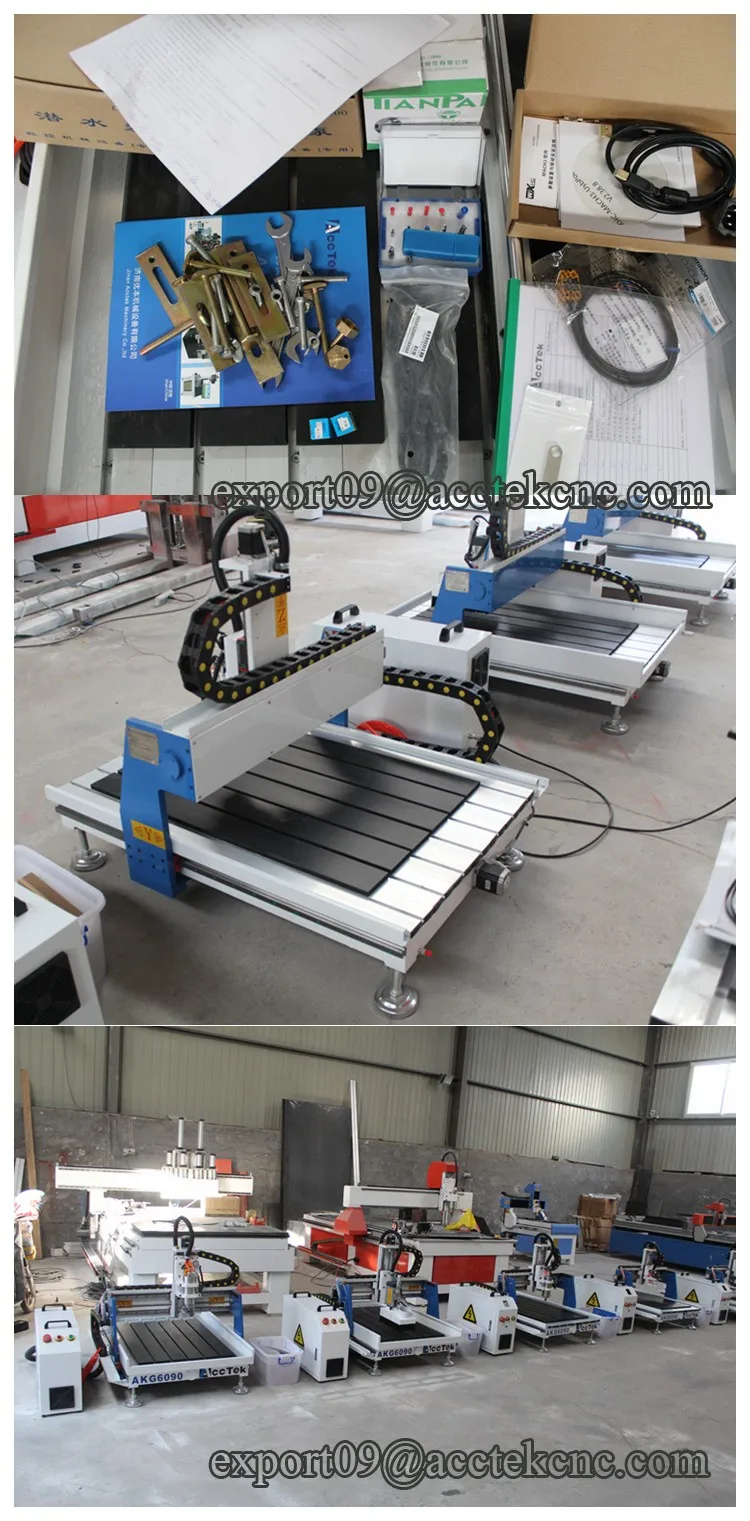

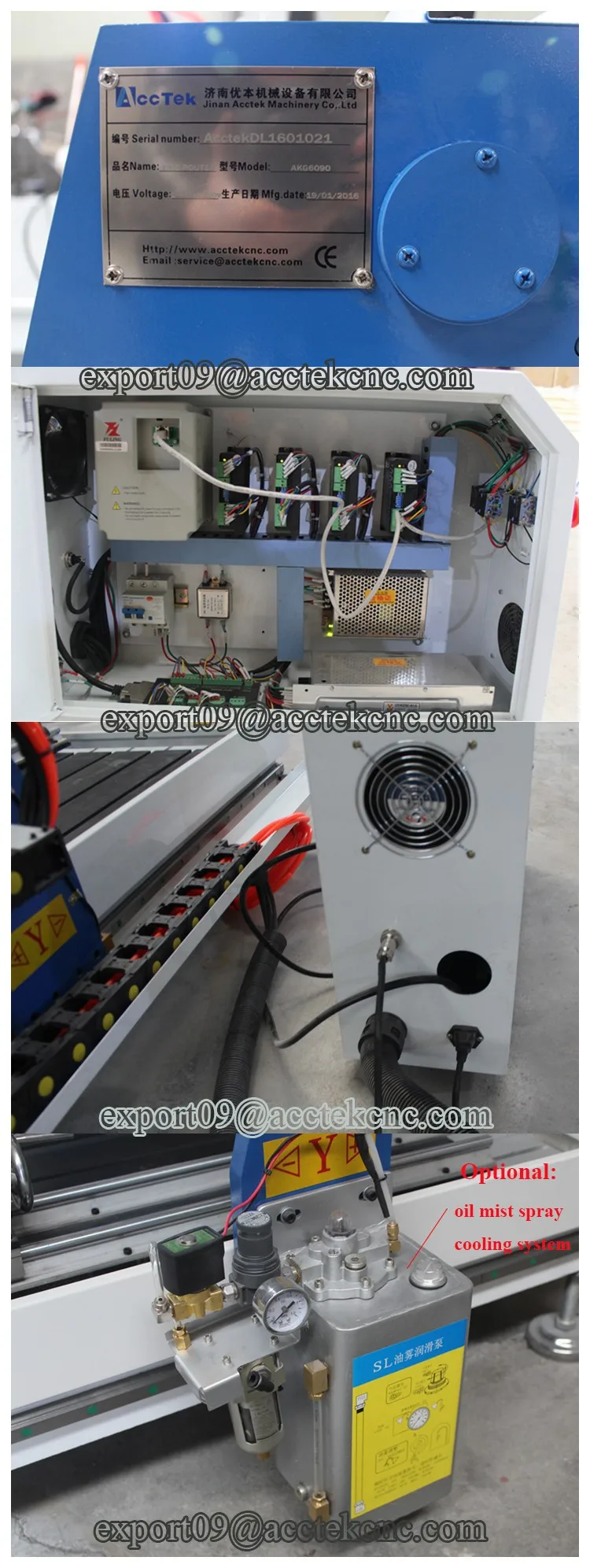

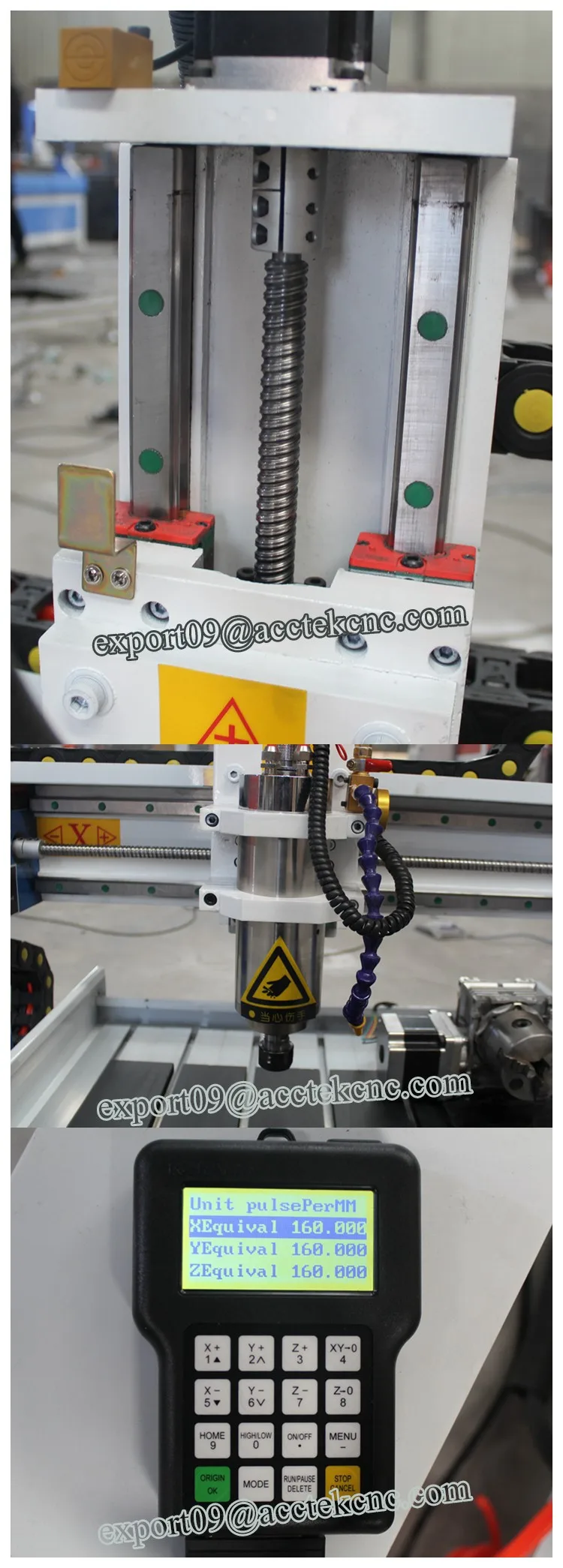

- Detail picture of cnc router 6090

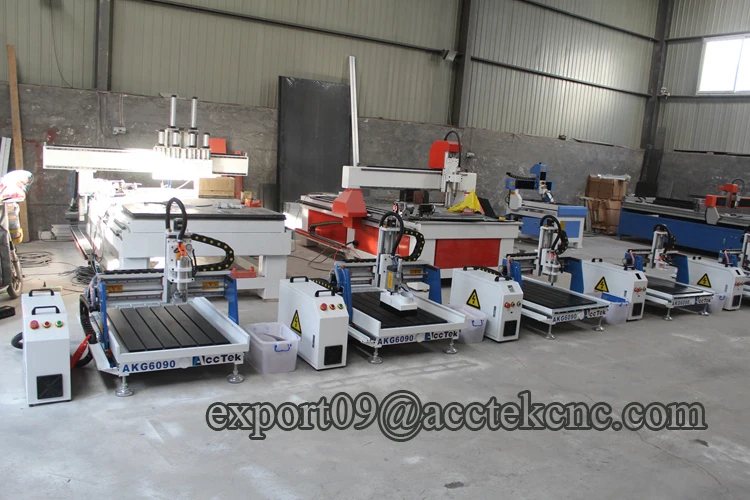

- Samples of CNC Router 6090

- After sale service of CNC Router

-1years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

-Lifetime maintenance free of charge.

-Free training course at our plant.

-We will provide the consumable parts at an agency price when you need replacement.

-24 hours on line service each day, free technical support.

-Machine has been adjusted before delivery.

-Our staff can be sent to your company to install or adjust if necessary.
